发电机

CF-12199N-A

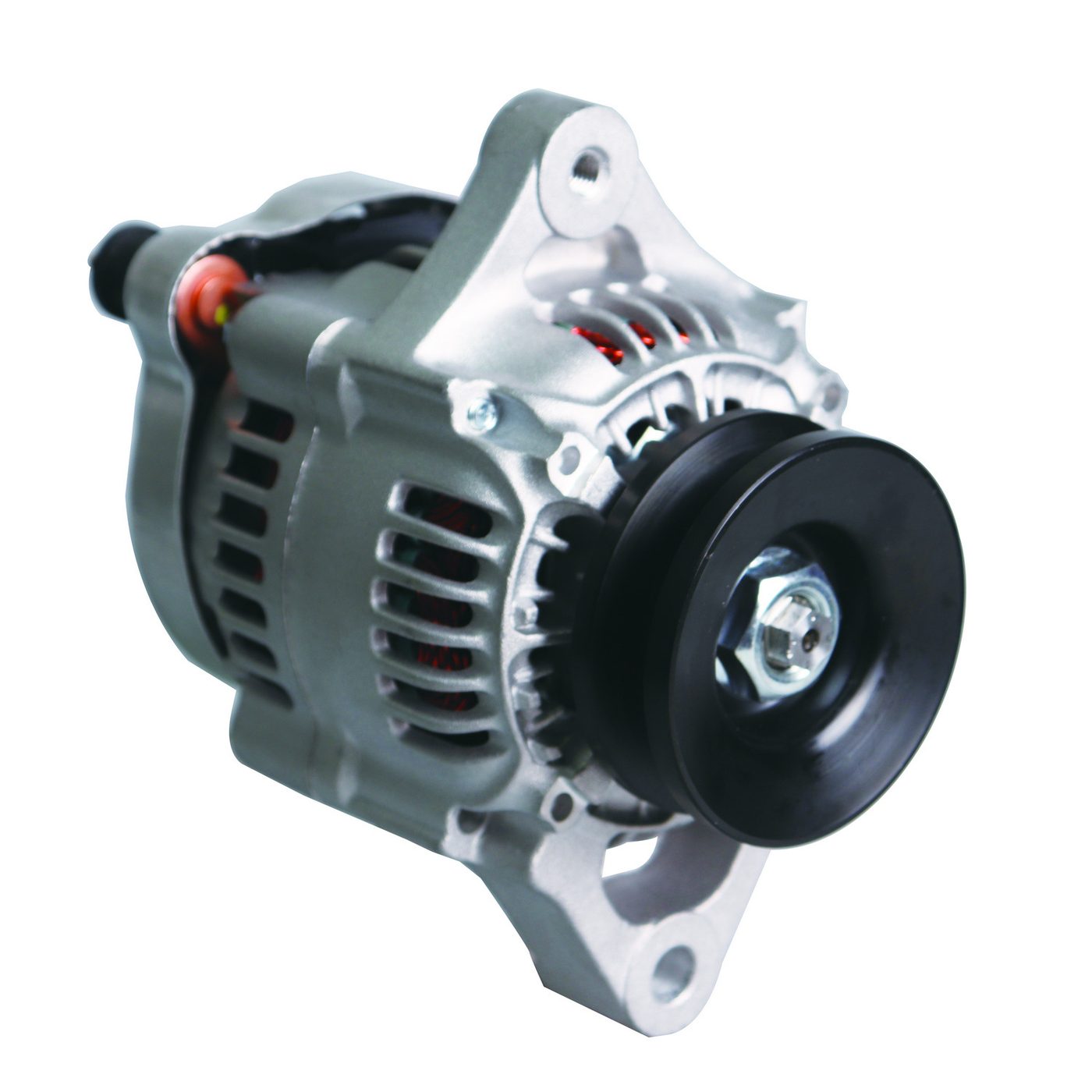

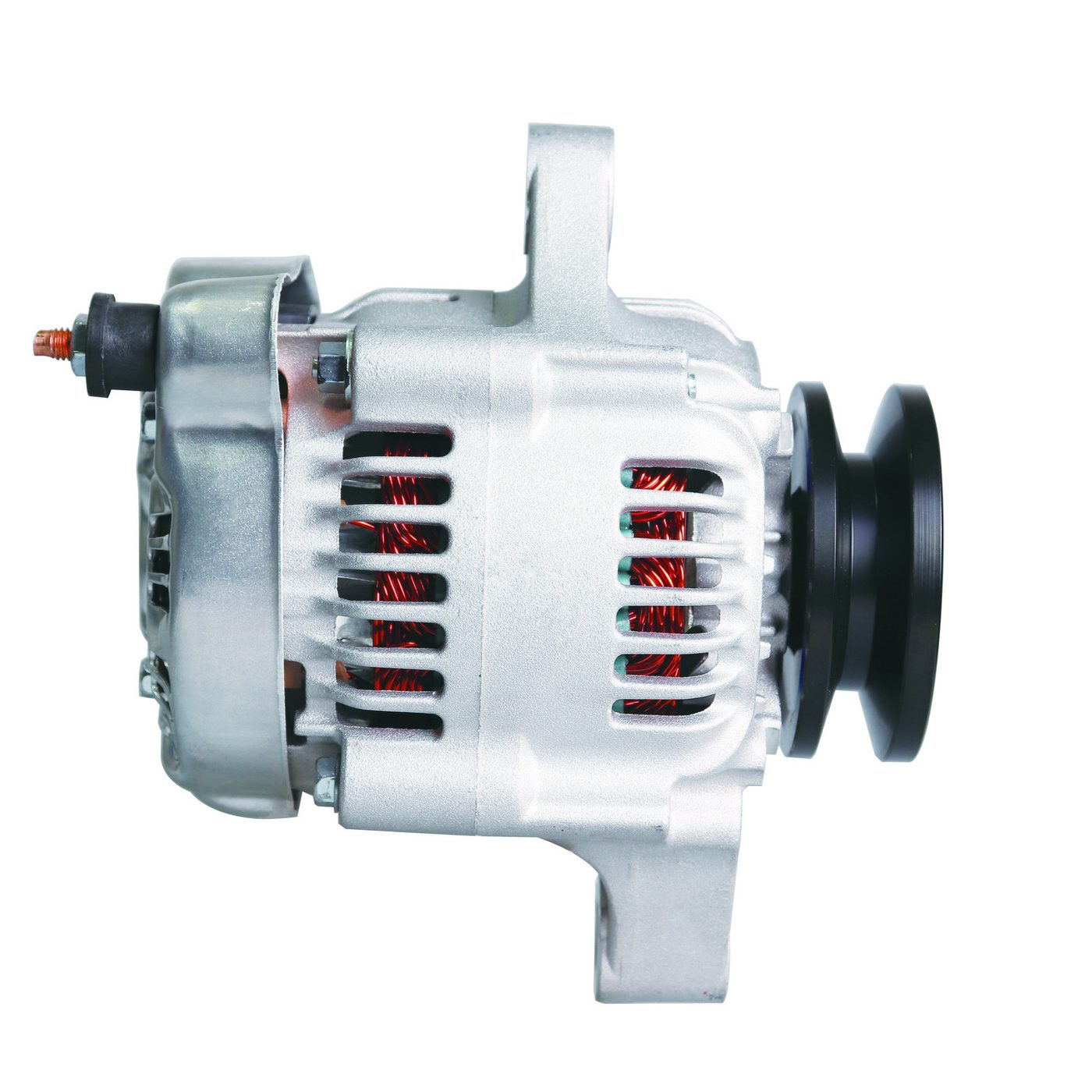

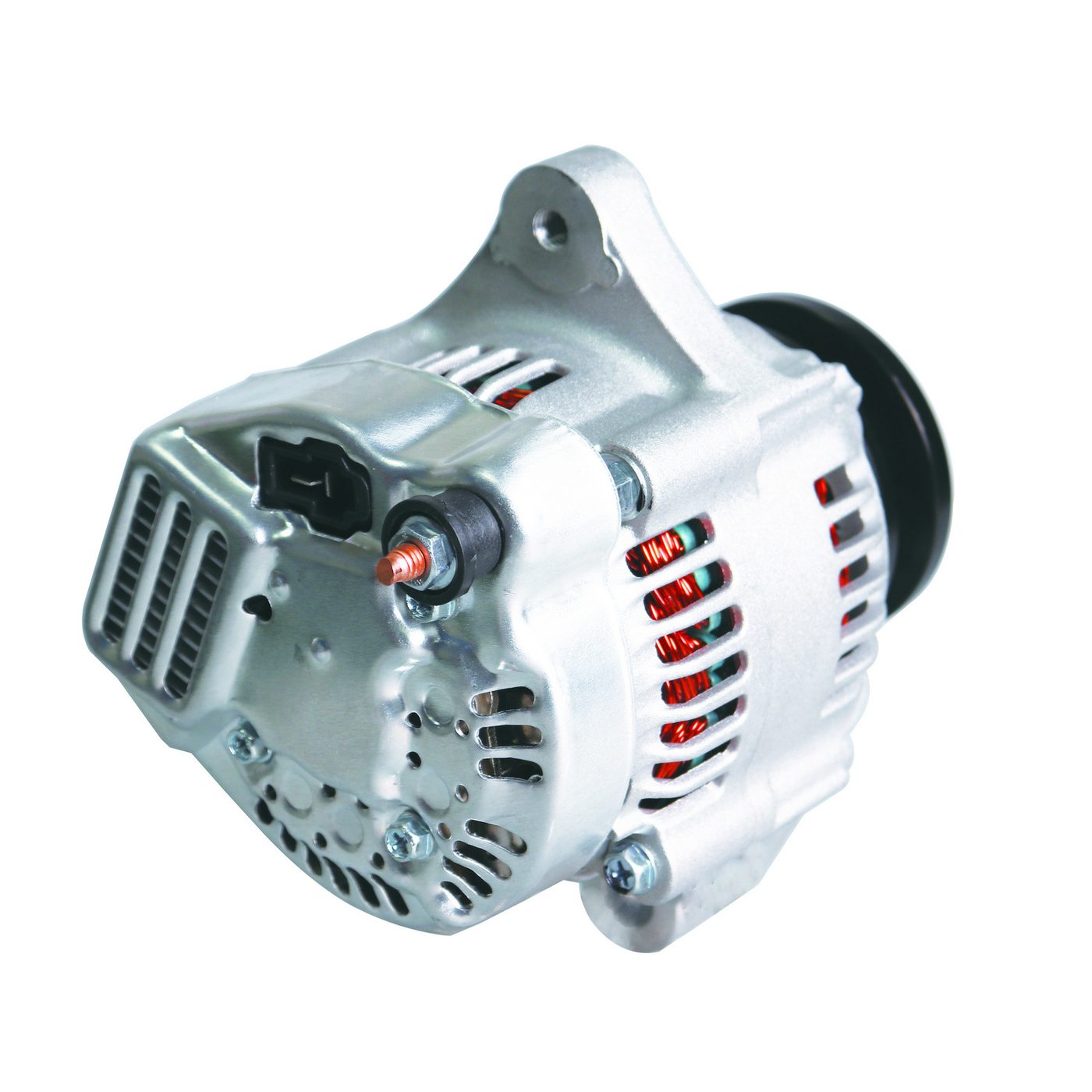

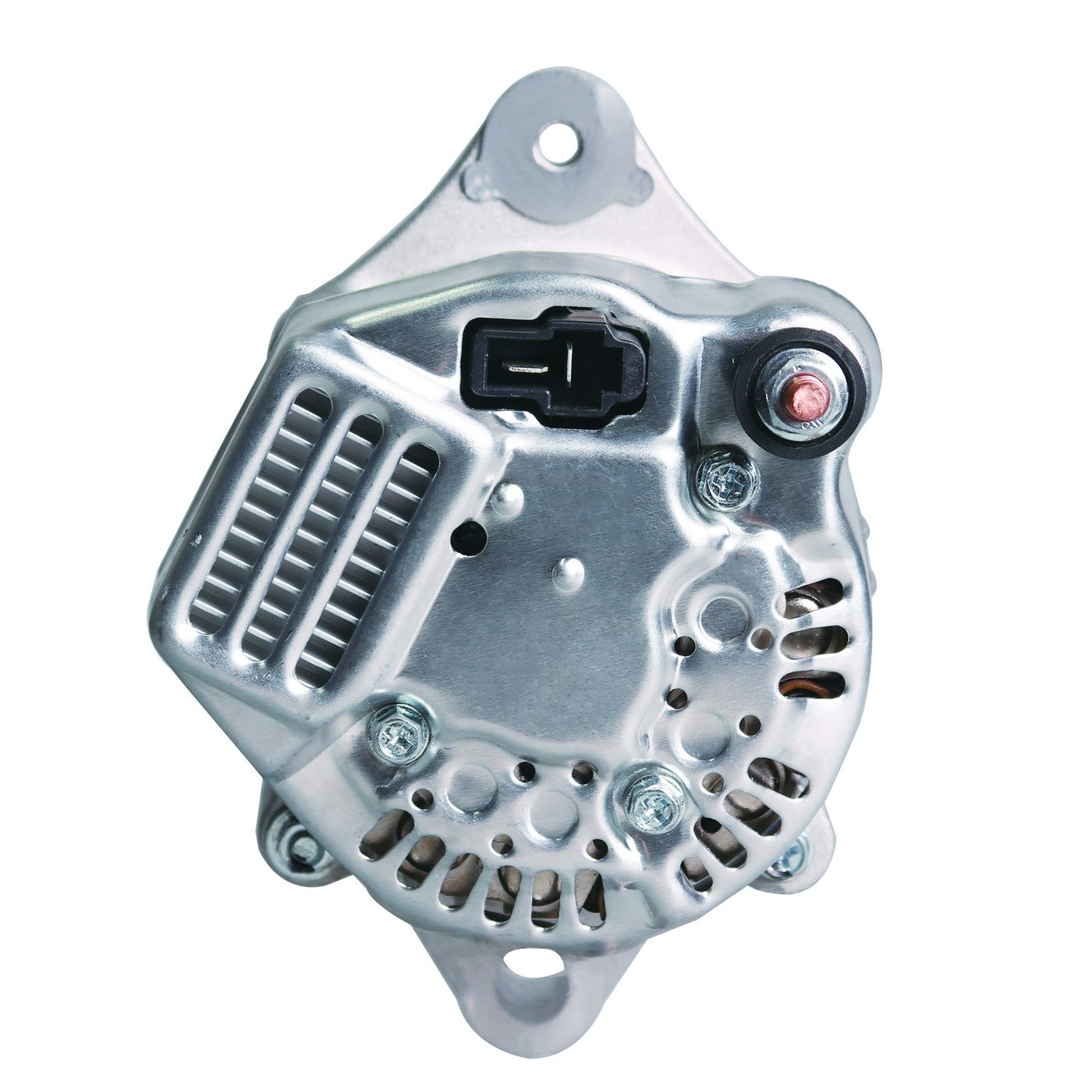

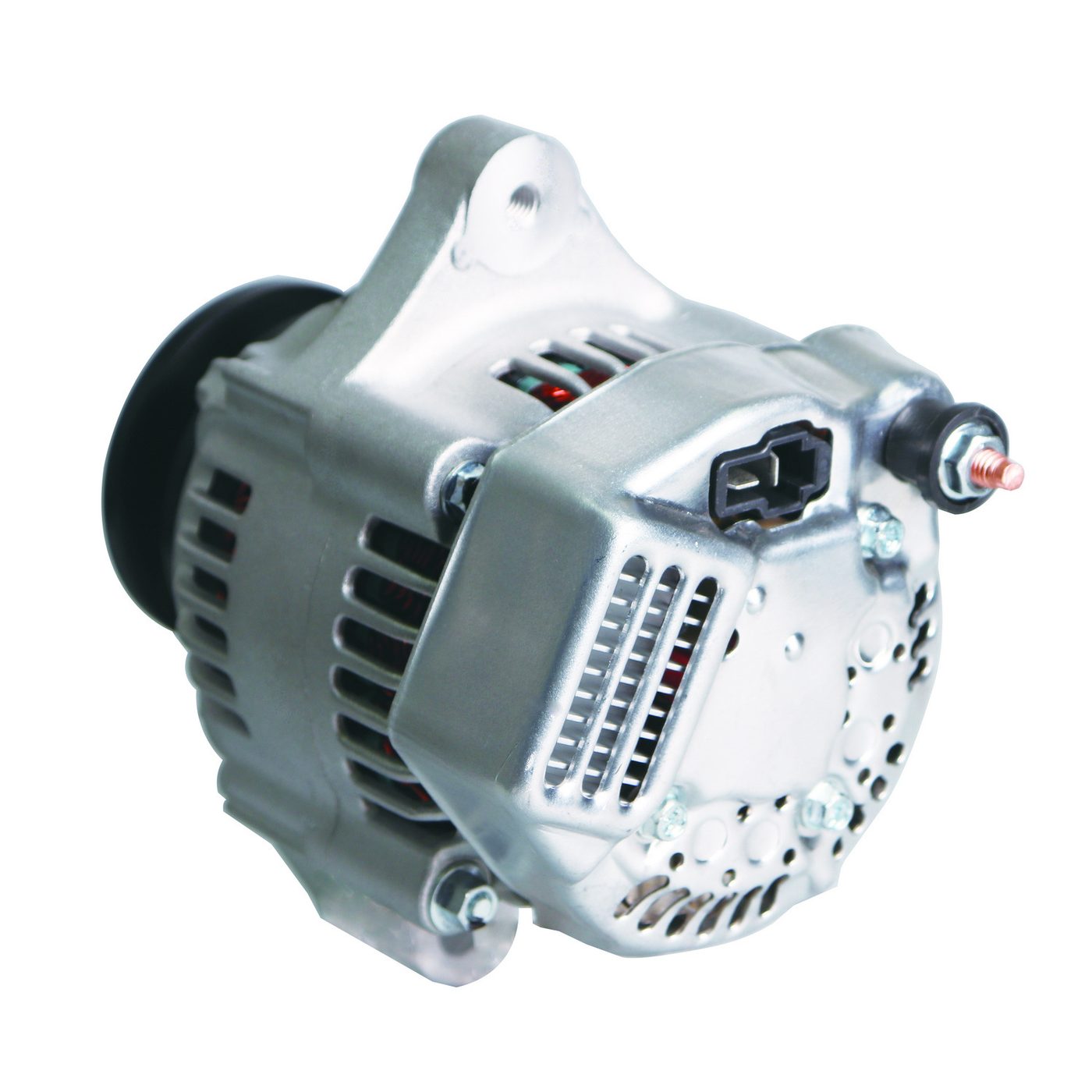

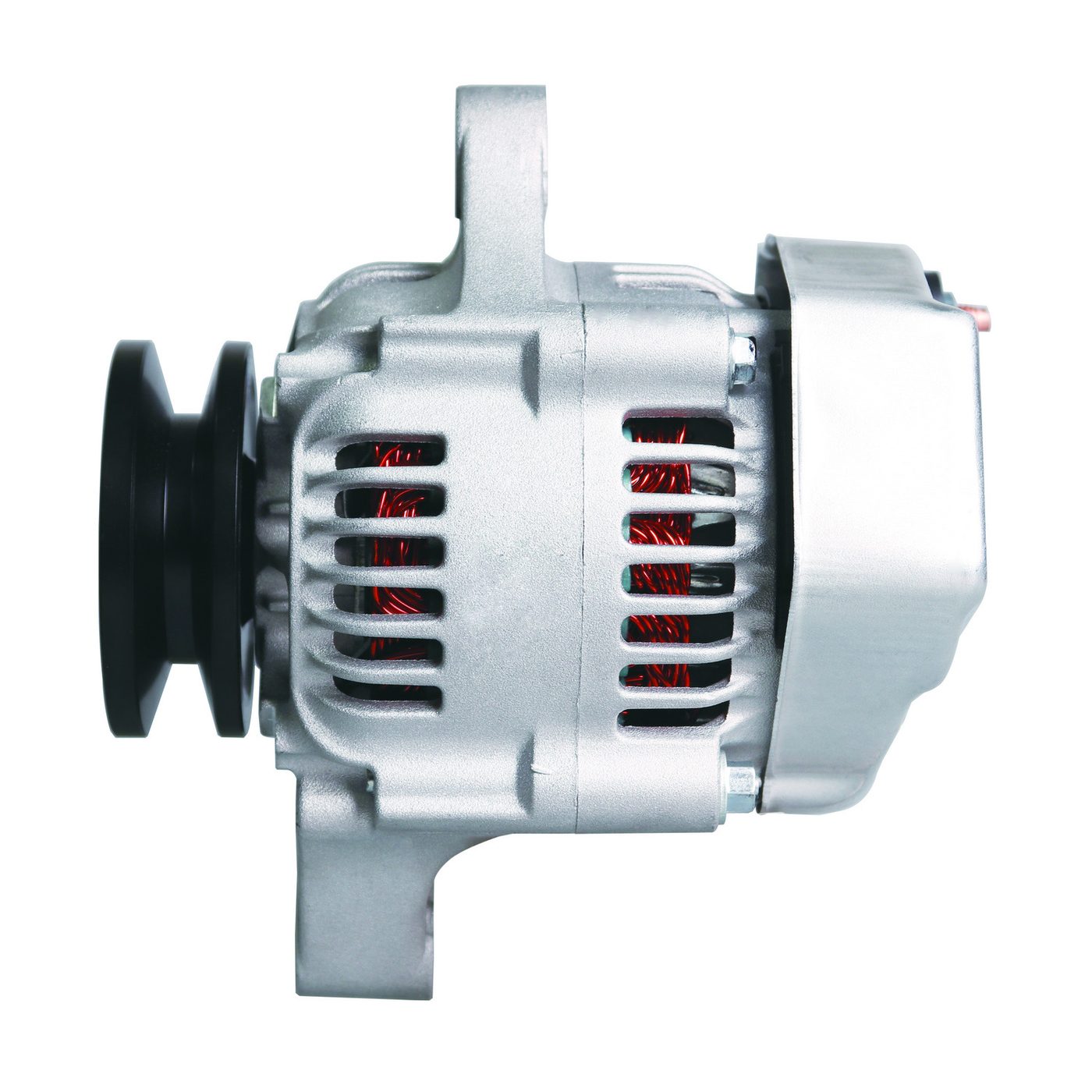

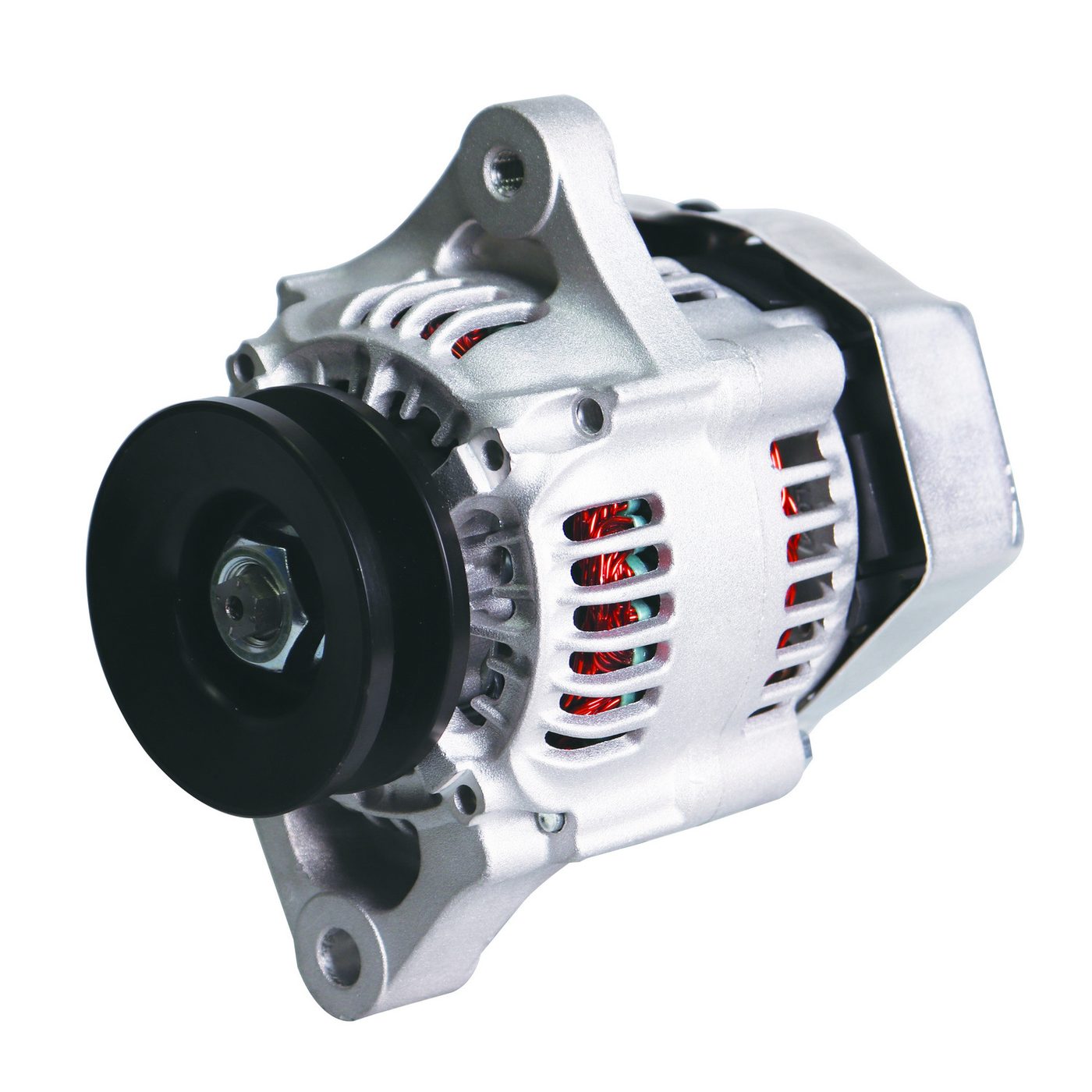

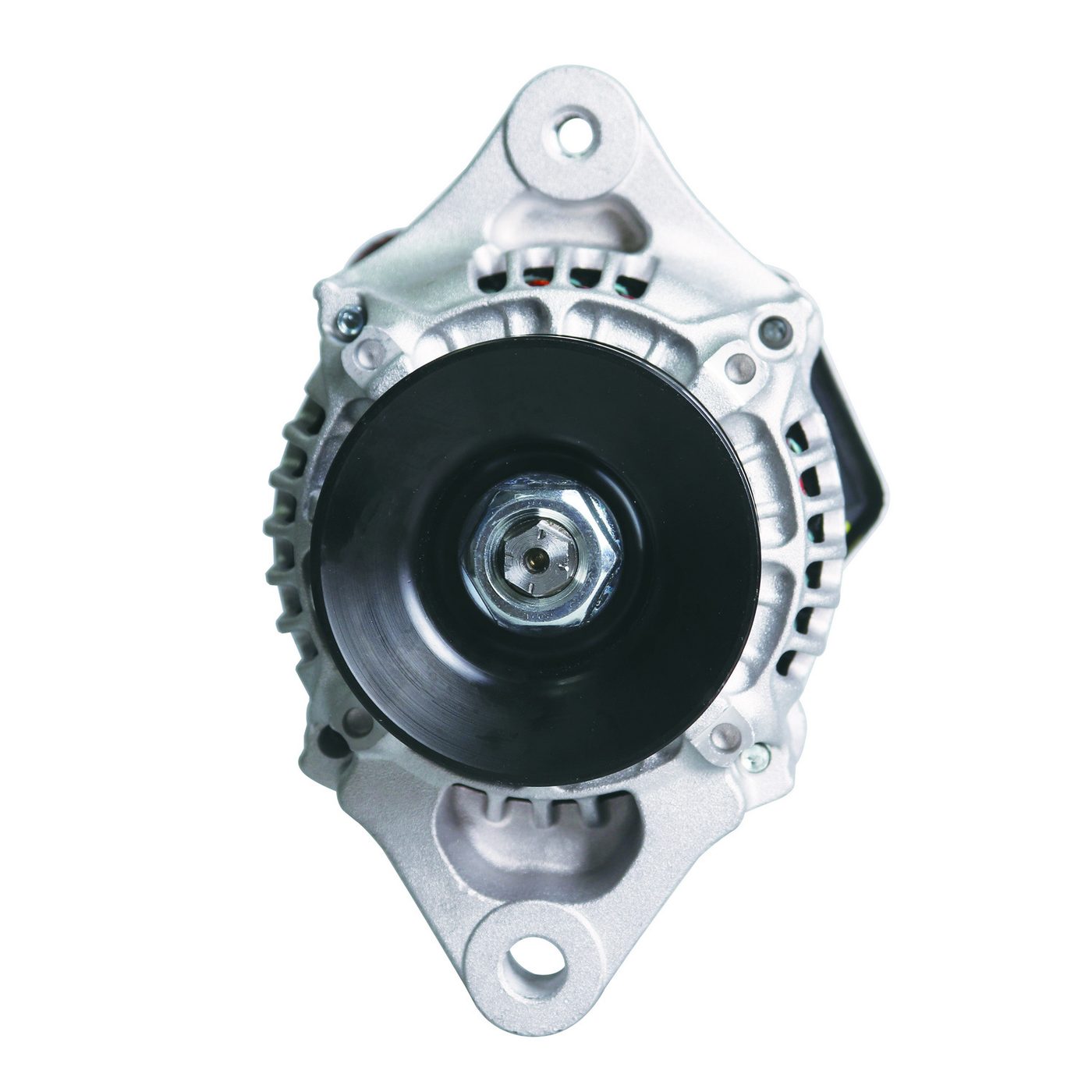

Name: CF-12199N-A Agricultural Machinery Alternator
Brand: Crankvia
SKU: CF-12199N-A

CF-12199N-A alternator for Case Maxi-Sneaker, Gehl SL3825, Kubota B1550DT and related applications (12V / 40A / V1).

品牌

规格参数

电压	12V
Amperage	40A
Pulley Class	V1
Regulator/Fan	IR/IF

产品特性

Part No	CF-12199N-A
MFR	DENSO
Lester 号	11952, 12199, 12348
OE 编号	Bobcat 6683144, Chengdu Huachuan Denso Co., Ltd. (CHCD) CLA12504, CLA12604, Denso 100211-4650, 100211-4770, 100211-4771, 100211-4774, 101211-1480, 101211-1481, 101211-1482, 101211-1483, Kubota 16495-64010, 16495-64011, 16495-64012, 16495-64013, 34070-75600, 34070-75601, 34070-75602, 34070-75603, 5H730-42500, 5H730-42501, 5H730-42502, 5H730-42503, 5H730-42504, Toro 98-9474, Valeo 436497
部件类型	Alternator
结构	IR/IF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-12199N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR DENSO 以及 11952, 12199, 12348 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-12199N-A

记录数

品牌数

车型数

年份范围

1988-2009

品牌	车型	年份	发动机	备注
Case	Maxi-Sneaker	1993-2001	Kubota V1505-B Dsl	-
Gehl	SL3825	1992-2007	Kubota V1305E	-
Kubota	B1550DT	1988-1996	Kubota D850-5B 17HP Dsl	-
Kubota	B1550DTEX	1988-1996	Kubota D850-5B 17HP Dsl	-
Kubota	B1550HSD	1988-1997	Kubota D850-5B 17HP Dsl	-
Kubota	B1550HSDT	1988-1997	Kubota D850-5B 17HP Dsl	-
Kubota	B1550HSE	1988-1996	Kubota D850-5B 17HP Dsl	-
Kubota	B1750DT	1988-1996	Kubota D950-5B 20HP Dsl	-
Kubota	B1750E	1988-1996	Kubota D950-5B 20HP Dsl	-
Kubota	B1750HSD	1988-1996	Kubota D950-5B 20HP Dsl	-
Kubota	B1750HSDT	1988-1996	Kubota D950-5B 20HP Dsl	-
Kubota	B1750HSE	1988-1996	Kubota D950-5B 20HP Dsl	-
Kubota	B2150DT	1988-1996	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150DTB	1988-1996	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150E	1988-1996	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150HSD	1988-1998	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150HSDT	1988-1998	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150HSDTB	1988-1998	Kubota V1200-5B 24HP Dsl	-
Kubota	B2150HSE	1988-1996	Kubota V1200-5B 24HP Dsl	-
Kubota	B2400HST-D	1995-1998	Kubota D1105-D10 24HP Dsl	-
Kubota	B2410HSD	1995-1998	Kubota D1105-D10 24HP Dsl	-
Kubota	KX121-2	1995-2003	Kubota V2203BH 42.6HP Dsl	-
Kubota	KX121-2S	2000-2008	Kubota V2203EBH 42.6HP Dsl	-
Kubota	KX161-2	1995-2003	Kubota V2203BH 42.6HP Dsl	-
Kubota	KX161-2S	2000-2008	Kubota V2203EBH 42.6HP Dsl	-
Kubota	L2900DT	1994-1998	Kubota D1503LA 32HP Dsl	-
Kubota	L2900DTGST	1994-1998	Kubota D1503LA 32HP Dsl	-
Kubota	L2900F	1994-1998	Kubota D1503LA 32HP Dsl	-
Kubota	L2900GST	1994-1998	Kubota D1503LA 32HP Dsl	-
Kubota	L3010DT	1998-2002	Kubota D1503LAN 32HP Dsl	-
Kubota	L3010F	1998-2002	Kubota D1503LAN 32HP Dsl	-
Kubota	L3010GST	1998-2002	Kubota D1503LAN 32HP Dsl	-
Kubota	L3010HST	1998-2002	Kubota D1503LAN 32HP Dsl	-
Kubota	L3300DT	1994-1998	Kubota D1703-A 35HP Dsl	-
Kubota	L3300DTGST	1994-1998	Kubota D1703-A 35HP Dsl	-
Kubota	L3300F	1994-1998	Kubota D1703-A 35HP Dsl	-
Kubota	L3300GST	1994-1998	Kubota D1703-A 35HP Dsl	-
Kubota	L3410DT	1998-2002	Kubota D1703A 35.1HP Dsl	-
Kubota	L3410GST	1998-2002	Kubota D1703A 35.1HP Dsl	-
Kubota	L3410HST	1998-2002	Kubota D1703A 35.1HP Dsl	-
Kubota	L35TL	1996-2003	Kubota D1703TLB 35HP Dsl	-
Kubota	L35TLB	1996-2003	Kubota D1703TLB 35HP Dsl	-
Kubota	L3600DT	1994-1998	Kubota V1903A 39HP Dsl	-
Kubota	L3710GST	1998-2002	Kubota V1903AN 38.5HP Dsl	-
Kubota	L3710HST	1998-2002	Kubota V1903AN 38.5HP Dsl	-
Kubota	L4200DT	1994-1998	Kubota V2203A 45HP Dsl	-
Kubota	L4200GSTCA	1994-1998	Kubota V2203A 45HP Dsl	-
Kubota	L4310DT	1998-2002	Kubota V2203AN 45.3HP Dsl	-
Kubota	L4310F	1998-2002	Kubota V2203AN 45.3HP Dsl	-
Kubota	L4310GST	1998-2002	Kubota V2203AN 45.3HP Dsl	-
Kubota	L4310HST	1998-2002	Kubota V2203AN 45.3HP Dsl	-
Kubota	L4610GST	2001-2002	Kubota V2203EHA 48.3HP Dsl	-
Kubota	L4610HST	2001-2002	Kubota V2203EHA 48.3HP Dsl	-
Kubota	L48TL	1996-2009	Kubota V2403 48HP Diesel	-
Kubota	L48TLB	1996-2009	Kubota V2403 48HP Diesel	-
Red D Arc	D300K	1997-2003		-
Thomas Equipment	175	2002-2004	Kubota V2203T Diesel	-
Thomas Equipment	T153	2000-2002	Kubota V2203E Diesel	-
Thomas Equipment	T153S	2000-2002	Kubota V2203E Diesel	-
Thomas Equipment	T84	1989-1998	Kubota D722B Diesel	-
Toro	Groundsmaster 228D	2001-2004	Kubota 28HP Dsl	-
Toro	Groundsmaster 3280-D	2005-2009	Kubota 28HP Dsl	-
Toro	Groundsmaster 328D	2001-2009	Kubota 28HP Dsl	-
Toro	Groundsmaster 3500-D	2000-2009	Kubota 35HP Diesel	-
Toro	Groundsmaster 7200	2007-2009	Kubota 28HP Dsl	-
Toro	Groundsmaster 7210	2007-2009	Kubota 35HP Diesel	-
Toro	Reelmaster 3100-D	1999-2009	Kubota 21.5HP Dsl	-
Toro	Reelmaster 5200-D	1998-2006	Kubota 28HP Dsl	-
Toro	Reelmaster 5210	2006-2009	Kubota 28HP Dsl	-
Toro	Reelmaster 5400-D	1998-2006	Kubota 35.5HP Dsl	-
Toro	Reelmaster 5410	2006-2009	Kubota 35.5HP Dsl	-
Toro	Reelmaster 5500-D	2000-2006	Kubota 35.5HP Dsl	-
Toro	Reelmaster 5510	2006-2009	Kubota 35.5HP Dsl	-
Toro	Reelmaster 5610	2006-2009	Kubota 44.2HP Dsl	-
Toro	Reelmaster 6500-D	1997-2009	Kubota 46HP Dsl	-
Toro	Reelmaster 6700-D	2000-2009	Kubota 46HP Dsl	-
Toro	Z580-D Z Master	2008-2009	Kubota 23HP Dsl	-
Toro	Z580-D Z Master	2008-2009	Kubota 25HP Dsl	-
Toro	Z593-D Z Master	2006-2007	Kubota 23HP Dsl	-
Toro	Z595-D Z Master	2007	Kubota 25HP Dsl	-
