发电机

CF-12224N-A

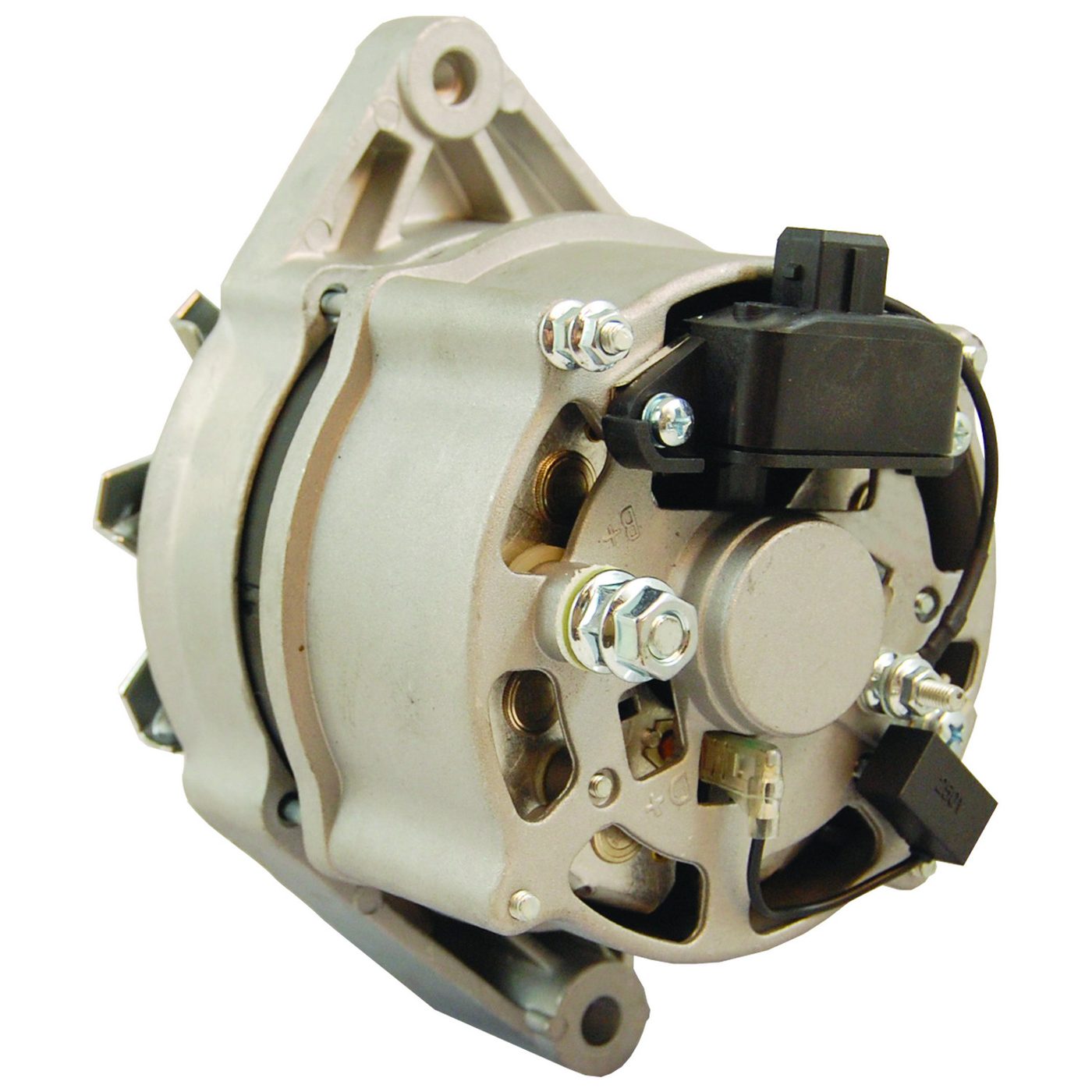

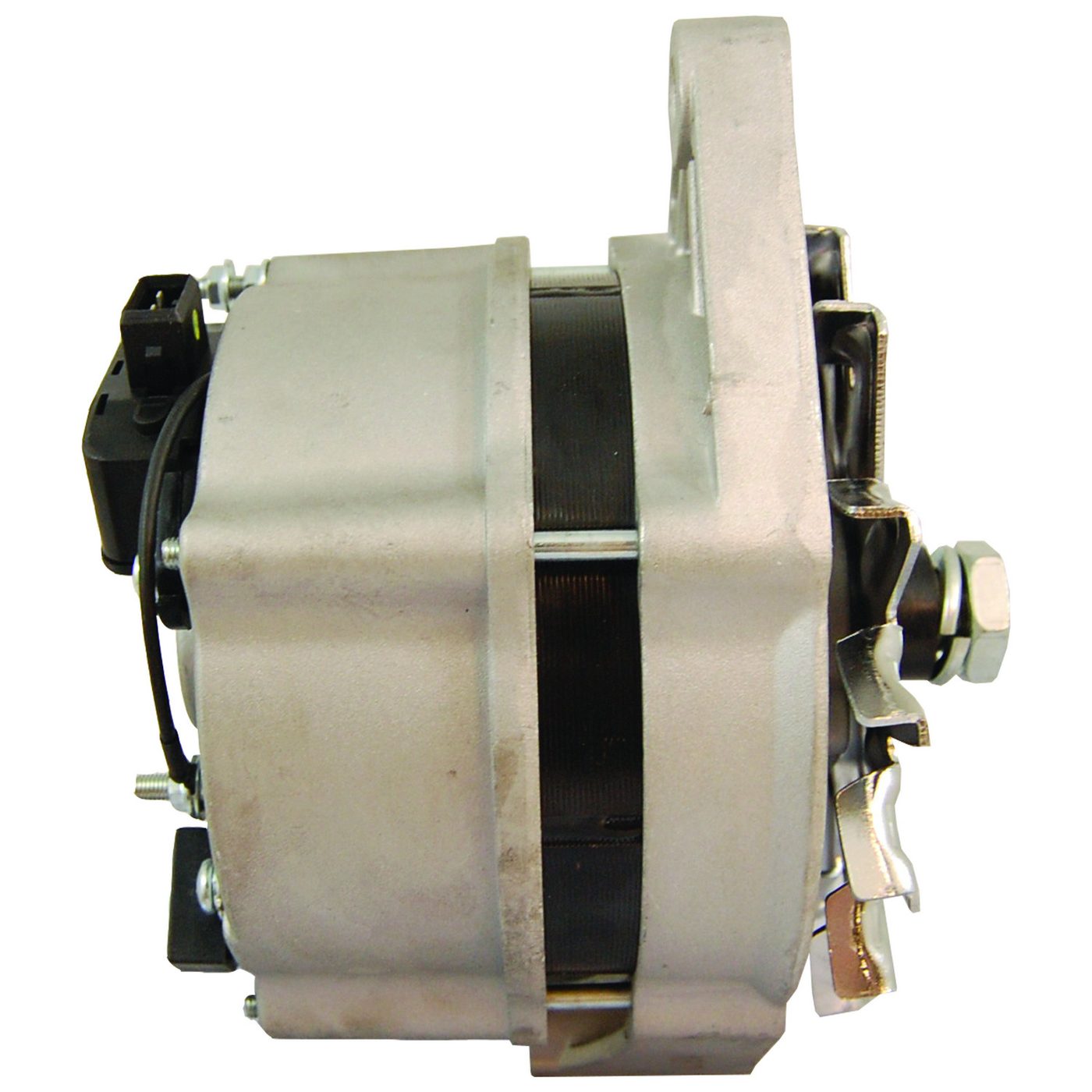

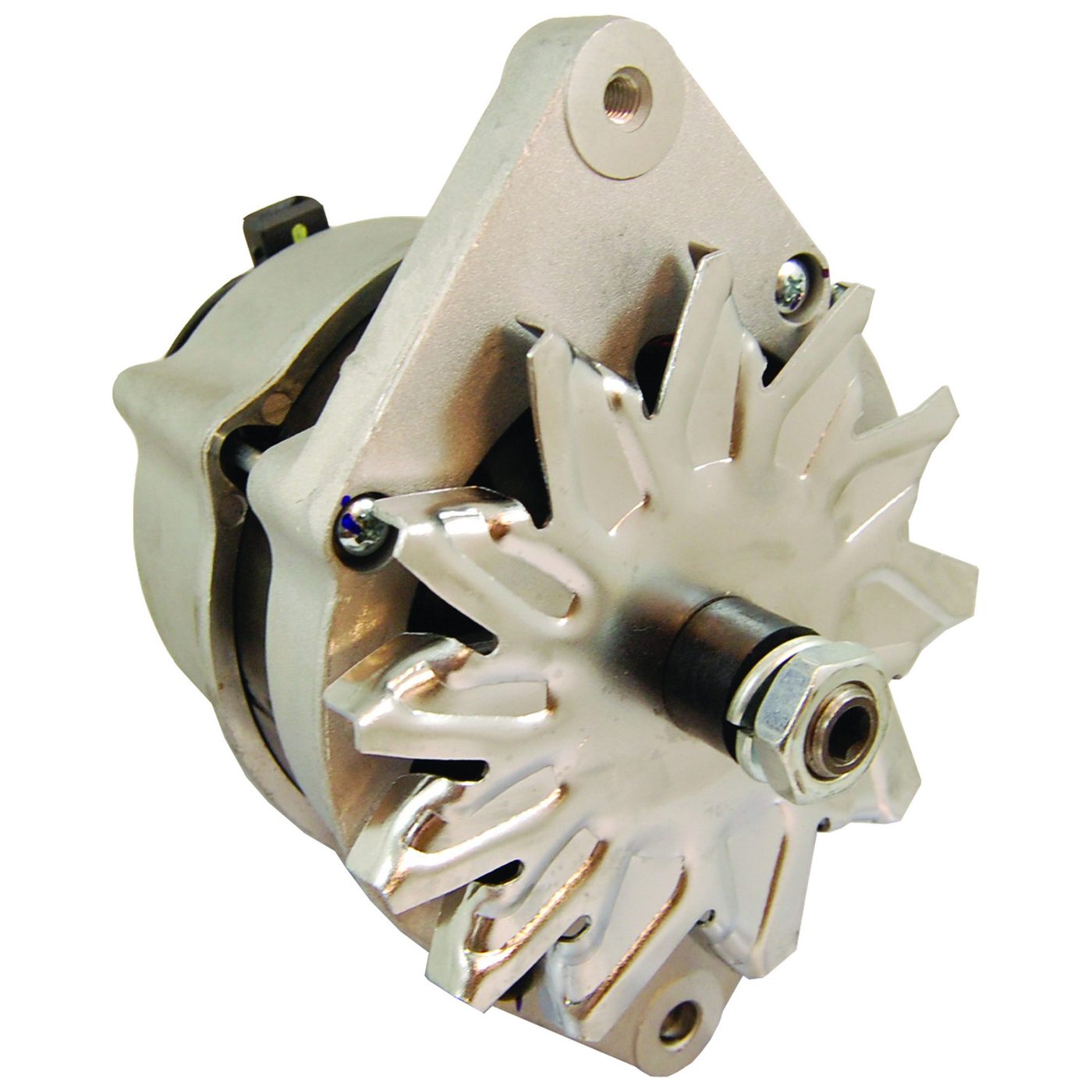

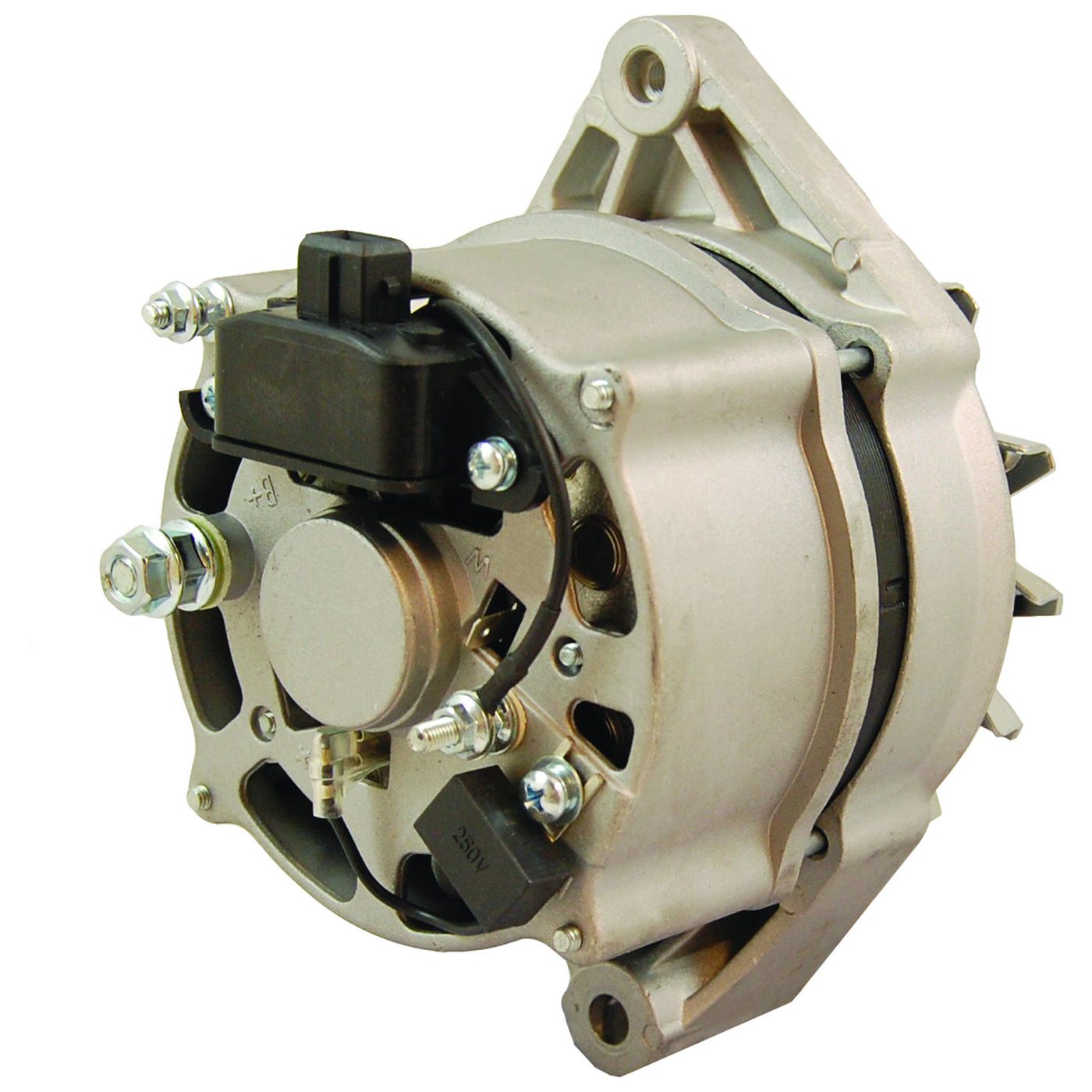

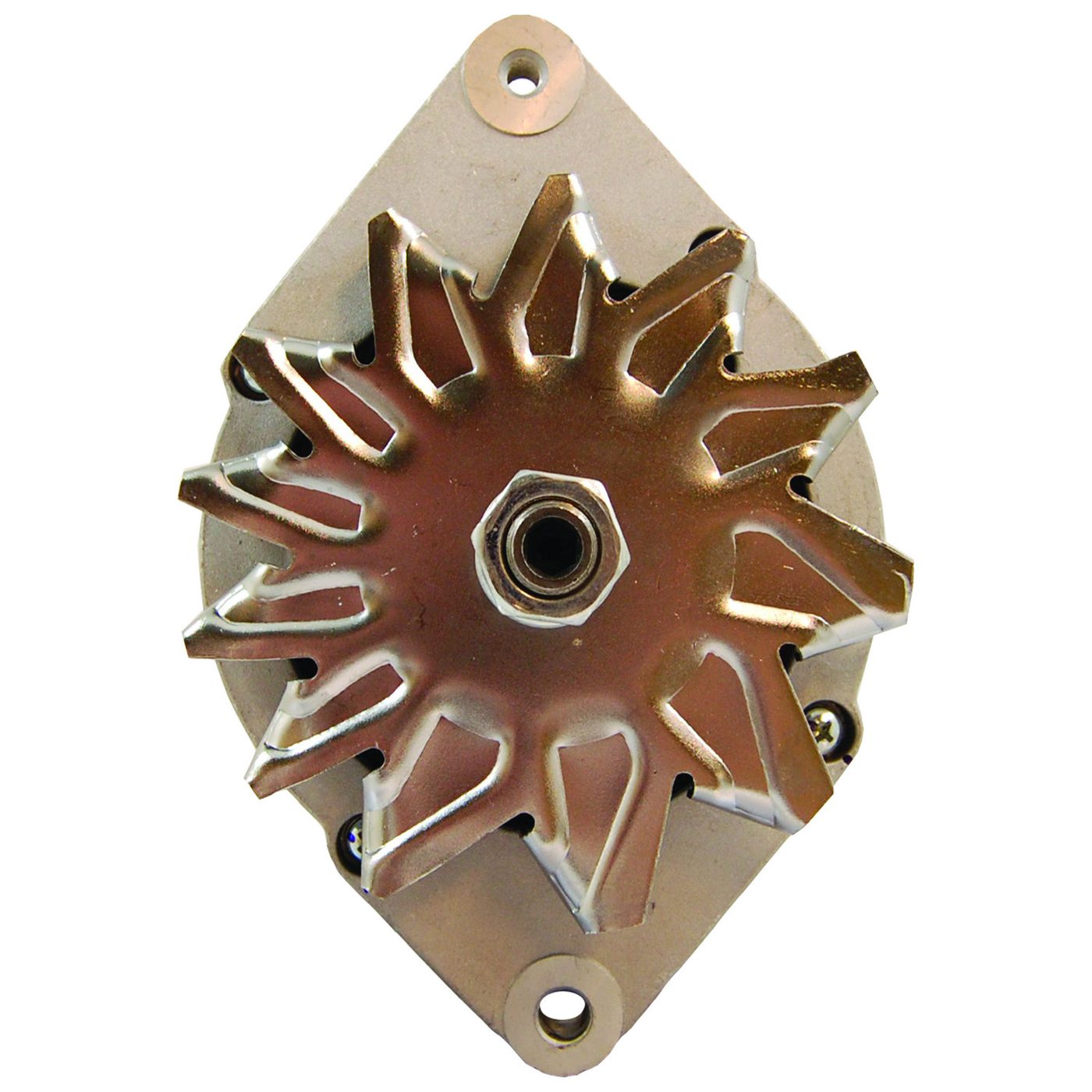

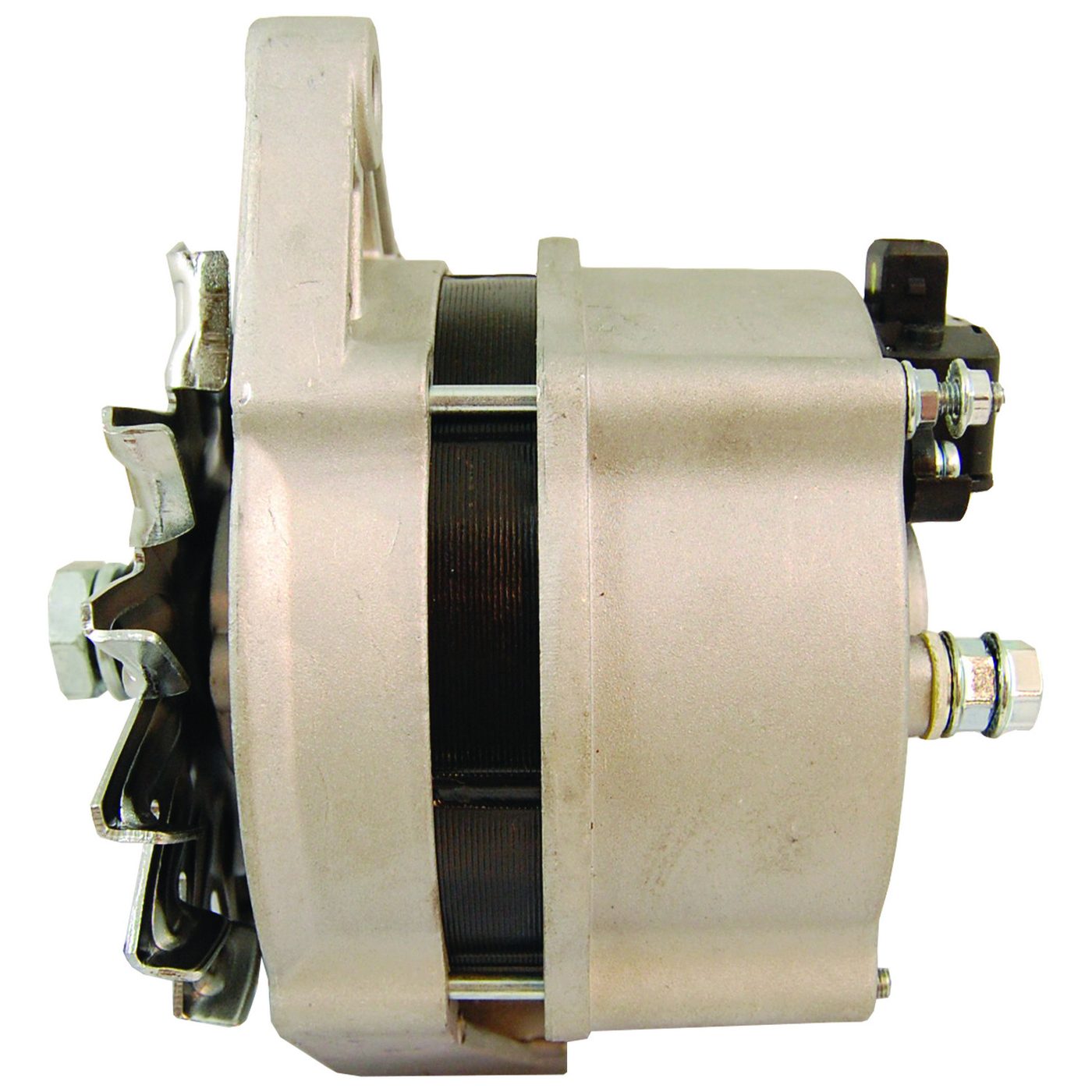

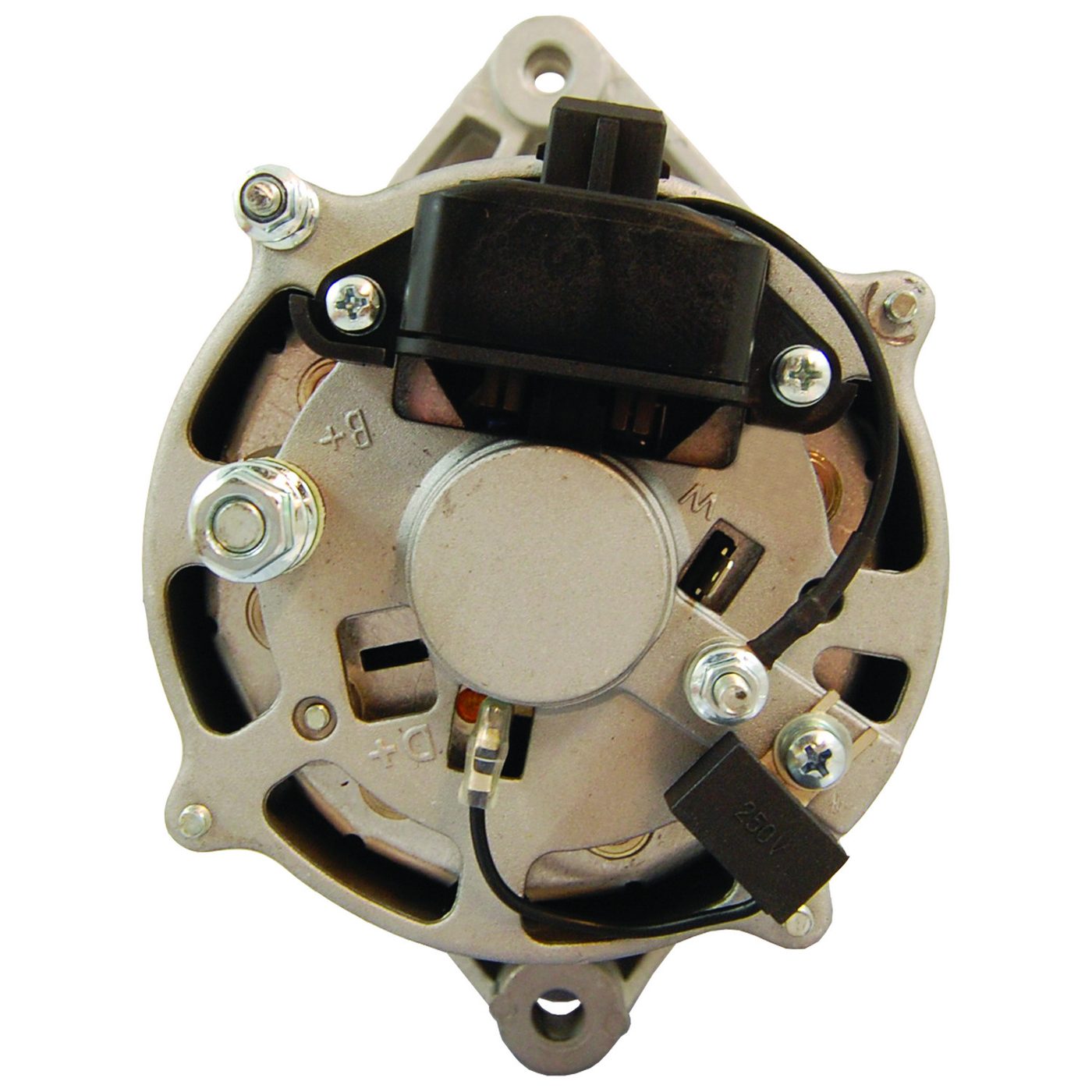

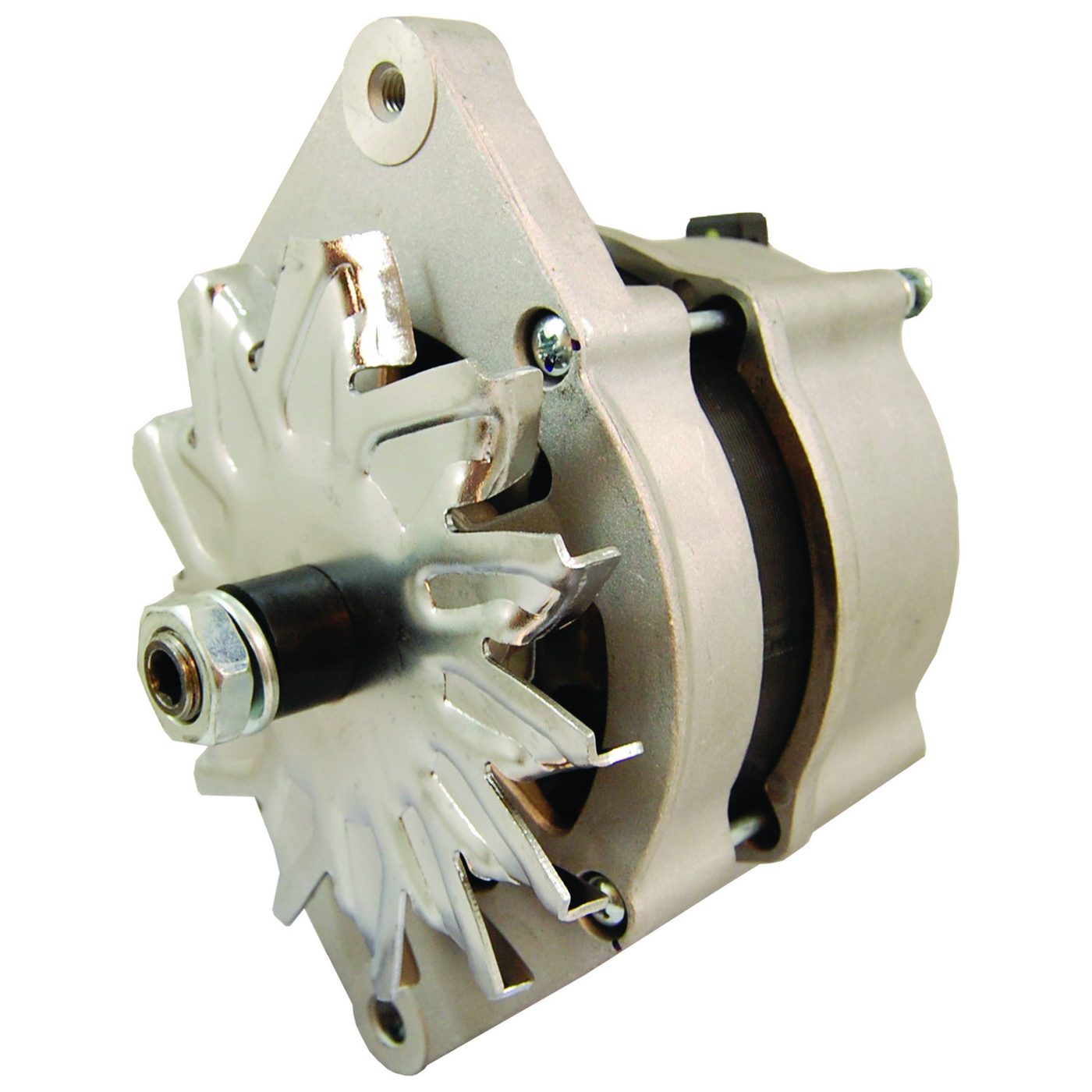

Name: CF-12224N-A Agricultural Machinery Alternator
Brand: Crankvia
SKU: CF-12224N-A

CF-12224N-A alternator for John Deere 650H, Thermo King LND 50, Thermo King SB-190 and related applications (12V / 65A / W/O PULLEY).

品牌

规格参数

电压	12V
Amperage	65A
旋向	CW
Pulley Class	W/O PULLEY
Regulator/Fan	IR/EF

产品特性

Part No	CF-12224N-A
MFR	BOSCH
Lester 号	12224
OE 编号	Bosch 0 120 488 296, 9 120 006 023, 9 120 060 023, F 005 A00 026, Carrier Transicold 20-44-9572, 20-44-9572RM, Letrika Old IA 1488, Prestolite 66021606, Thermo-King 10-41-5457B, 10-44-9572, 1E32216G01, 20-41-5457, 41-5457, 41-6781, 41-8463, 41-8949, 44-8949, 44-9572, 45-2256, 45-2590, 5D33841G01, 5D38604G01, 841-5457, 841-8463, 844-9572, RA601010X
部件类型	Alternator
结构	IR/EF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-12224N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR BOSCH 以及 12224 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-12224N-A

记录数

品牌数

车型数

年份范围

1990-2012

品牌	车型	年份	发动机	备注
John Deere	650H	1998-2007	4045 ; 4.5L JD Diesel	-
Thermo King	LND 50	1991-2001	Yanmar 353 (TK 3.53) Diesel	-
Thermo King	SB-190	1999-2009	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-200	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-210	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-300	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-310	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-II MAX	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-II SR	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-II SR	1998-2008	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-II	1991-2001	Isuzu 2.0L (TK C201) Diesel	-
Thermo King	SB-II	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-III MAX	1991-2001	Isuzu 2.0L (TK C201) Diesel	-
Thermo King	SB-III MAX	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-III SR	1993-2003	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SB-III SR	1998-2007	TK486 Yanmar Diesel	-
Thermo King	SB-III SR	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SB-III	1990-2001		-
Thermo King	SDZ	1991-2001		-
Thermo King	SDZ	1991-2001	Kubota Z400 Diesel	-
Thermo King	Sentry	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	SL100	1996-2006	Yanmar 482 / 486 (TK 4.82 / 4.86)	-
Thermo King	SL100e	2002-2012	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SL200	1996-2006	Yanmar 482 / 486 (TK 4.82 / 4.86)	-
Thermo King	SL200e	2002-2012	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SL300	1996-2006	Yanmar 482 / 486 (TK 4.82 / 4.86)	-
Thermo King	SL400 SR2	2002-2012	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SL400	1996-2006	Yanmar 482 / 486 (TK 4.82 / 4.86)	-
Thermo King	SL400e	2002-2012	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	SMX II	1991-2001		-
Thermo King	SMX SR	1991-2001		-
Thermo King	SMX	1991-2001		-
Thermo King	Super II SR	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	Super II TC	1991-2001	Isuzu 2.2L (TK DI2.2, -SE) Dsl	-
Thermo King	Super II TC	1999-2009	Yanmar 486 (TK 4.86) Diesel	-
Thermo King	Super II	1998-2007	TK486 Yanmar Diesel	-
Thermo King	URD	1996-2007		-
