发电机

CF-12309N-A

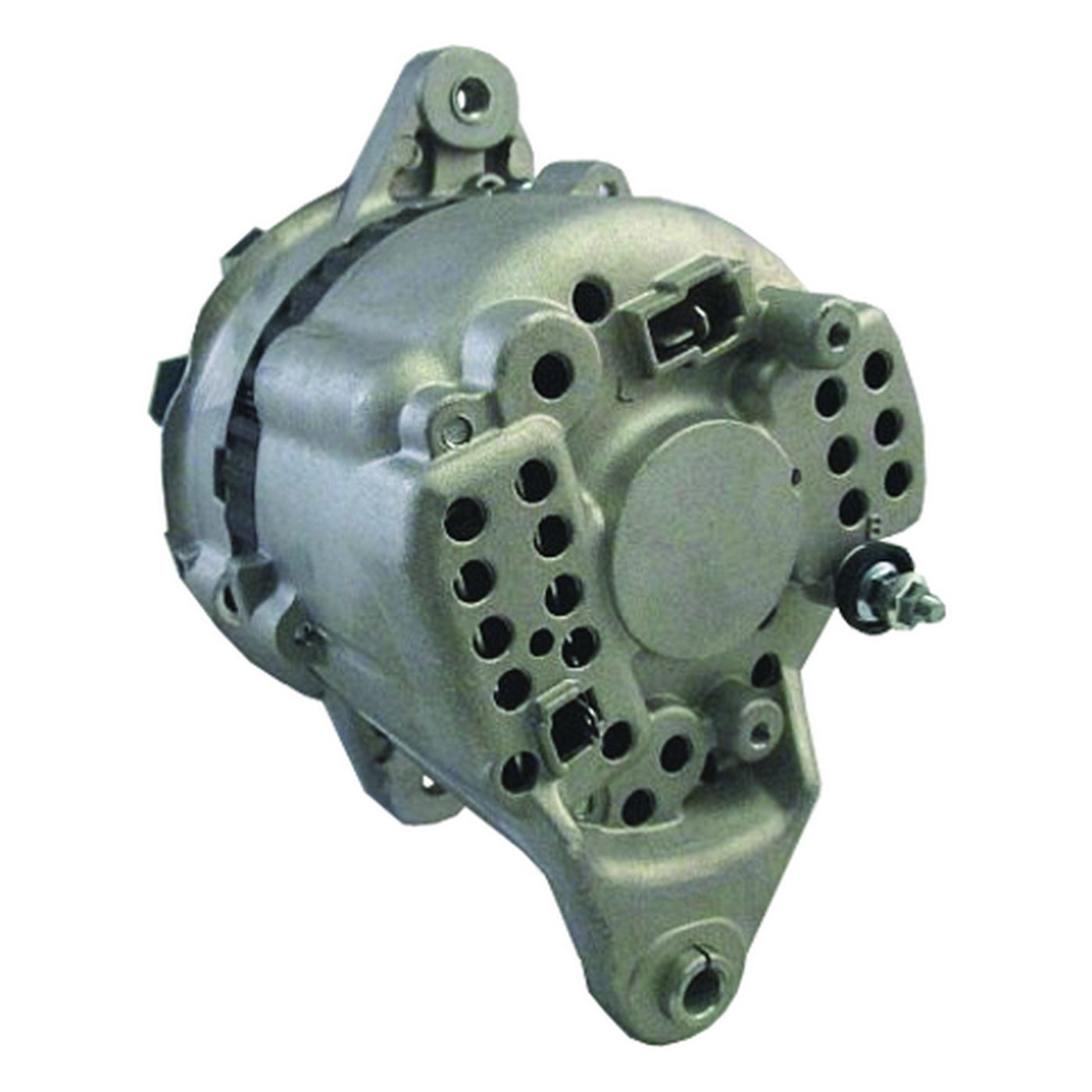

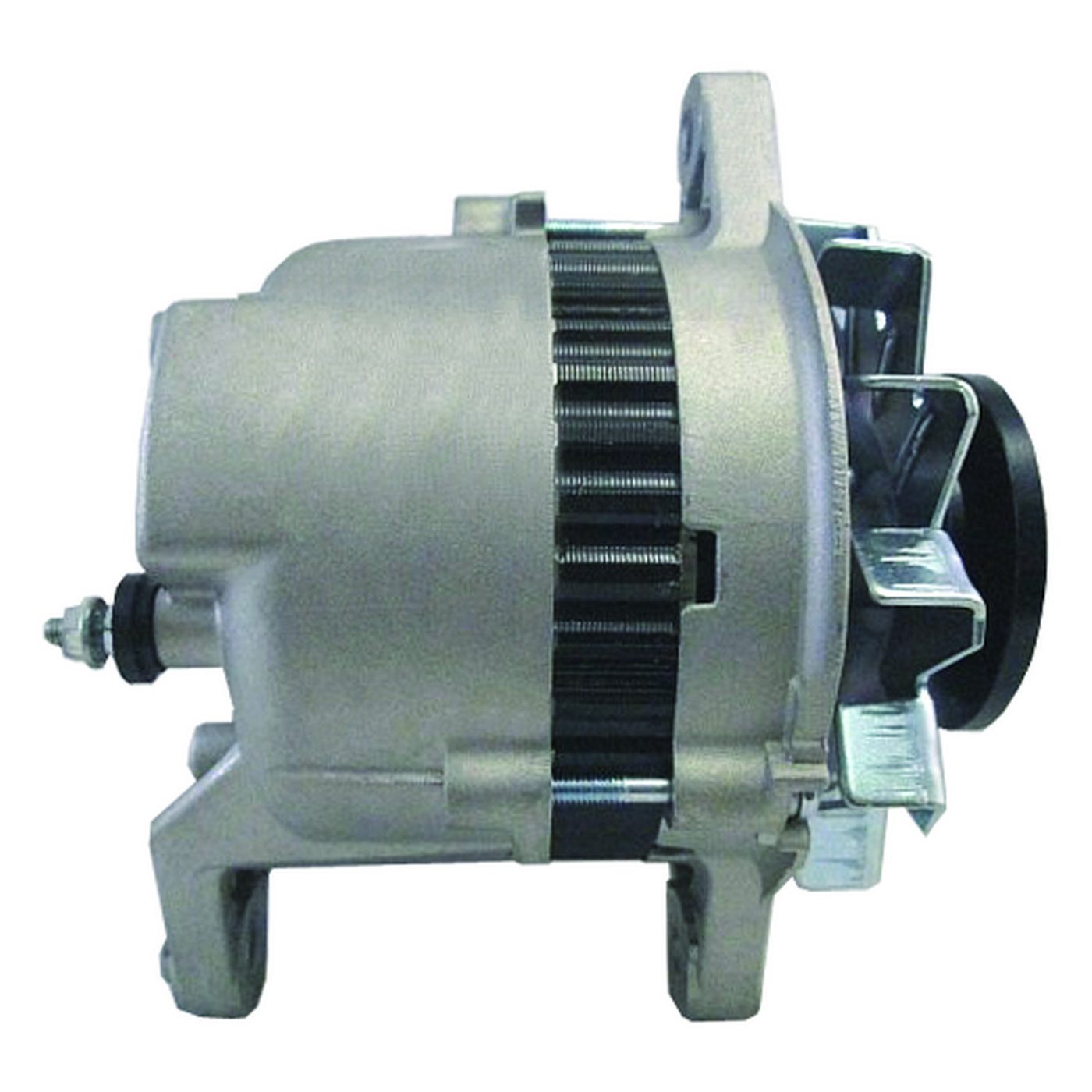

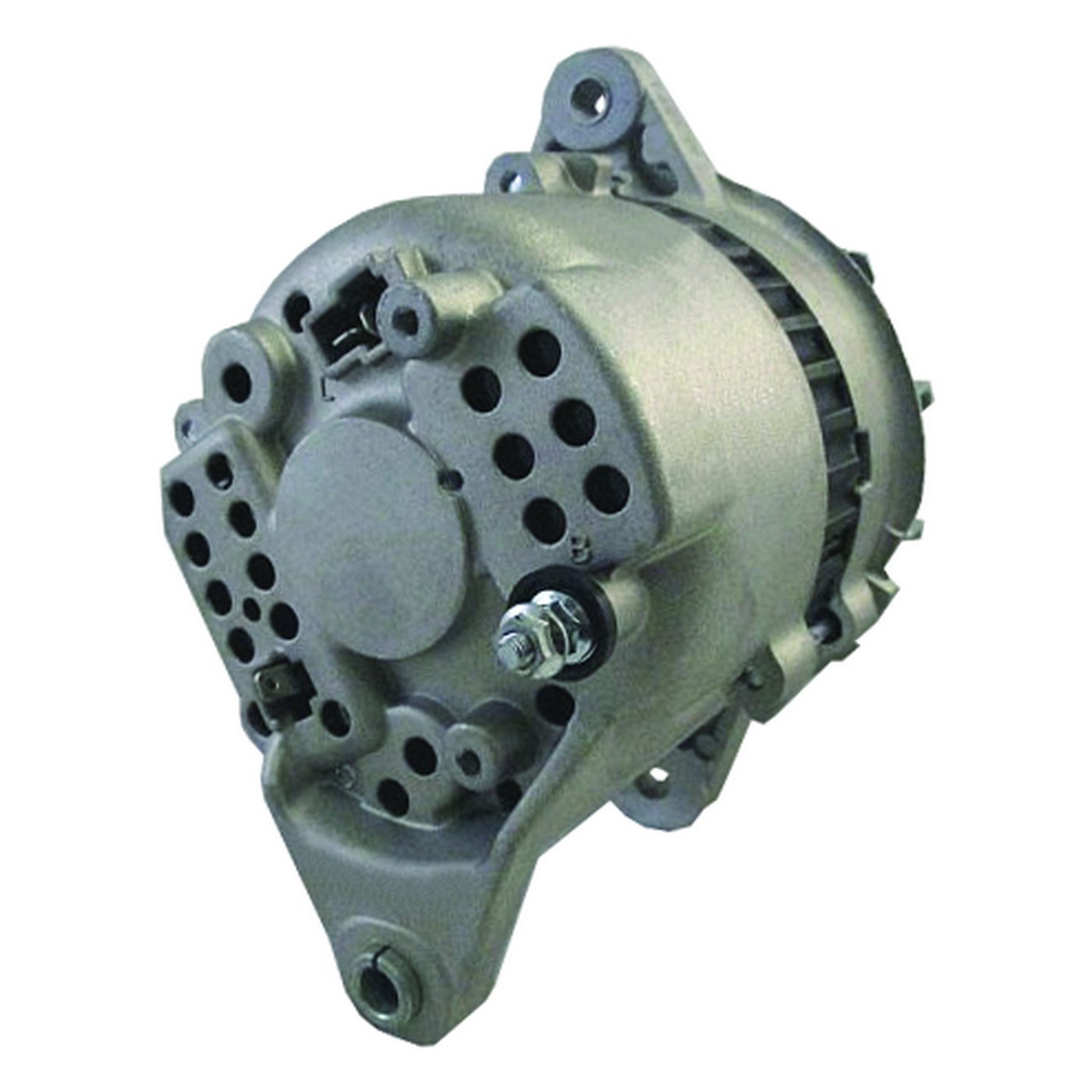

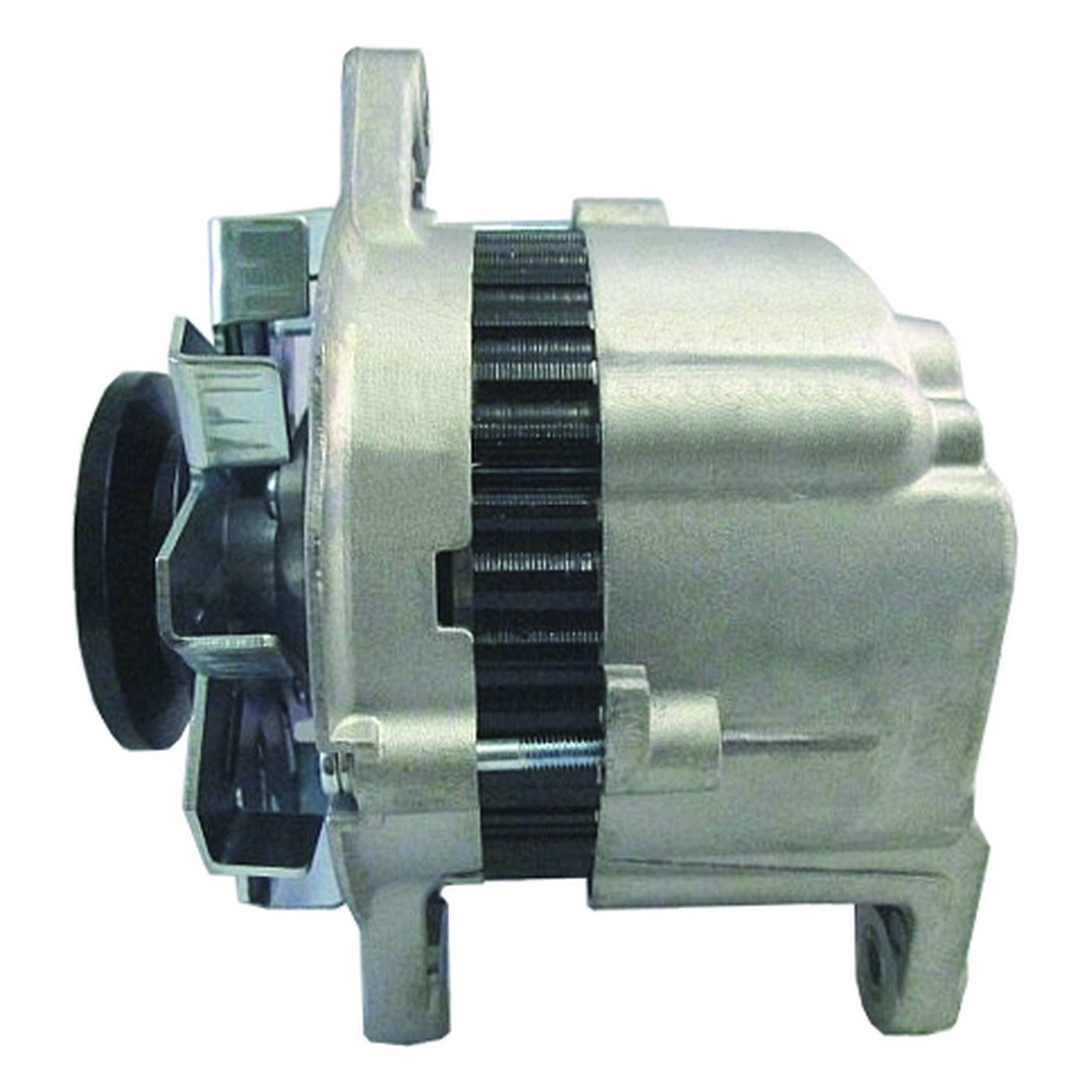

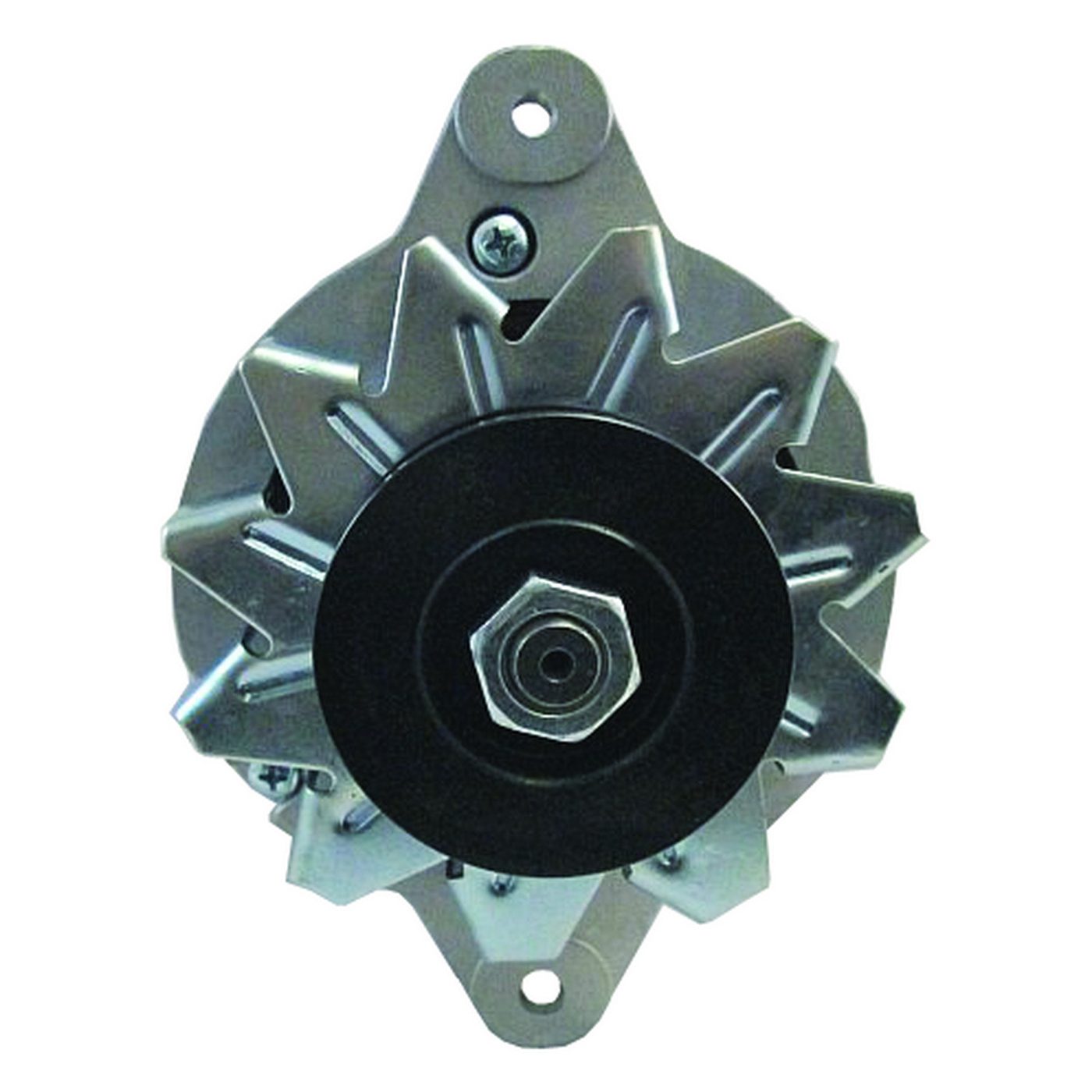

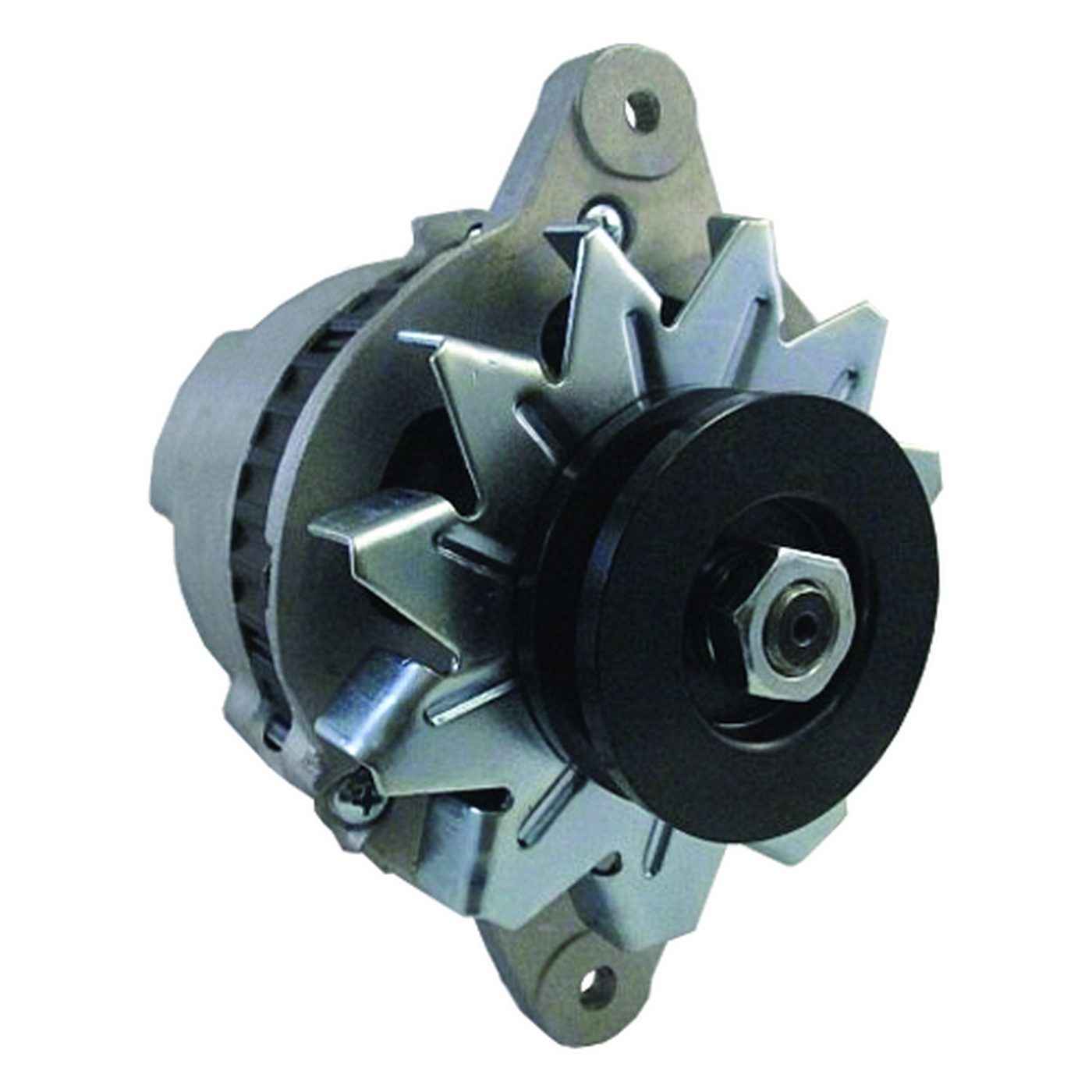

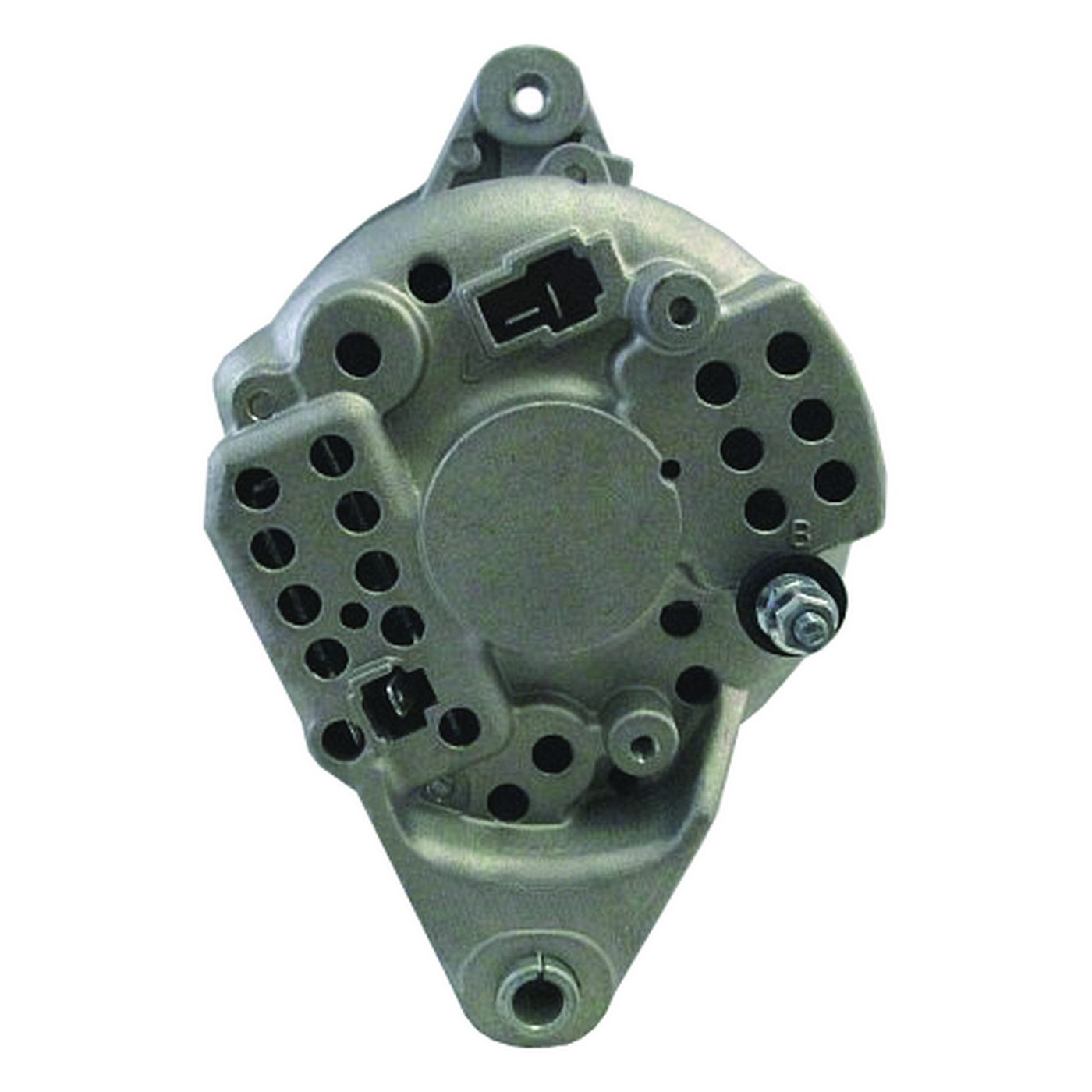

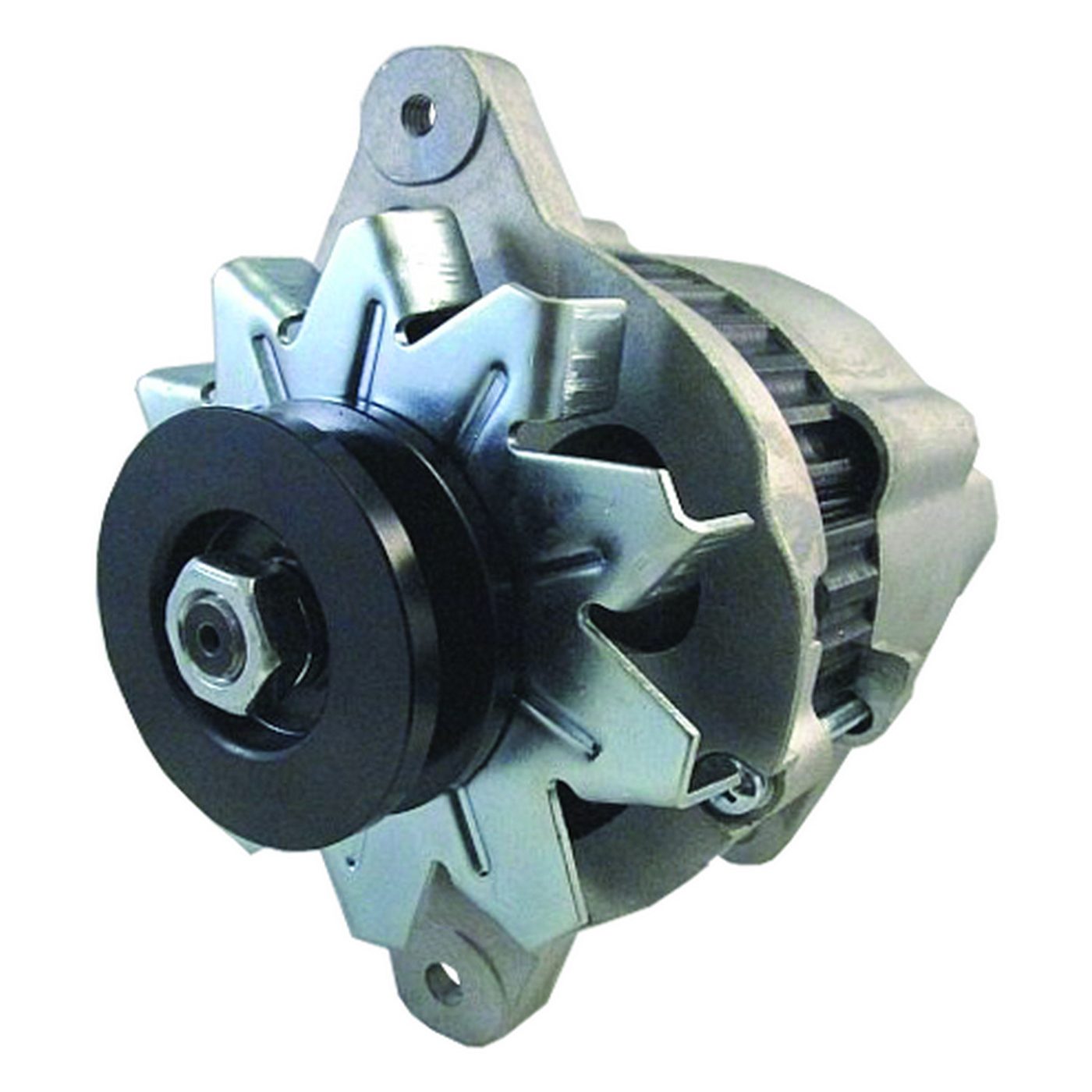

Name: CF-12309N-A Passenger Vehicle Alternator
Brand: Crankvia
SKU: CF-12309N-A

CF-12309N-A alternator for Mitsubishi FD-10, Mitsubishi FD-14, Mitsubishi FD-15 and related applications (24V / 20A / V1).

品牌

规格参数

电压	24V
Amperage	20A
旋向	CW
Pulley Class	V1
Regulator/Fan	IR/EF

产品特性

Part No	CF-12309N-A
MFR	MITSUBISHI
Lester 号	12309, 20116
OE 编号	Clark 4307228, 43100326, Hyster 3046659, 3779856, Mitsubishi A001T70283, A001T70783, A007TA8083, A007TA8083A, Mitsubishi Heavy Industries 32A68-06200, 34468-16100, 34468-26100
部件类型	Alternator
结构	IR/EF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-12309N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR MITSUBISHI 以及 12309, 20116 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-12309N-A

记录数

品牌数

车型数

年份范围

1980-2001

品牌	车型	年份	发动机	备注
Mitsubishi	FD-10	1981-1983	Mitsubishi S4E	-
Mitsubishi	FD-14	1981-1983	Mitsubishi S4E	-
Mitsubishi	FD-15	1981-1983	Mitsubishi S4E	-
Mitsubishi	FD-15T	1980-1999	Mitsubishi 4DQ50W	-
Mitsubishi	FD-20	1983-1992	Mitsubishi S4E / S4S	-
Mitsubishi	FD-20B-D	1983-1989	Mitsubishi S4E / S4S	-
Mitsubishi	FD-20B-DS	1983-1989	Mitsubishi S4E / S4S	-
Mitsubishi	FD-20D	1983-1989	Mitsubishi S4E / S4S	-
Mitsubishi	FD-23	1983-1992	S4E Mitsubishi Diesel	-
Mitsubishi	FD-25	1983-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-25B-D	1983-1989	Mitsubishi S4E / S4S	-
Mitsubishi	FD-25B-DS	1983-1989	Mitsubishi S4E / S4S	-
Mitsubishi	FD-25D	1980-2001	Mitsubishi S4E / S4S	-
Mitsubishi	FD-25DS	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-25T	1980-2001	Mitsubishi S4E / S4S	-
Mitsubishi	FD-28	1981-1992	S4E Mitsubishi Diesel	-
Mitsubishi	FD-30	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-30B-D	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-30B-DS	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-30D	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-30DS	1980-1999	Mitsubishi S4E / S4S	-
Mitsubishi	FD-30T	1980-2001	Mitsubishi S4E / S4S	-
Mitsubishi	FD-35A-D	1981-1983	Mitsubishi S4E / S4S	-
Mitsubishi	FD-35A	1981-1983	Mitsubishi S4E / S4S	-
Mitsubishi	FD-35AB-D	1981-1983	Mitsubishi S4E / S4S	-
Mitsubishi	FD-35AT	1981-1983	Mitsubishi S4E / S4S	-
Mitsubishi	FDC-20-D	1981-1983	Mitsubishi S4E / S4S	-
Mitsubishi	FDC-25-D	1981-1983	Mitsubishi S4E / S4S	-
