发电机

CF-12388N-A

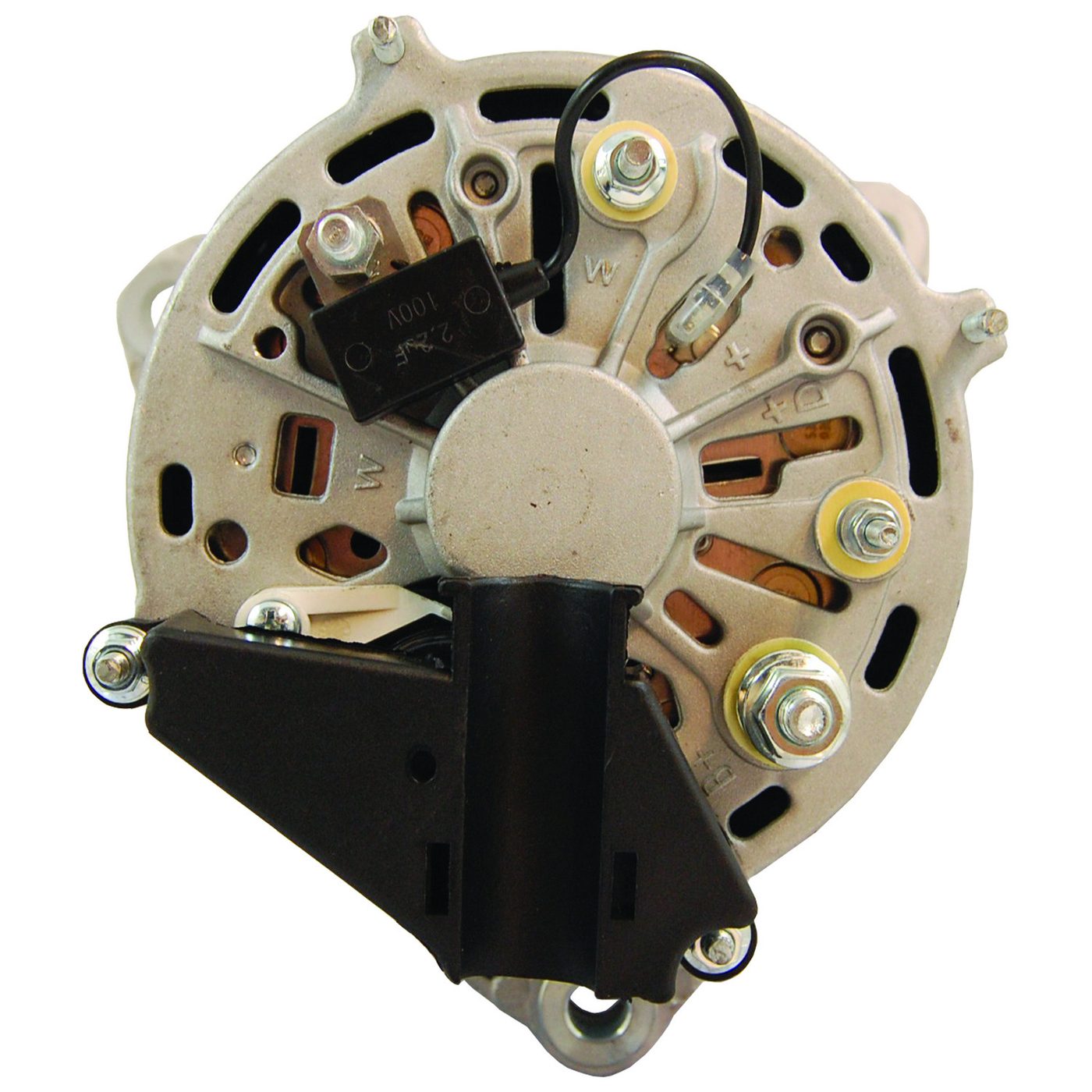

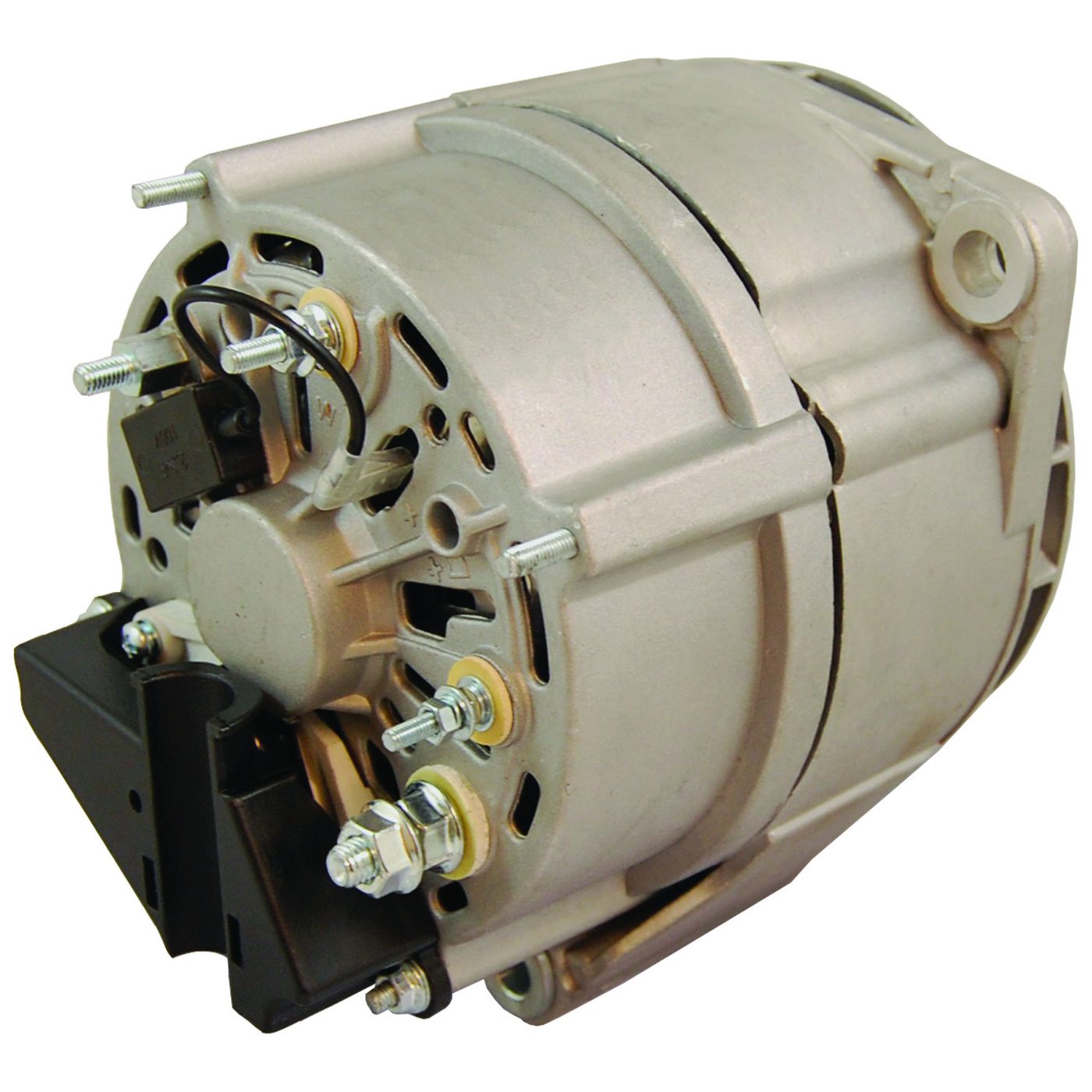

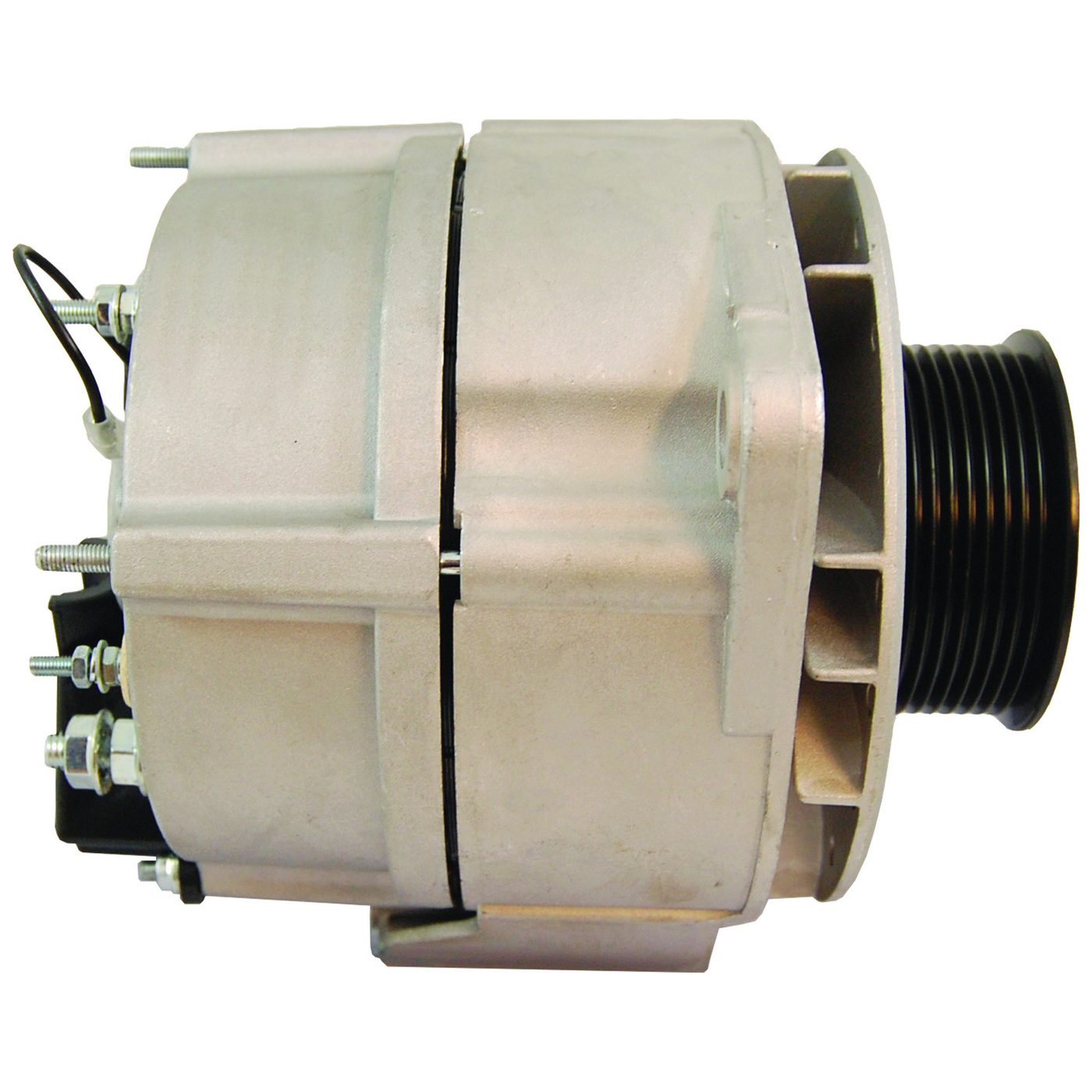

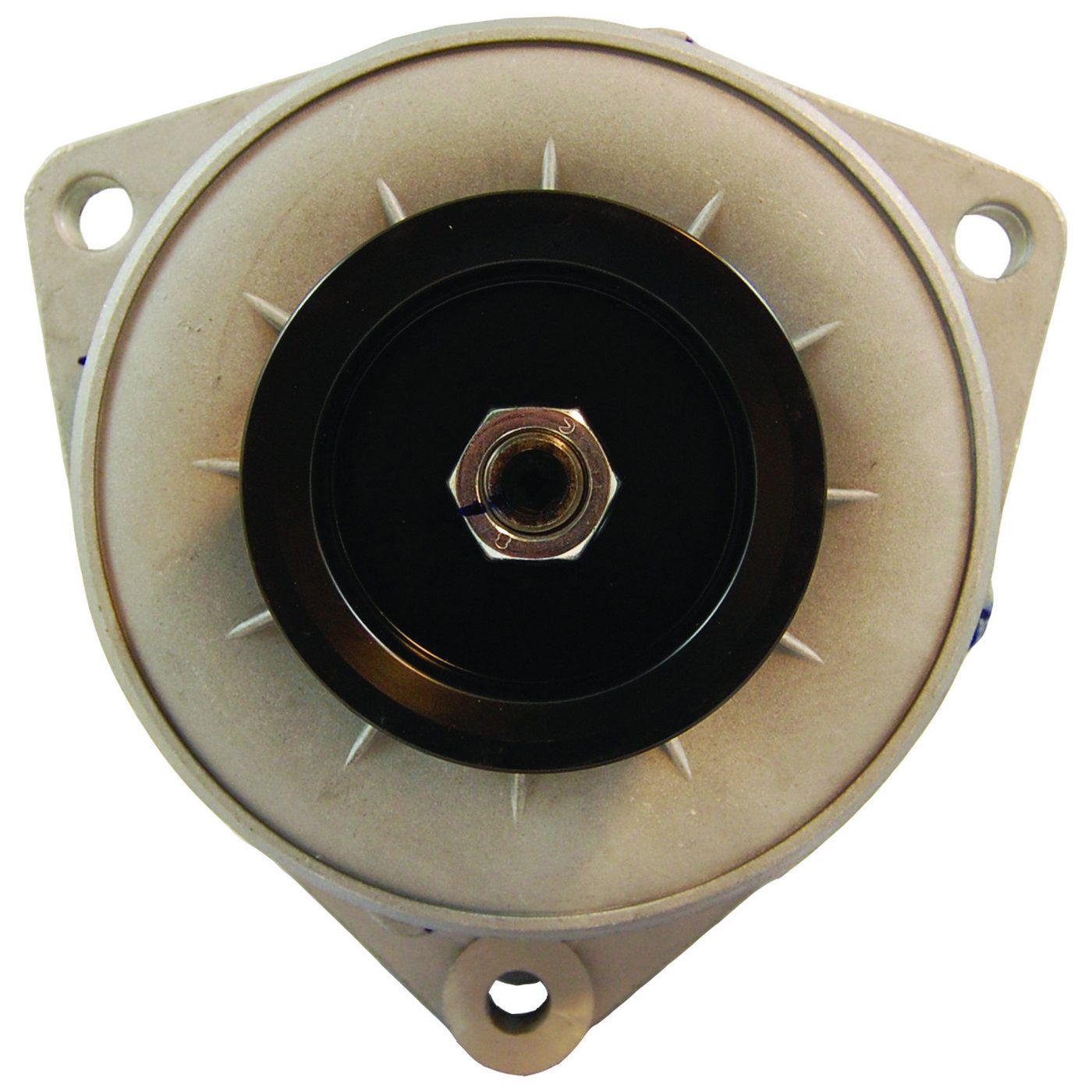

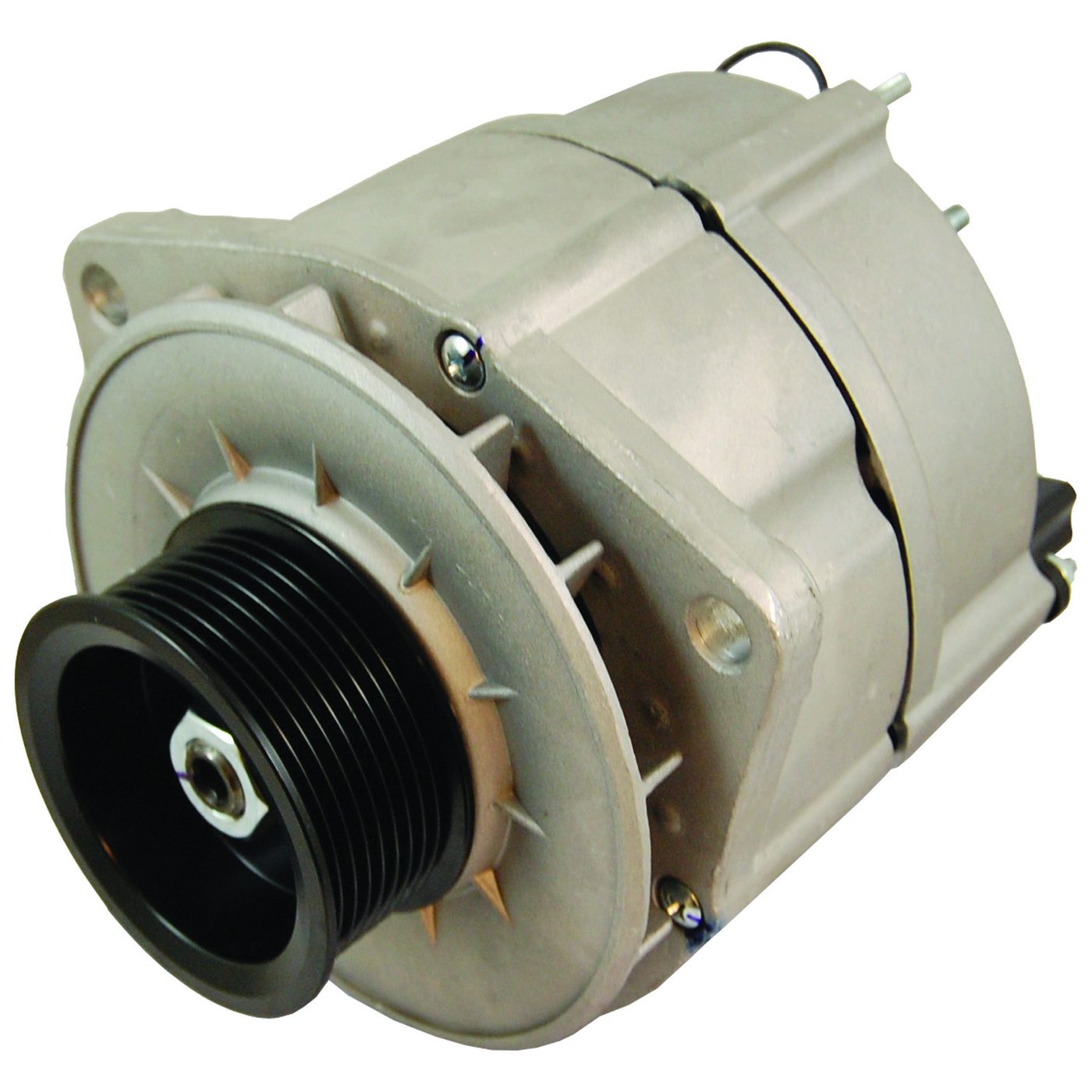

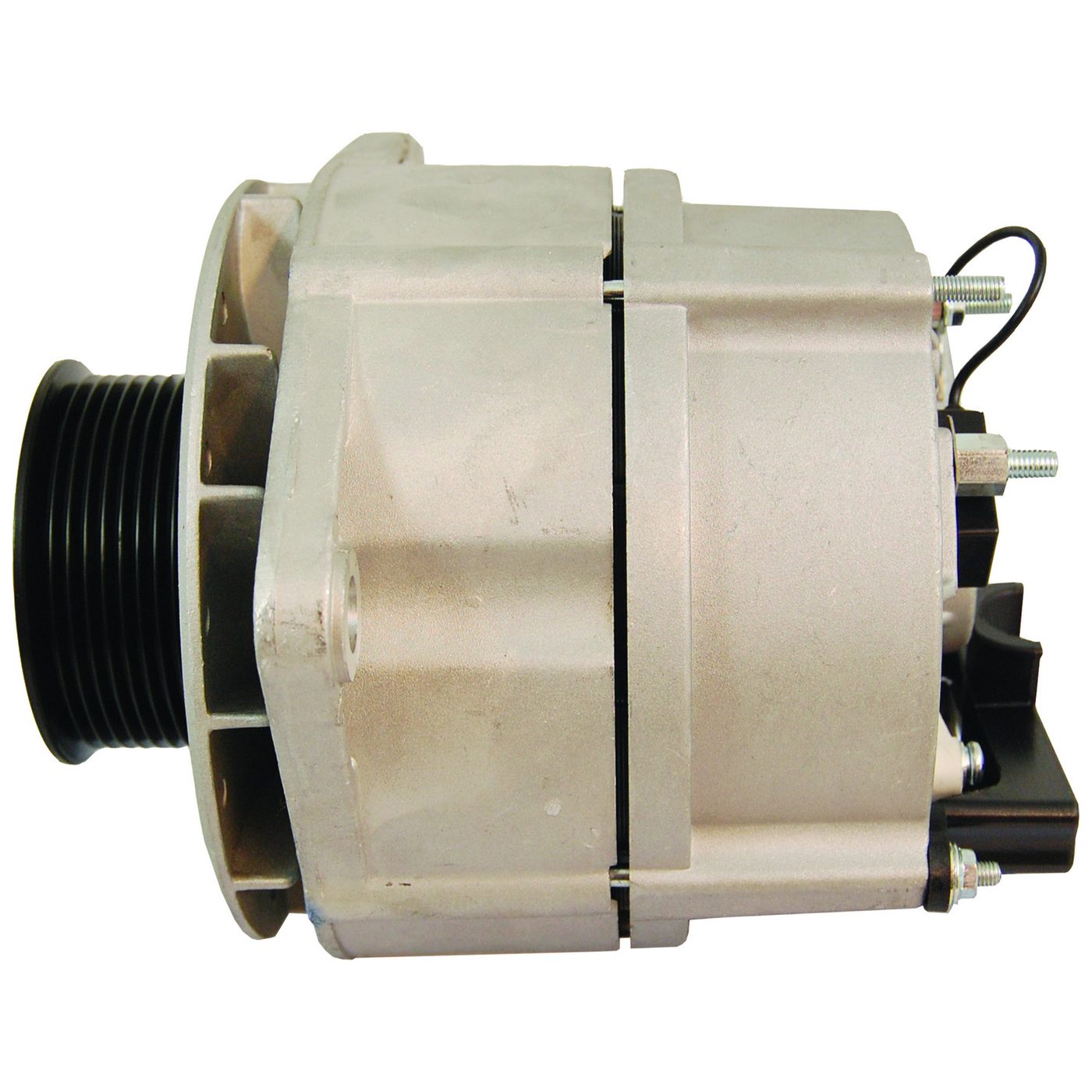

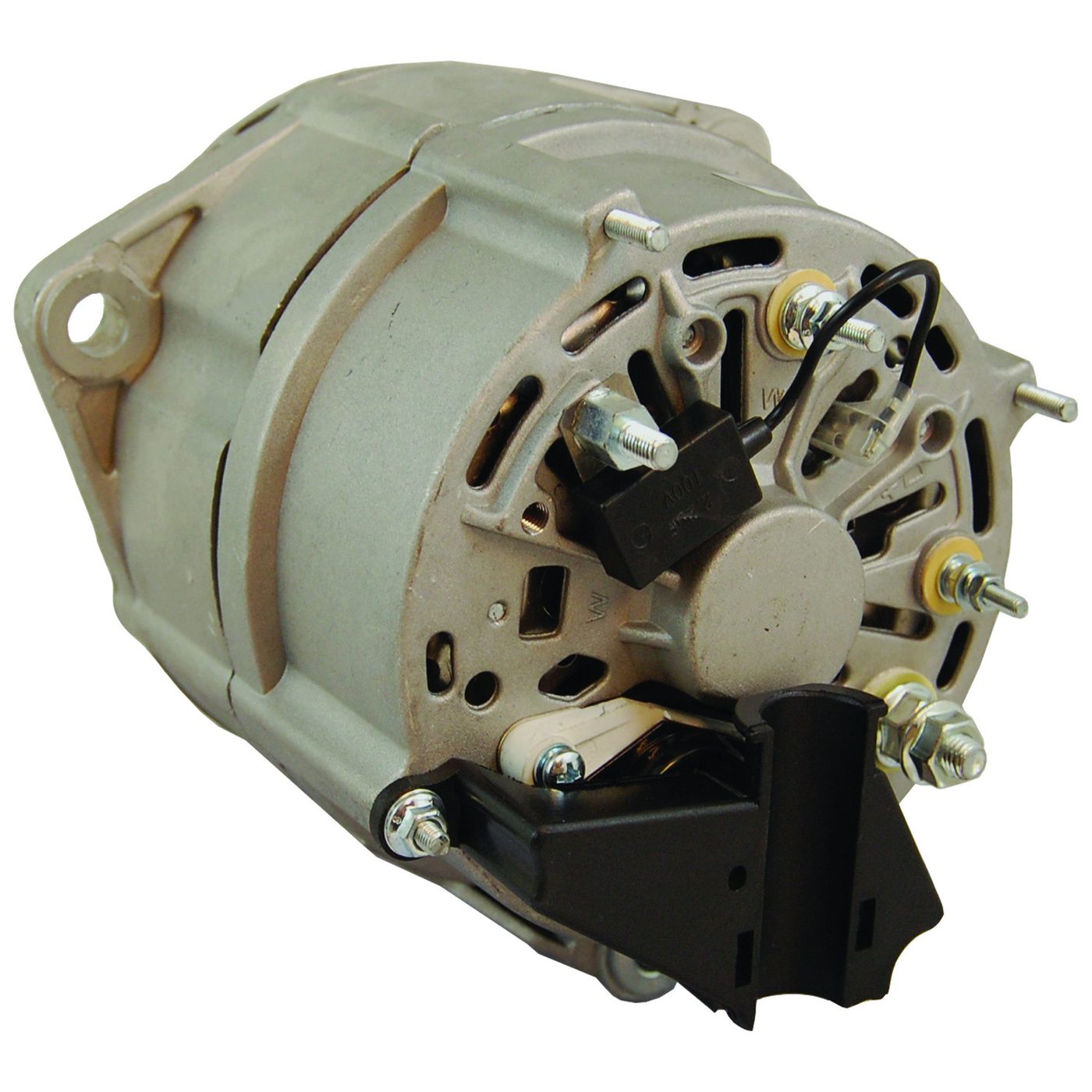

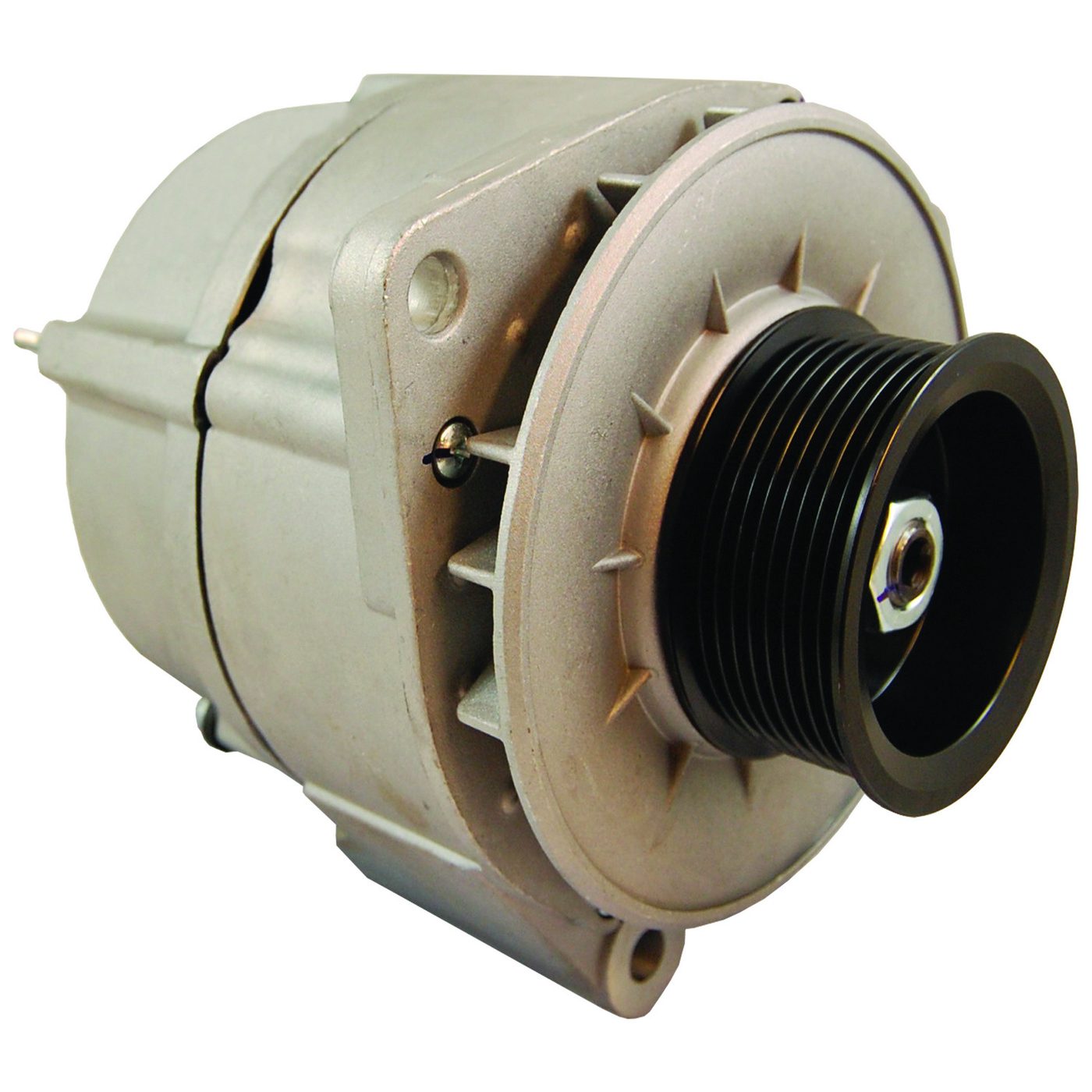

Name: CF-12388N-A Passenger Vehicle Alternator
Brand: Crankvia
SKU: CF-12388N-A

CF-12388N-A alternator for John Deere 1010D, John Deere 1010E, John Deere 1110D and related applications (24V / 100A / S9).

品牌

规格参数

电压	24V
Amperage	100A
旋向	CW
Pulley Class	S9
Regulator/Fan	IR/EF

产品特性

Part No	CF-12388N-A
MFR	BOSCH
Lester 号	12388, 12803
OE 编号	Bosch 0 120 468 143, 0 120 468 145, 1 986 A01 117, 6 033 GB3 010, 6 033 GB3 023, 6 033 GB3 083, 6 033 GB3 084, 6 033 GB3 086, DAF 1516480R, Fendt 1 800 111 482, V 836 659 786, John Deere F0 63 075, F063075, Letrika (Iskra) 11.209.422, 11.209.600, Letrika (Iskra) Sales IA 9413, IA9448, Letrika (Iskra) Tech. AAN3112, AAN3211, Letrika Old IA 9444, Liebherr 10146323A, 1G146323A, Mahle MG 587, MG 803, Marelli 063530030230, Mercedes-Benz 009 154 99 02 80, 009-154-99-02, 010 154 00 02, 010 154 89 02, 010 154 89 02 80, 010 154 92 02 80, 010-154-00-02, 010-154-92-02, 013 154 71 02, A 010 154 00 02, A 010 154 89 02, A 010 154 89 02 80, A 013 154 71 02, A0091549902, A009154990280, A0101540002, A0101549202, A010154920280, Prestolite 860563, AVI144S3001, Volvo 20402404
部件类型	Alternator
结构	IR/EF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-12388N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR BOSCH 以及 12388, 12803 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-12388N-A

记录数

品牌数

车型数

年份范围

1996-2018

品牌	车型	年份	发动机	备注
John Deere	1010D	2002-2009	L4 4.5L 275cid John Deere 4045HT	-
John Deere	1010D	2002-2010	L4 4.5L 275cid John Deere 4045HT	-
John Deere	1010D	2003-2010	JD 4.5L 115HP Diesel	-
John Deere	1010D	2010	L4 4.5L 4506cc 275cid John Deere 4045HT	-
John Deere	1010E	2009-2016	JD 4045 4.5L	-
John Deere	1010E	2009	L4 4.5L 275cid John Deere 4045HT	-
John Deere	1010E	2010-2017	L4 4.5L 4506cc 275cid John Deere 4045HT	-
John Deere	1110D	2003-2009	L6 6.8L 6801cc 415cid John Deere 6068HT	-
John Deere	1110D	2003-2010	JD 6.8L 161HP Diesel	-
John Deere	1110D	2003-2010	L6 6.8L 6801cc 415cid John Deere 6068HT	-
John Deere	350D Series II	1997-2006	Mercedes OM501LA ; 12.0L	-
John Deere	400D Series II	1997-2006	Mercedes OM501LA ; 12.0L	-
John Deere	810D	2002-2010	L4 4.5L 275cid John Deere 4045HT	-
John Deere	810D	2004-2010	JD 4.5L 115HP Diesel	-
John Deere	810E	2010-2016	JD 4045 4.5L	-
John Deere	810E	2010-2018	L4 4.5L 275cid John Deere 4045HT	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.920, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.921, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.921LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.922, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.923, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.923LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.924 (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.925LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.925LA, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.926LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.926LA, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM541.927, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM542.920, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM542.920, 16.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM542.921LA (Euro2) 16.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1996-2003	OM542.925, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2002	Mercedes OM542; 15.9L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM541.920LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM541.924, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM541.926, 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM541.927LA (Euro2) 12.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM542.921, 16.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM542.922, 16.0L	-
Mercedes Heavy Duty - Europe	Actros Series	1997-2003	OM542.925, 16.0L	-
Mercedes Heavy Duty - Europe	Actros Series	2003	OM541.942, 12.0L	-
Mercedes Heavy Duty - Europe	Econic	1998-2006	OM906LA , 6.4L Dsl.	-
Mercedes Heavy Duty - Europe	O530N3	2000-2003	OM457.943LA (Euro3) 12.0L	-
Mercedes-Benz	Actros	1996-2000	OM541, 12.0L Dsl	-
Mercedes-Benz	Actros	1996-2000	OM542, 15.9L Dsl.	-
Mercedes-Benz	Unitog U-300	2000-2003	4.3L - 4249cc Dsl	-
Mercedes-Benz	Unitog U-300	2000-2012	OM904, 4.3L - 4249cc Dsl	-
Mercedes-Benz	Unitog U-400	2000-2003	4.3L - 4249cc Dsl	-
Mercedes-Benz	Unitog U-400	2000-2003	6.4L - 6374cc Dsl	-
Mercedes-Benz	Unitog U-400	2000-2012	OM904, 4.3L - 4249cc Dsl	-
Mercedes-Benz	Unitog U-400	2000-2012	OM906, 6.4L - 6374cc Dsl	-
Mercedes-Benz	Unitog U-500	2001-2003	6.4L - 6374cc Dsl (231 HP)	-
Mercedes-Benz	Unitog U-500	2001-2003	6.4L - 6374cc Dsl (279 HP)	-
Mercedes-Benz	Unitog U-500	2001-2012	OM906, 6.4L - 6374cc Dsl 231HP	-
Mercedes-Benz	Unitog U-500	2001-2012	OM906, 6.4L - 6374cc Dsl 279 HP	-
Timberjack	1010D	2002-2006	JD 4045 4.5L	-
Timberjack	1110D	2002-2006	JD 6068 6.8L	-
Timberjack	810D	2003-2006	JD 4045 4.5L	-
Valtra Valmet	540T	2003-2008		-
