发电机

CF-13199N-A

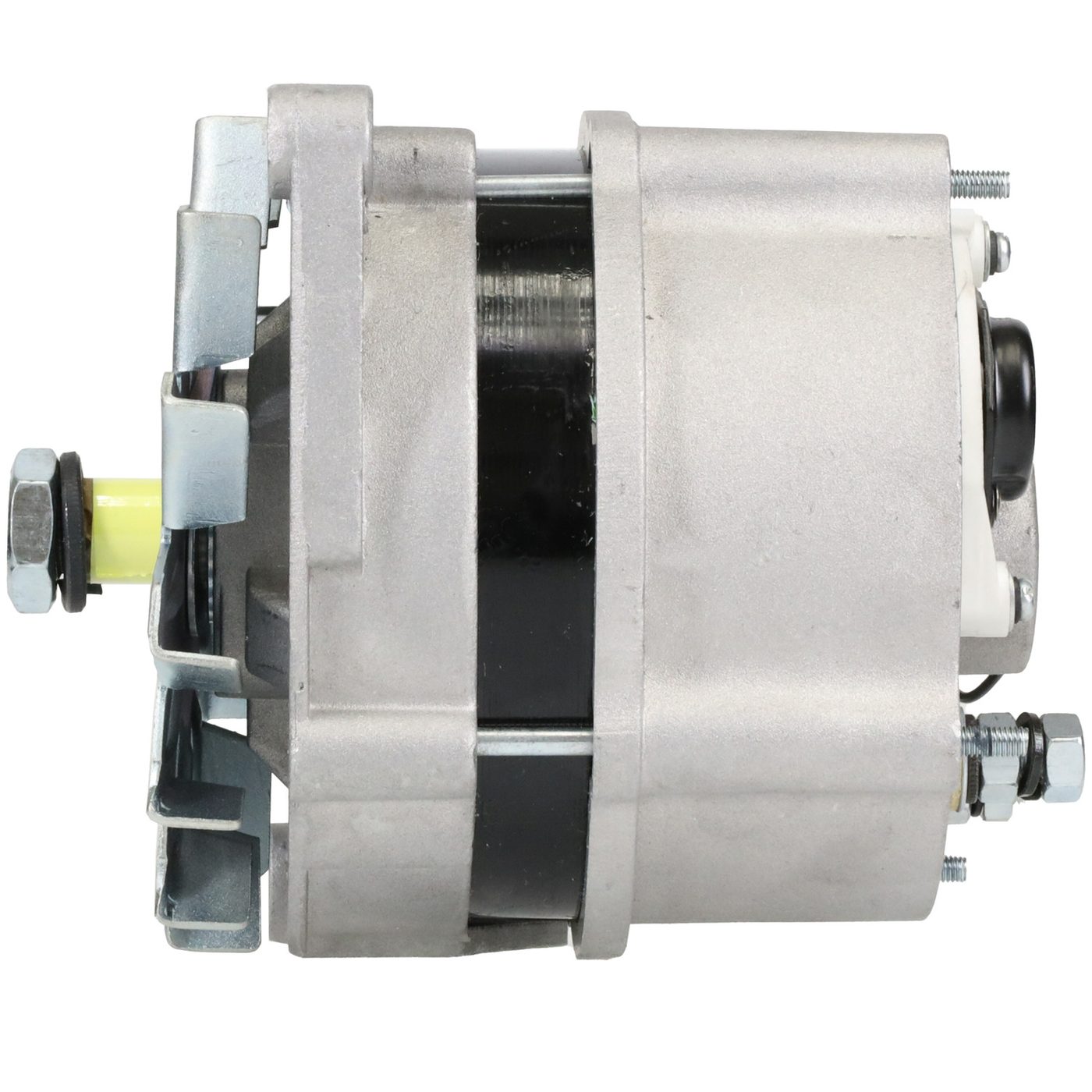

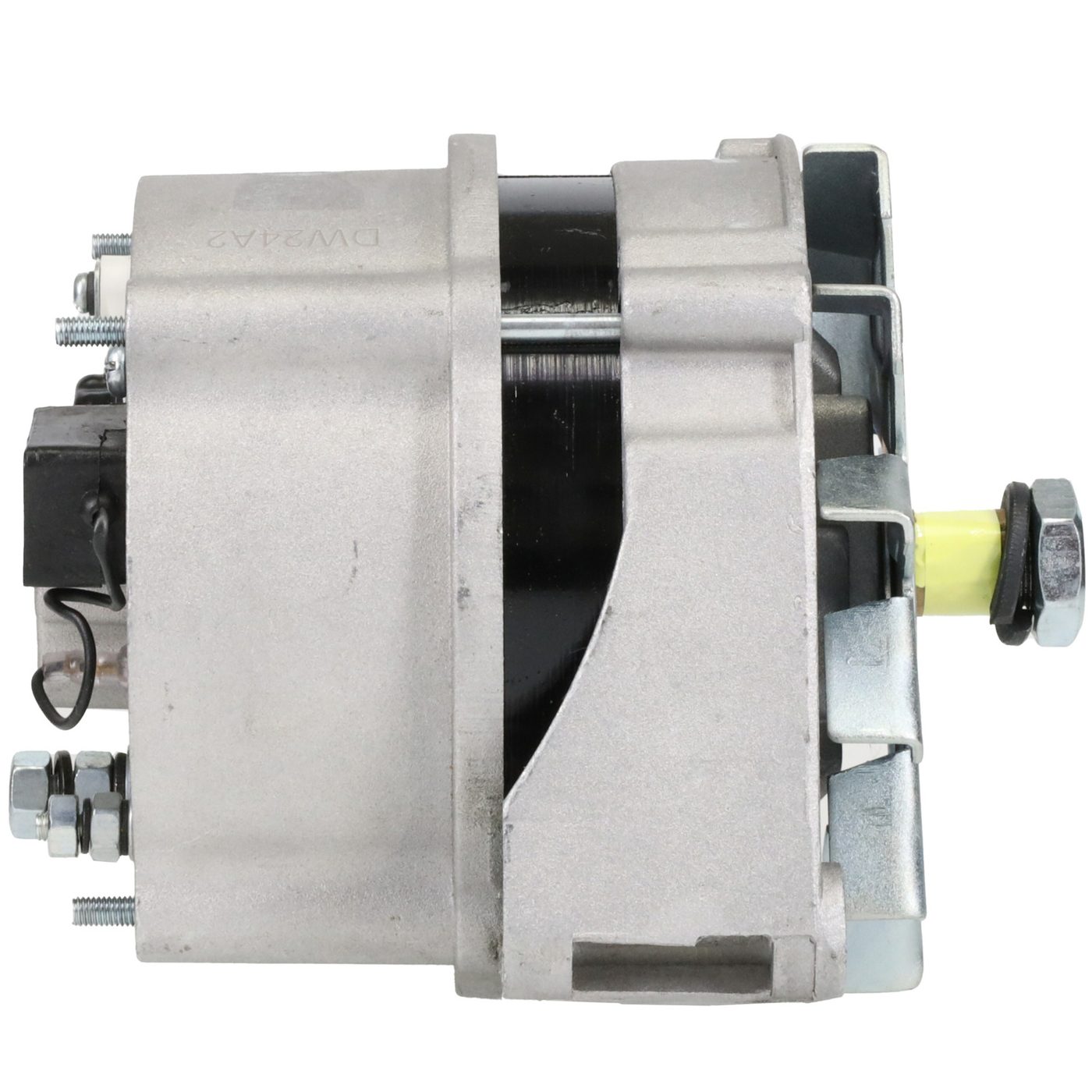

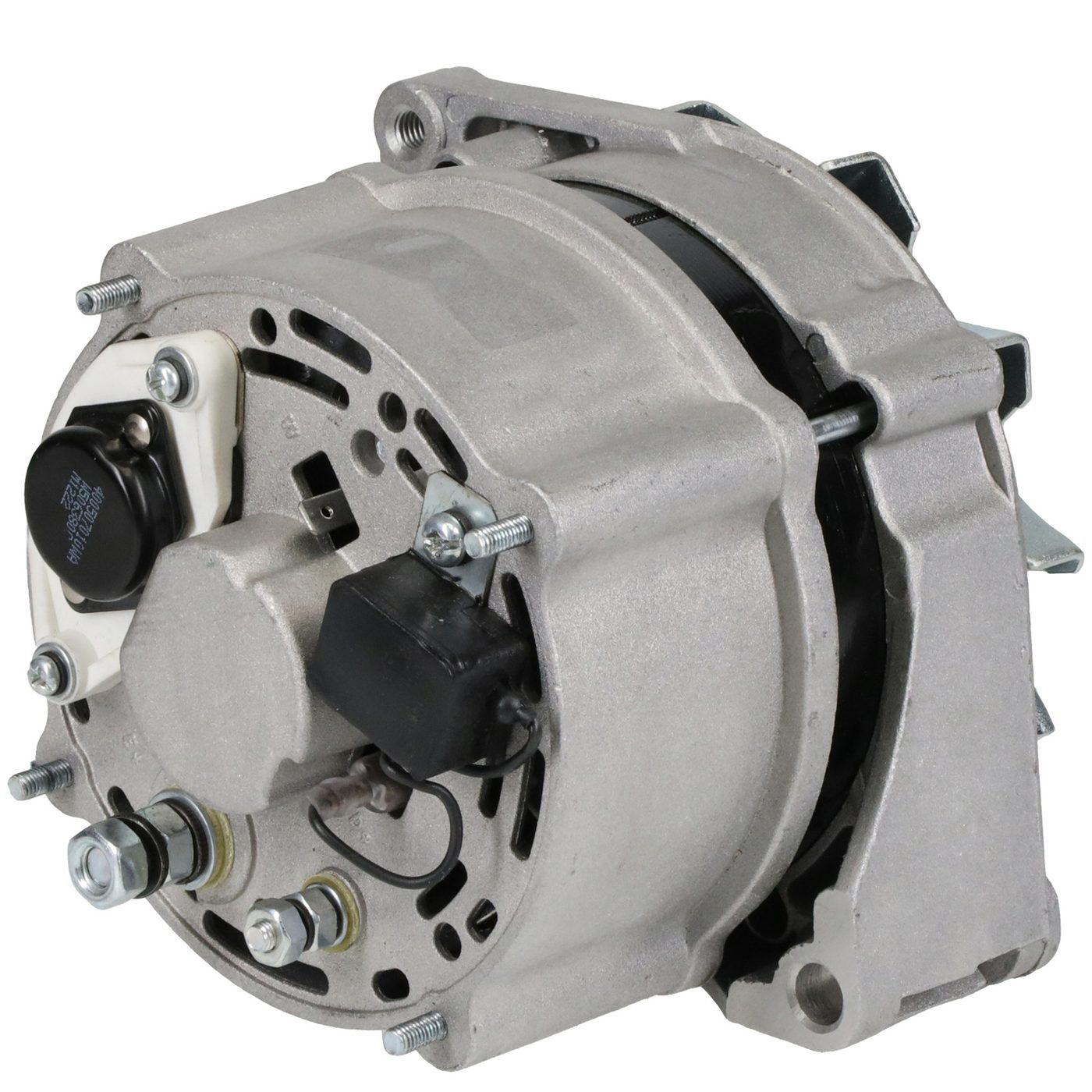

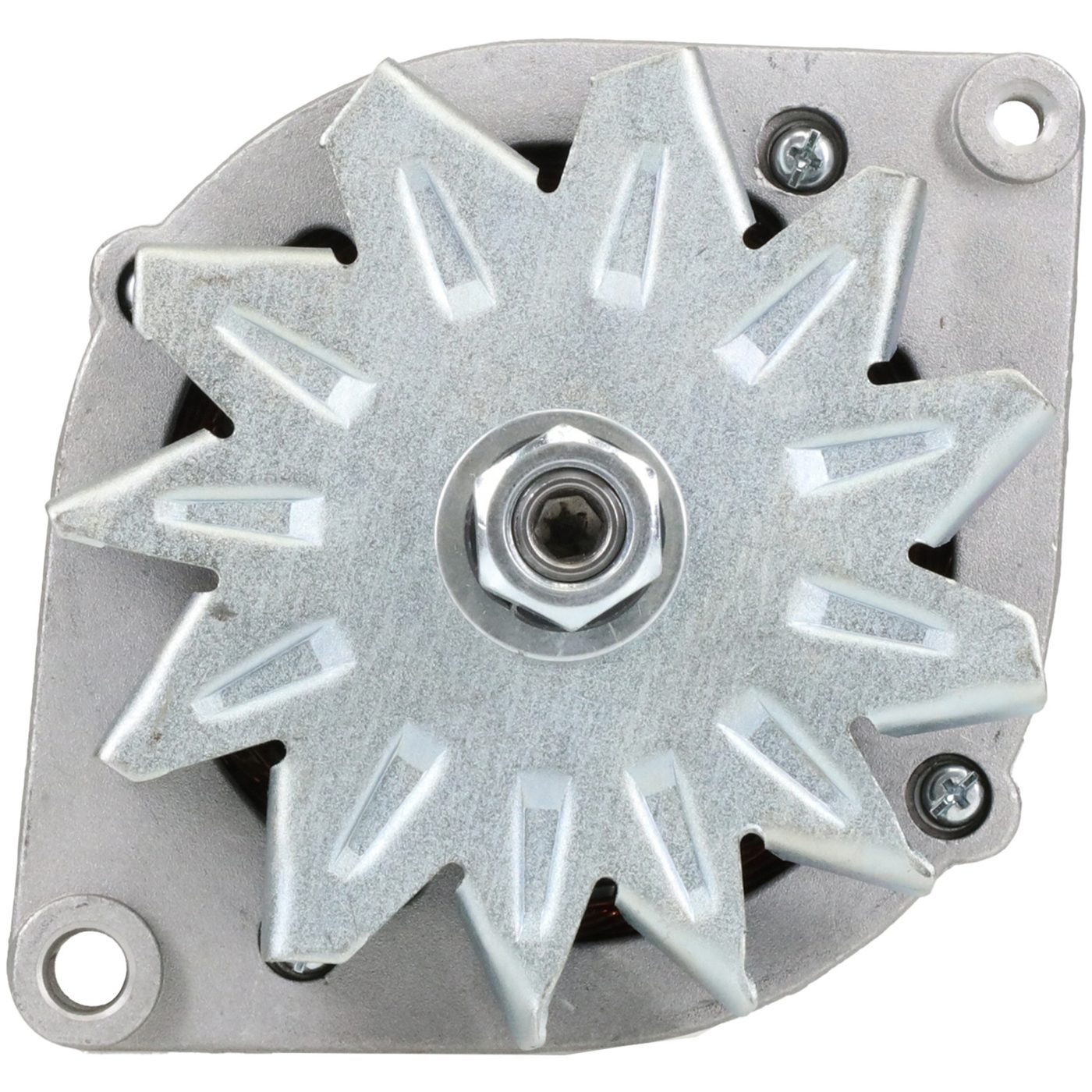

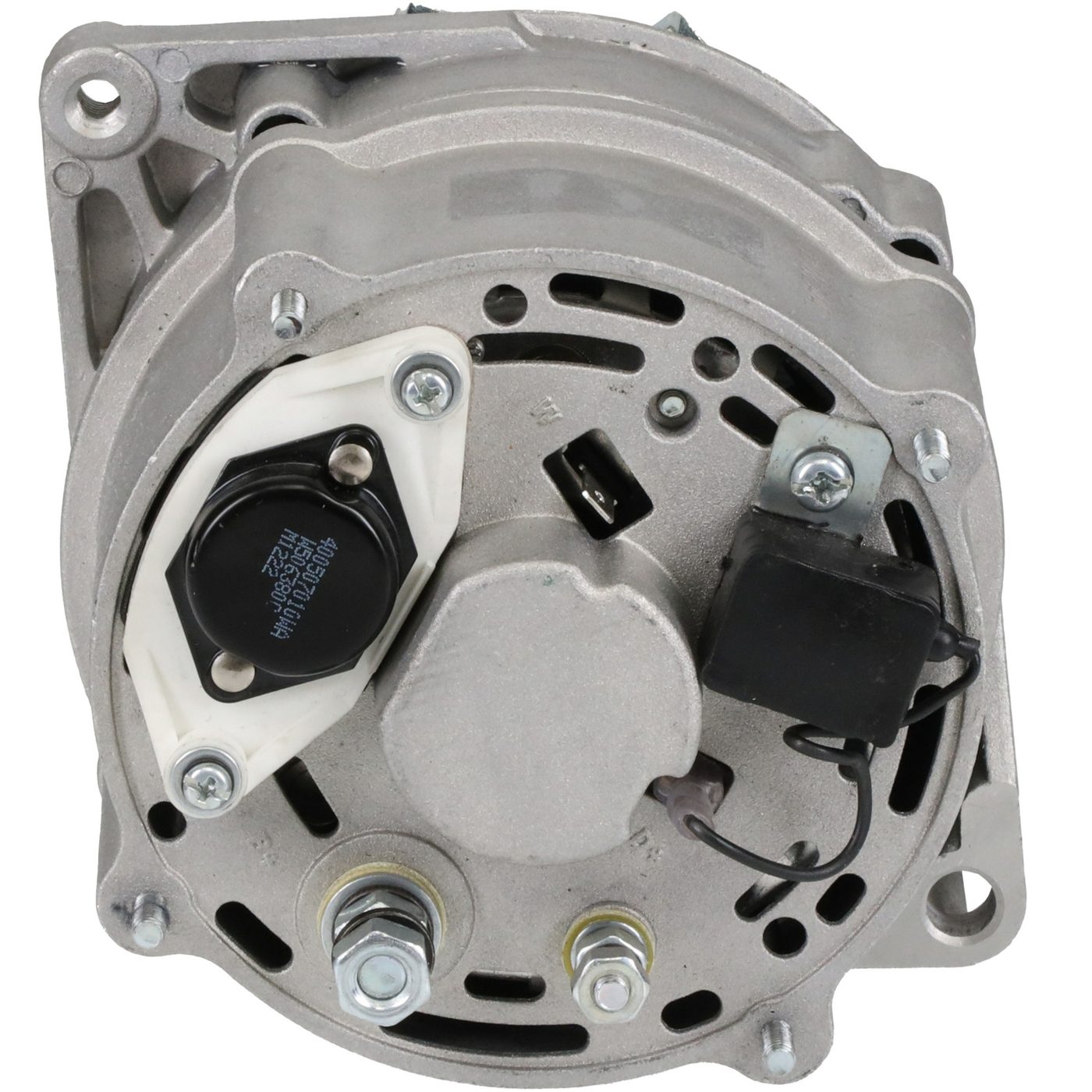

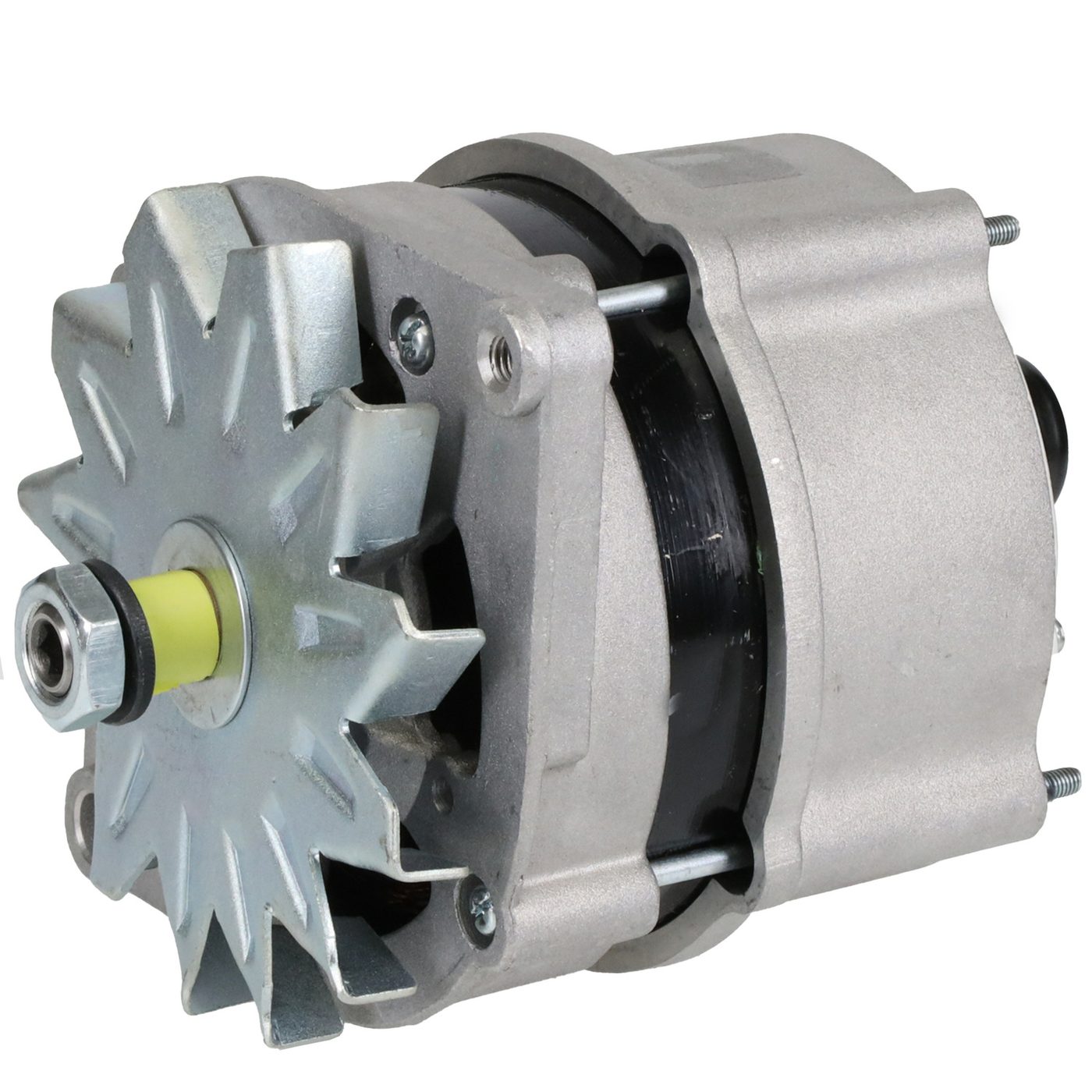

Name: CF-13199N-A Agricultural Machinery Alternator
Brand: Crankvia
SKU: CF-13199N-A

CF-13199N-A alternator for John Deere 1020, John Deere 1030, John Deere 1032 and related applications (12V / 55A / V1).

品牌

规格参数

电压	12V
Amperage	55A
旋向	CW
Pulley Class	V1
Regulator/Fan	IR/EF

产品特性

Part No	CF-13199N-A
MFR	BOSCH
Lester 号	13193, 13195, 13199
OE 编号	Agco C000900010090, Bobcat 6988714, Bosch 0 120 488 217, 0 120 488 218, 0 120 488 267, 0 120 488 290, 0 120 489 703, 0 120 489 704, Doosan 85400877, John Deere A-AL81436, AL 28 516, AL 35 998, AL 61 175, AL 67 175, AL 67 176, AL 78 692, AL 81 436, AL207585, AL207586, AZ26910, SE501346, TY25953, TY6652, TY6791, Letrika (Iskra) 11.201.453, 11.201.929, Letrika (Iskra) Sales IA 0453, IA 0592, IA0453, IA0592, Letrika (Iskra) Tech. AAK1330, AAK3328, Magneton 9-513-021, 9-513-071, 9-513-170, 9-515-511, 9-515-530, 9-515-531, Mahle MG 215, MG 277, Prestolite 20110293
部件类型	Alternator
结构	IR/EF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-13199N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR BOSCH 以及 13193, 13195, 13199 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-13199N-A

记录数

121

品牌数

车型数

年份范围

1965-1996

品牌	车型	年份	发动机	备注
John Deere	1020	1965-1973	2.7L Diesel	-
John Deere	1030	1970-1982	2.7L Diesel	-
John Deere	1032	1983-1989	48KW	-
John Deere	1040	1970-1986	3179 John Deere Diesel	-
John Deere	1040	1979-1986	3.179DL-06, 2.9	-
John Deere	1040V	1979-1986	3.179DL-06, 2.9	-
John Deere	1042	1983-1989	55KW	-
John Deere	1052	1983-1989	63KW	-
John Deere	1120	1970-1982	2.7L John Deere Diesel	-
John Deere	1120	1971-1975	3.164DL-01, 2.7	-
John Deere	1130	1970-1982		-
John Deere	1130	1975-1979	3.164DL-13, 2.7	-
John Deere	1133	1991-1994		-
John Deere	1140	1970-1986	3179 John Deere Diesel	-
John Deere	1140	1979-1986	3.179DL-01, 2.9	-
John Deere	1140F	1979-1986	3.179DL-01, 2.9	-
John Deere	1140V	1979-1986	3.179DL-01, 2.9	-
John Deere	1144	1990-1991		-
John Deere	1350	1986-1994	2.9L John Deere Diesel	-
John Deere	1530	1972-1982	164 Dsl	-
John Deere	1530	1974-1975	164 Diesel	-
John Deere	1550	1987-1994	2.9L John Deere Diesel	-
John Deere	1630	1973-1982		-
John Deere	1630	1973-1982	2.9L John Deere Diesel	-
John Deere	1640	1970-1979	4239 John Deere Diesel	-
John Deere	1640	1979-1986	4.239DL-03,3.9	-
John Deere	1640	1980-1982	3.9L John Deere Diesel	-
John Deere	1640F	1979-1986	4.239DL-03,3.9	-
John Deere	1750	1987-1994	2.9L John Deere Diesel	-
John Deere	1840F	1979-1986	4.239DL-04, 3.9	-
John Deere	1950	1988-1994	2.9L John Deere Diesel	-
John Deere	2040	1976-1982	3-164 Diesel	-
John Deere	2040	1979-1985	152 Diesel	-
John Deere	2040	1979-1986	4.239DL-04, 3.9	-
John Deere	2040	1979-1986	4239 John Deere Diesel	-
John Deere	2040	1980-1985	152 Dsl	-
John Deere	2040F	1979-1986	4.239DL-04, 3.9	-
John Deere	2040S	1979-1986	4.239DL-04, 3.9	-
John Deere	2120	1970-1979	3.6L John Deere Diesel	-
John Deere	2140	1974-1986	4239 John Deere Diesel	-
John Deere	2140	1979-1986	4.239TL-02, 3.9	-
John Deere	2150 Utility	1982	3-179, 2.9	-
John Deere	2150	1982-1987	3-179 Diesel	-
John Deere	2150	1982	3.179DL-01, 2.9	-
John Deere	2150	1983-1986		-
John Deere	2155	1987-1992	3-179 Diesel	-
John Deere	2155	1987-1992	3-179, 2.9	-
John Deere	2240	1976-1982	164 Diesel	-
John Deere	2240	1976-1982	164 Dsl	-
John Deere	2240	1976-1986	3-179 Diesel	-
John Deere	2240	1979	3.179DL-01, 2.9	-
John Deere	2250	1975-1978	4219 John Deere Diesel	-
John Deere	2255	1983-1987	3-179 Diesel	-
John Deere	2255	1983-1987	3-179 Dsl, 2.9	-
John Deere	2350 Farm	1982	4.239DL-07, 3.9	-
John Deere	2350 Utility Tractor	1983-1986	4-239 Diesel	-
John Deere	2350 Utility Tractor	1983-1986	4-239, 3.9	-
John Deere	2355	1986-1992	4-239 Diesel	-
John Deere	2355	1986-1992	4-239 Dsl, 3.9	-
John Deere	2355	1987-1992		-
John Deere	2355N	1986-1992	4-239 Dsl, 3.9	-
John Deere	2550 Farm	1982	4.239DL-06, 3.9	-
John Deere	2550 Utility Tractor	1982-1987	4-239 Diesel	-
John Deere	2550 Utility Tractor	1982-1987	4-239, 3.9	-
John Deere	2555 Utility	1987-1992	4-239, 3.9	-
John Deere	2555	1987-1992	4-239 Diesel	-
John Deere	2650	1987-1994	3.9L John Deere Diesel	-
John Deere	2750	1982	4.239TL-04, 3.9	-
John Deere	2750	1983-1986	4-239 Diesel	-
John Deere	2755 Utility	1987-1992	4-239, 3.9	-
John Deere	2755	1987-1992	4-239 Diesel	-
John Deere	2840	1977-1979	6-329 Diesel	-
John Deere	2850	1986-1994	3.9L John Deere Diesel	-
John Deere	2855N	1987-1993	4-239 Diesel	-
John Deere	2855N	1987-1993	4-239 Dsl, 3.9	-
John Deere	2940	1980-1984	6-359 Diesel	-
John Deere	2940	1982	6.359DL-03, 5.9	-
John Deere	2950	1982	6.359DL-04, 5.9	-
John Deere	2950	1983-1986	6-359 Diesel	-
John Deere	2955	1987-1992	6-359 Diesel	-
John Deere	3030	1979-1982	5.4L John Deere Deisel	-
John Deere	3040	1979-1982	6.359DL-01, 5.9	-
John Deere	3040	1980-1984		-
John Deere	3040	1980-1986	6359 John Deere Diesel	-
John Deere	3050	1986-1993	5.9L John Deere Diesel	-
John Deere	3120	1970-1977		-
John Deere	3130	1979-1982	6-359 Diesel	-
John Deere	3140	1970-1982	6-359 Diesel	-
John Deere	3140	1979-1987	6.359DL-03, 5.9	-
John Deere	3150	1985-1987	6-359 Diesel	-
John Deere	3350	1986-1993	5.9L John Deere Diesel	-
John Deere	3640	1984-1987	5.9L John Deere Diesel	-
John Deere	6100	1992-1996	4-239 Diesel	-
John Deere	820	1972-1980	3-cyl	-
John Deere	8225R	1973-1982	4219 John Deere Diesel	-
John Deere	830	1972-1975	3cyl Engine	-
John Deere	830	1972-1980	3-cyl	-
John Deere	840	1979-1984	3.179DL-04, 2.9	-
John Deere	840	1979-1986	3179 John Deere Diesel	-
John Deere	909MH	1970-1982	4239 John Deere Diesel	-
John Deere	909MH	1979-1986	4.239DL-04, 3.9	-
John Deere	920	1971-1975	3.152DL-02, 2.5	-
John Deere	930	1972-1979		-
John Deere	930	1972-1996	Various	-
John Deere	930	1975-1979	3.164DL-15, 2.7	-
John Deere	932	1979-1983	4239 John Deere Diesel	-
John Deere	940	1979-1984	3179 John Deere Diesel	-
John Deere	940	1979-1986	3.179DL-05, 2.9	-
John Deere	942	1979-1983	4239 John Deere Diesel	-
John Deere	952	1981-1983	4239 John Deere Diesel	-
John Deere	959K	1986-1994	2.9L John Deere Diesel	-
John Deere	MD1032	1983-1989	W/ 4.0	-
John Deere	MD1042	1983-1989	W/ 4.0	-
John Deere	MD1052	1983-1989	W/ 4.0	-
John Deere	MD1055	1983-1989	W/ 5.9	-
John Deere	MD932	1979-1983	4.239DZ-04, 3.9	-
John Deere	MD940	1972-1975	4.239DZ-01, 3.9	-
John Deere	MD942	1979-1983	4.239DZ-03, 3.9	-
John Deere	MD952	1977-1983	4.239TZ-01, 3.9	-
John Deere	Nassau	1972-1975	219	-
John Deere	P30 Series	1970-1979	All	-
