发电机

CF-23802N-A

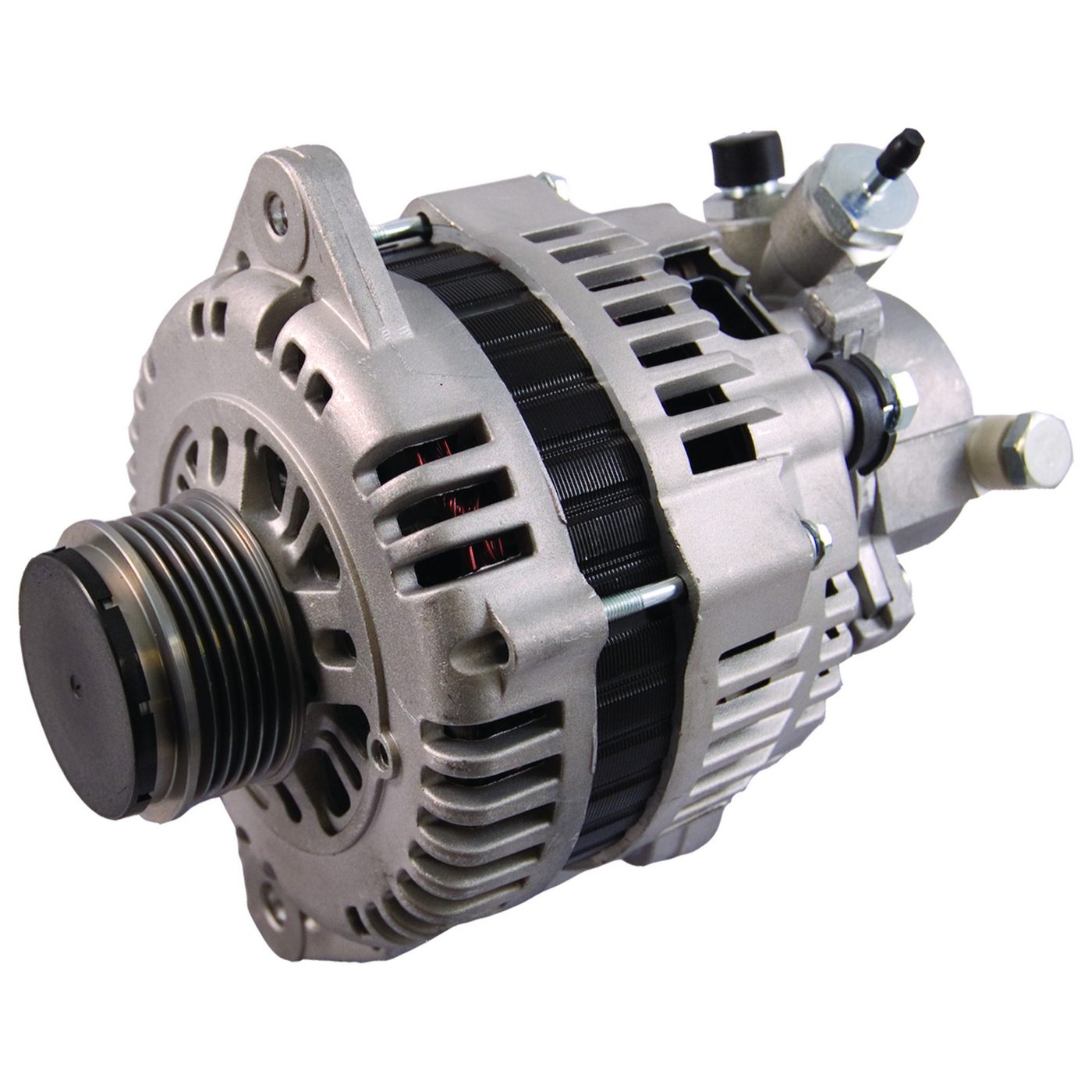

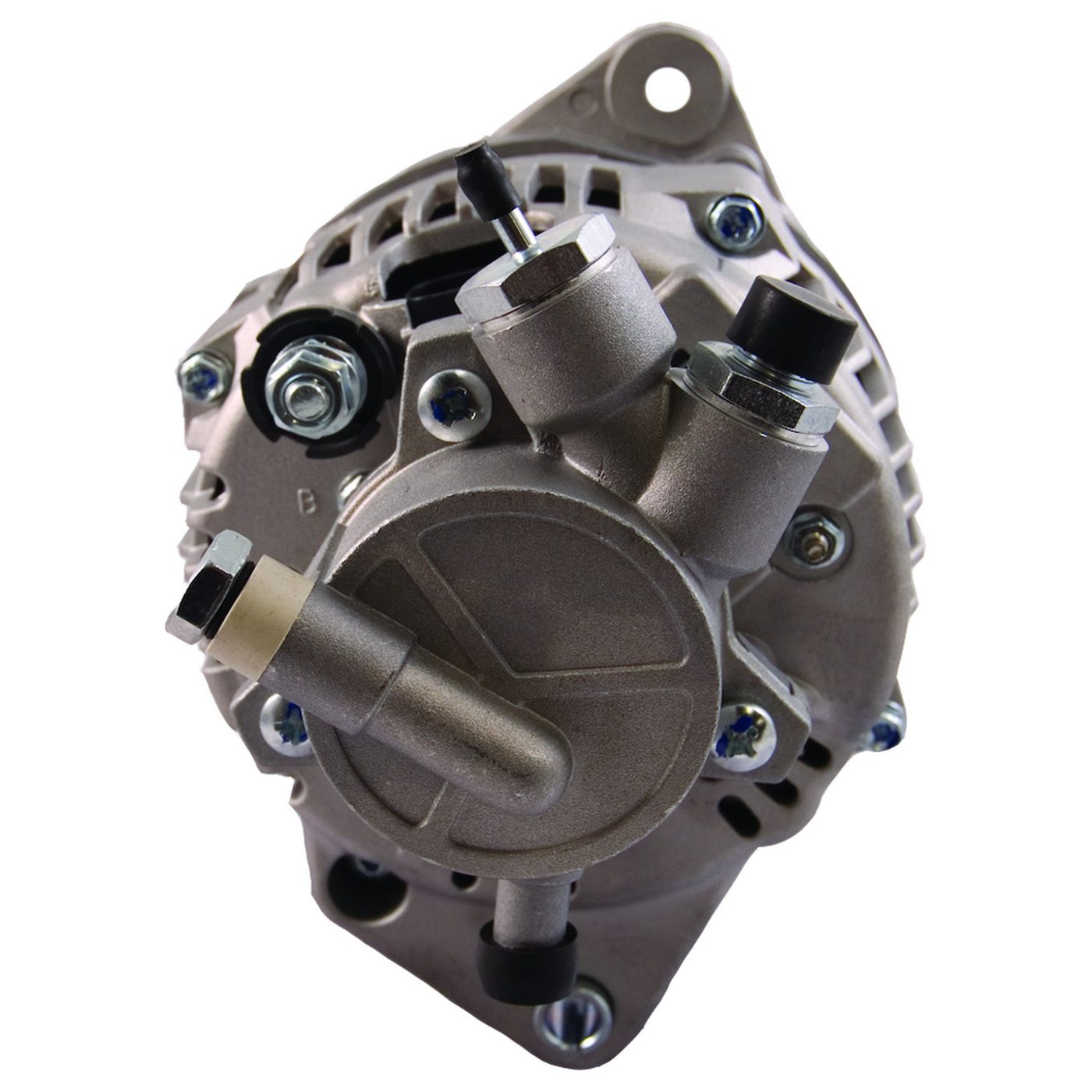

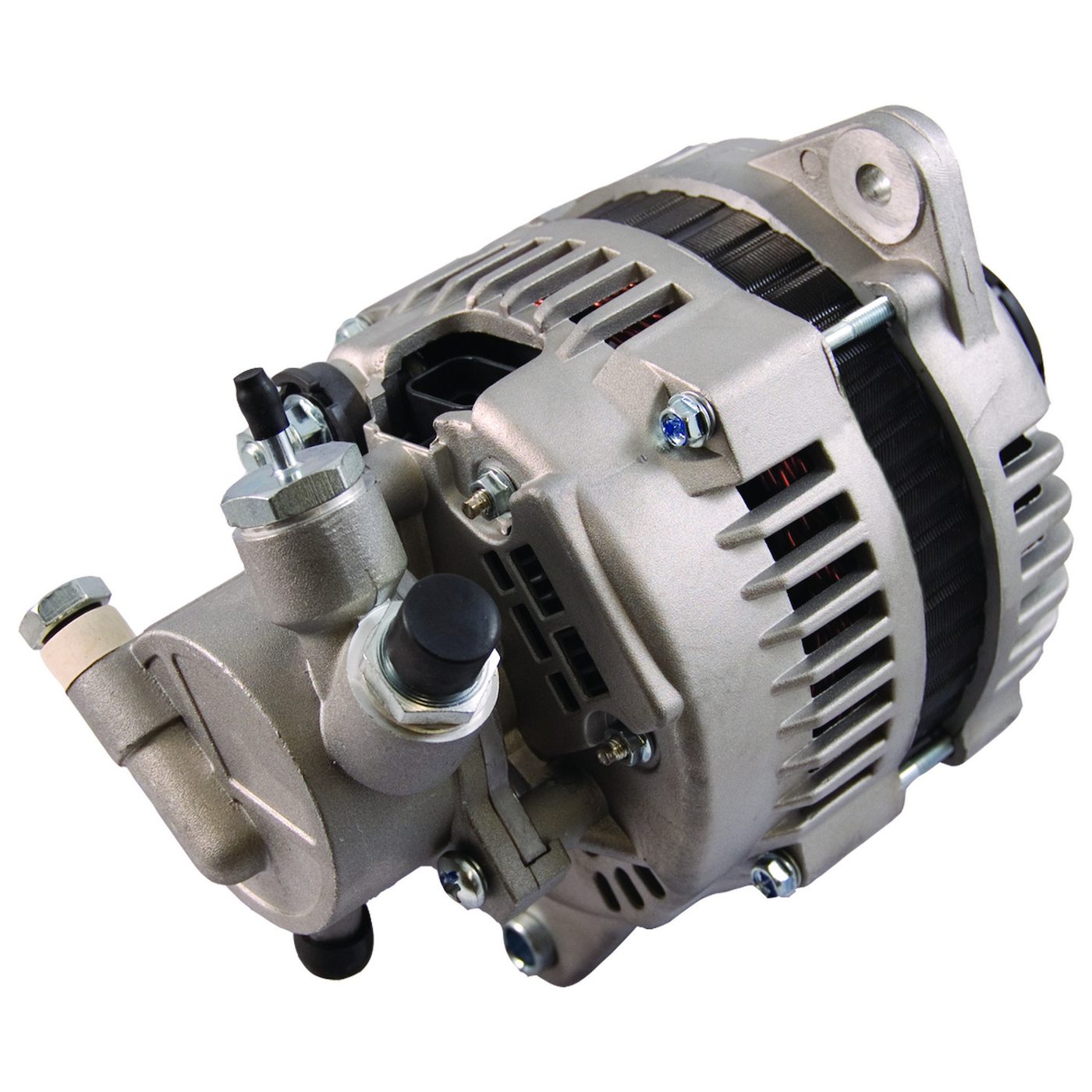

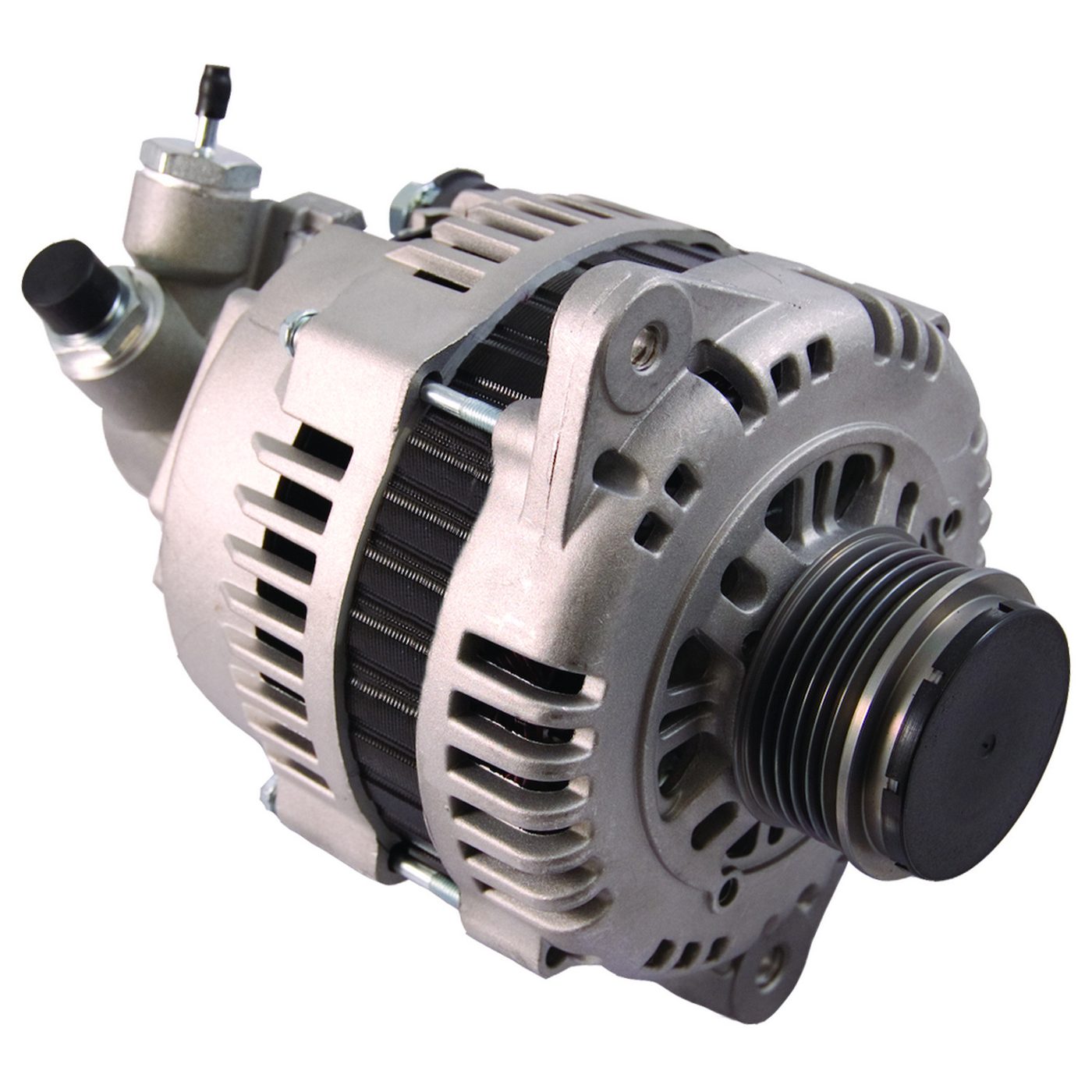

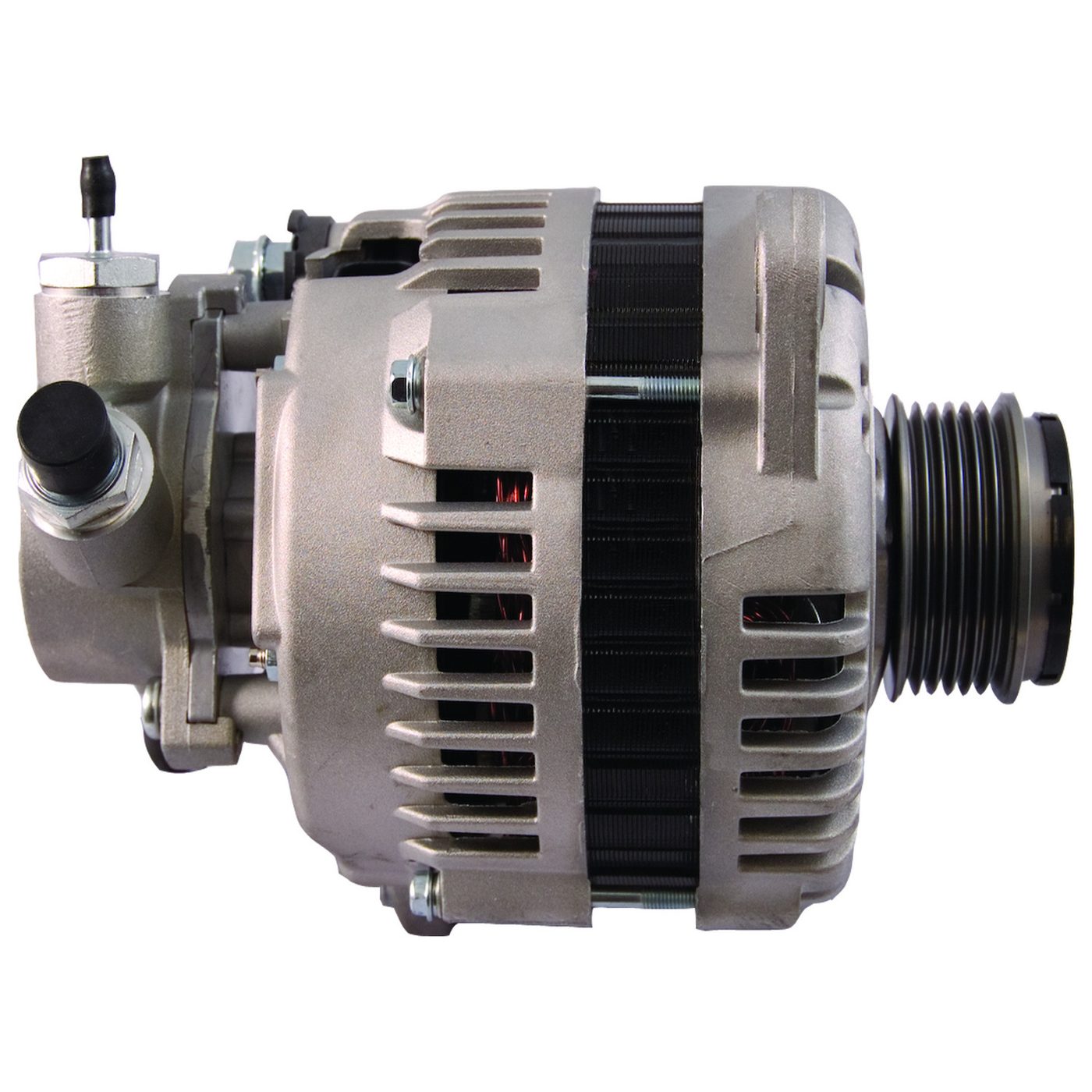

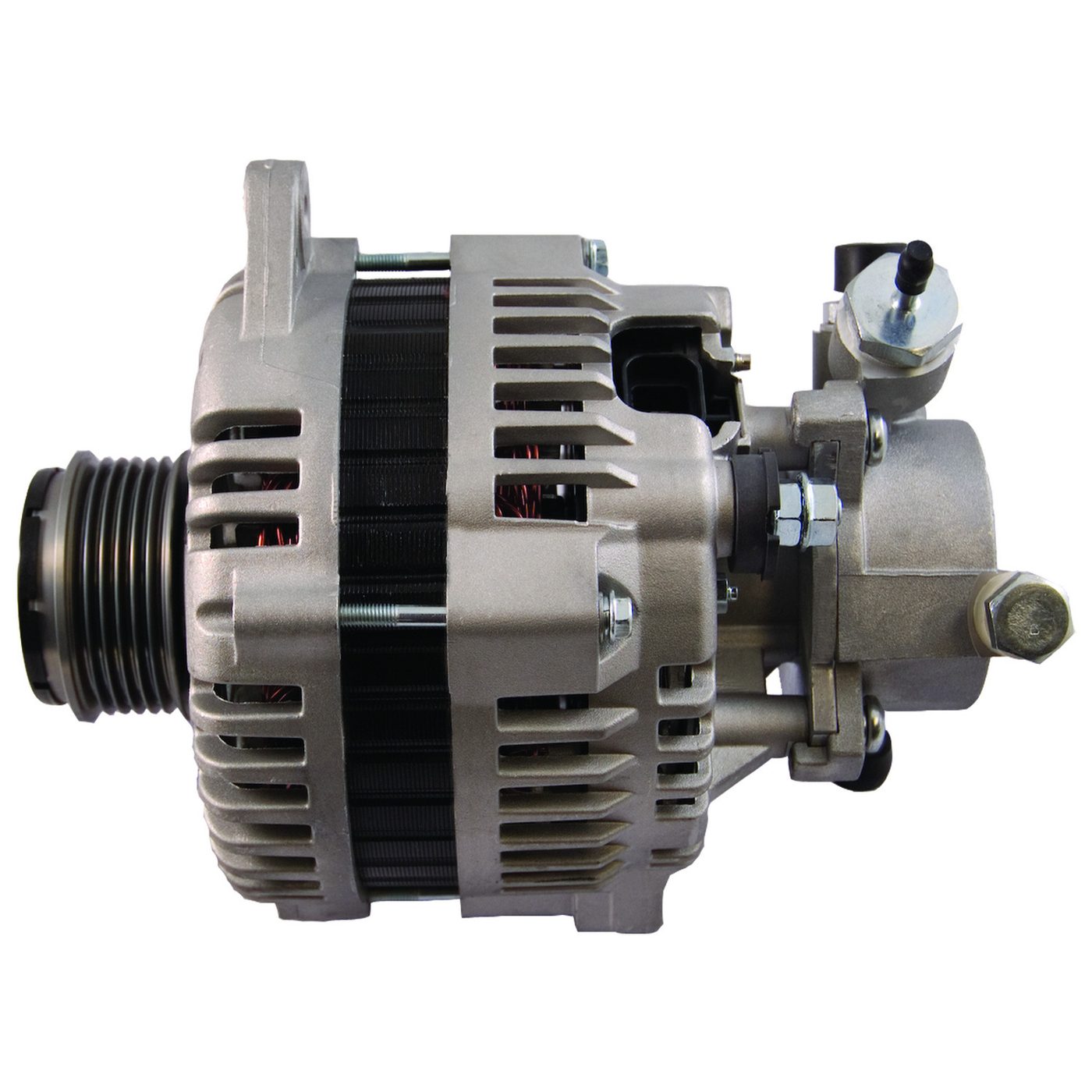

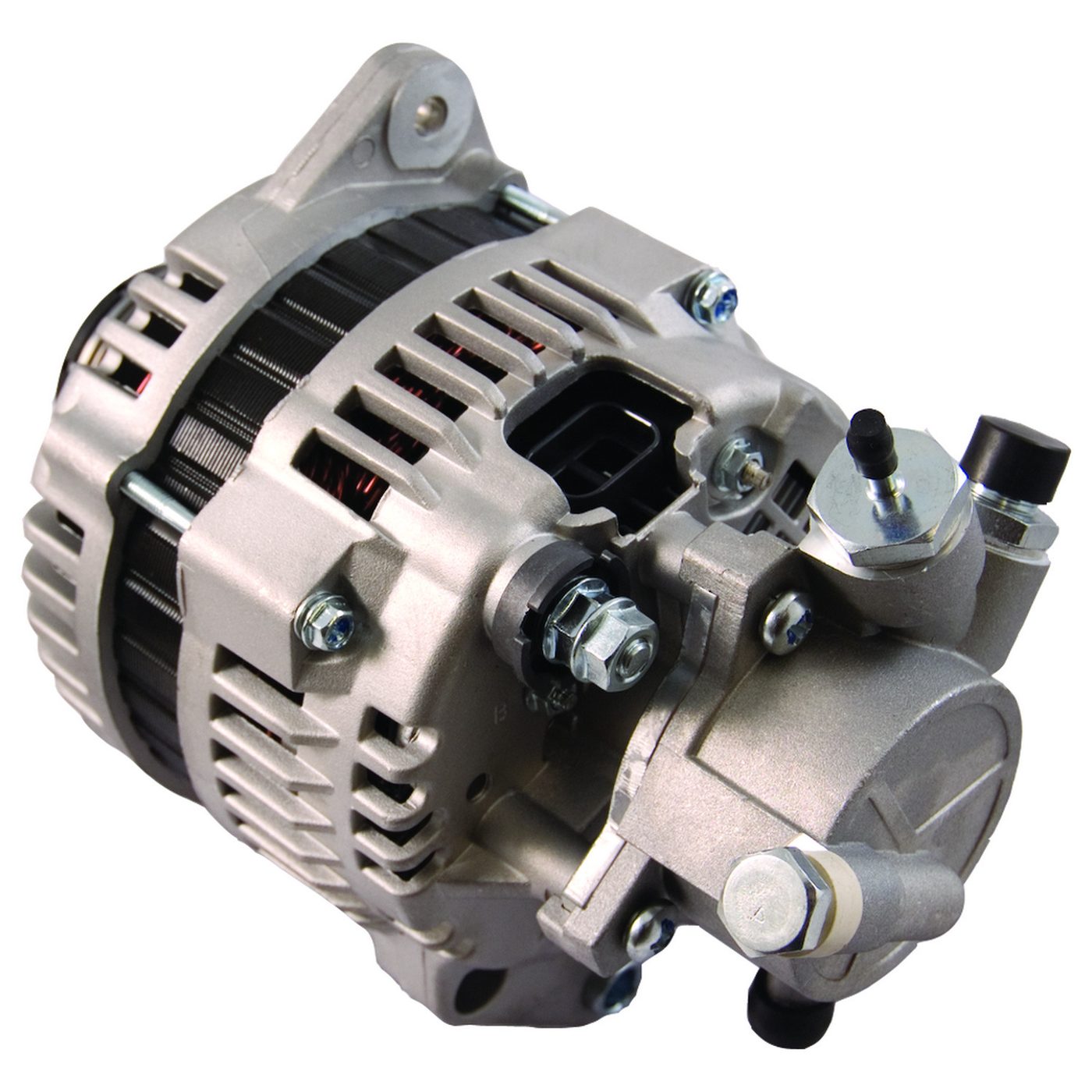

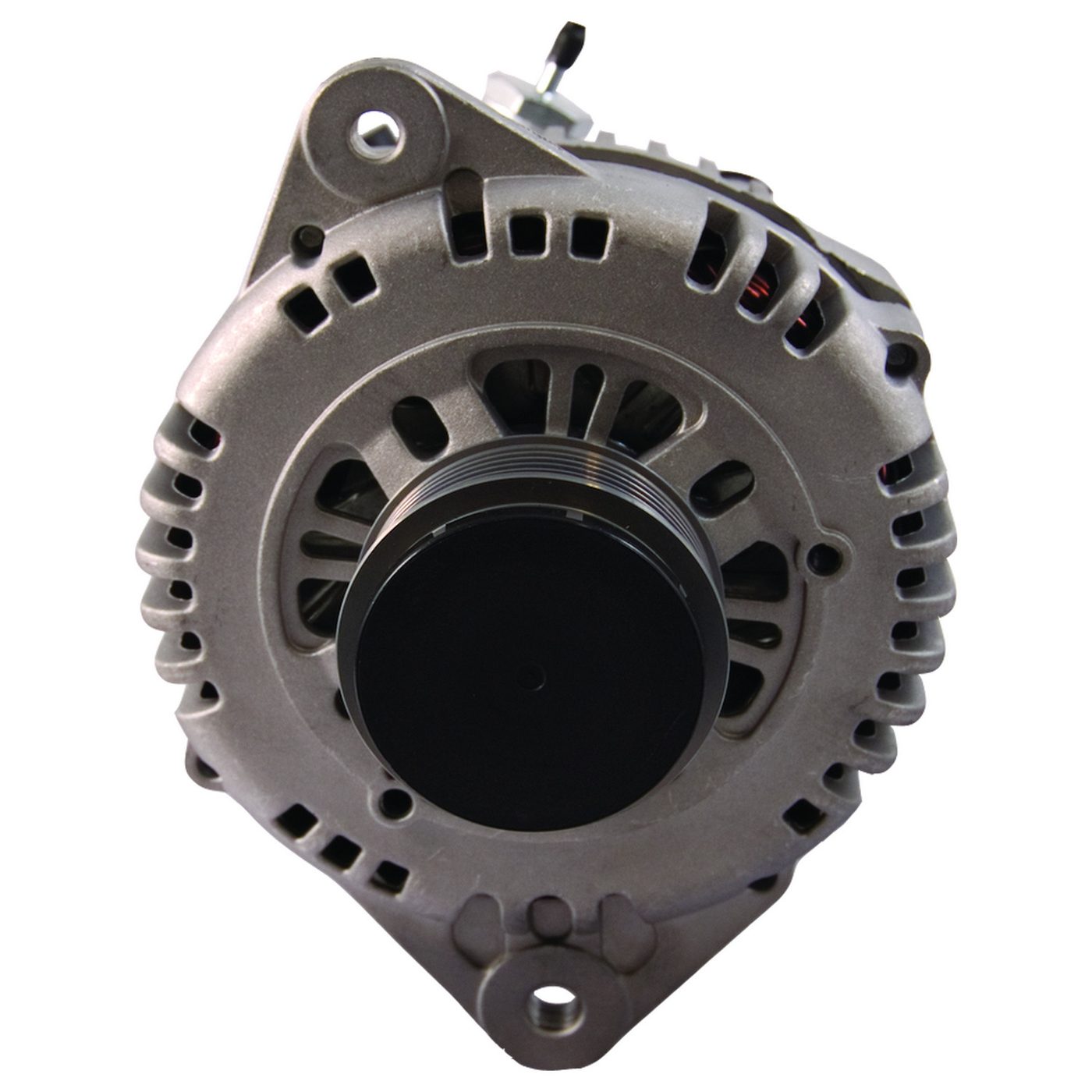

Name: CF-23802N-A Passenger Vehicle Alternator
Brand: Crankvia
SKU: CF-23802N-A

CF-23802N-A alternator for Opel - Europe Astra H, Opel - Europe Combo C, Opel - Europe Corsa D and related applications (12V / 100A / S6).

品牌

规格参数

电压	12V
Amperage	100A
旋向	CW
Pulley Class	S6
Regulator/Fan	IR/IF

产品特性

Part No	CF-23802N-A
MFR	HITACHI
Lester 号	23802, 23804
OE 编号	GM 93189498, 97363832, 98056441, Hitachi 2506103, LR1100-508, LR1100-508A, LR1100-508B, LR1100-508C, LR1100-508D, LR1100-508E, LR1100-508F, LR1110-502, LR1110-503, LR1110-503B, LR1110-503C, LR1110-503E, LR1110-503F, Isuzu 8973638320, 8973638321, 8973638322, 8973638330, 8973695070, 8973695072, 8980564390, 8980564410, Marelli 943358377010, 944390903360, Opel 62 04 288, 62 04 289, 6204183, 6204252, 6204254, 93189496, 98056443, Valeo 440652, Vauxhall R1530090, R1530092
部件类型	Alternator
结构	IR/IF

产品优势

发电机匹配重点关注电流、电压、皮带轮配置、调节器/风扇结构、插头和 OE 替换参考。

以适配为核心的匹配

CF-23802N-A 面向发电机替换采购，会结合 Part No、OE、Lester 号和应用记录一起核对。

关注质量与测试要点

样品或批量报价前，会重点确认电压、功率或电流、旋向、齿数和结构等关键规格。

支持替换件采购判断

MFR HITACHI 以及 23802, 23804 等替换参考，可帮助买家对照现有旧件，降低错配风险。

面向询盘的供货配合

提供目标数量、目的地、样品需求和包装要求后，Crankvia 可继续确认实际供货路径。

应用车型

应用记录仅作为适配参考。最终下单前仍需结合 OE 编号、车辆配置、发动机和市场版本确认。

适配参考

CF-23802N-A

记录数

品牌数

车型数

年份范围

2004-2015

品牌	车型	年份	发动机	备注
Opel - Europe	Astra H	2004-2007	1700, Z17DTH, DTL	-
Opel - Europe	Combo C	2004-2015	Z17DTH,1.7 CDTi , 1686cc	-
Opel - Europe	Corsa D	2006-2010	1700, 16V, A17DTR	-
Opel - Europe	Corsa D	2006-2015	A17DTS,1.7 CDTI, 1686cc	-
Opel - Europe	Corsa D	2006-2015	Z17DTR, 1.7 CDTI, 1686cc	-
Opel - Europe	Meriva A	2006-2010	Z17DTR, 1.7 CDTI, 1686cc	-
Opel LCV - Europe	Astra Van H	2004-2007	1700, Z17DTH, DTL	-
Opel LCV - Europe	Corsa/Combo II	2004-2010	1700, 16V, Z17DTH	-
Opel LCV - Europe	Corsa/Combo II	2006-2010	1700, 16V, A17DTR	-
Vauxhall - Europe	Astra H	2004-2007	Z17DTH, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Astra H	2004-2007	Z17DTL, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Astravan H	2005-2006	Z17DTL, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Combo C	2004-2015	Z17DTH, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Corsa D	2006-2015	A17DTS,1.7 CDTI, 1686cc	-
Vauxhall - Europe	Corsa D	2006-2015	Z17DTR, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Meriva A	2004-2010	Z17DTH, 1.7 CDTI, 1686cc	-
Vauxhall - Europe	Meriva A	2006-2010	Z17DTR, 1.7 CDTI, 1686cc	-
