This is a general guide for electric starter replacement on lawn and garden equipment. It is not equipment-specific and does not replace the equipment or engine manufacturer's service manual.
1. Product Overview

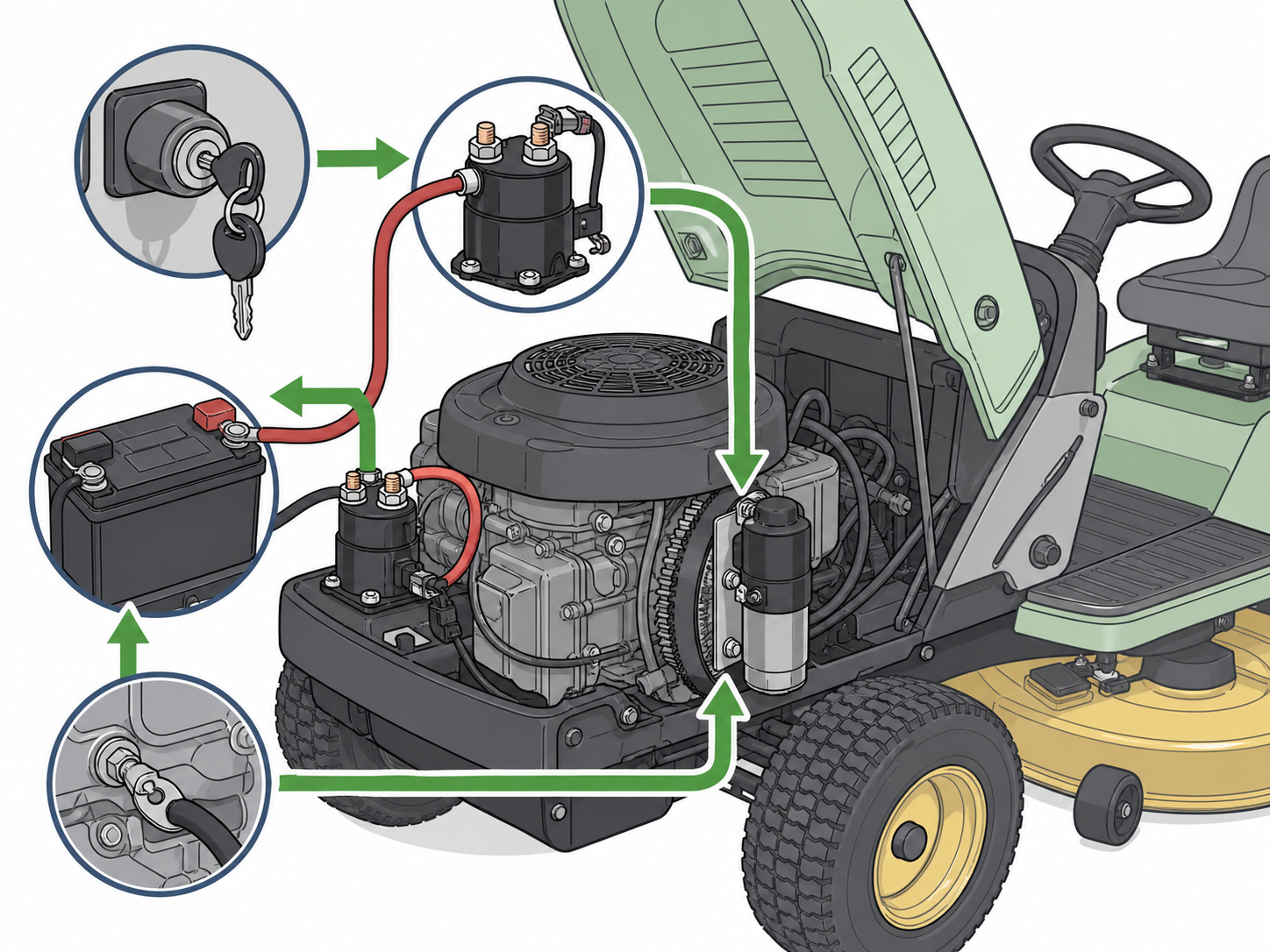

A lawn and garden starter is part of the small-engine starting system. When the operator turns the key or uses the start control, the starter helps crank the engine so the engine can begin running on its own.
The starter works together with the battery, battery cables, ground cable, starter solenoid or relay, fuse, key switch, safety interlock switches, wiring, starter gear, and engine flywheel or ring gear. A no-crank or no-start condition may come from any of these areas, not only from the starter itself.
This handbook provides general installation, safety, troubleshooting, and care information for replacement starters used on lawn mowers, riding mowers, garden tractors, and similar small-engine equipment. Exact starter location, wiring layout, covers, access path, fasteners, and safety-control design may vary by equipment model.
Always refer to the equipment service manual before installation.
What This Guide Covers
- General starter function
- Safety precautions before installation
- Basic checks before removing the old starter
- General removal and installation steps
- Battery cable, solenoid, ground, and connector awareness
- Gear engagement and abnormal-noise awareness
- Basic troubleshooting after installation
- Use, maintenance, storage, and support guidance
What This Guide Does Not Cover
- Equipment-specific access paths or cover-removal procedures
- Brand, model, OE number, SKU, Lester number, or application matching
- Specific torque values unless provided by the equipment service manual
- Bypassing or disabling seat, brake, blade, PTO, neutral, or clutch safety switches
- Shorting starter or solenoid terminals to crank the engine
- Internal starter repair, brush replacement, armature repair, or drive gear service
- Fuel-system, carburetor, ignition-system, or compression diagnosis
- Guaranteed repair claims for no-crank or no-start symptoms
2. Safety Instructions
Read all safety instructions before beginning work. Lawn and garden equipment may have sharp blades, belts, pulleys, hot engine parts, battery cables, fuel vapors, and safety interlock circuits. Incorrect handling can cause accidental starting, cuts, burns, short circuits, equipment damage, fire risk, or personal injury.

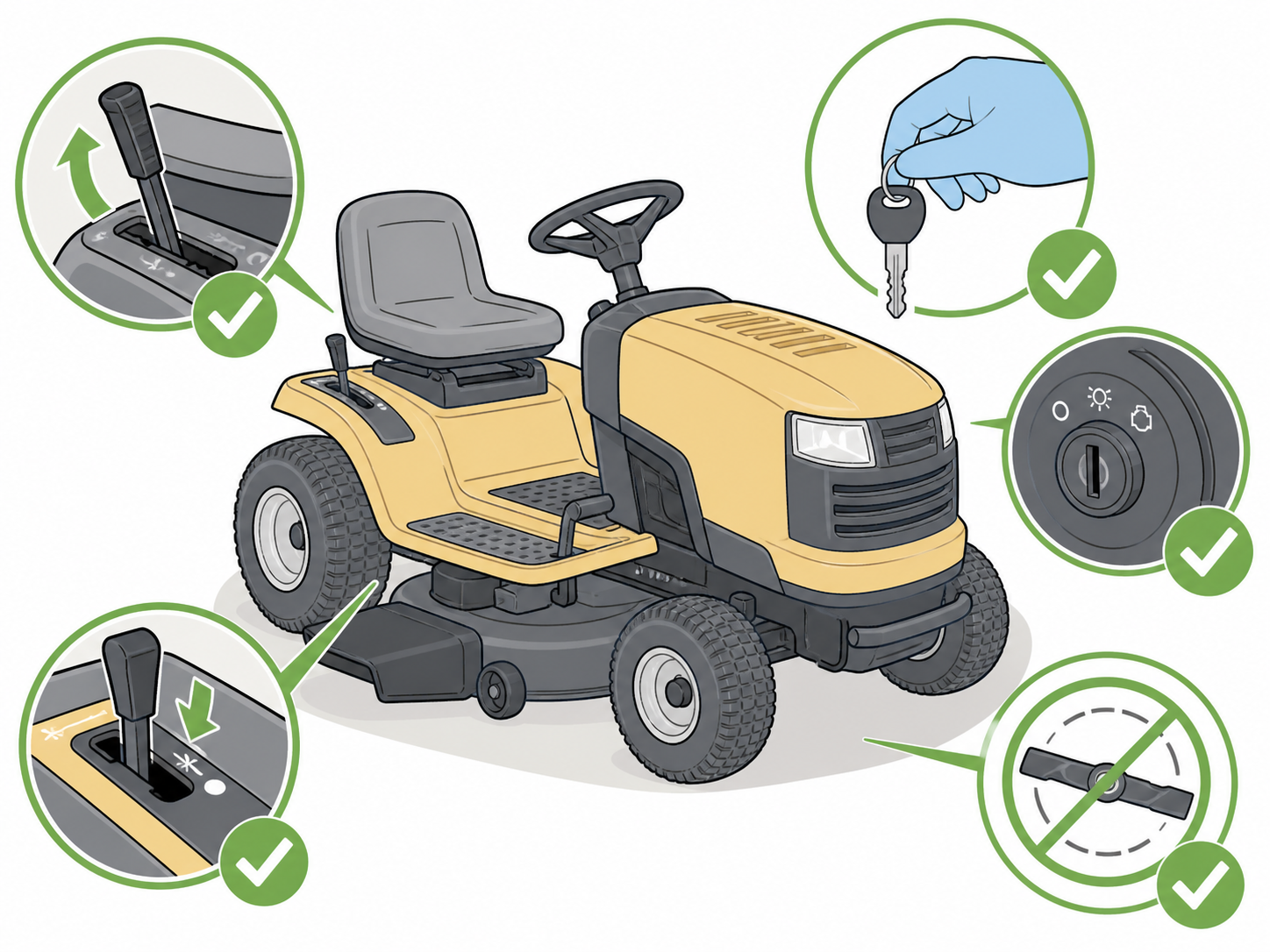

Before You Begin
- Park the equipment on a firm, level surface.
- Set the parking brake if equipped.
- Turn the key off and remove the key.
- Make sure the blade control, PTO, clutch, or cutting attachment control is off.
- Allow the engine, muffler, and nearby parts to cool before working.

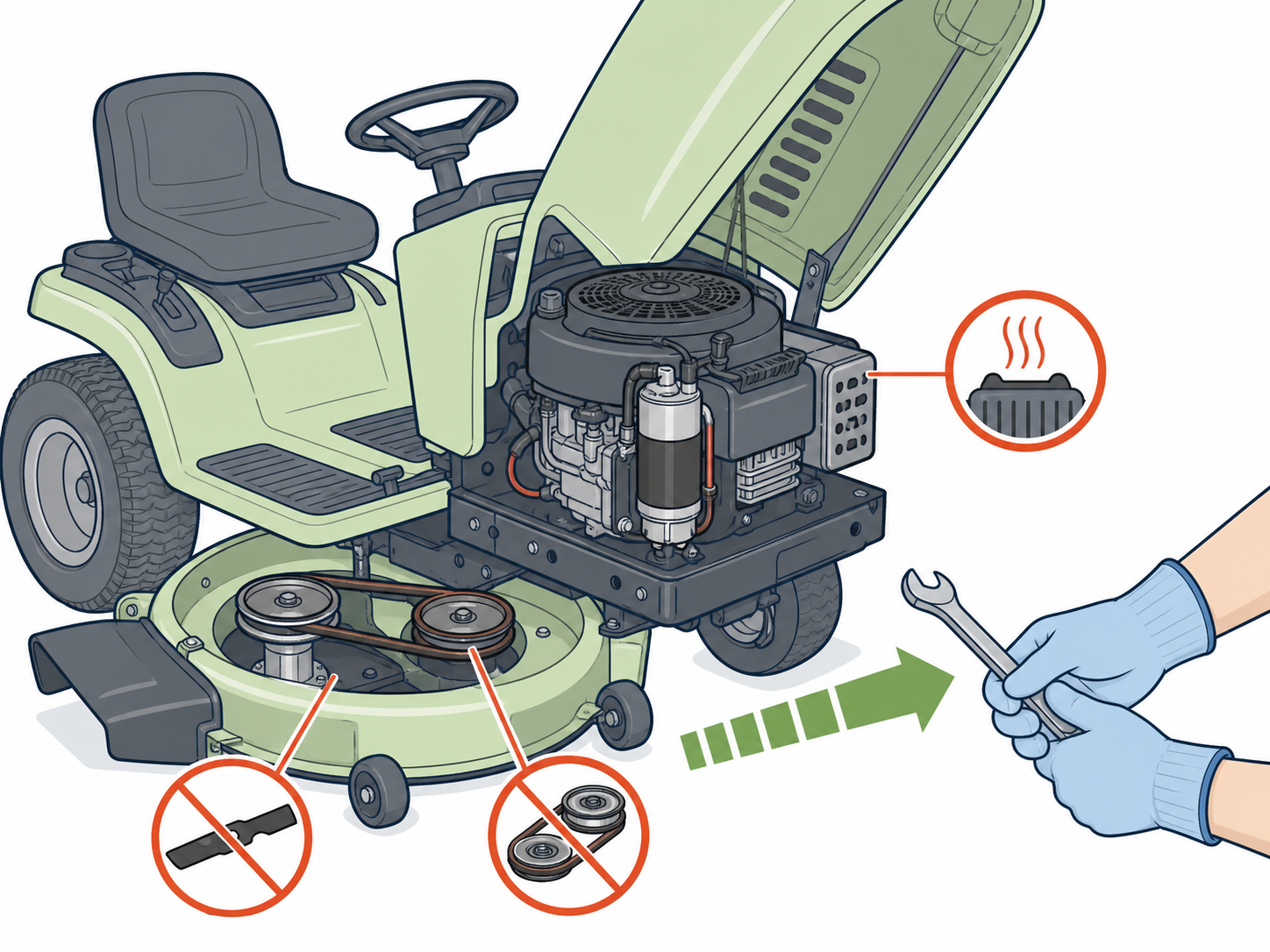

- Keep hands, tools, clothing, hair, and loose items away from blades, belts, pulleys, gears, and hot surfaces.
- Disconnect the negative battery cable before servicing starter wiring.
- Keep metal tools away from direct contact between battery positive terminals, starter terminals, solenoid terminals, and frame ground.
- Work in a well-ventilated area away from open flame or sparks.
- Do not smoke while working around battery or fuel areas.
- Wear gloves and eye protection.
- If you are not confident with battery, starter, wiring, or safety-control work, have the starter installed by a qualified technician.
Safety Interlock Warning
Many lawn mowers and garden tractors use safety interlock switches. These may monitor the seat, brake, blade control, PTO, clutch, neutral position, or other operator controls.

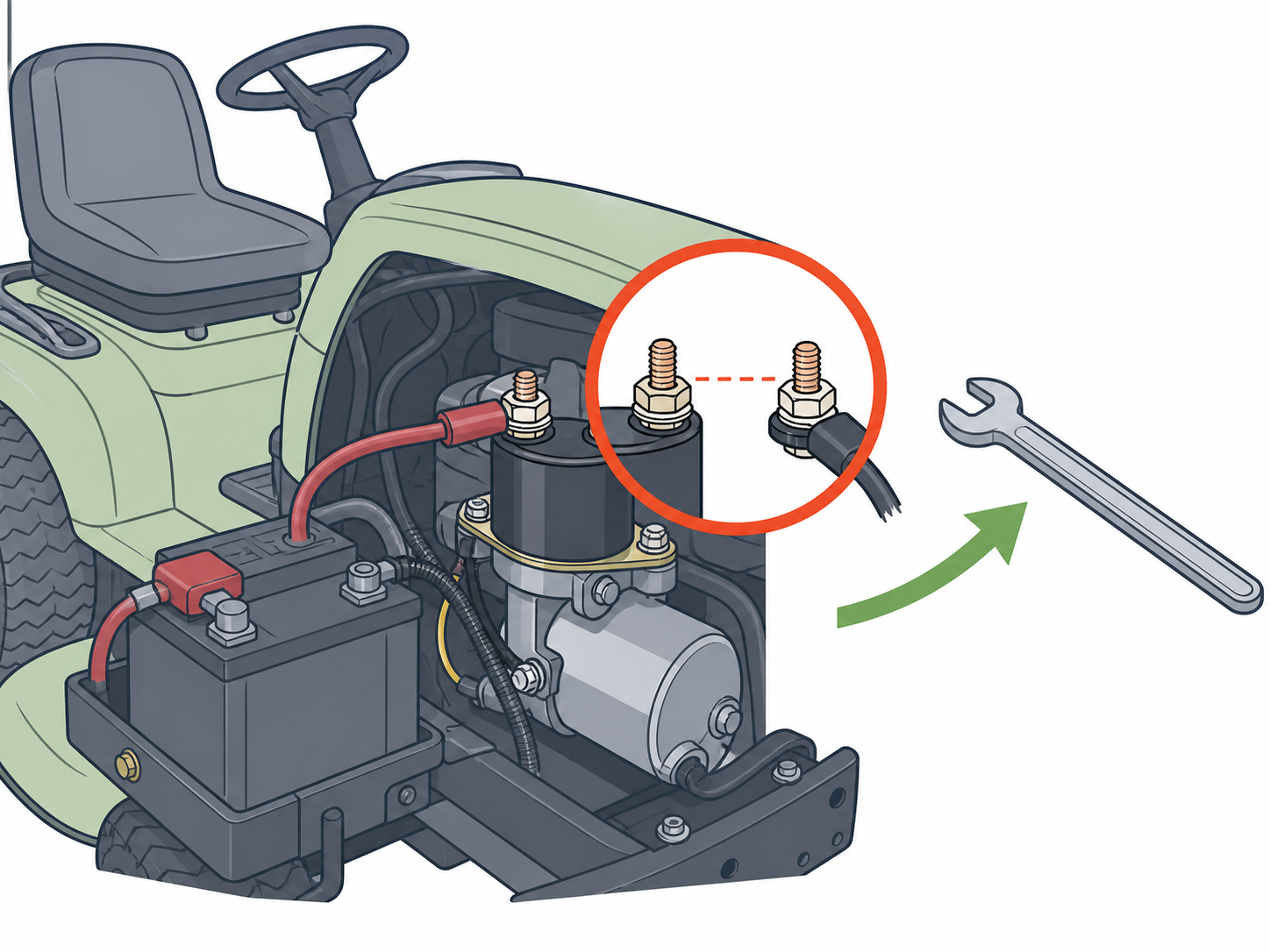

Do not bypass, defeat, bridge, or remove safety interlock switches to make the starter operate. Do not use a screwdriver, wrench, jumper wire, or other tool to short starter or solenoid terminals. If the starter will not operate, diagnose the cause using the equipment service manual or a qualified technician.
Battery and Starter Cable Safety
Disconnect the negative battery cable before touching starter cables or terminals. Do not allow the removed cable to touch the battery terminal while you work. Protect cable ends from touching frame metal, engine metal, tools, or the positive battery terminal.
Do not pull on wires. Pull connectors from the connector body and remove terminal nuts with the correct tool. Keep cables routed away from hot surfaces, moving belts, pulleys, sharp edges, and the starter gear area.
3. Before Installation
Before removing the old starter, perform a basic product and equipment check. These checks help prevent misdiagnosis, repeated installation attempts, electrical damage, gear engagement problems, and unnecessary returns.

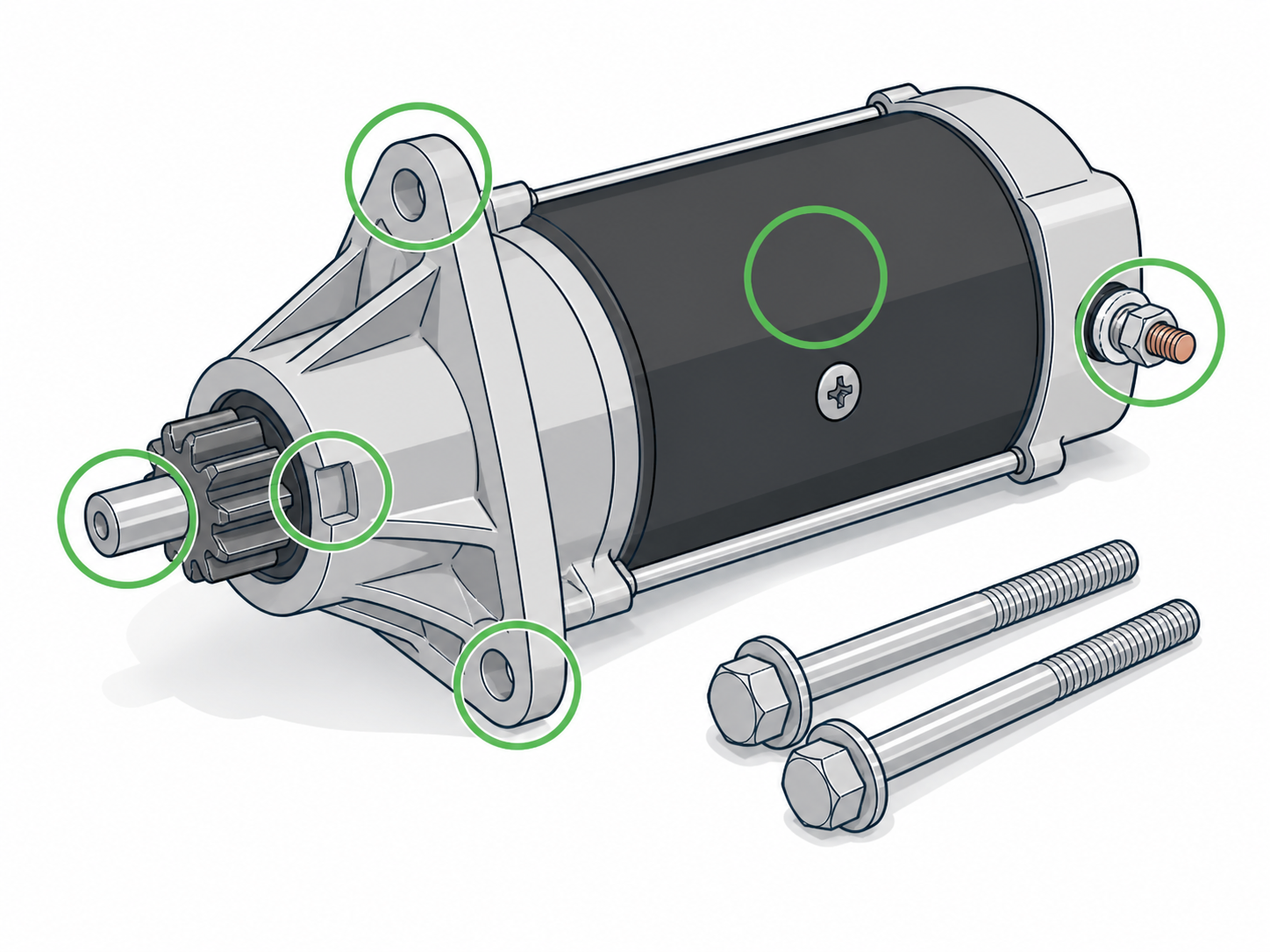

Check the New Starter
- Inspect the packaging for visible shipping damage.
- Inspect the starter housing, mounting ears, shaft, pinion gear, terminal, connector if equipped, and rear cover for visible damage or deformation.
- Make sure the pinion gear area is not bent, cracked, loose, blocked, or packed with debris.
- Make sure the terminal is not bent, loose, cracked, or touching the housing.
- Do not install a starter with cracked housing, bent terminals, damaged mounting ears, damaged connector, damaged gear, or obvious shipping damage.
At this stage, do not try to fully compare the new starter with the old starter. The old starter has not been removed yet. A full side-by-side comparison should be done after the old starter is removed and before the new one is installed.

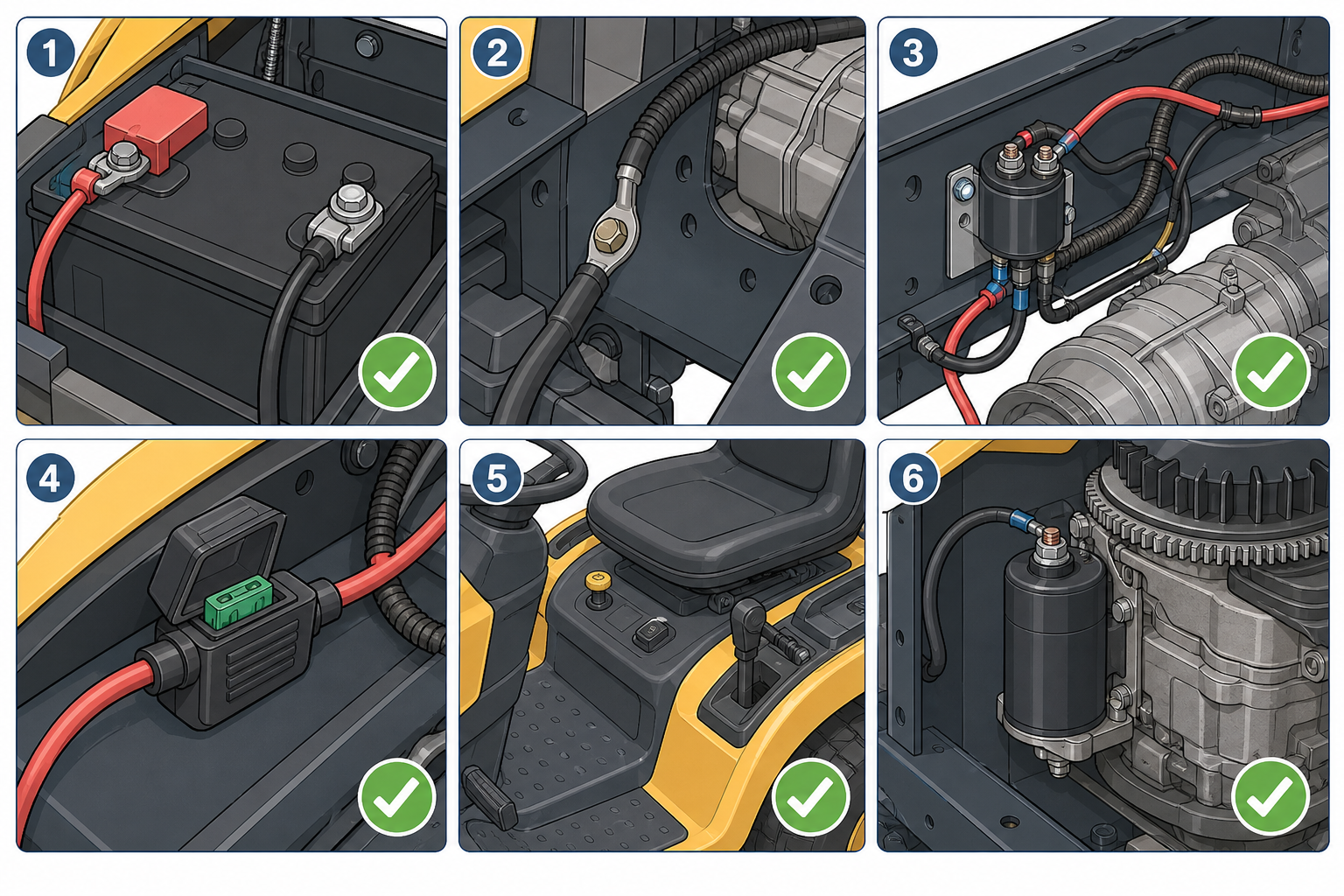

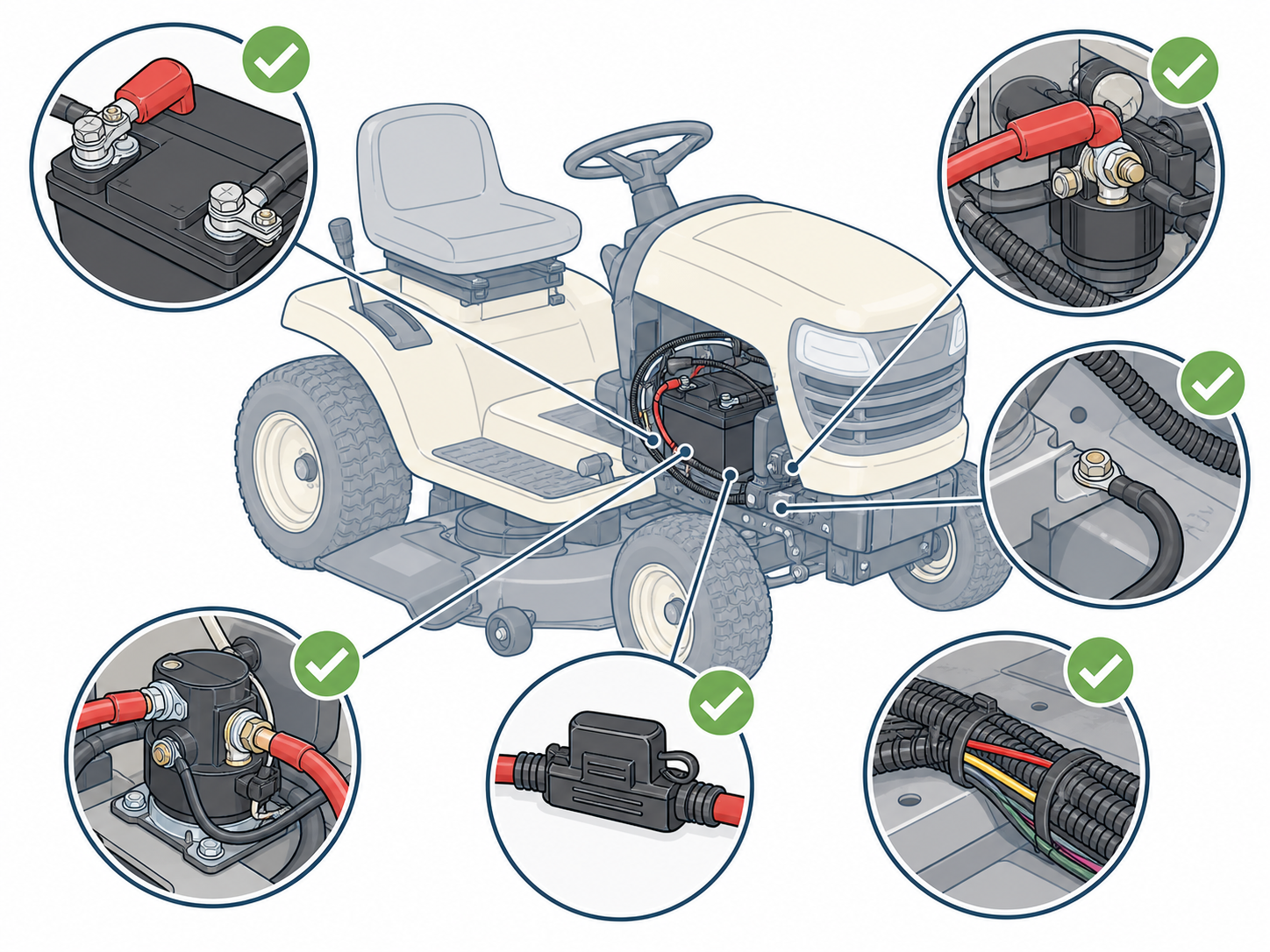

Check the Equipment First
Before assuming the starter is defective, check common small-engine starting-system issues:
- Battery charge condition
- Loose or corroded battery terminals
- Damaged or loose battery cables
- Ground cable condition
- Starter solenoid or relay area
- Fuse or fusible link if equipped
- Key switch and visible wiring condition
- Safety-control status such as brake, blade/PTO, clutch, neutral, or seat position
- Obvious cable damage near the starter, engine, frame, belts, pulleys, or hot surfaces
- Starter gear area if visible
If the battery is weak, the ground is poor, the solenoid is not operating, a fuse is open, a safety control is not in the correct position, or the engine cannot turn freely, the equipment may still show starting problems even with a good starter.
Prepare for Installation
- Park the equipment safely and remove the key.
- Allow the engine to cool.
- Gather the correct hand tools.
- Take photos before disconnecting wiring or removing covers.
- Keep removed fasteners organized.
- Refer to the equipment service manual for access instructions, cover removal, cable routing, mounting fastener specifications, and safety-control information.
4. Removing the Old Starter
The following steps describe a general starter removal process. Actual access, cover removal, wiring layout, and starter location may vary by equipment model.
Step 1 - Secure the Equipment
Park the equipment on a firm, level surface. Turn the engine off, remove the key, and set the parking brake if equipped. Make sure the blade control, PTO, clutch, or cutting attachment control is off.
Allow the engine and muffler to cool before reaching near the starter area. Keep the work area clear of loose tools and flammable materials.

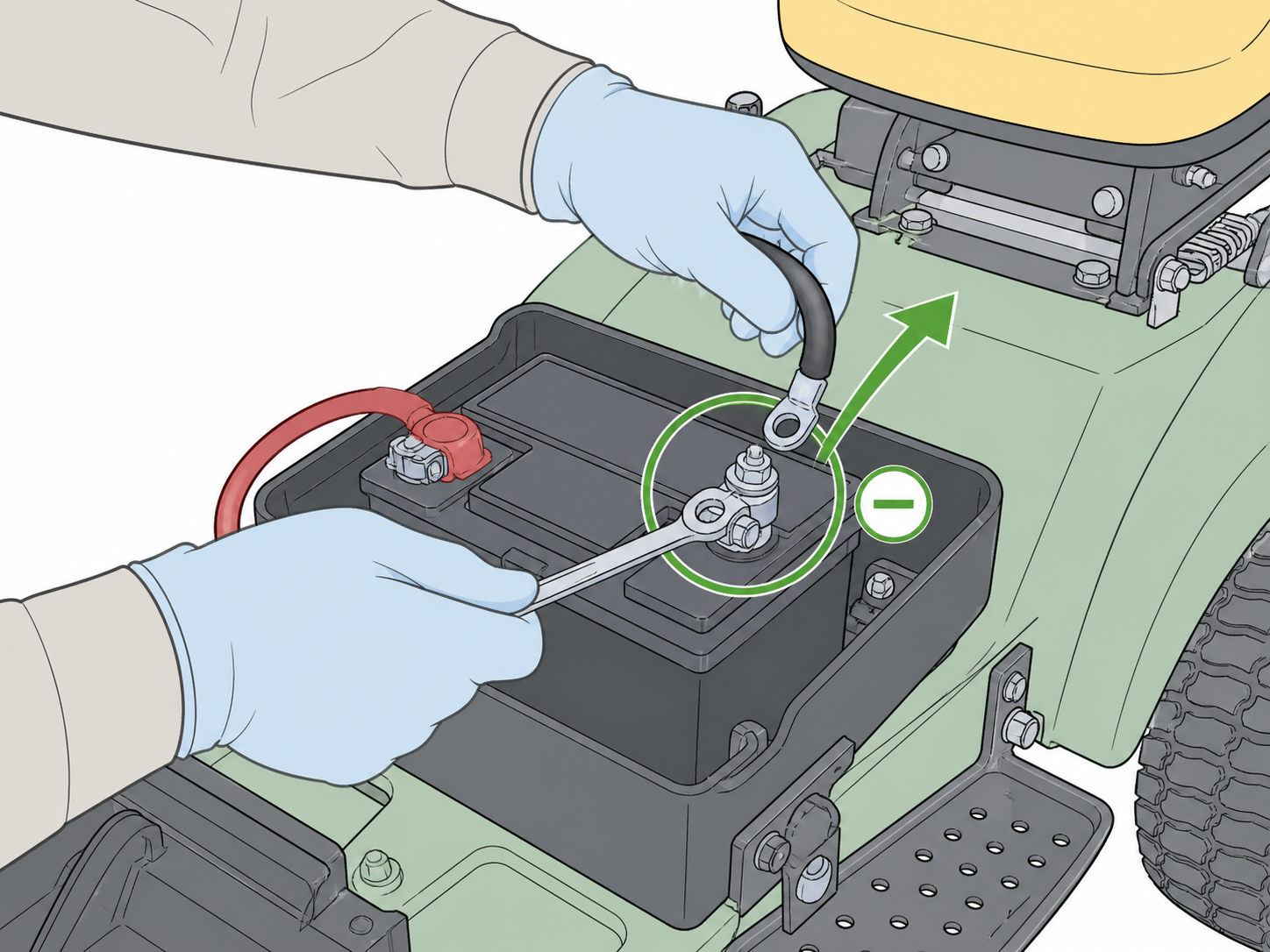

Step 2 - Disconnect the Battery
Disconnect the negative battery cable before servicing the starter. Loosen the nut that secures the cable to the negative terminal. You usually do not need to remove the nut completely. Once the cable is loose, lift it from the terminal and tuck it aside so it cannot touch the terminal while you work.
Do not remove the positive cable unless the equipment service manual specifically requires it.

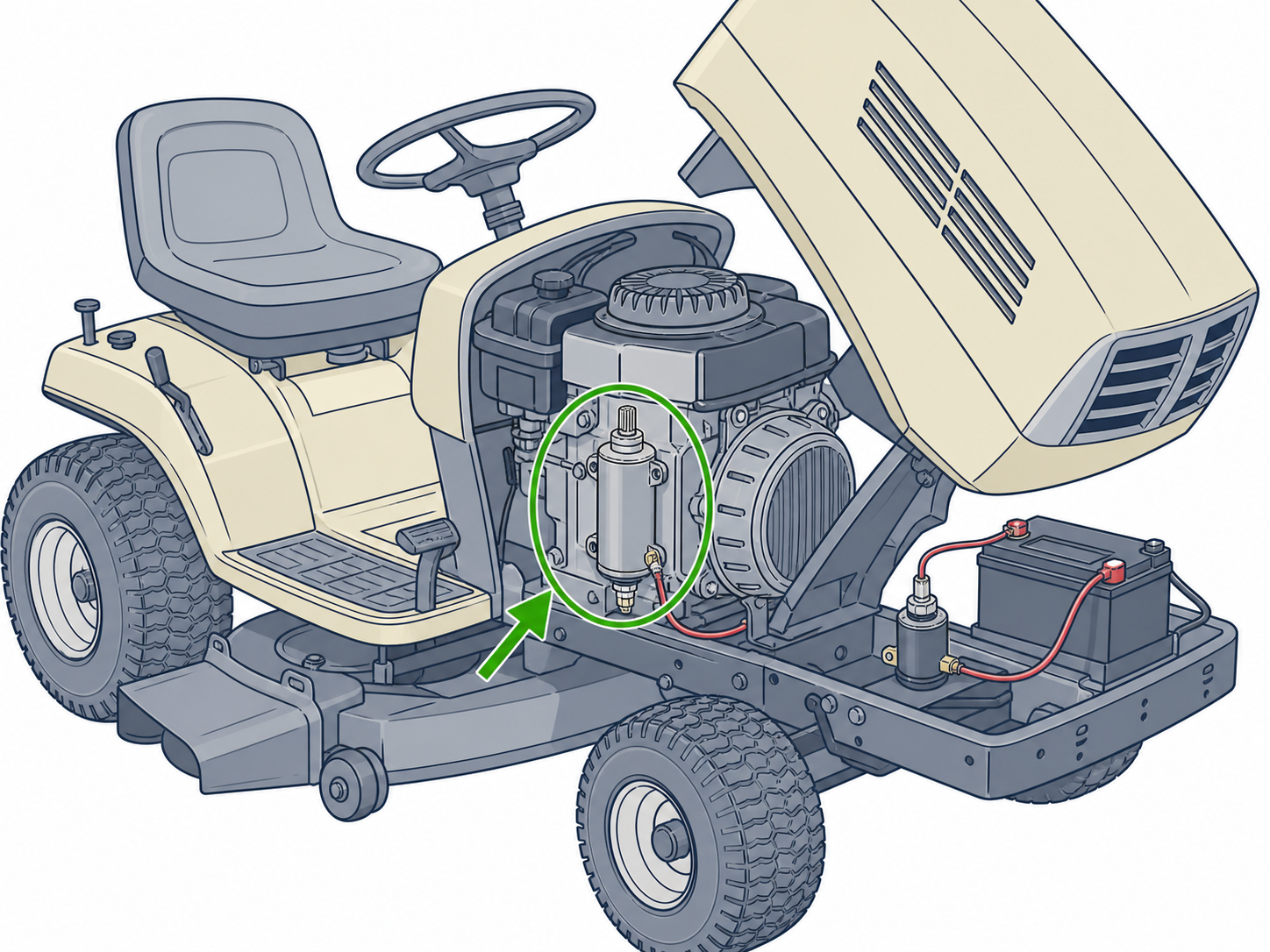

Step 3 - Locate the Starter
The starter is usually mounted on or near the engine and positioned so its gear can engage the engine flywheel or ring gear. It may be partly hidden by an engine cover, shroud, battery tray, frame bracket, or other equipment parts.
If you cannot locate the starter or the correct access path, refer to the equipment service manual.

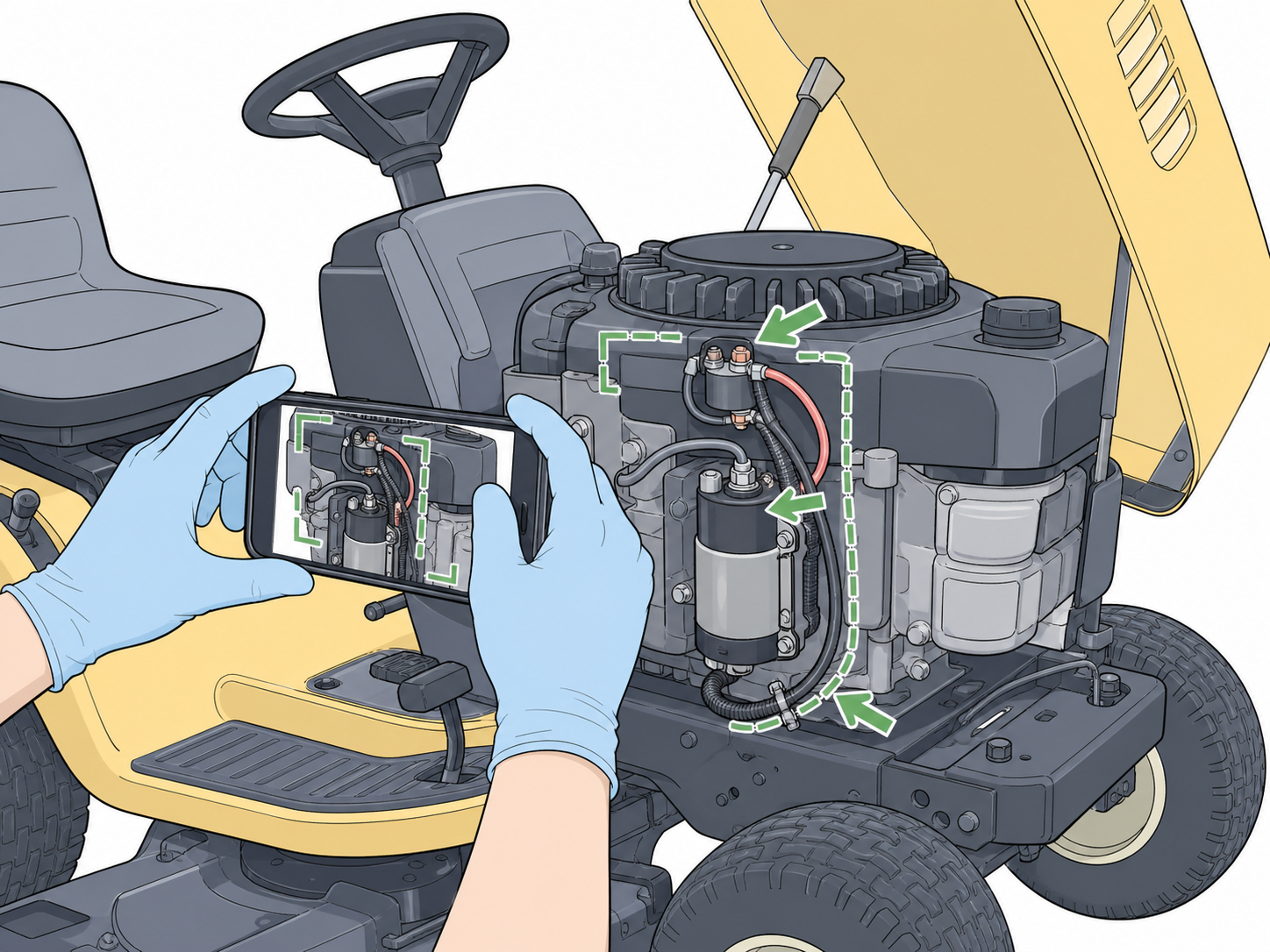

Step 4 - Photograph the Wiring and Cable Routing
Before disconnecting any cable, connector, or protective boot, take clear photos of the original routing and terminal positions. This helps ensure the cable is returned to the correct terminal and kept away from hot or moving parts during installation.
Do not rely only on memory for cable routing or cover position.

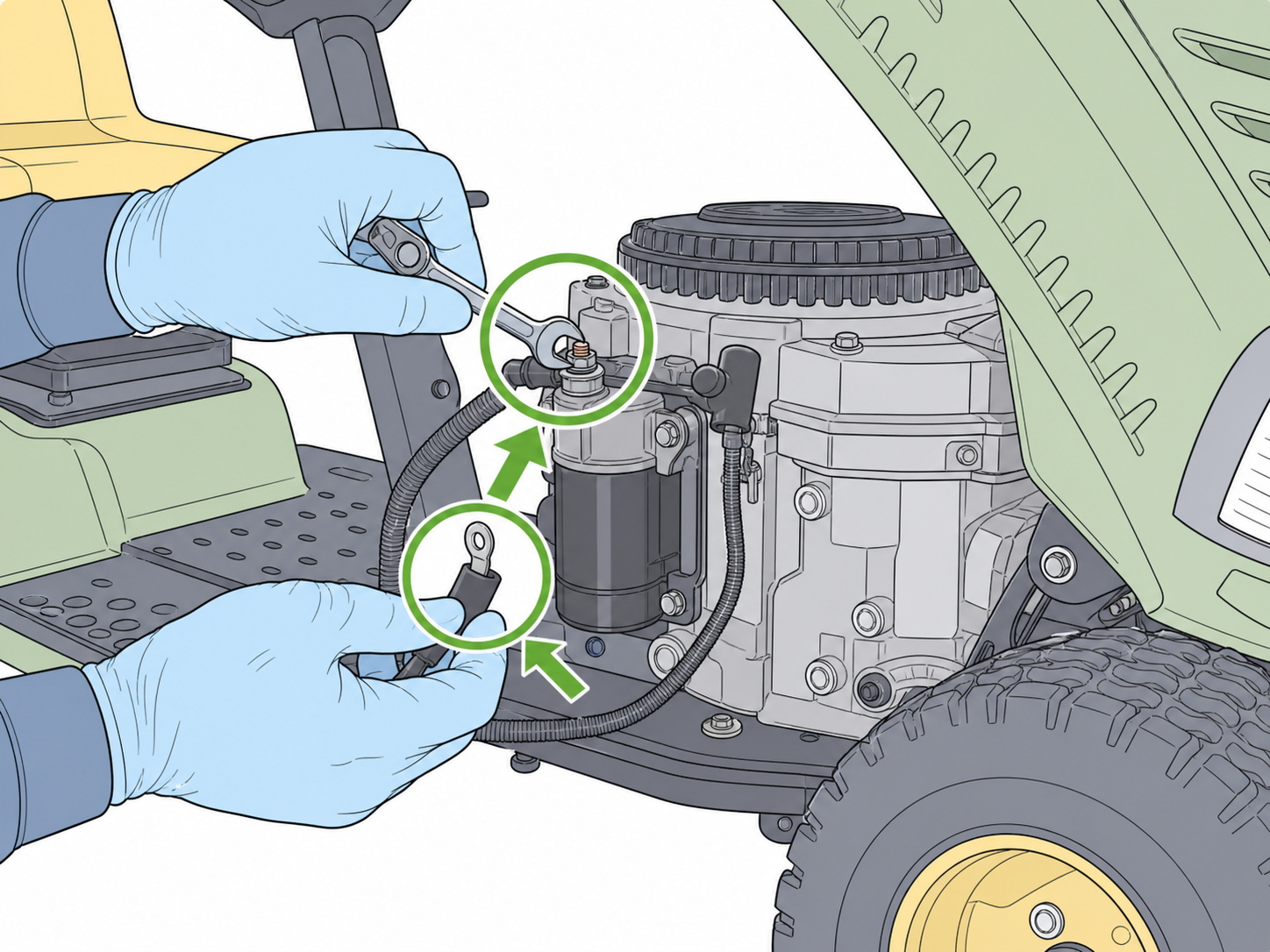

Step 5 - Disconnect the Starter Cable and Connector
Disconnect the starter cable from the starter terminal. Some starters use a terminal nut and protective rubber boot. Some equipment may also have a smaller control connector, ground wire, or nearby solenoid wiring.
Do not pull on the wire itself. Move the protective boot aside, hold the terminal or connector body, and remove the fastener with the correct tool. Keep terminal hardware organized.

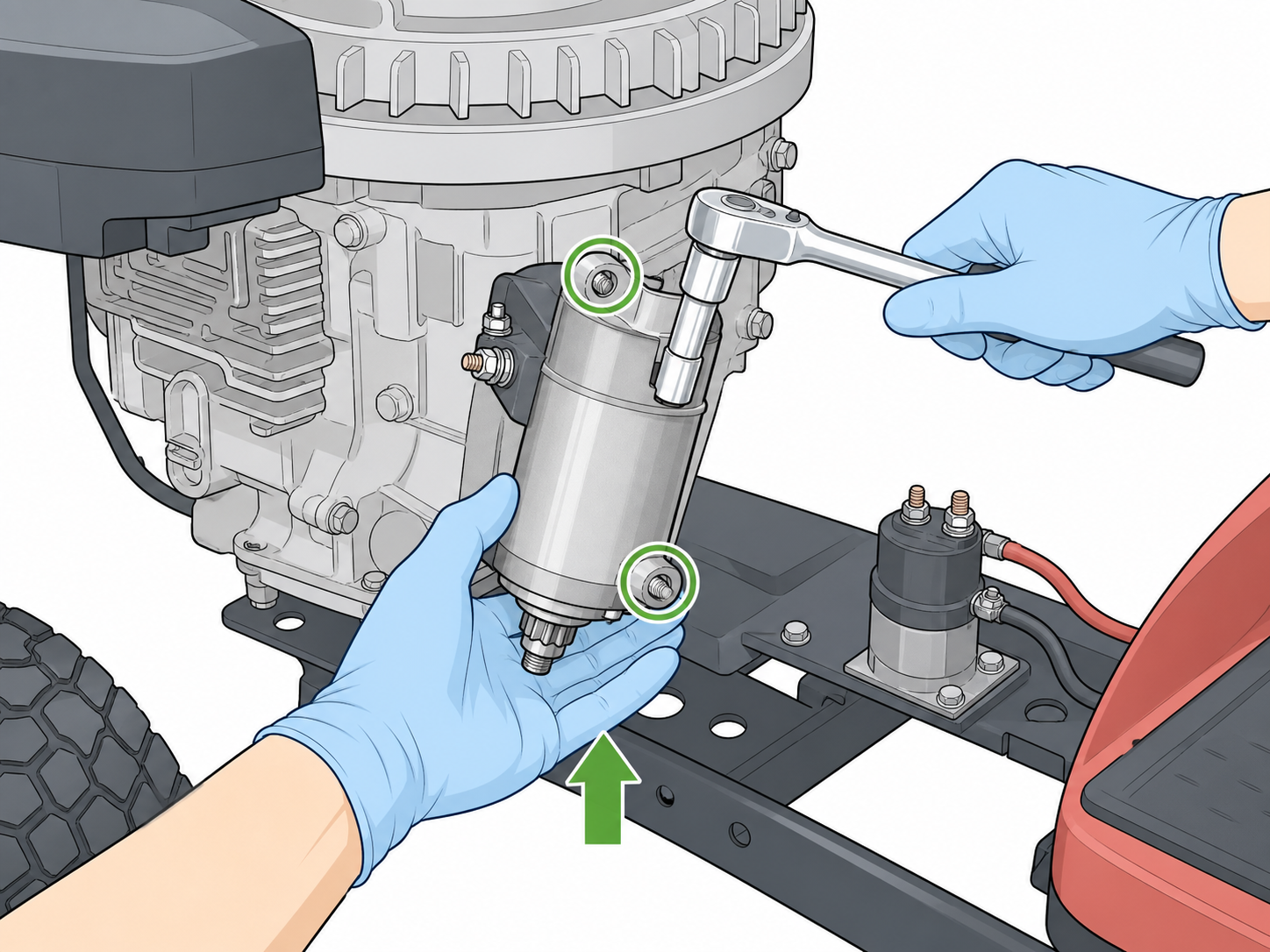

Step 6 - Remove the Mounting Bolts
Support the starter before removing the last mounting bolt. A starter can shift suddenly once the bolts are removed.
Remove the mounting bolts and carefully lift the old starter away from the engine mounting surface. Avoid striking the starter gear, flywheel area, or nearby wiring. If the starter does not come free easily, stop and check for hidden fasteners, brackets, covers, or service-manual instructions.
Do not pry, hammer, or force the starter unless the equipment service manual gives a specific procedure.
5. Installing the New Starter
Install the new starter only after the old starter has been removed and the two parts can be compared side by side.

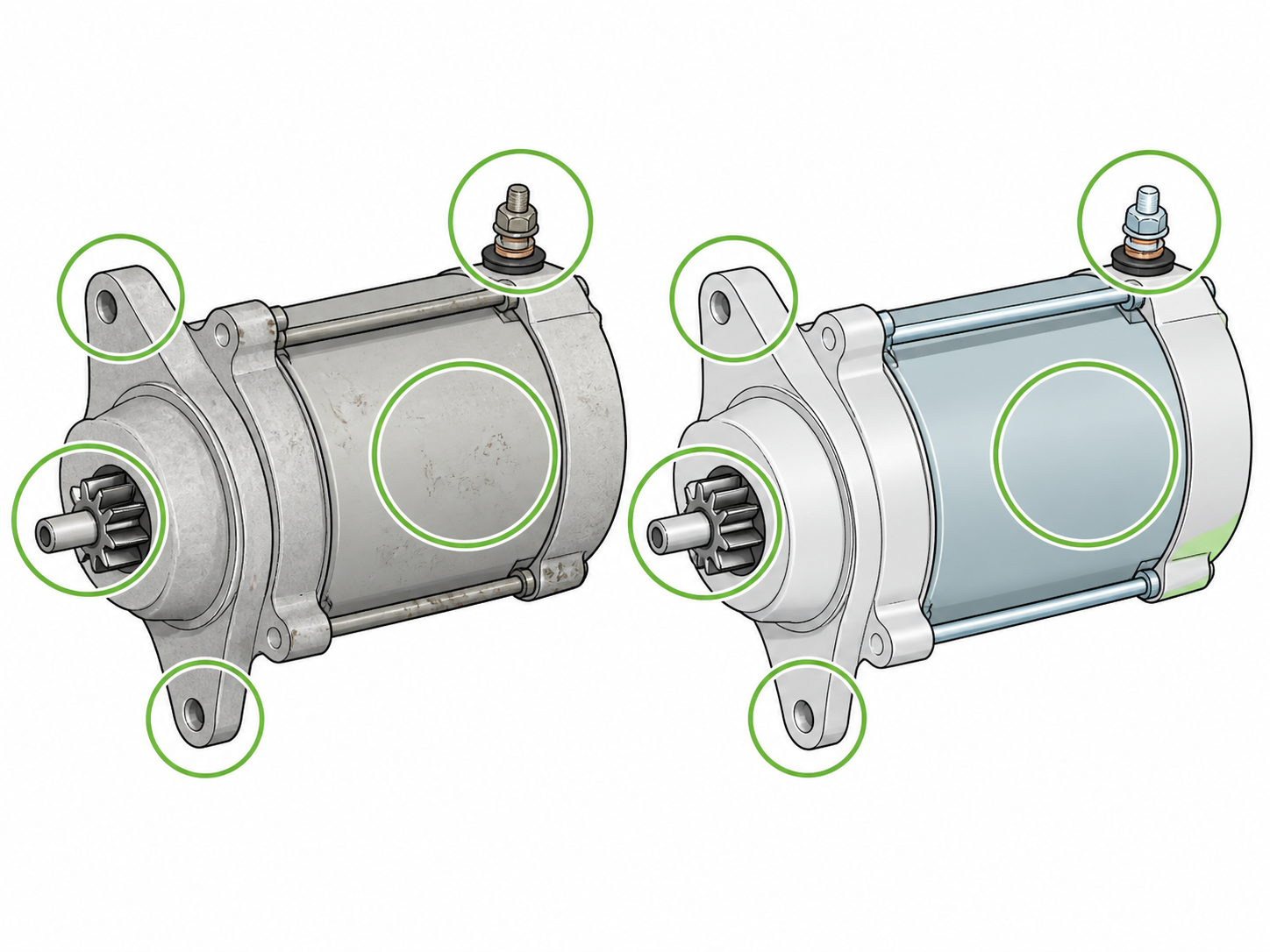

Step 1 - Compare the Old and New Starter
Place the old starter and new starter side by side. Check the following:
- Overall body length and housing shape
- Mounting ear positions
- Mounting hole size and spacing
- Pinion gear position and gear style
- Shaft length and gear reach
- Terminal position and connector style
- Rotation/installation orientation if marked by the equipment application
- Clearance around nearby covers, brackets, cables, and engine parts
Some replacement starters may have small visual differences. Small differences do not always mean the part is incorrect. If the mounting points, gear position, shaft length, terminal position, or required electrical connections do not match, stop and verify fitment before installation.

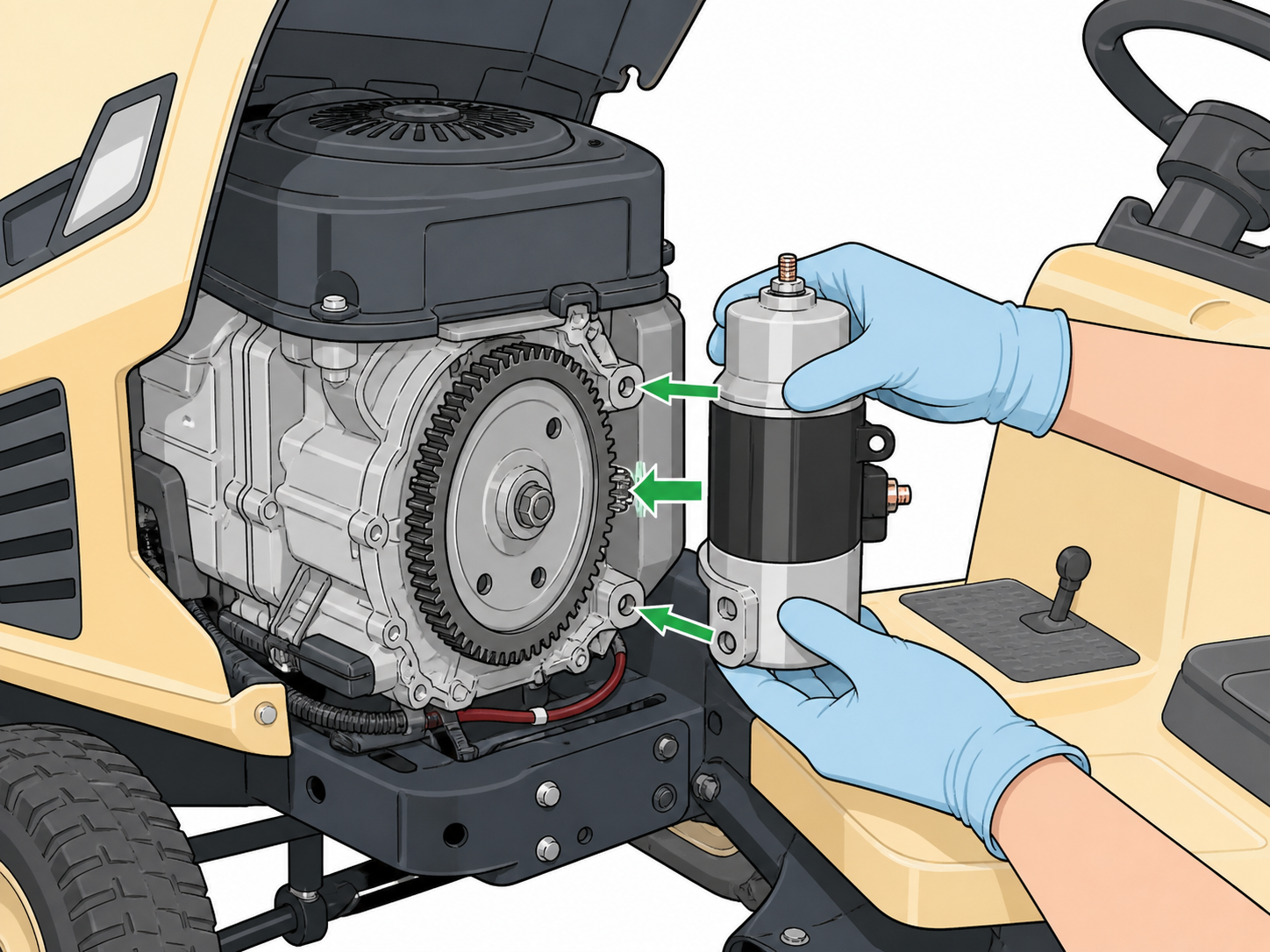

Step 2 - Position the New Starter
Place the new starter into the original mounting position. Make sure the starter sits flat against the engine mounting surface and is not angled, pinched, or forced into position.
Check that the starter gear area is aligned with the engine flywheel or ring gear area according to the equipment design. Do not force the gear into place.

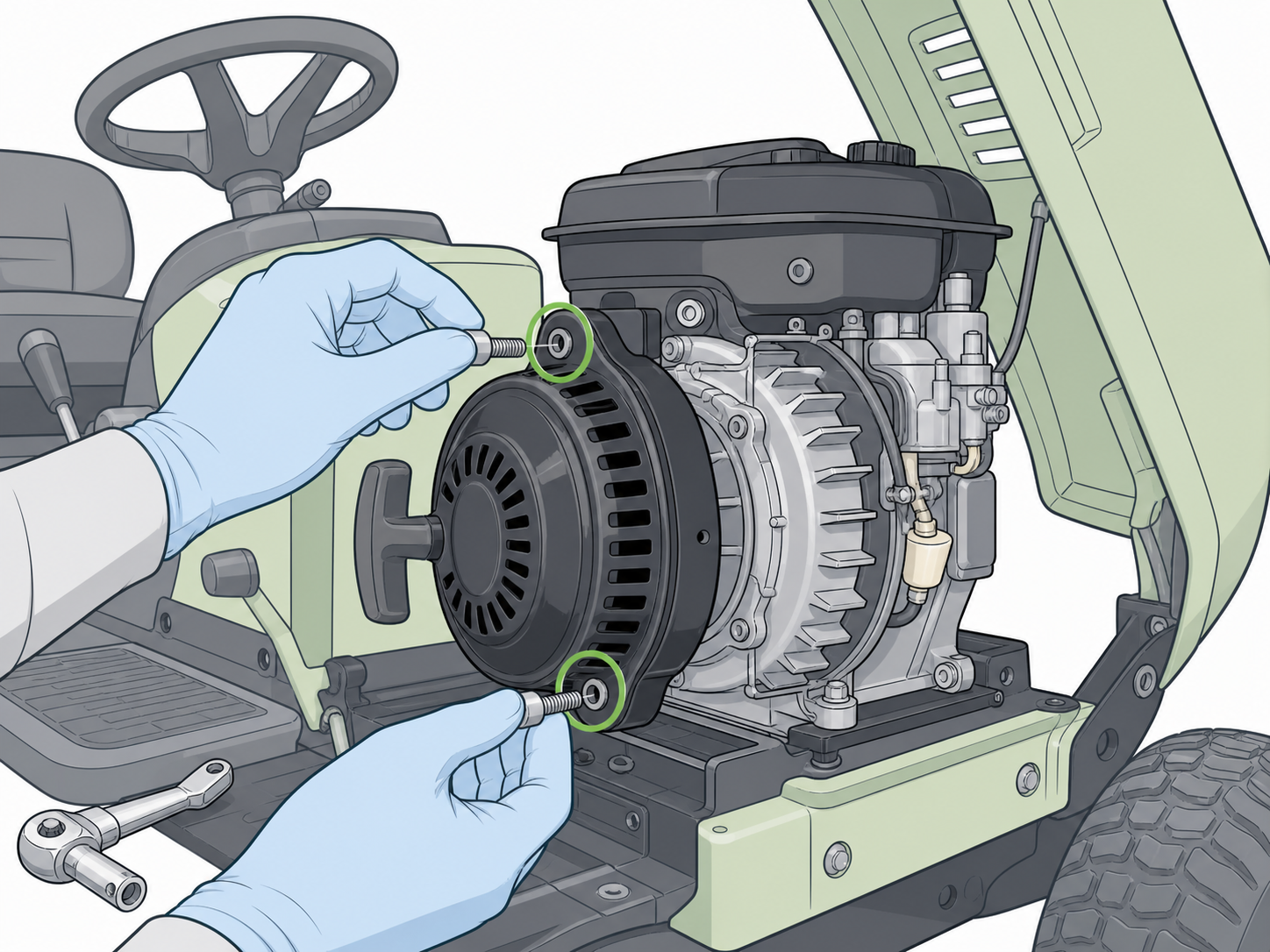

Step 3 - Start the Mounting Bolts for the First Few Turns
Use your fingers to thread each mounting bolt into the mounting holes for the first few turns before using a wrench or socket. This confirms the bolt is aligned correctly and reduces the risk of cross-threading. Once the bolts are properly started, tighten them securely according to the equipment service manual.
Do not operate the starter while the starter is loose, misaligned, or not fully mounted.

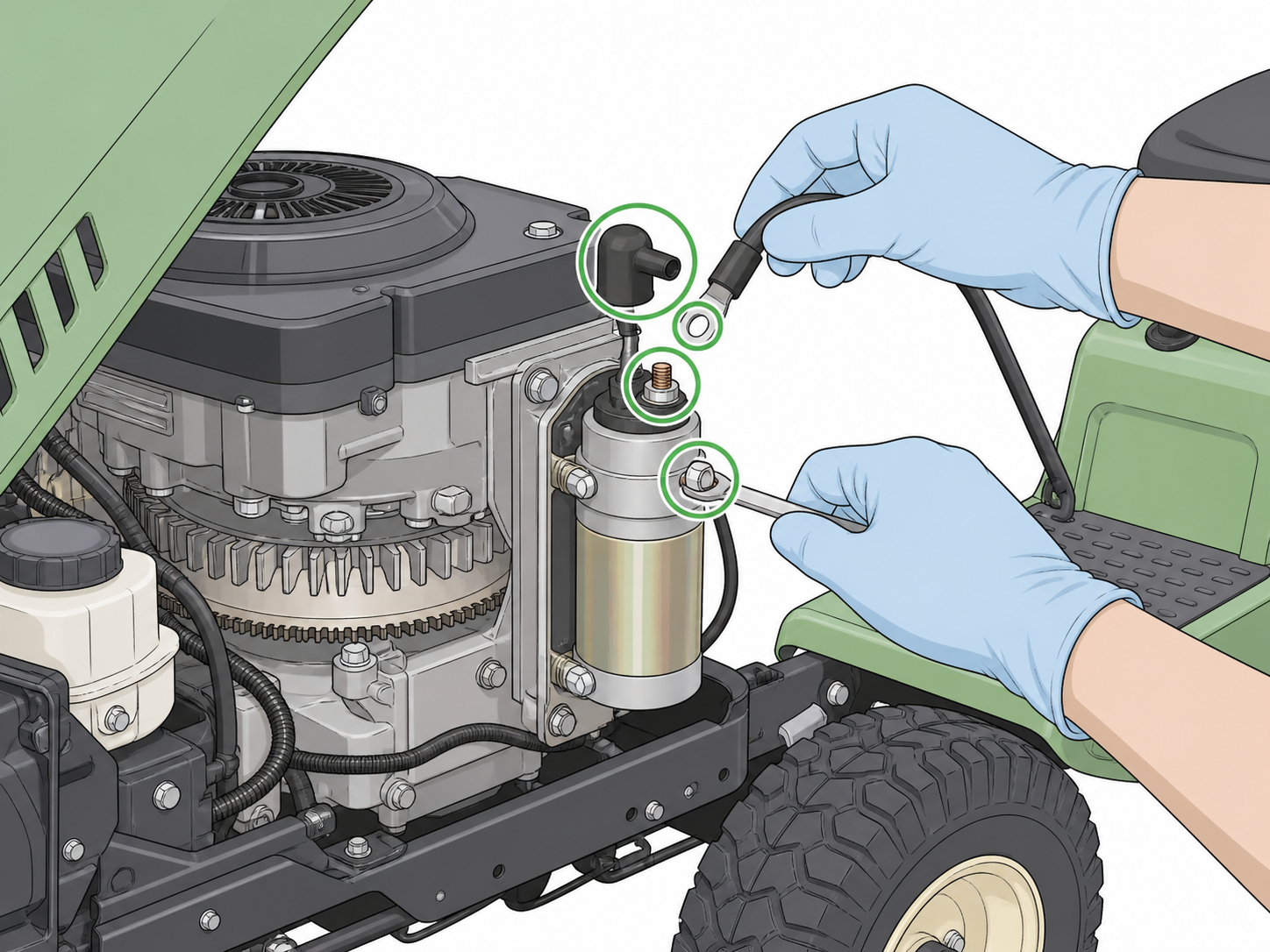

Step 4 - Reconnect the Starter Cable and Protective Boot
Reconnect the starter cable according to the photo you took before removal and the equipment service manual. Make sure the cable terminal sits flat and the fastener is tightened securely.
Return any protective boot or terminal cover to its proper position. Keep the cable away from hot surfaces, moving parts, sharp edges, belts, pulleys, and the starter gear area.

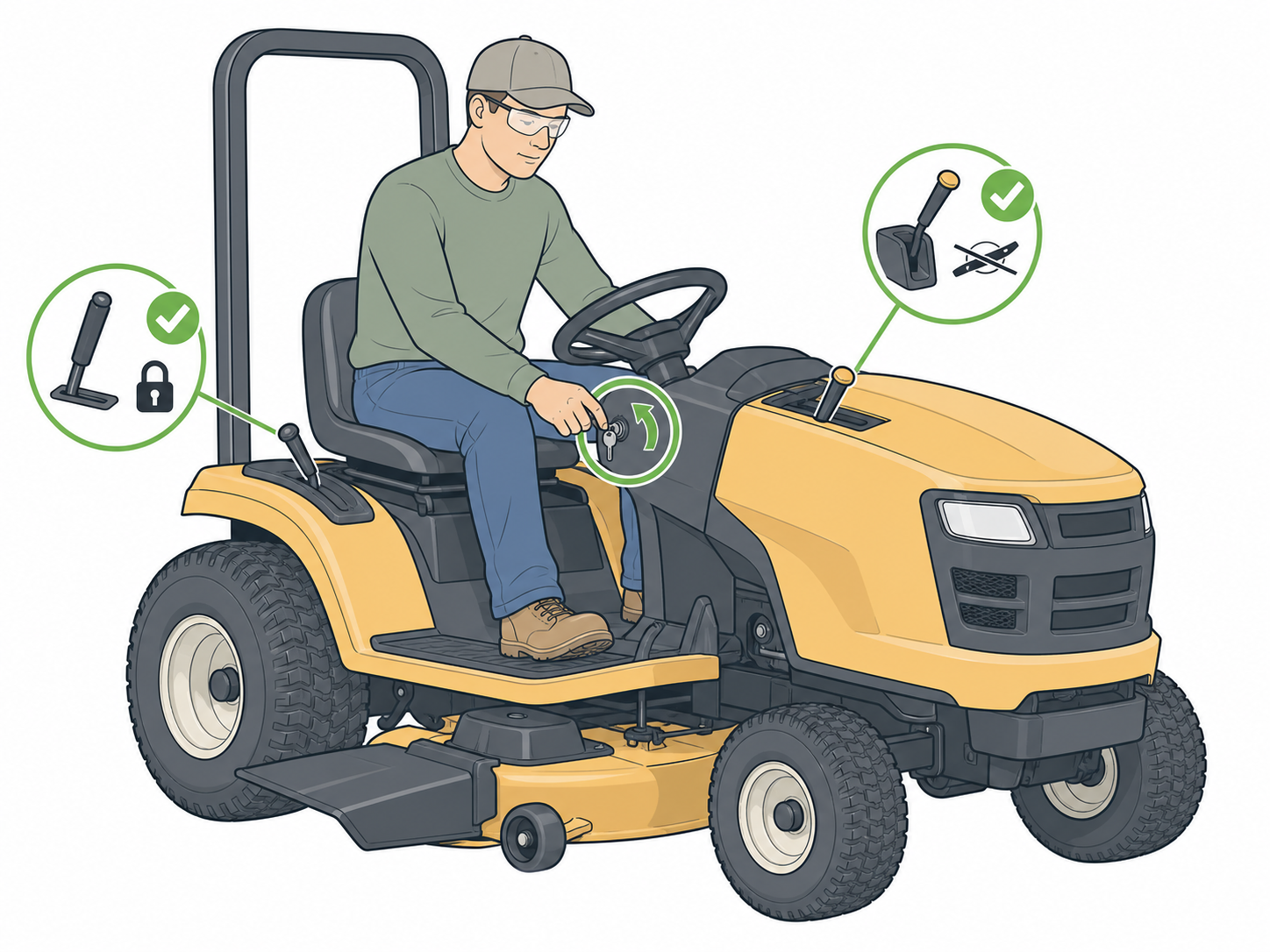

Step 5 - Reconnect the Battery and Test Starter Operation
Before reconnecting the battery, confirm that all removed covers, brackets, terminal boots, tools, and loose hardware are clear of the engine, belt, pulley, blade, and starter gear areas.
Reconnect the negative battery cable after the starter is mounted and wired. Make sure the battery cable is secure.
From the normal operator position, make sure the blade/PTO control is off and the required safety controls are in the normal start position. Crank only briefly. Observe whether the starter engages smoothly and whether the engine cranks normally.

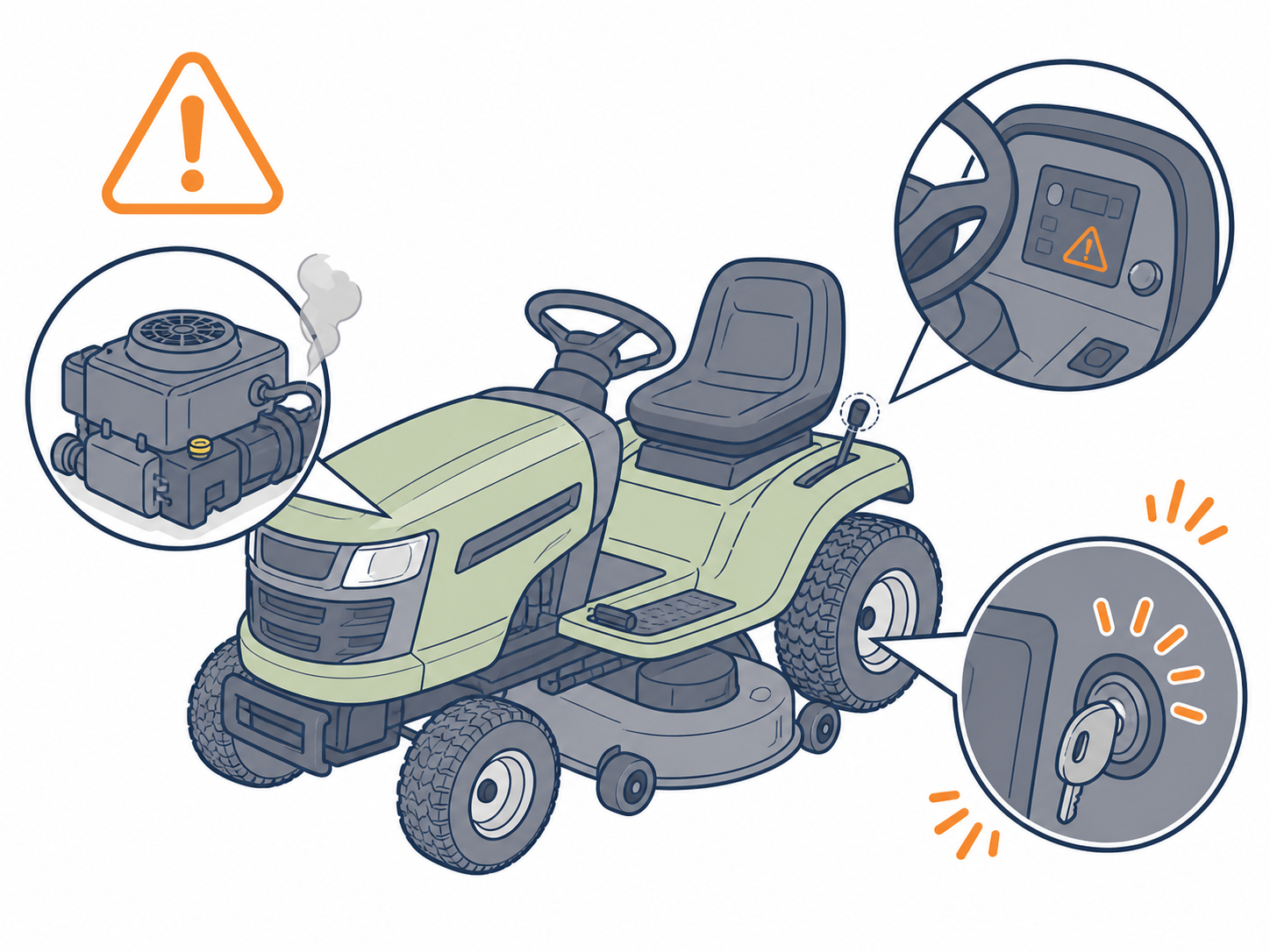

Stop immediately if you hear grinding, repeated clicking, abnormal gear noise, or if you see smoke, smell burning, or notice the starter continuing to run after the key or start control is released.
6. Troubleshooting
This section provides basic troubleshooting only. It does not replace professional diagnosis.
Quick Troubleshooting Table
| Symptom | Possible Causes | What To Check First |
|---|---|---|
| Starter does not crank | Weak battery, loose cable, poor ground, open fuse, solenoid issue, key switch issue, safety control not in start position | Battery charge, terminals, cables, ground, fuse, brake/blade/PTO/seat/neutral controls |
| Starter clicks but does not crank | Weak battery, high cable resistance, poor ground, solenoid issue, starter binding, engine hard to turn | Battery condition, cable tightness, ground cable, solenoid area, starter mounting |
| Starter spins but engine does not turn | Gear engagement issue, incorrect fitment, damaged starter gear, damaged flywheel/ring gear, starter misalignment | Old/new comparison, gear position, mounting surface, flywheel/ring gear area |
| Grinding noise or gear clash | Starter not seated, loose bolts, gear mismatch, damaged flywheel teeth, incorrect part | Mounting bolts, starter seating, gear style, old/new comparison |
| Starter keeps running after key release | Solenoid or relay issue, key switch issue, wiring fault, mechanical sticking | Stop use, disconnect battery if safe, inspect wiring and solenoid area |
| Engine still does not start after starter replacement | Starter may not be the root cause; fuel, ignition, compression, safety controls, or engine condition may be involved | Battery and starter operation first, then equipment service manual or qualified diagnosis |
Important Troubleshooting Notes
- Do not assume the starter is defective before checking the battery, cables, ground, fuse, solenoid area, and safety-control status.
- Do not repeatedly crank for long periods. Long cranking can overheat the starter, cables, solenoid, or battery.
- Do not bypass safety switches or short terminals for testing.
- If the symptom continues, stop and seek professional diagnosis or contact support with clear photos and symptom details.
7. Use and Maintenance
Proper use and maintenance help protect the starter and starting system.
Use Guidelines
- Stop using the equipment if you notice smoke, burning smell, severe grinding, repeated clicking, abnormal gear noise, or the starter continuing to run after key release.
- Do not ignore slow cranking or repeated no-crank symptoms.
- Do not operate the starter repeatedly if the engine appears locked, jammed, or unable to turn.
- Keep the blade/PTO control off when testing starter operation.
- If starting-system symptoms continue after basic checks, stop and seek professional diagnosis.

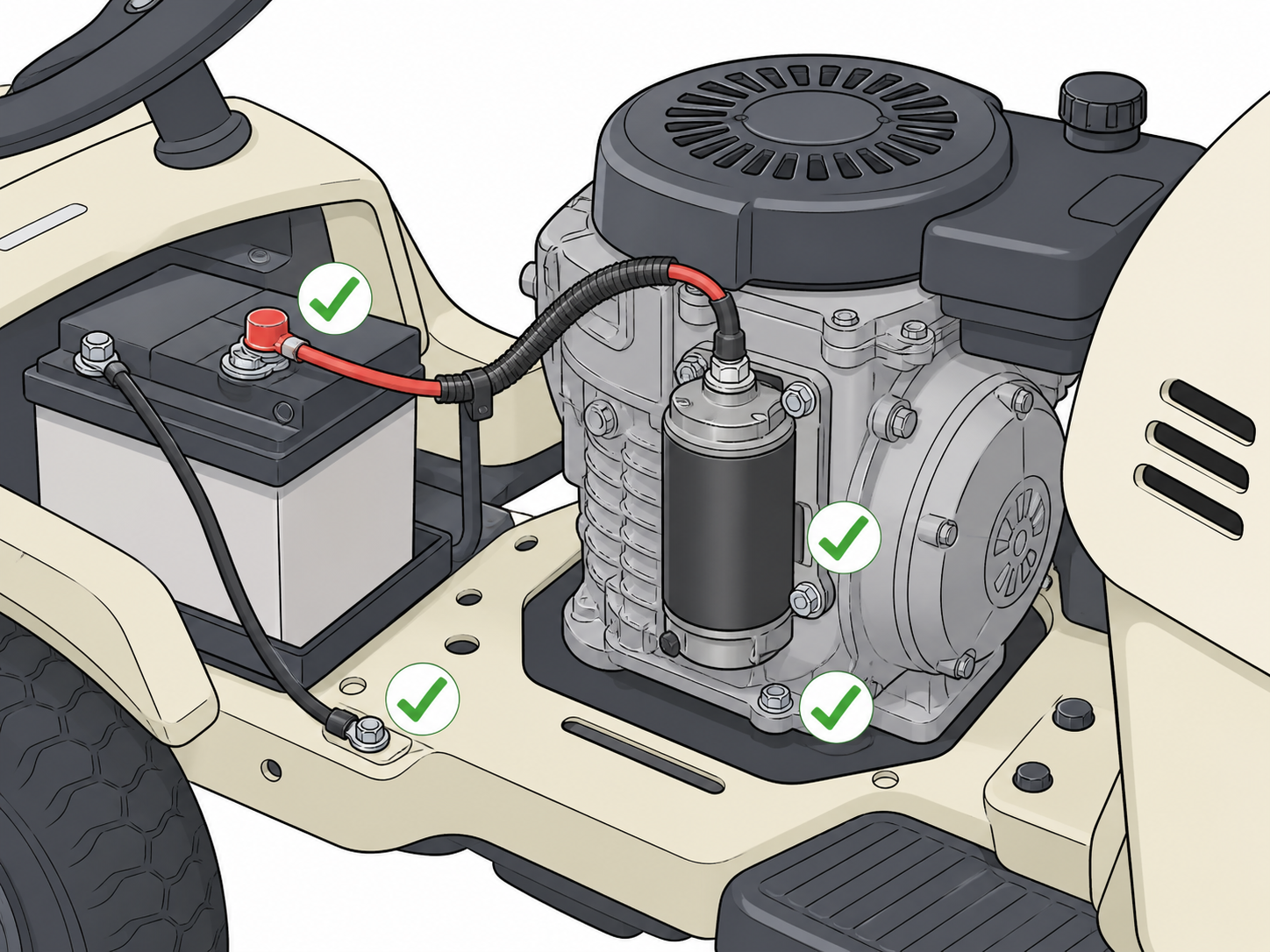

Basic Maintenance
- Keep battery terminals clean and tight.
- Check battery cables and ground connections periodically.
- Keep starter wiring secure and away from heat, sharp edges, belts, pulleys, moving parts, and blade areas.
- Inspect for corrosion, loose wiring, damaged protective boots, loose fasteners, or visible starter damage during routine service.
- Before seasonal storage, clean around the battery and starter area and follow the equipment manufacturer's battery storage instructions.
Internal starter repair, brush replacement, armature service, drive gear repair, solenoid repair, or engine flywheel repair should be handled by qualified personnel and is not covered in this handbook.
8. Storage and Handling
If the starter is stored before installation, handle it carefully.

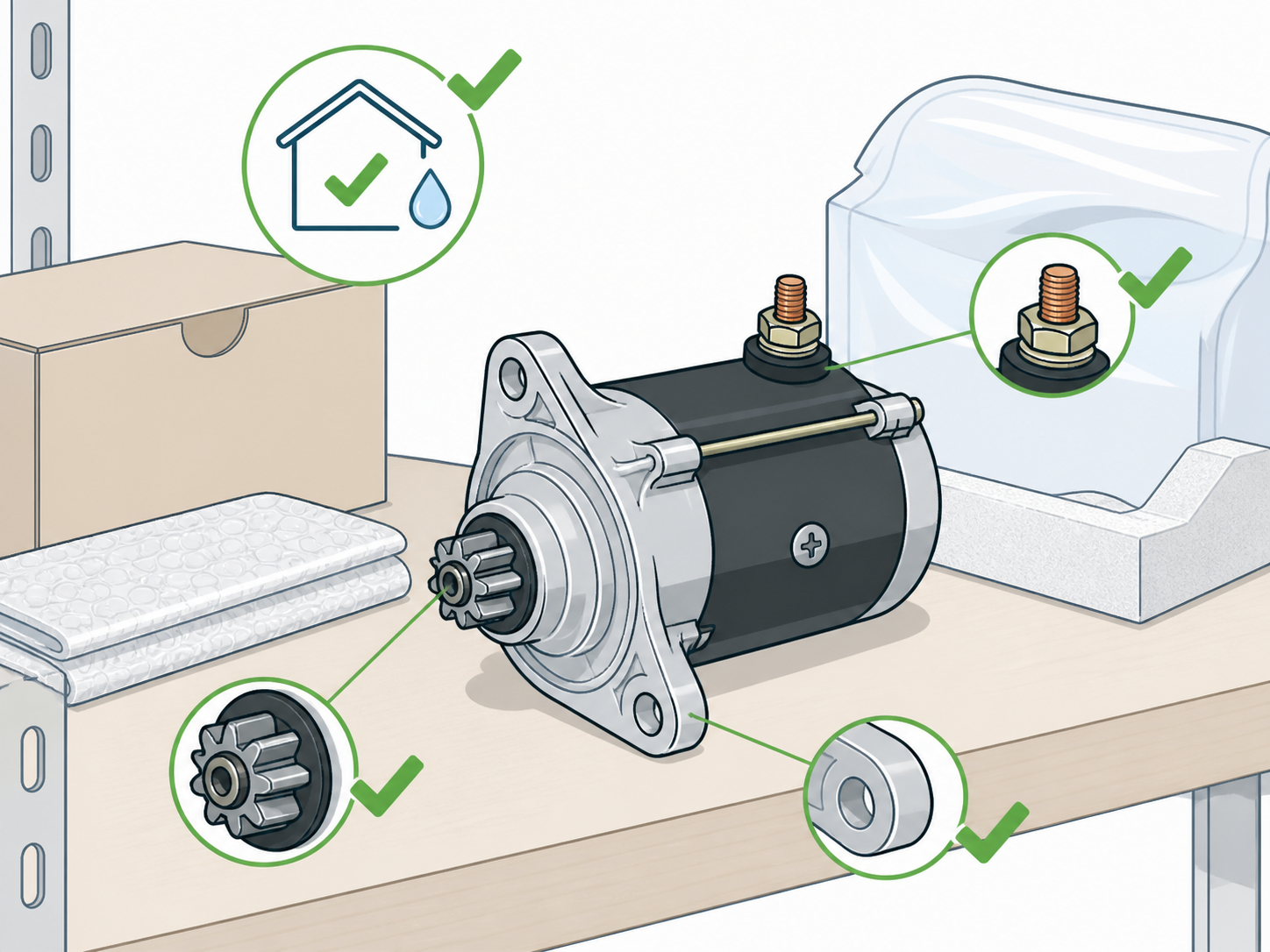

Storage Guidelines
- Keep the starter dry and clean.
- Store it away from corrosive liquids, acids, alkalis, fertilizers, fuel, oil, and chemical vapors.
- Avoid dropping or striking the starter.
- Do not place heavy objects on the pinion gear, shaft, terminal, connector, rear cover, housing, or mounting ears.
- Protect the gear and terminal area from impact.
- Keep the product packaging until installation is complete.
Before installation, inspect the starter again for visible damage.

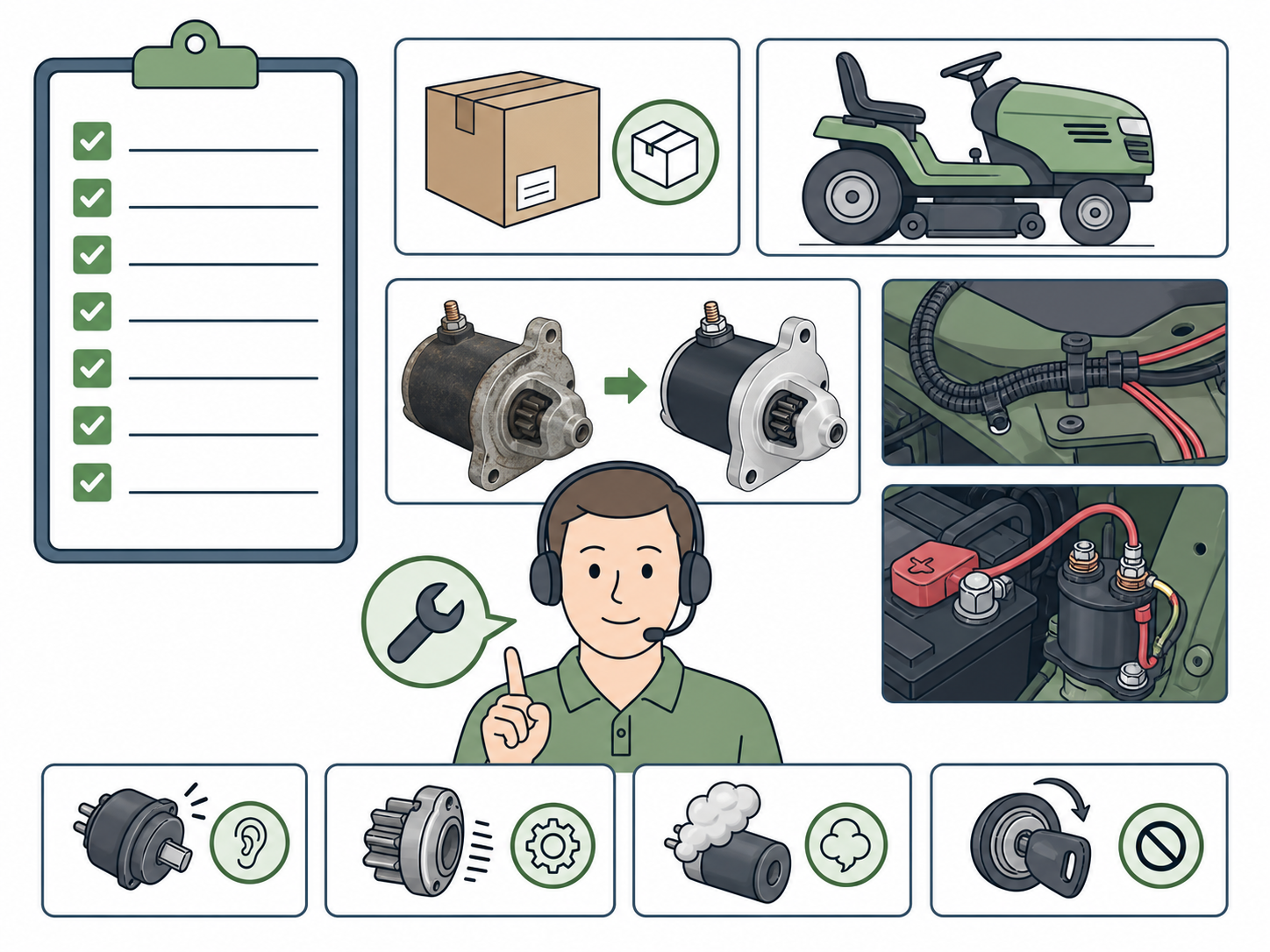

9. Customer Support Notice
If you need help before or after installation, prepare clear information before contacting support.
Information To Prepare
- Order information
- Equipment type, brand, model, and engine model if available
- Photos of the old starter and new starter side by side
- Photos of the wiring before and after installation
- Photos of the installed starter if accessible
- Photos of the battery terminals, ground cable, solenoid area, and fuse area if accessible
- Description of the symptom
- Any clicks, grinding, smoke, smells, or abnormal gear behavior noticed after startup
- Battery and cable condition if known
When To Stop and Ask for Help
Stop installation or repeated test attempts if:
- The new and old starter do not appear to match in key mounting, gear, shaft, terminal, or connector positions
- Access path, cover removal, or wiring terminal positions are unclear
- Safety controls or interlock behavior are unclear
- The starter grinds, smokes, clicks repeatedly, or does not disengage after key release
- The battery cable, starter cable, solenoid, or wiring becomes hot, damaged, or smells burned
- The engine still does not crank normally after battery, cable, ground, fuse, solenoid, and safety-control checks
