This is a general guide for passenger vehicle starter replacement. It is not vehicle-specific and does not replace the vehicle manufacturer's service manual.
1. Product Overview

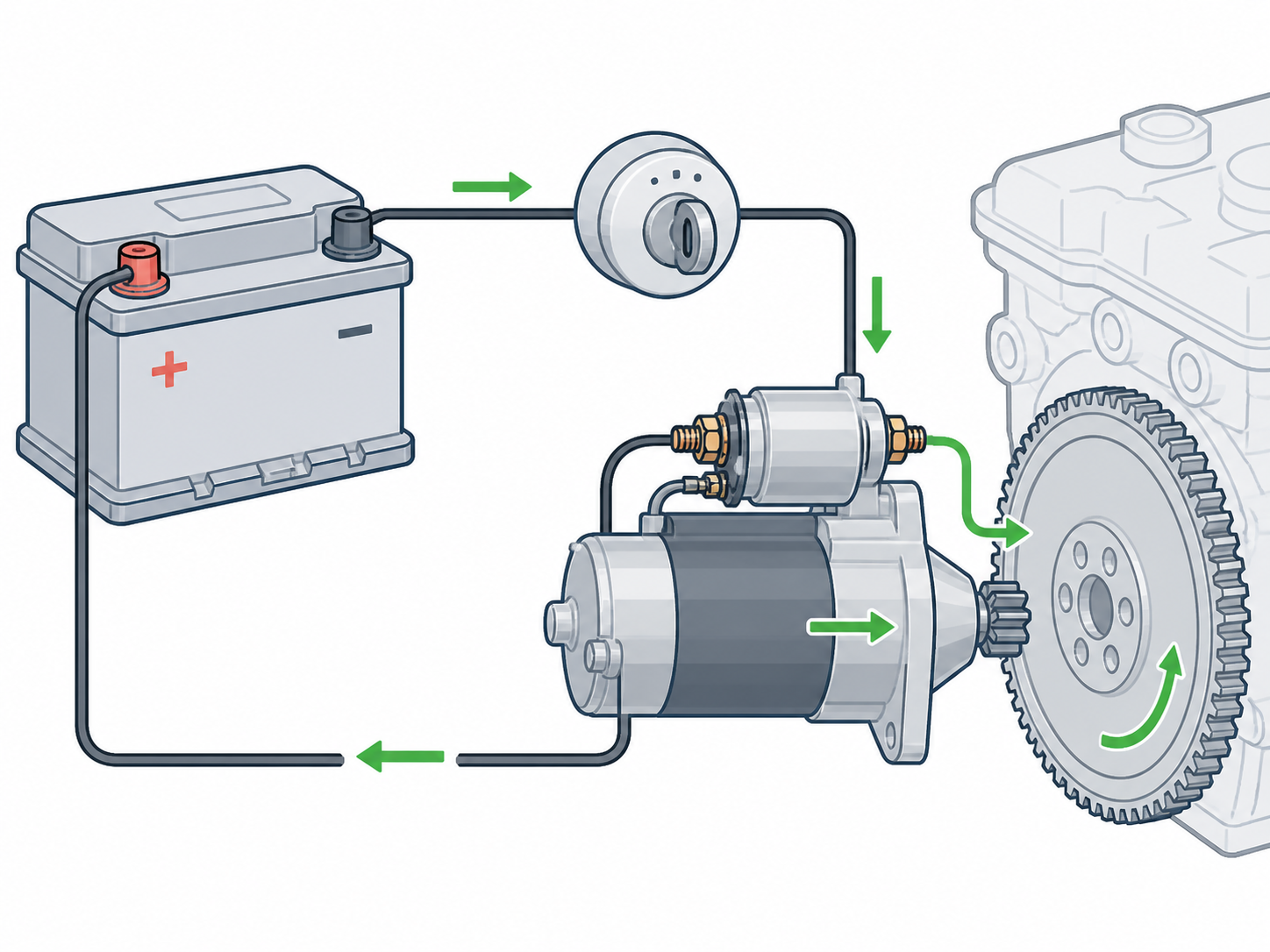

A starter motor is an electric motor that helps crank the engine during starting. When the ignition key or start button is activated, the vehicle's battery sends power through the starting circuit. The starter solenoid engages the starter motor, and the starter gear helps turn the engine so it can begin running on its own.
This handbook provides general installation, safety, troubleshooting, and care information for passenger vehicle replacement starter motors. Exact starter location, wiring layout, mounting hardware, and access path may vary by vehicle.
Always refer to the vehicle service manual for vehicle-specific instructions before installation.
What This Guide Covers
- General starter motor function
- Safety precautions before installation
- Basic checks before removing the old starter
- General removal and installation steps
- Basic troubleshooting after installation
- Use, maintenance, storage, and support guidance
What This Guide Does Not Cover
- Vehicle-specific installation paths
- OE number, SKU, Lester number, or application matching
- Specific torque values unless provided by the vehicle service manual
- Internal starter repair
- High-risk electrical testing or bypass procedures
2. Safety Instructions
Read all safety instructions before beginning work. A starter motor is part of the vehicle electrical system. Incorrect handling can cause short circuits, damaged components, or personal injury.
Before You Begin
- Disconnect the negative battery cable before servicing the starter or related wiring.
- Allow the engine and surrounding components to cool before working.
- Use the correct hand tools or socket tools for the fasteners.

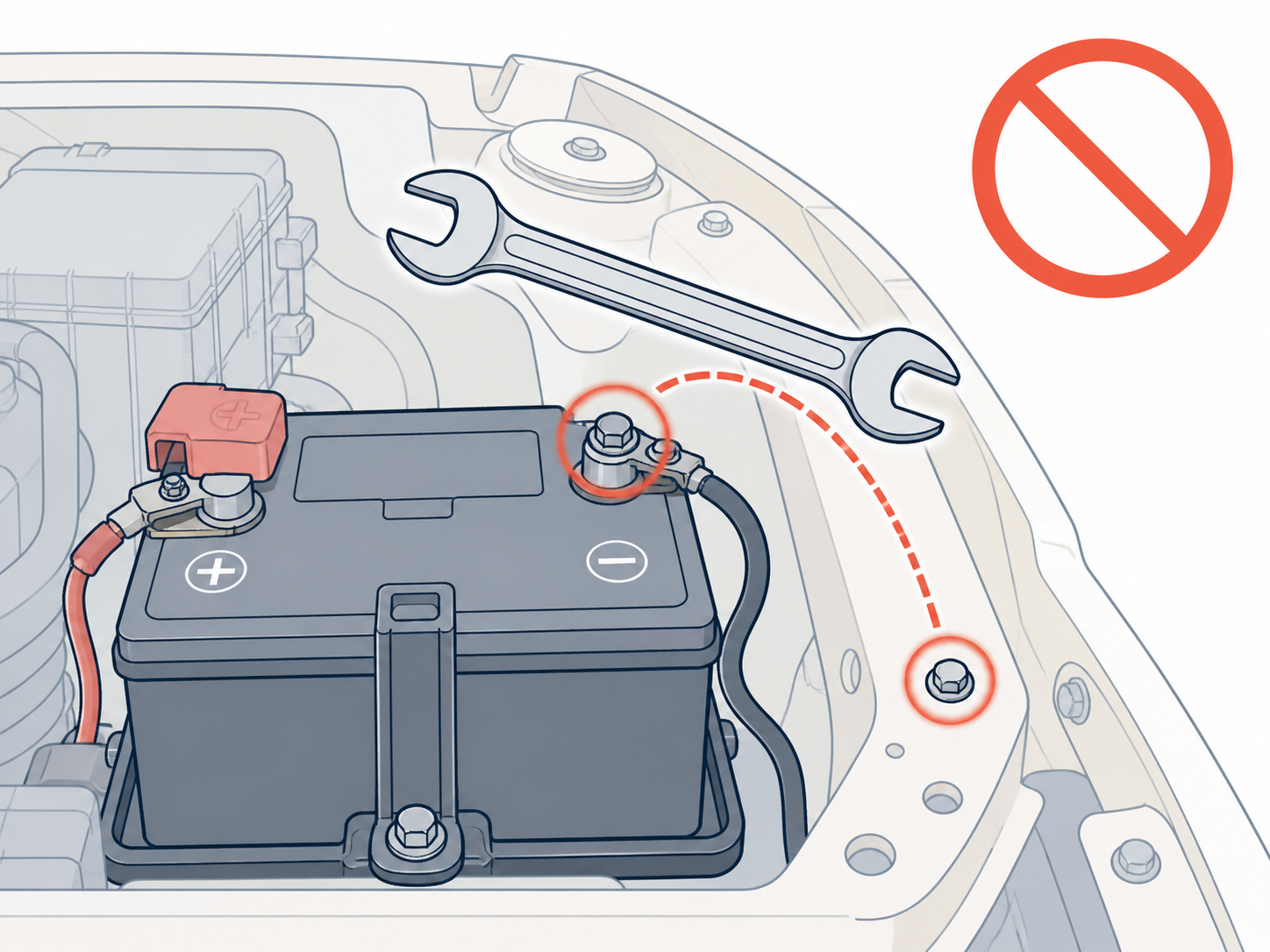

- Keep metal tools away from direct contact between battery terminals and vehicle body metal.
- Wear gloves and eye protection when working around the battery, wiring, or under the vehicle.
- If the vehicle must be raised, support it securely with jack stands on a firm, level surface.
- Do not work under a vehicle supported only by a jack.
- If you are not confident with electrical or under-vehicle work, have the starter installed by a qualified technician.
Electrical Safety
Disconnect the battery before touching starter wiring. Do not allow the removed battery cable to contact the battery terminal while you work. Keep wiring away from moving parts, sharp edges, and hot engine components.
Do not bypass relays, safety switches, or starter terminals as a shortcut. This handbook does not provide short-circuit testing instructions.
3. Before Installation
Before removing the old starter, perform a basic product and vehicle check. These checks help prevent misdiagnosis, repeated installation attempts, and unnecessary returns.
Check the New Starter
- Inspect the packaging for visible shipping damage.
- Inspect the starter housing, terminals, mounting ears, and gear area for visible damage or deformation.
- Do not install a starter with cracked housing, bent terminals, damaged mounting ears, or obvious shipping damage.
At this stage, do not try to fully compare the new starter with the old starter. The old starter has not been removed yet. A full side-by-side comparison should be done after the old starter is removed and before the new one is installed.
Check the Vehicle First
Before assuming the starter is defective, check common starting-system issues:

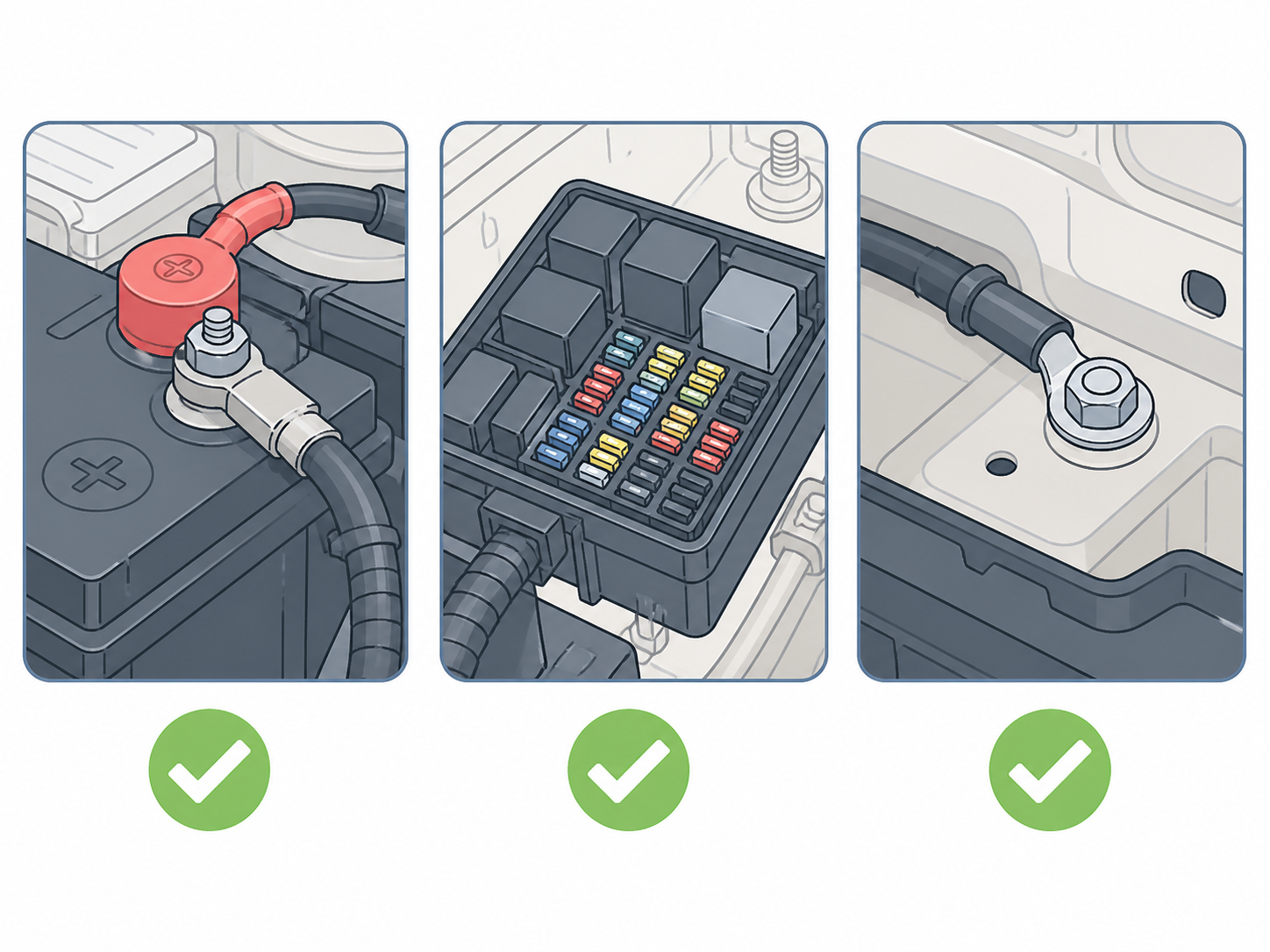

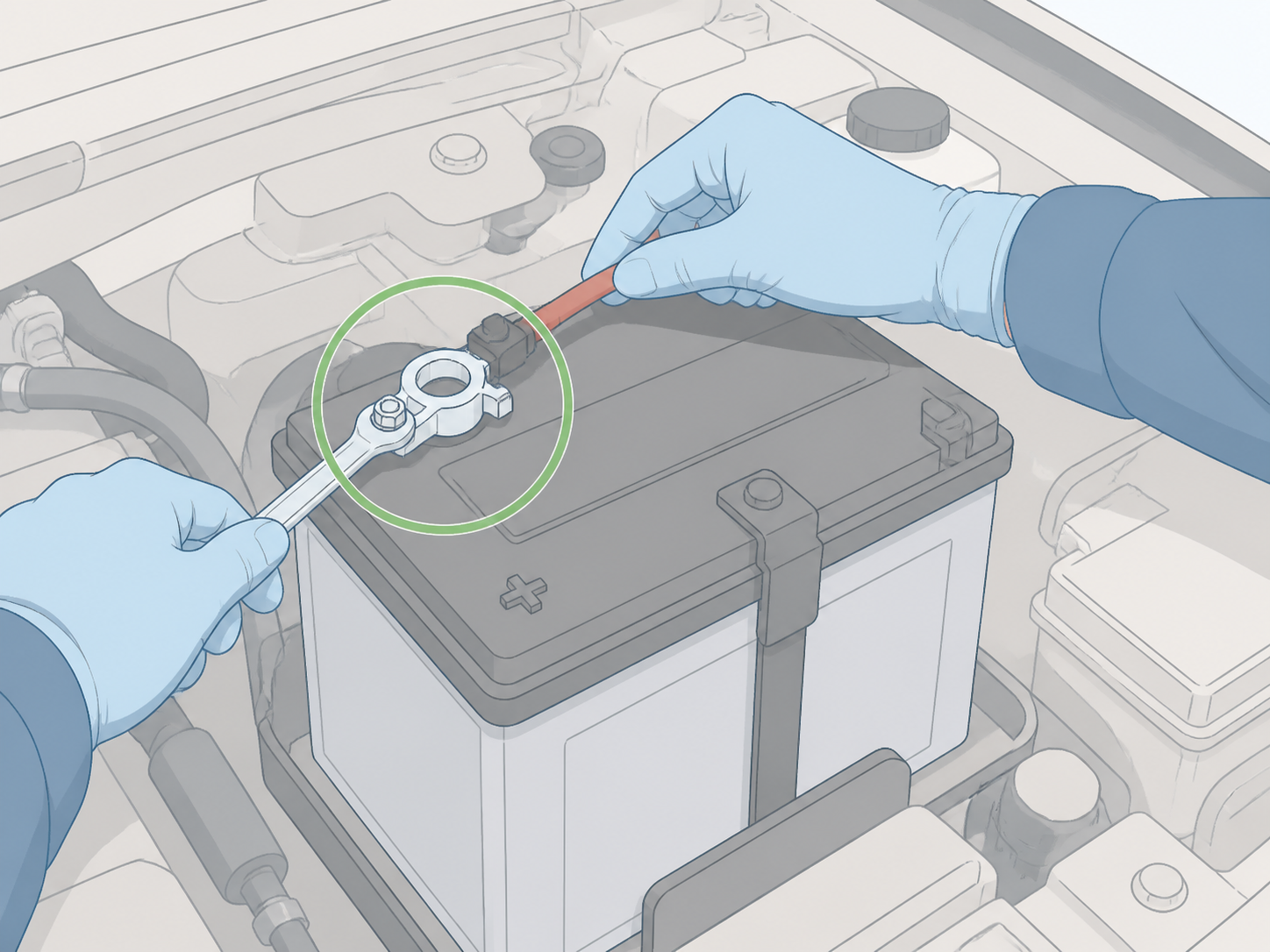

- Battery charge condition
- Loose or corroded battery terminals
- Damaged or loose battery cables
- Ground cable condition
- Starter fuse, relay, or control circuit condition
- Obvious wiring damage near the starter
If the battery is weak or the wiring connection is poor, the vehicle may not start even with a good starter motor.
Prepare for Installation
- Park the vehicle on a firm, level surface.
- Set the parking brake.
- Allow the engine to cool.
- Gather the correct tools.
- Take photos before disconnecting wiring.
- Keep removed fasteners organized.
- Refer to the vehicle service manual for access instructions and fastener specifications.
4. Removing the Old Starter
The following steps describe a general starter removal process. Actual access may vary by vehicle.

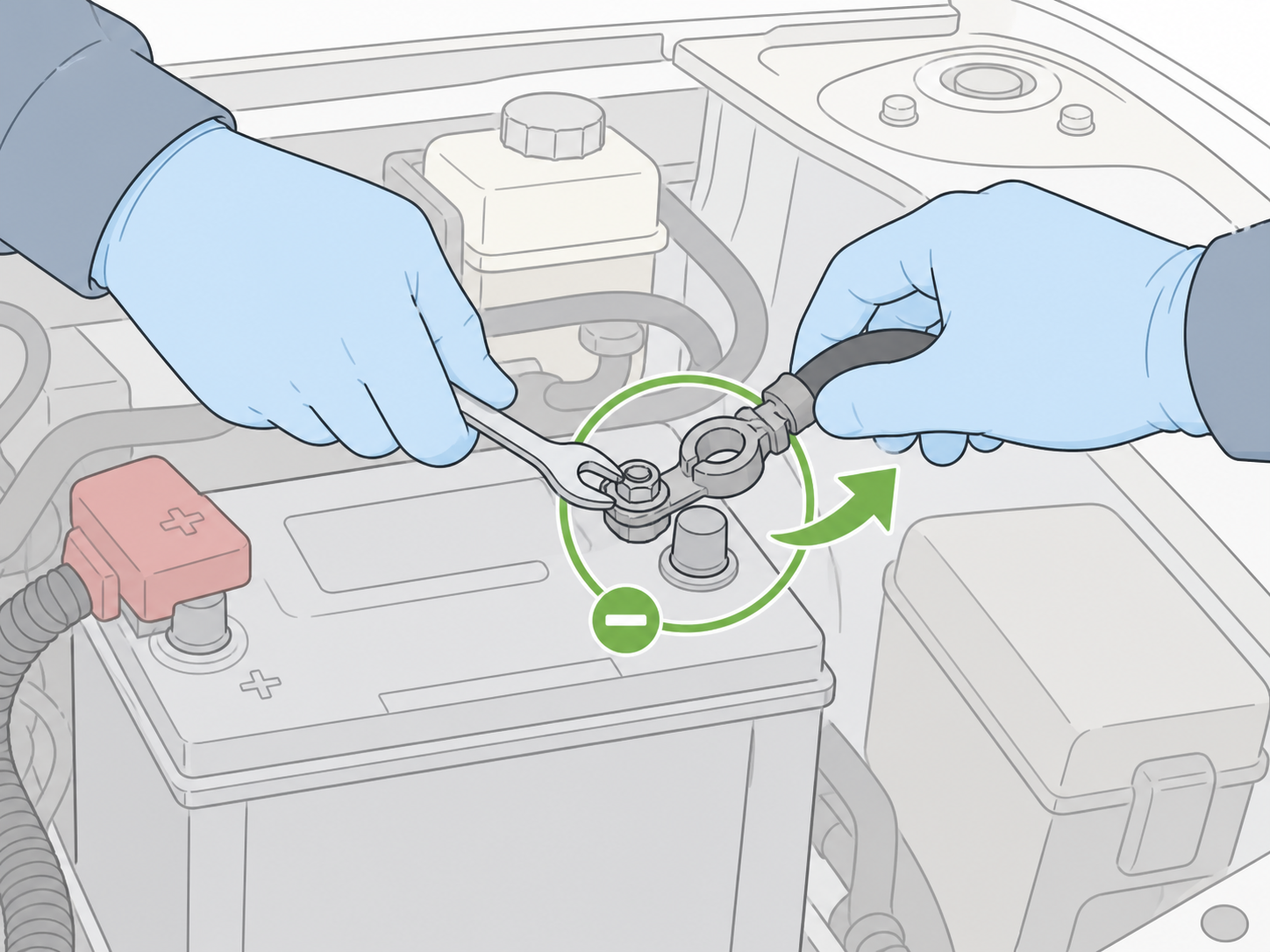

Step 1 - Disconnect the Battery
Disconnect the negative battery cable before servicing the starter. Loosen the nut that secures the cable to the negative terminal. You usually do not need to remove the nut completely. Once the cable is loose, lift it from the terminal and tuck it aside so it cannot touch the terminal while you work.
Do not remove the positive cable unless the vehicle service manual specifically requires it.

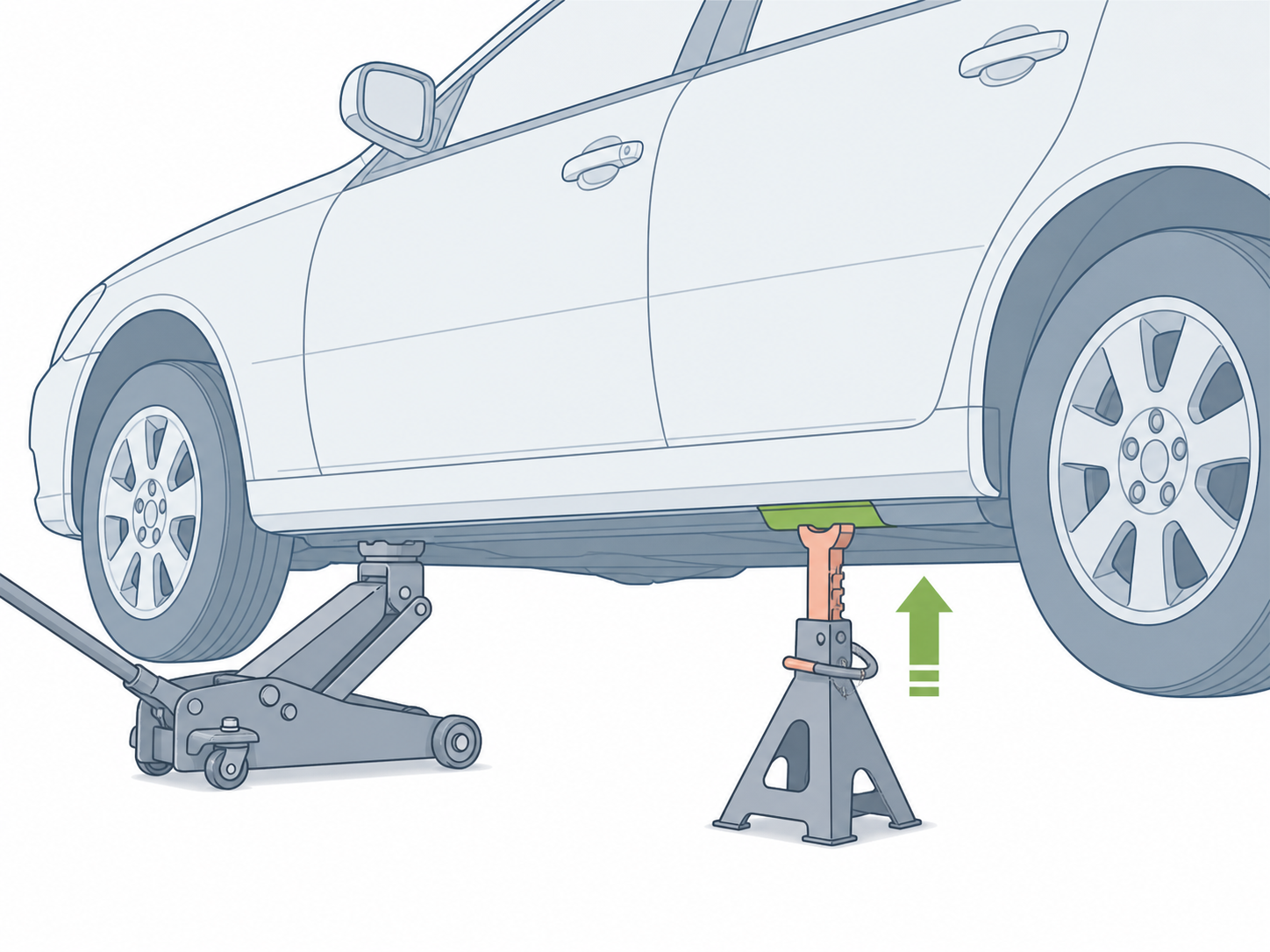

Step 2 - Raise and Support the Vehicle if Needed
Some starters can be accessed from above the engine bay. Others require access from underneath the vehicle. If the vehicle must be raised, use the correct lift points and support it with jack stands before working underneath.
Step 3 - Locate the Starter

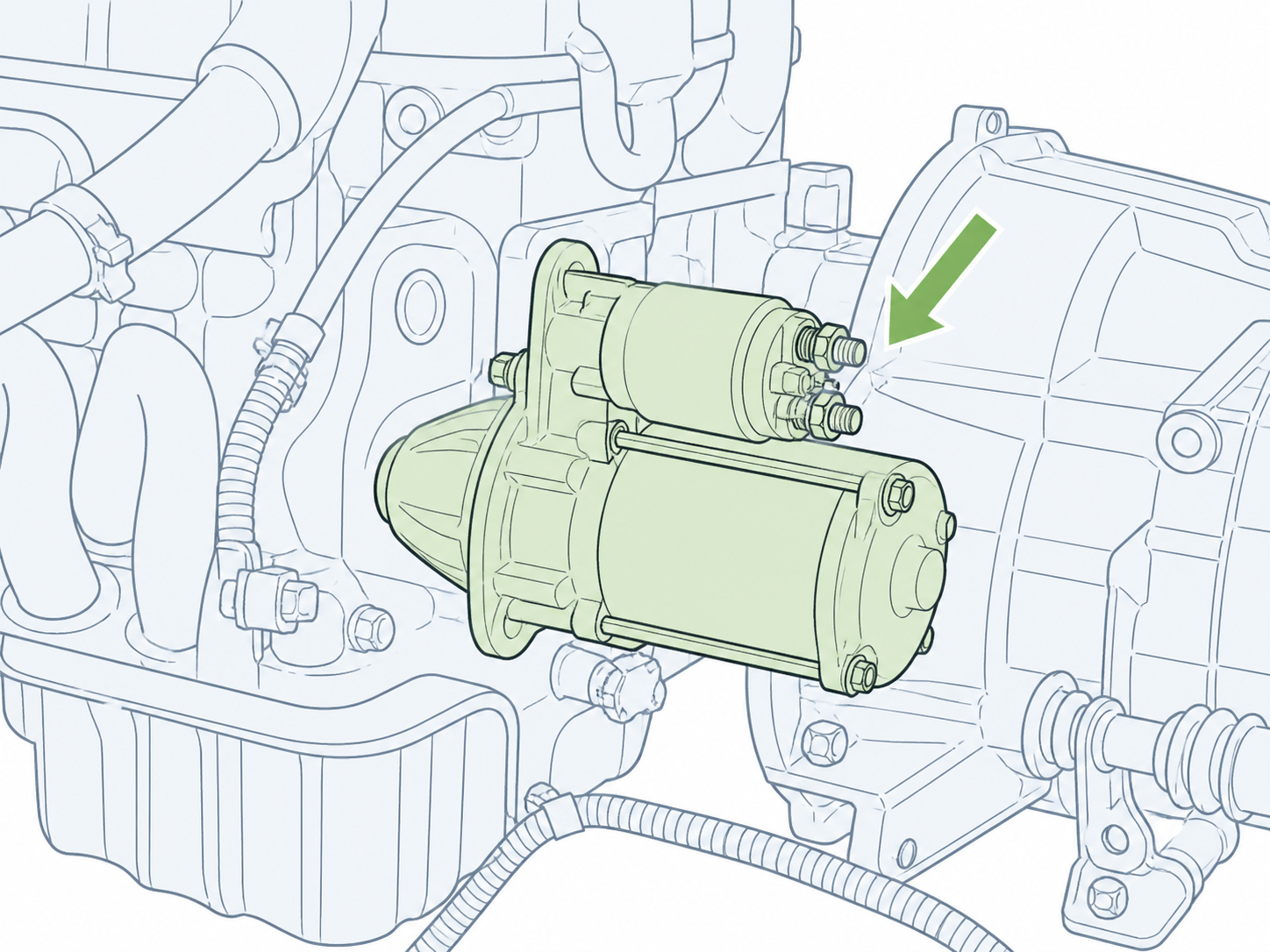

The starter is usually mounted near the point where the engine meets the transmission. It is typically a cylindrical motor with a smaller solenoid attached and one or more wires connected to it.
If you cannot locate the starter, refer to the vehicle service manual.
Step 4 - Photograph the Wiring

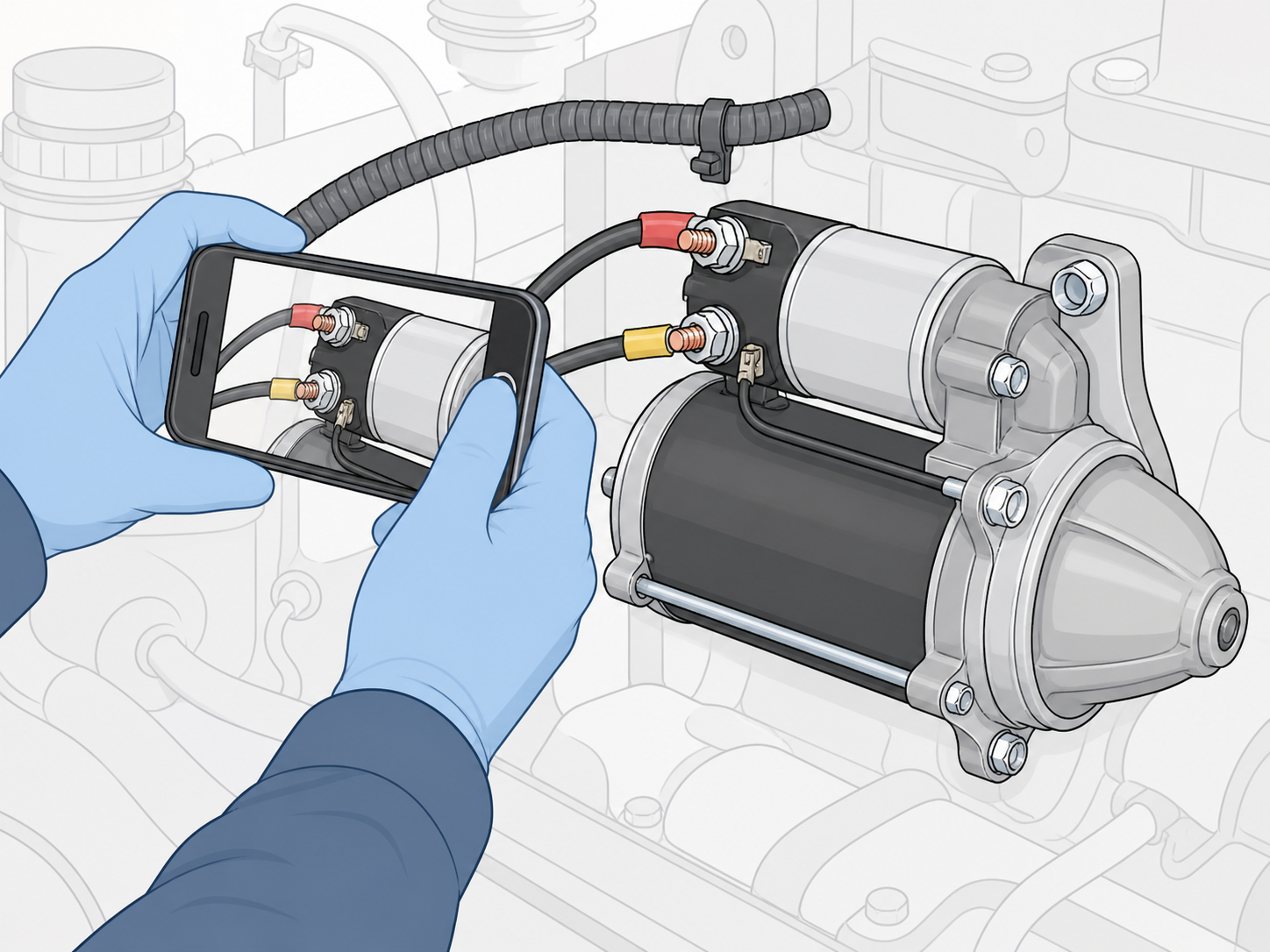

Before removing any wires, take a clear photo of the original wiring layout. This helps ensure the wires are reconnected to the correct terminals during installation.

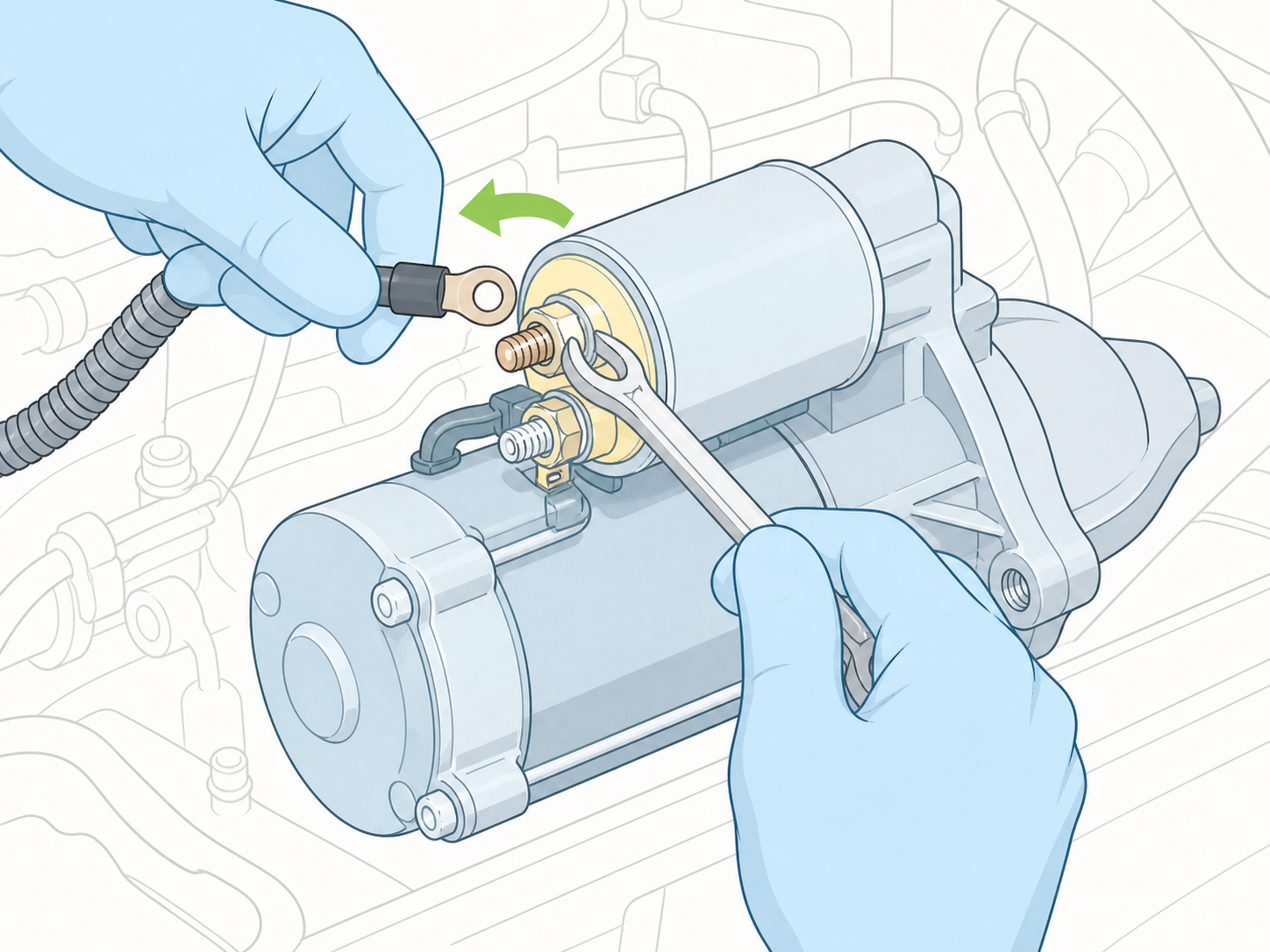

Step 5 - Disconnect the Starter Wiring
Disconnect the main power cable and any control wires connected to the starter solenoid. Some vehicles use nuts on threaded terminals. Others may use clips or connectors.
Do not pull on the wire itself. Pull connectors from the connector body and remove terminal nuts with the correct tool.

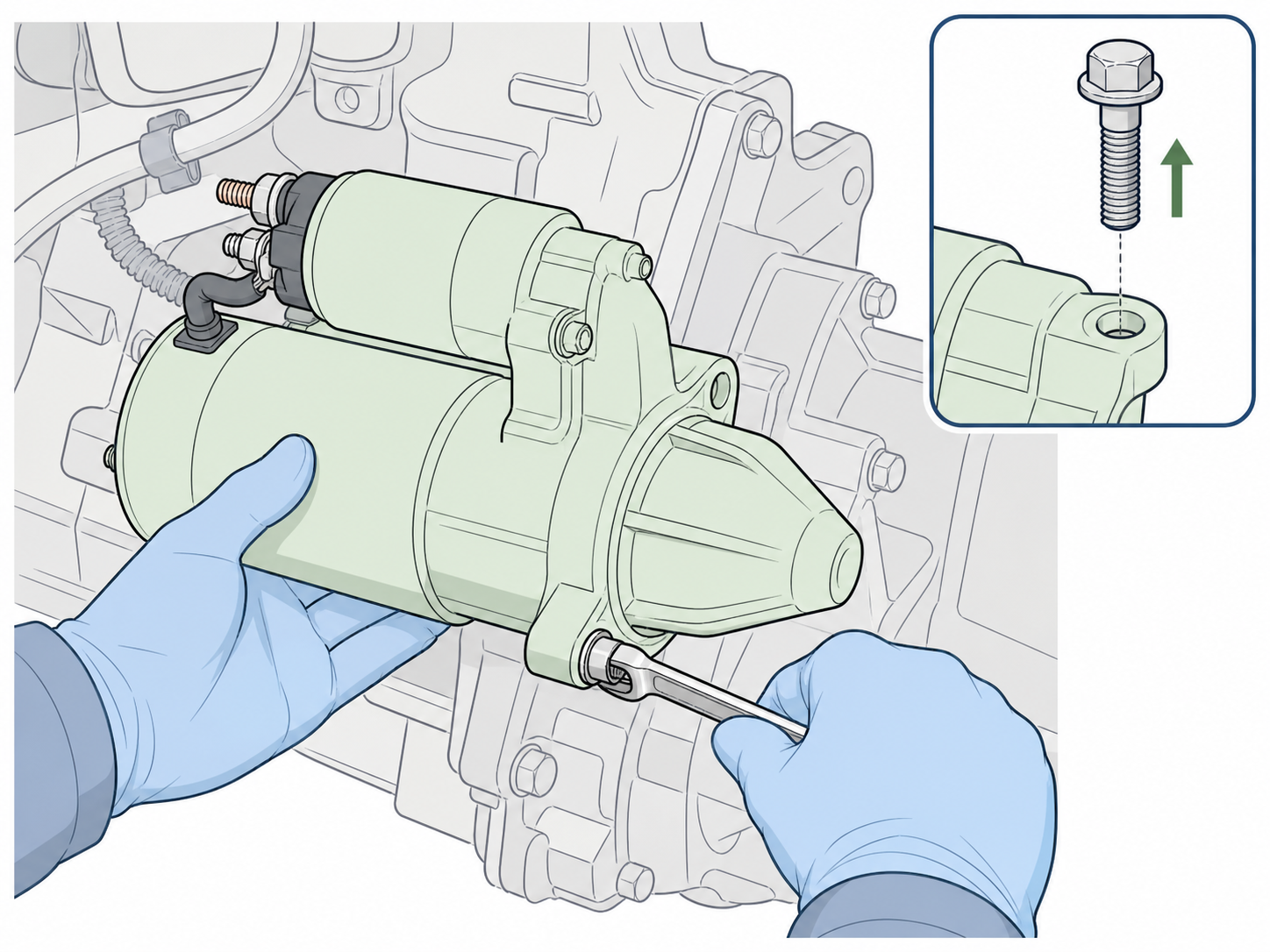

Step 6 - Remove the Retaining Bolts
Support the starter before removing the last retaining bolt. Starters can be heavy and may shift once the bolts are removed.
Remove the retaining bolts and carefully lower or remove the old starter from the vehicle.
Do not pry, hammer, or force the starter unless the vehicle service manual gives a specific procedure.
5. Installing the New Starter
Install the new starter only after the old starter has been removed and the two parts can be compared side by side.
Step 1 - Compare the Old and New Starter

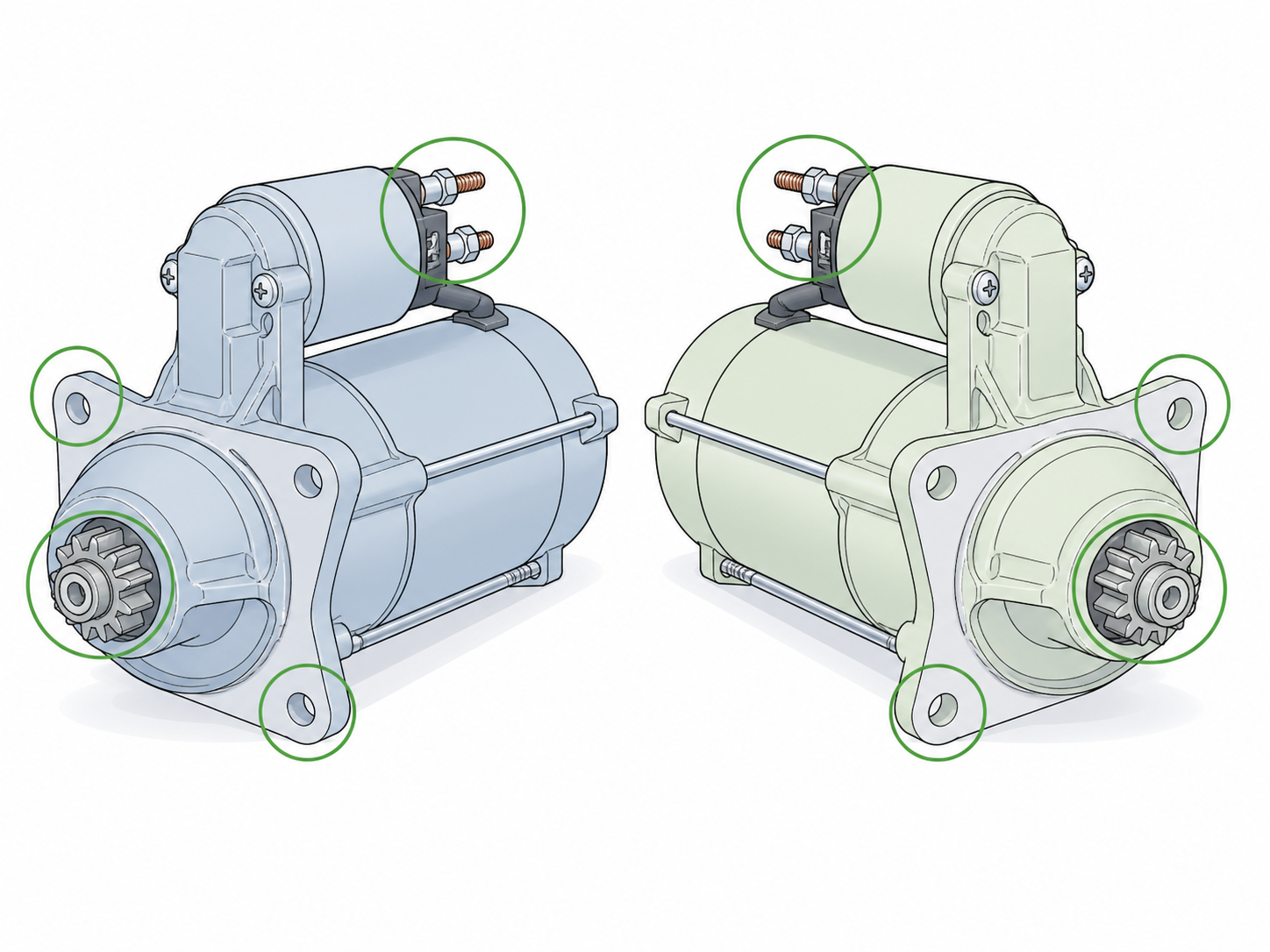

Place the old starter and new starter side by side. Check the following:
- Overall shape and mounting orientation
- Mounting holes
- Gear position
- Solenoid location
- Main power terminal position
- Control terminal or connector position
Some replacement starters may have small visual differences. Small differences do not always mean the part is incorrect. If the mounting points, gear position, and required electrical connections do not match, stop and verify fitment before installation.

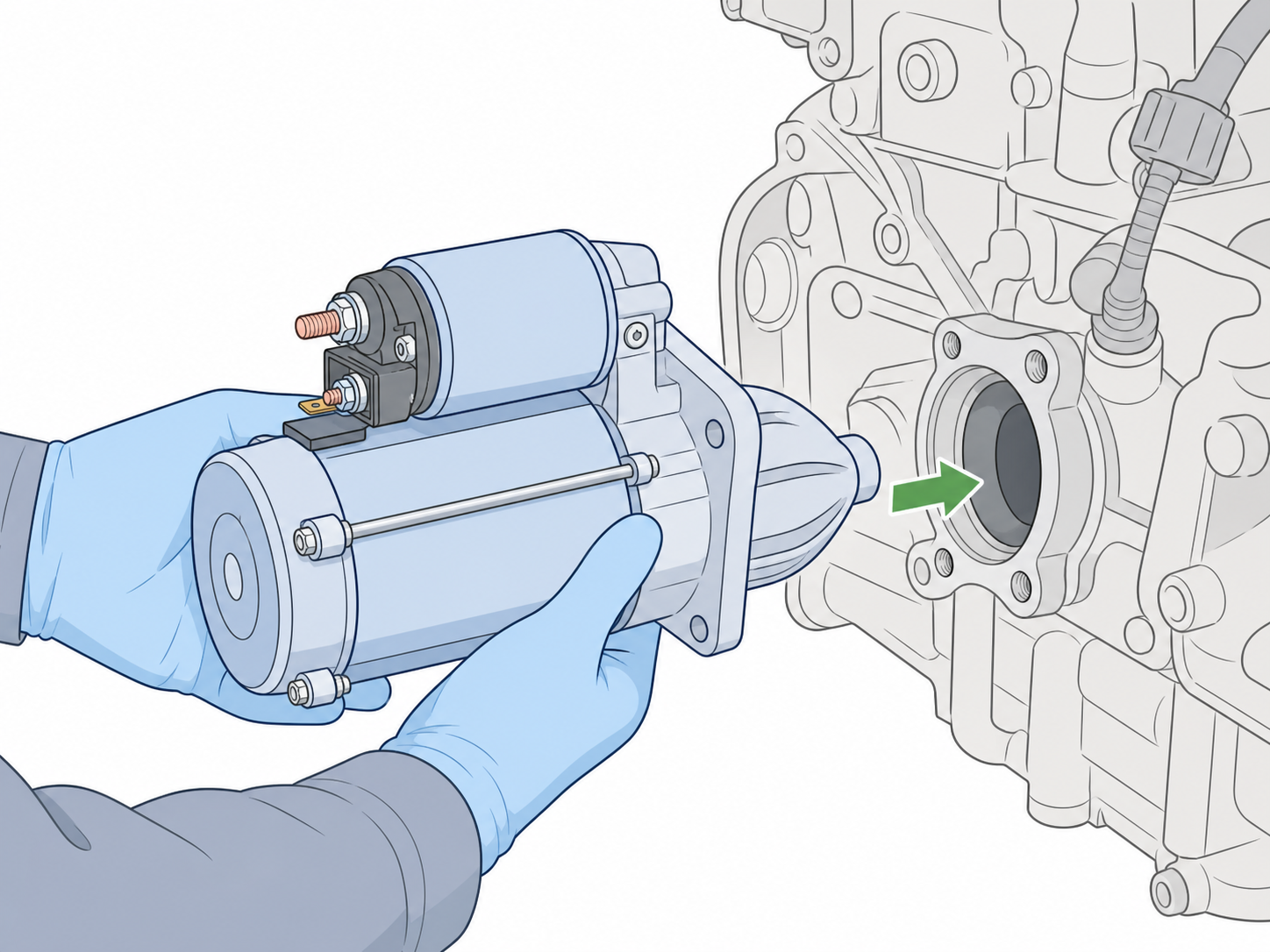

Step 2 - Position the New Starter
Place the new starter into the original mounting position. Make sure the starter sits flat against the mounting surface and is not angled or forced into position.
Step 3 - Start the Retaining Bolts for the First Few Turns

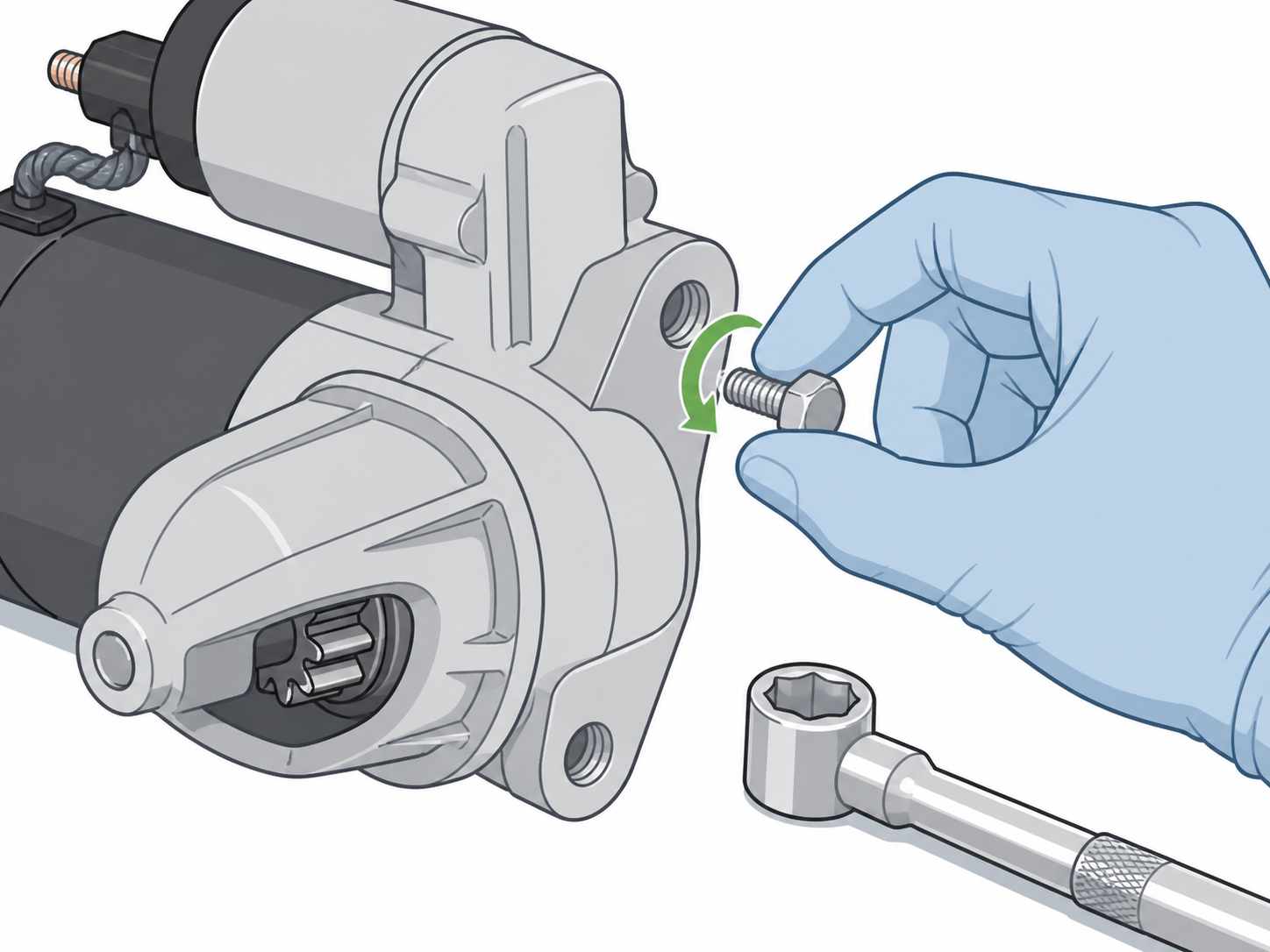

Use your fingers to thread each retaining bolt into the mounting holes for the first few turns before using a wrench or socket. This confirms the bolt is aligned correctly and reduces the risk of cross-threading. Once the bolts are properly started, tighten them securely according to the vehicle service manual.
Do not power the starter while it is loose or not fully mounted.
Step 4 - Reconnect the Wiring

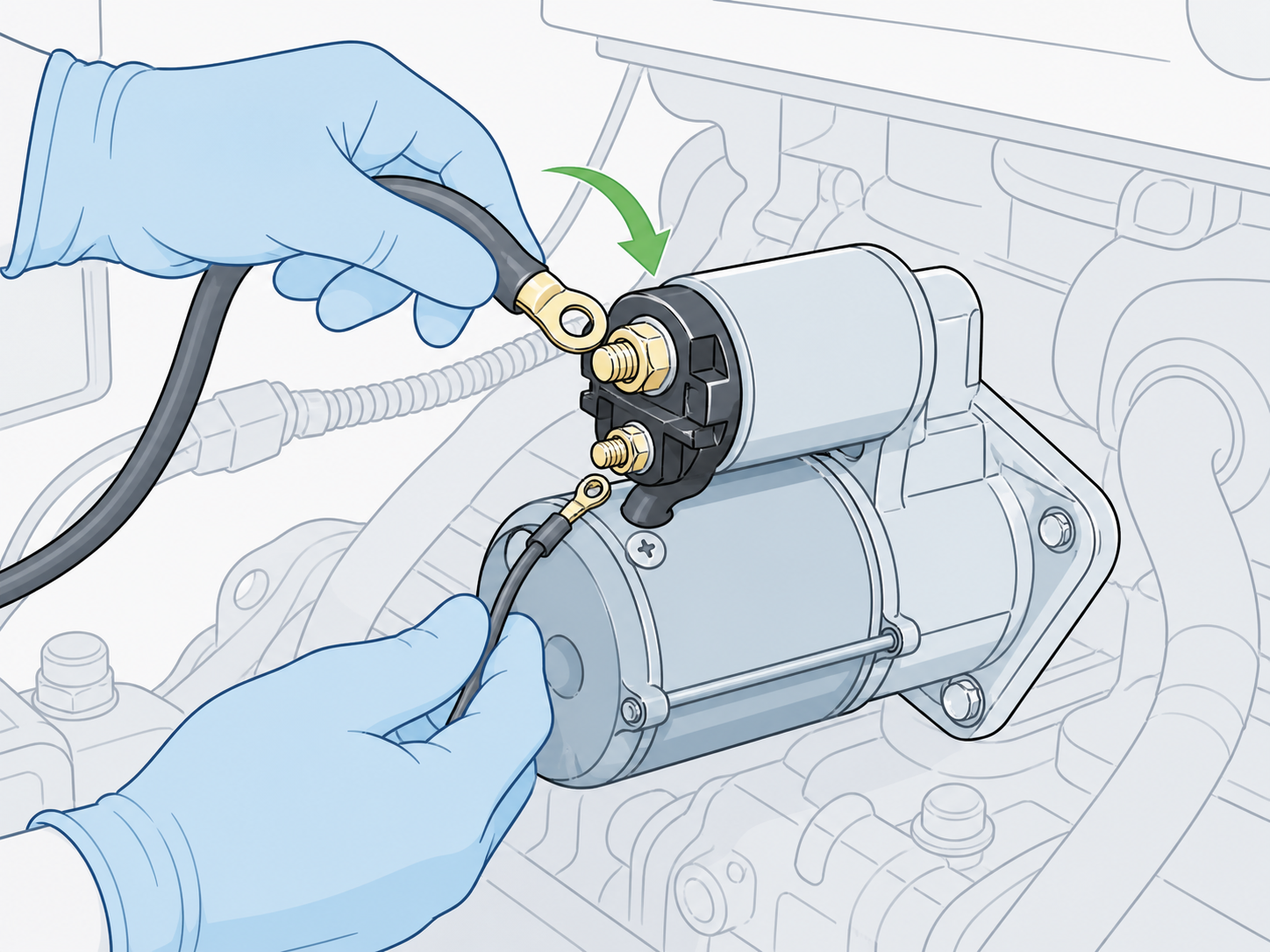

Reconnect the wiring according to the photo you took before removal and the vehicle service manual. Make sure each wire is connected to the correct terminal and tightened securely.

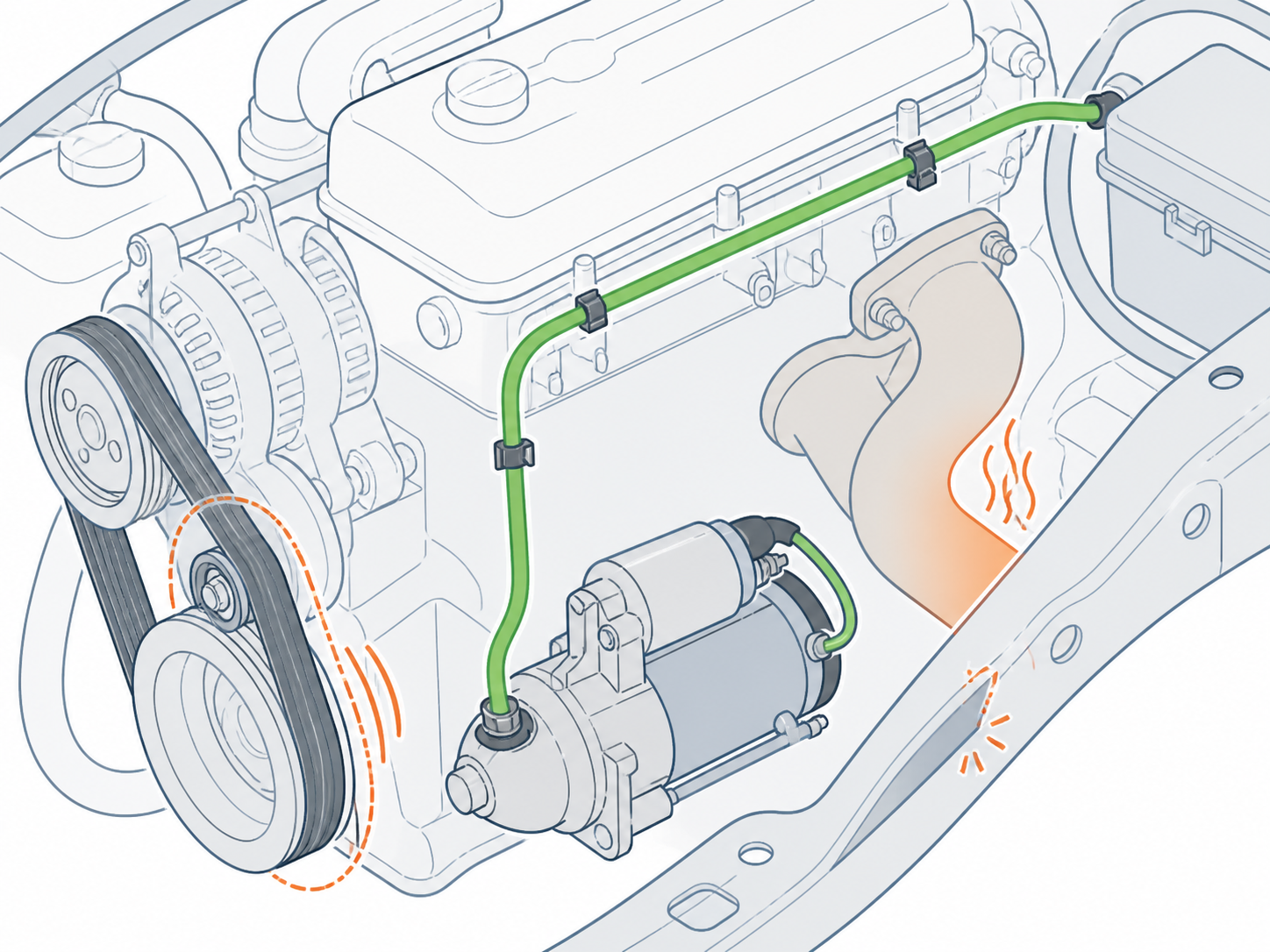

Keep wiring away from moving, sharp, or hot components.

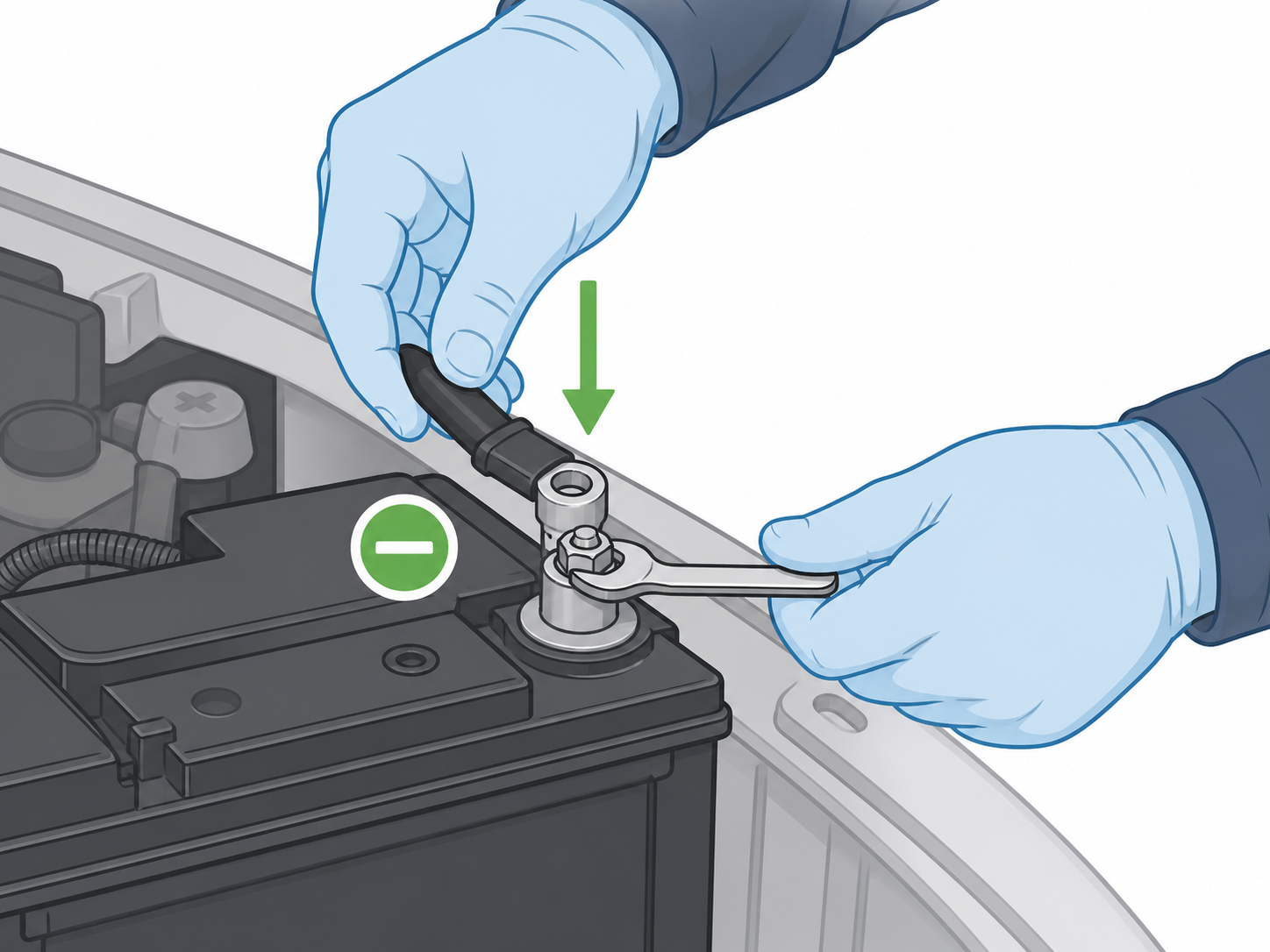

Step 5 - Reconnect the Battery
Reconnect the negative battery cable after the starter is mounted and wired. Make sure the battery cable is secure.

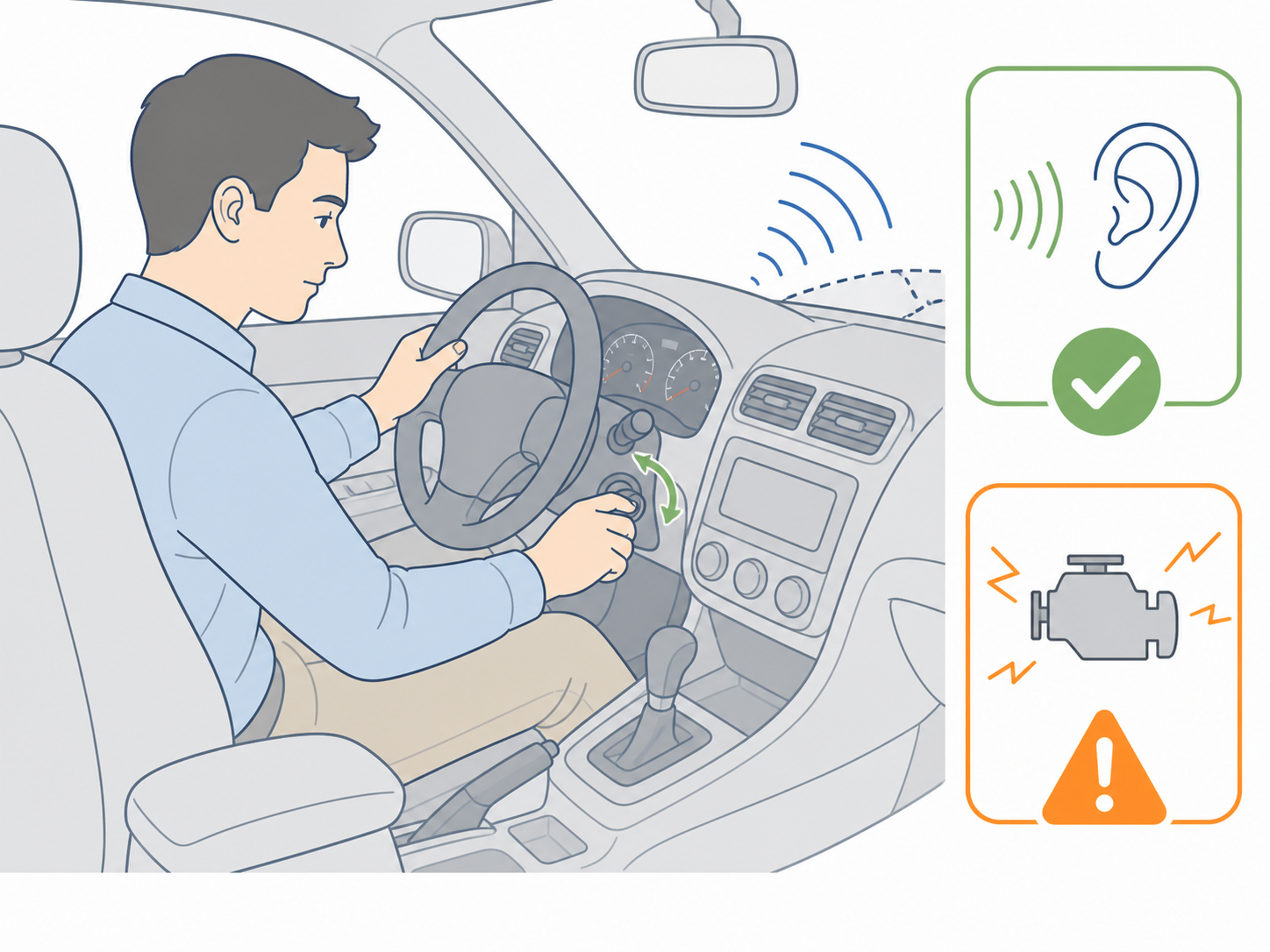

Step 6 - Test the Vehicle
Start the vehicle briefly and listen for unusual sounds. Stop and inspect if you hear grinding, repeated clicking, or abnormal noise.
If the vehicle still does not start, do not repeatedly crank the engine for long periods. Check the battery, wiring, starter relay, fuses, ground connections, and vehicle service information.
6. Troubleshooting
This section provides basic troubleshooting only. It does not replace professional diagnosis.
Quick Troubleshooting Table
| Symptom | Possible Causes | What To Check First |
|---|---|---|
| No sound when trying to start | Weak battery, disconnected battery cable, starter relay or fuse issue, poor ground, control circuit issue | Battery charge, terminals, fuse/relay, ground cable |
| Single click or repeated clicking | Weak battery, loose cable, high resistance connection, solenoid issue | Battery condition, terminal tightness, cable corrosion |
| Starter turns slowly | Low battery voltage, poor cable connection, engine mechanical resistance, worn starter circuit | Battery charge, cable condition, ground connection |
| Starter spins but engine does not crank | Gear engagement issue, incorrect installation, flywheel/ring gear issue | Starter mounting, gear position, part comparison |
| Grinding noise after installation | Misalignment, loose mounting bolts, gear engagement issue | Mounting surface, retaining bolts, starter position |
| Vehicle still does not start after replacement | Starter may not be the root cause; ignition, fuel, security, wiring, or control circuit may be involved | Battery, wiring, fuses, relays, vehicle diagnostic information |
Important Troubleshooting Notes
- Do not assume the starter is defective before checking the battery and cables.
- Do not repeatedly crank the engine for long periods.
- Do not bypass starter terminals or safety circuits.
- If the symptom continues, stop and seek professional diagnosis or contact support with clear photos and symptom details.
7. Use and Maintenance
Proper use helps protect the starter and starting system.
Use Guidelines

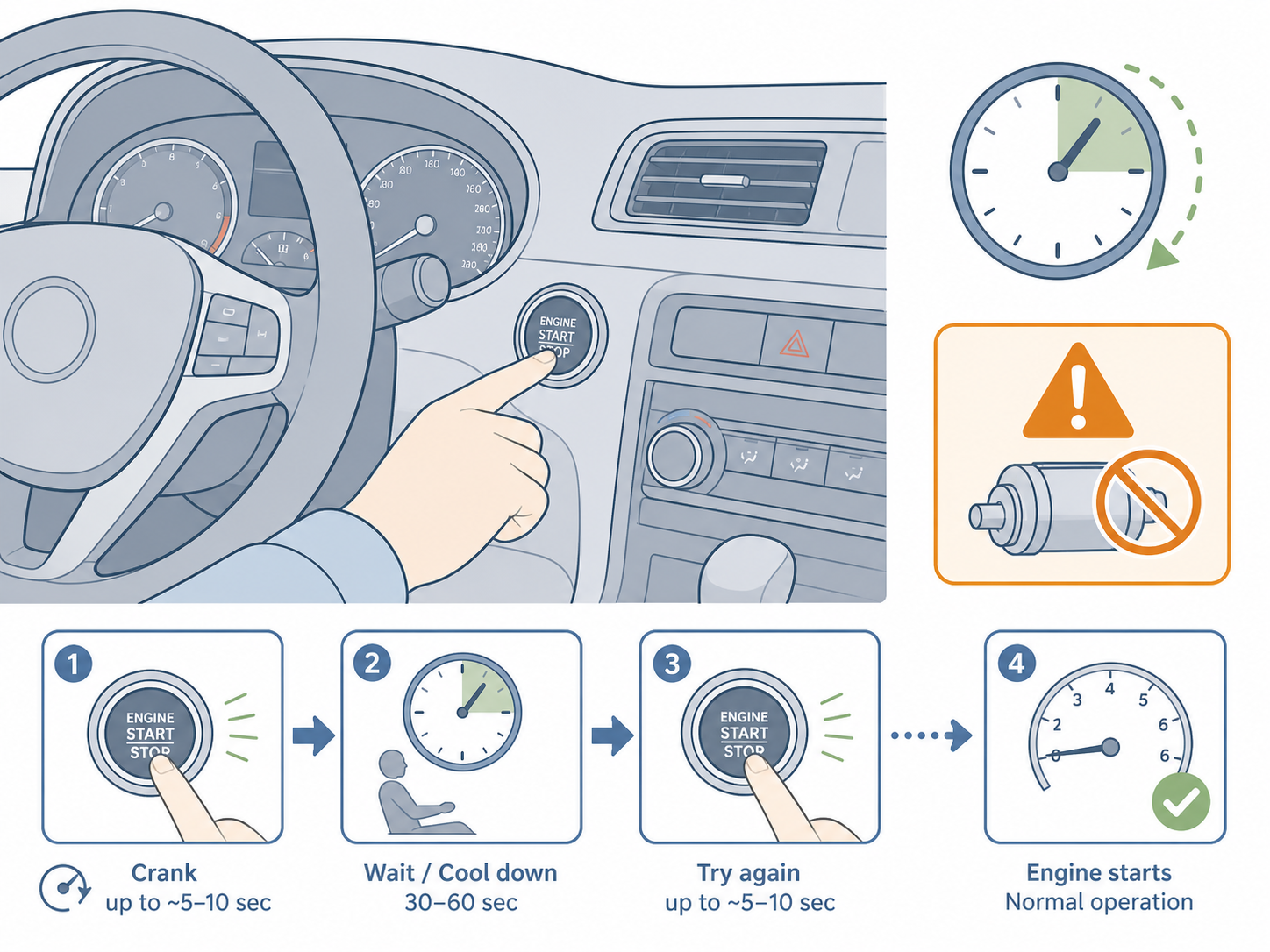

- Do not crank the engine continuously for long periods.
- Allow the starter to cool between repeated start attempts.
- If the engine does not start after several attempts, stop and check the battery, wiring, and vehicle systems.
- Stop using the starter if you notice grinding, burning smell, smoke, or repeated abnormal noise.
Basic Maintenance
- Keep battery terminals clean and tight.
- Check battery cables and ground connections periodically.
- Keep starter wiring secure and away from heat, sharp edges, and moving parts.
- Inspect for corrosion, loose wiring, or visible damage during routine vehicle service.
Internal starter repair, brush replacement, bearing service, or commutator work should be handled by qualified personnel and is not covered in this handbook.
8. Storage and Handling
If the starter is stored before installation, handle it carefully.
Storage Guidelines

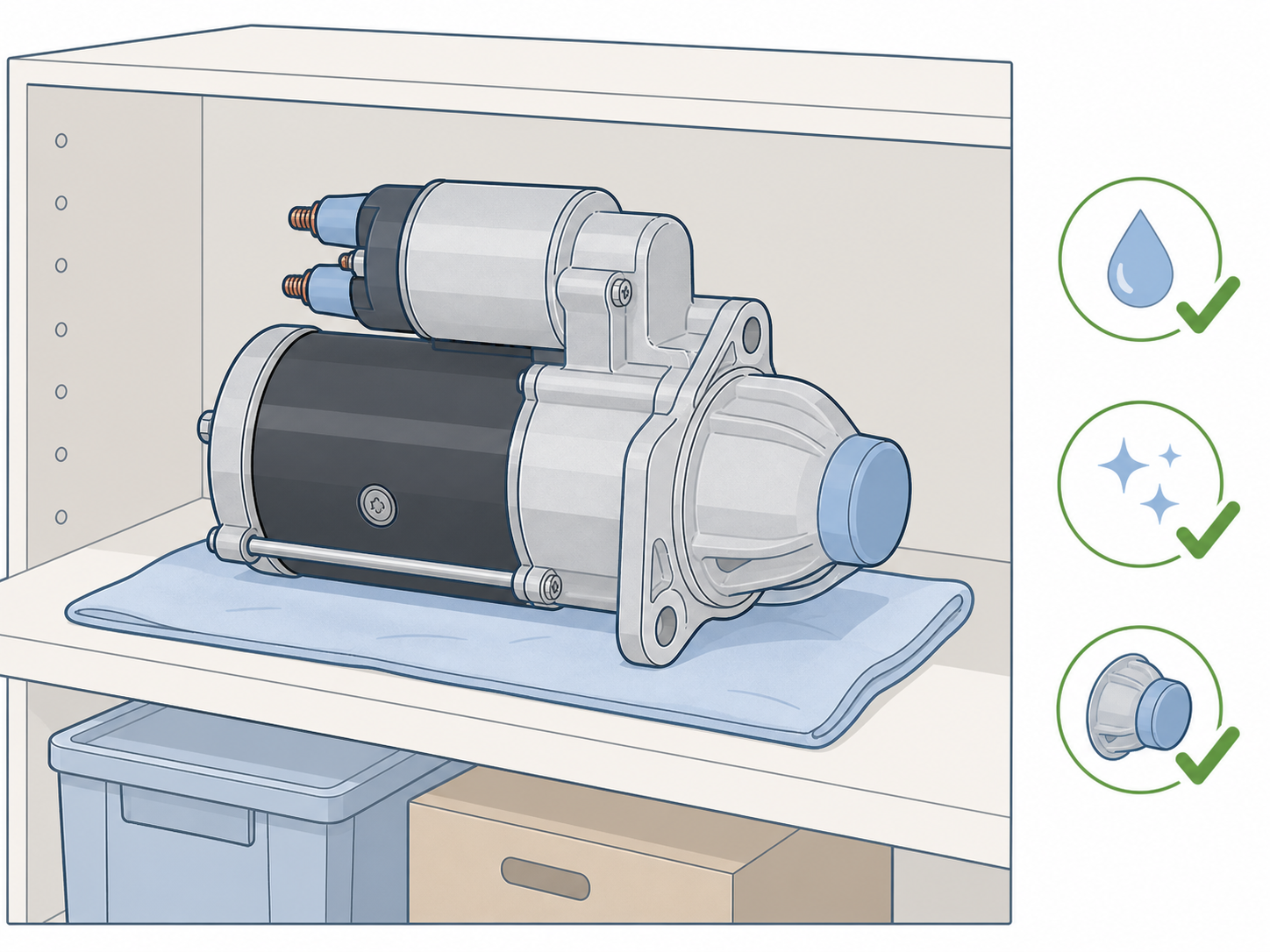

- Keep the starter dry and clean.
- Store it away from corrosive liquids, acids, alkalis, and chemical vapors.
- Avoid dropping or striking the starter.
- Do not place heavy objects on terminals, connectors, gear areas, or mounting ears.
- Keep the product packaging until installation is complete.
Before installation, inspect the starter again for visible damage.
9. Customer Support Notice
If you need help before or after installation, prepare clear information before contacting support.
Information To Prepare
- Order information
- Vehicle year, make, model, and engine
- Photos of the old starter and new starter side by side
- Photos of the wiring before and after installation
- Photo of the installed starter if accessible
- Description of the symptom
- Any sounds heard when attempting to start
- Battery and cable condition if known
When To Stop and Ask for Help
Stop installation or repeated start attempts if:
- The new and old starter do not appear to match in key mounting or gear positions
- Wiring terminal positions are unclear
- The starter makes grinding noise
- The vehicle still does not start after battery and cable checks
- You see smoke, smell burning, or notice damaged wiring
