CF-12198N-A

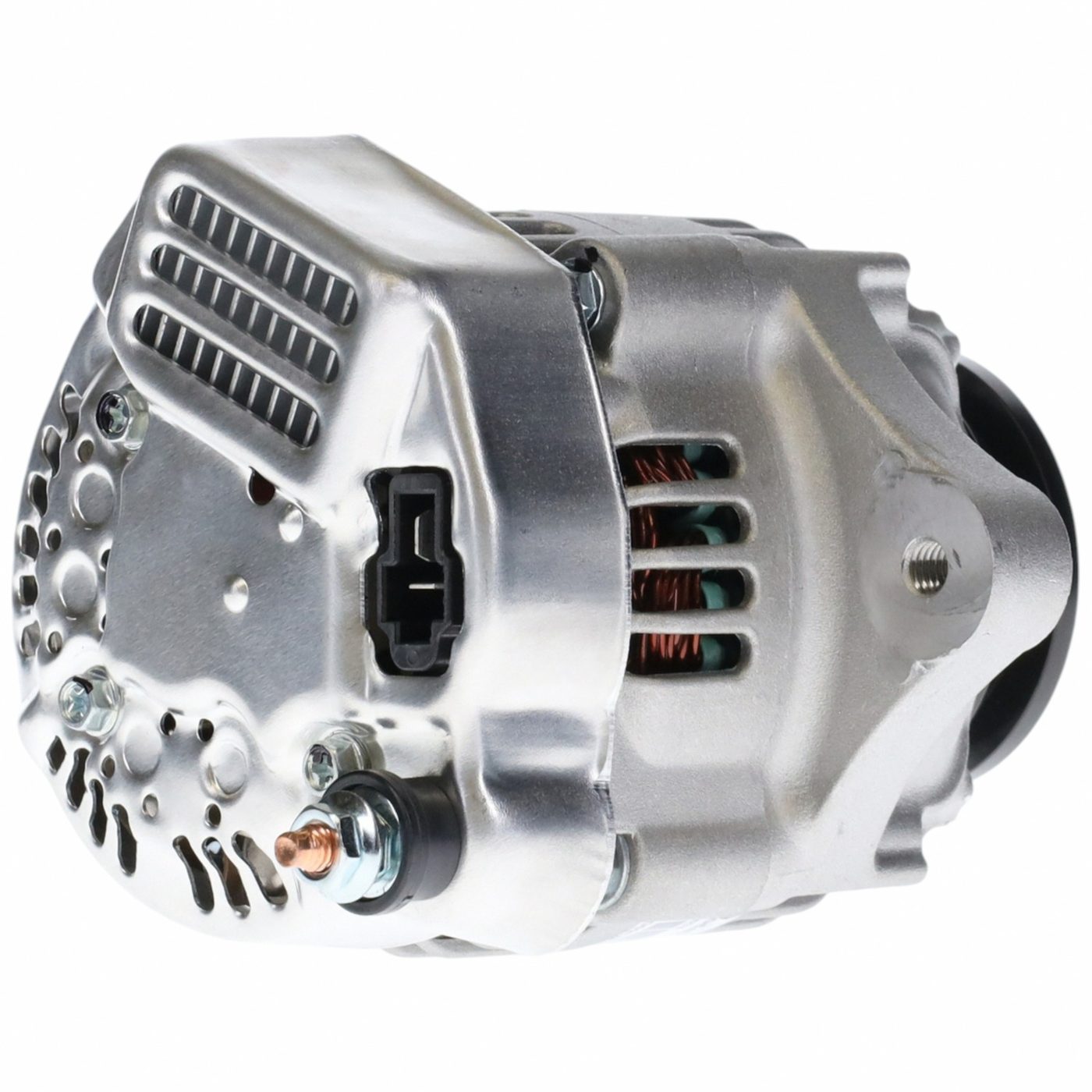

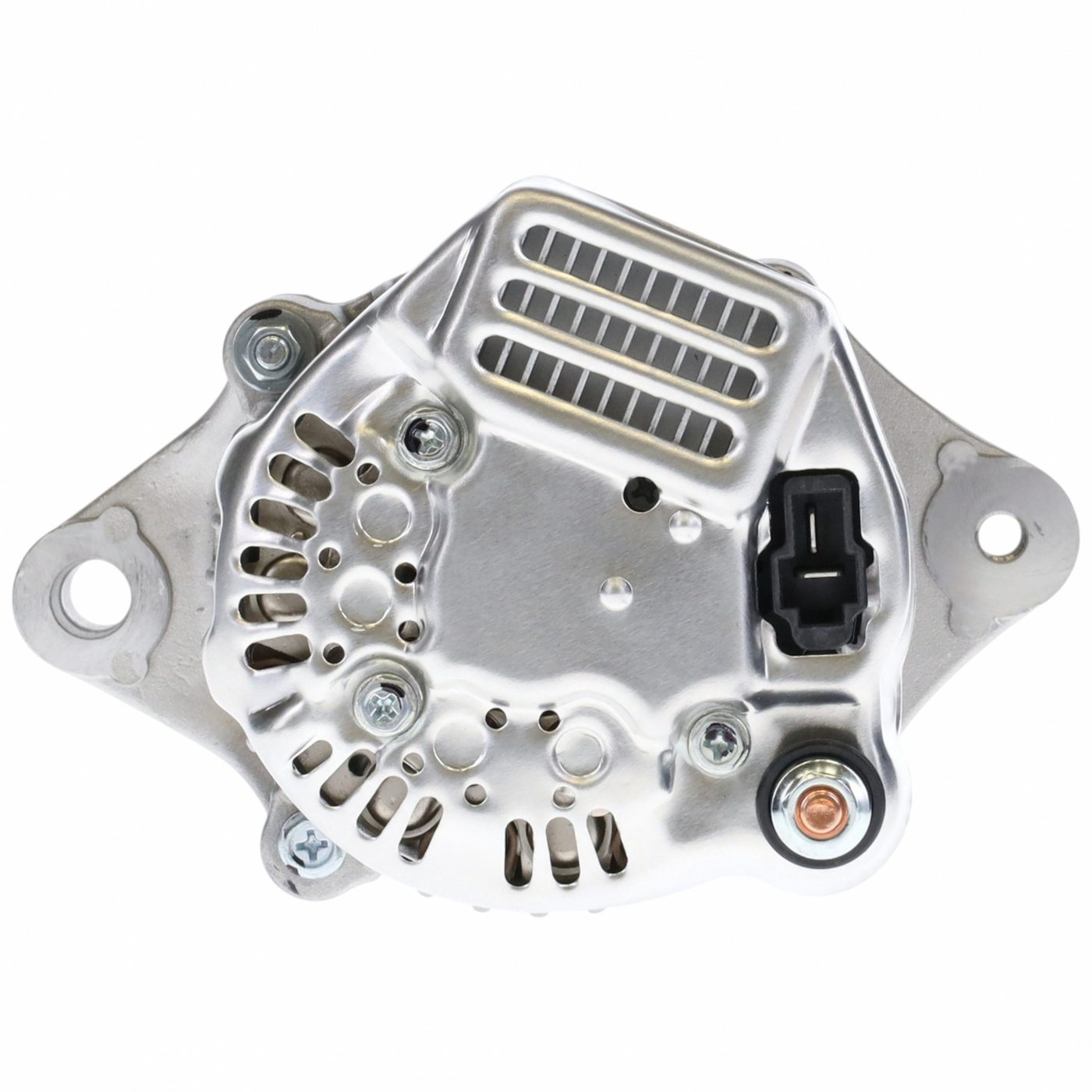

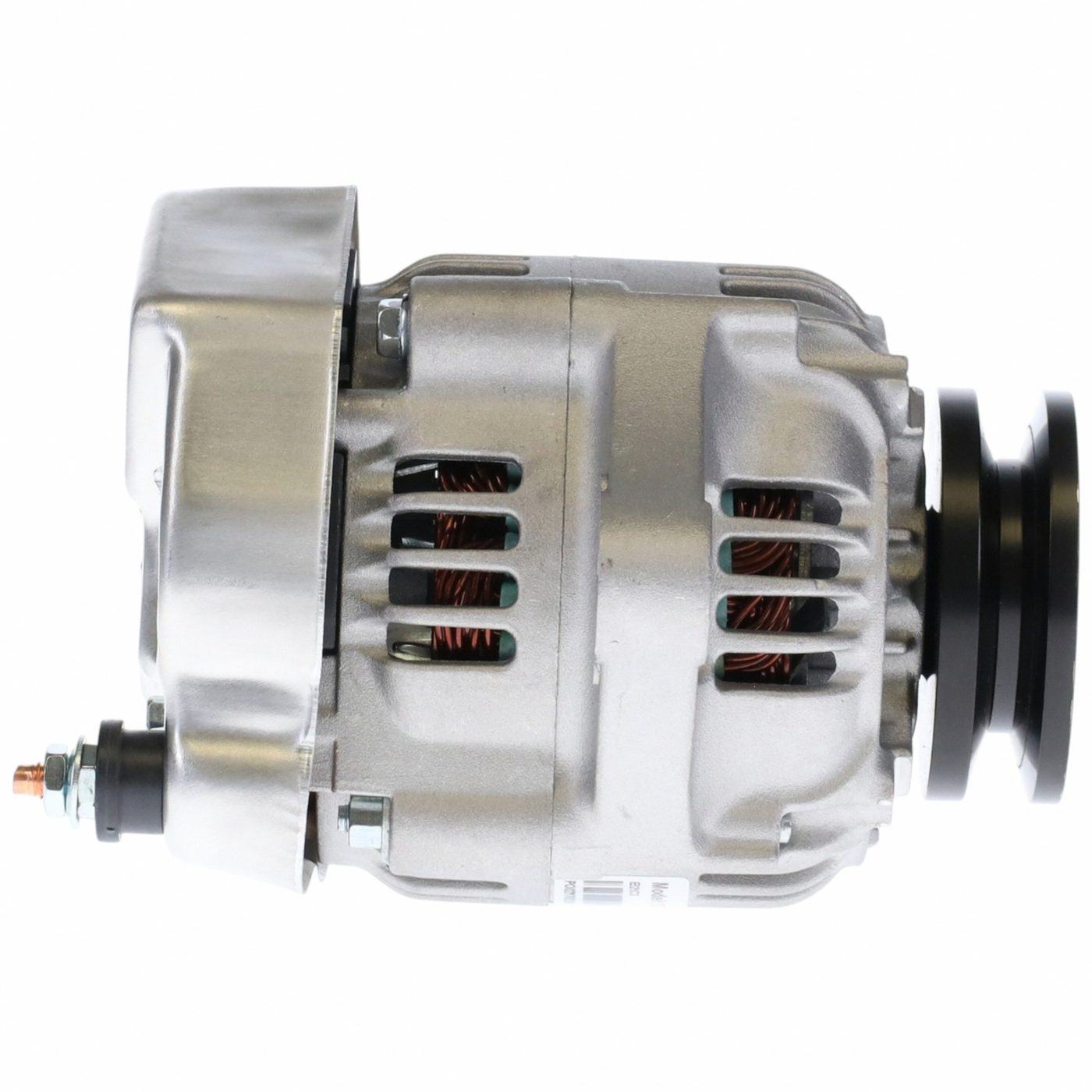

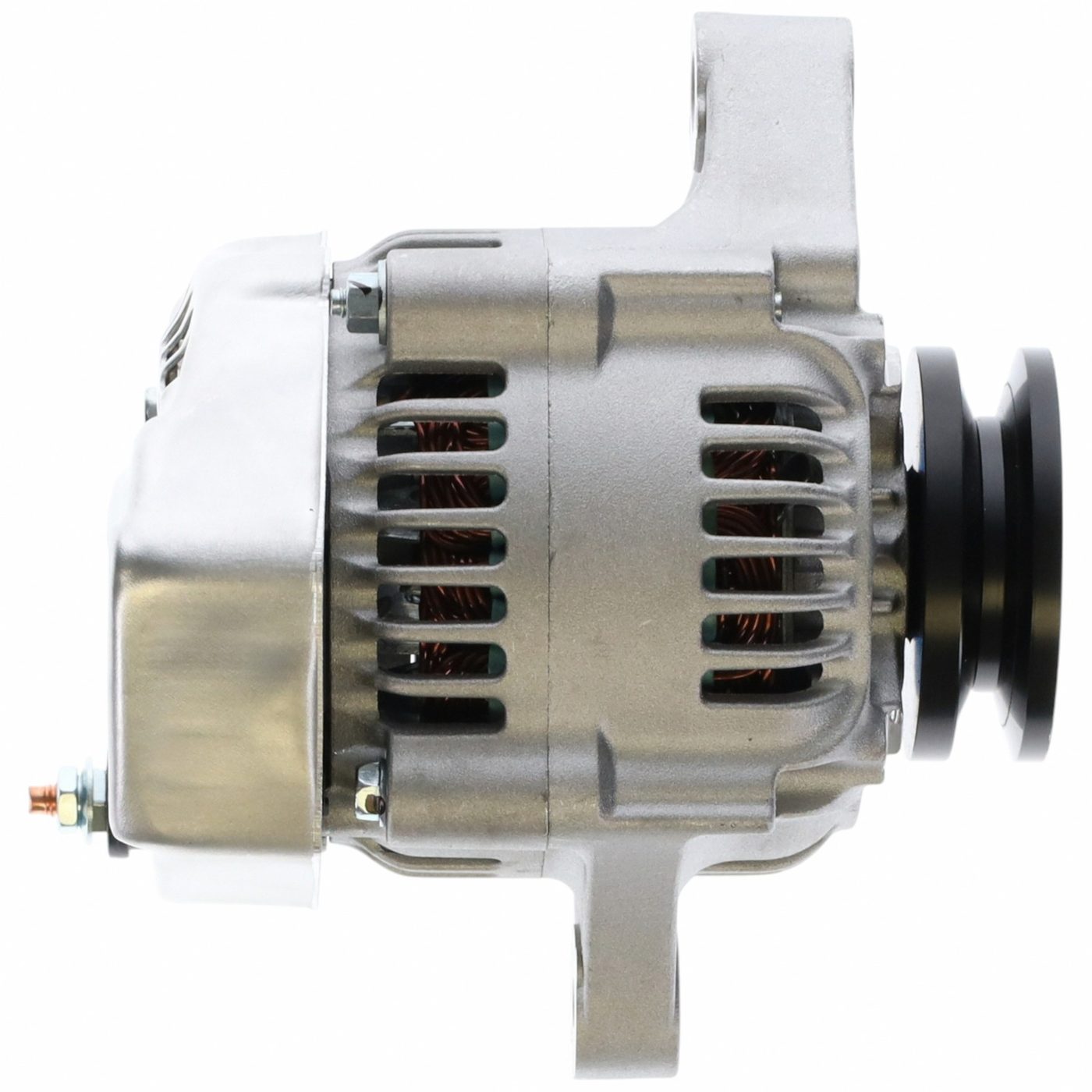

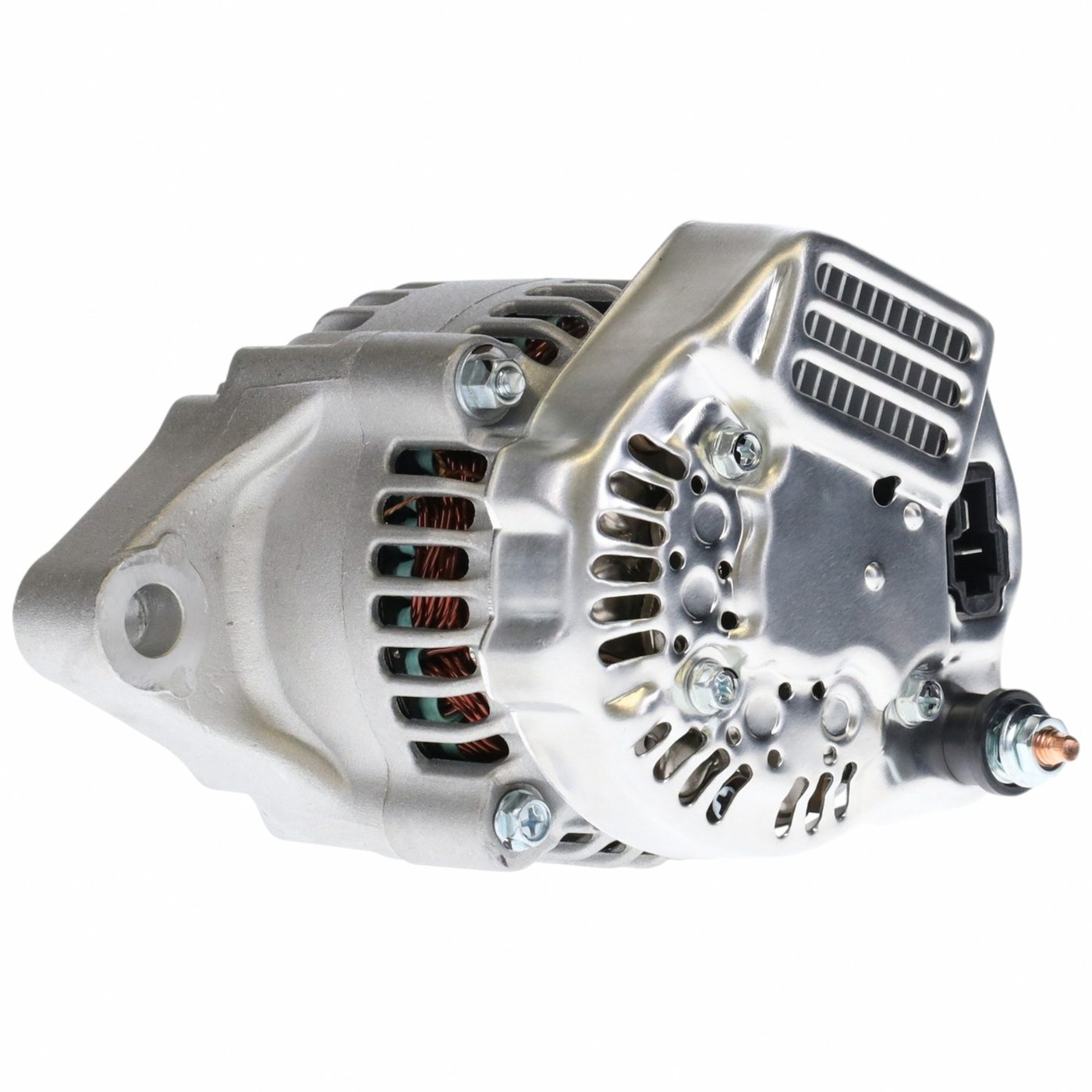

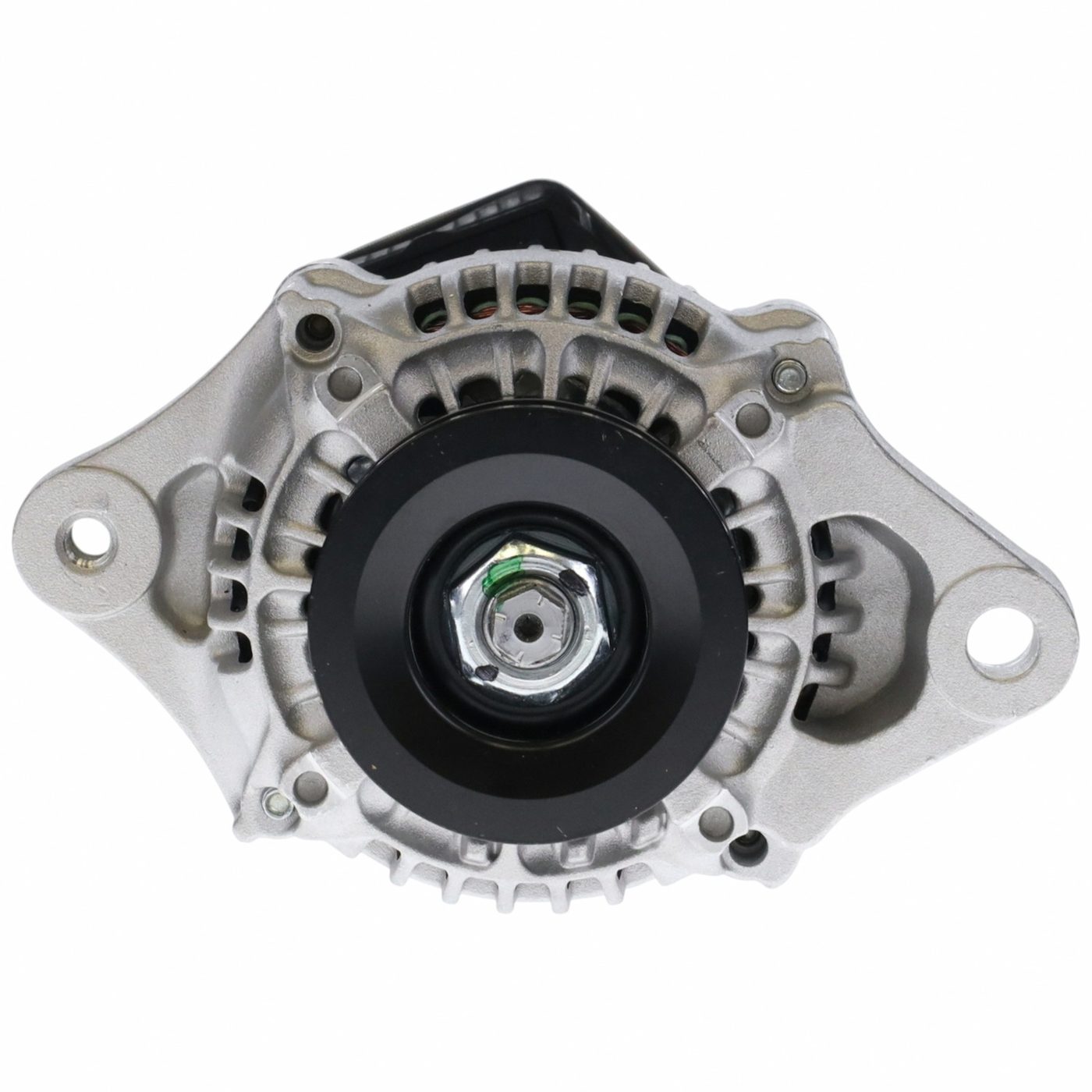

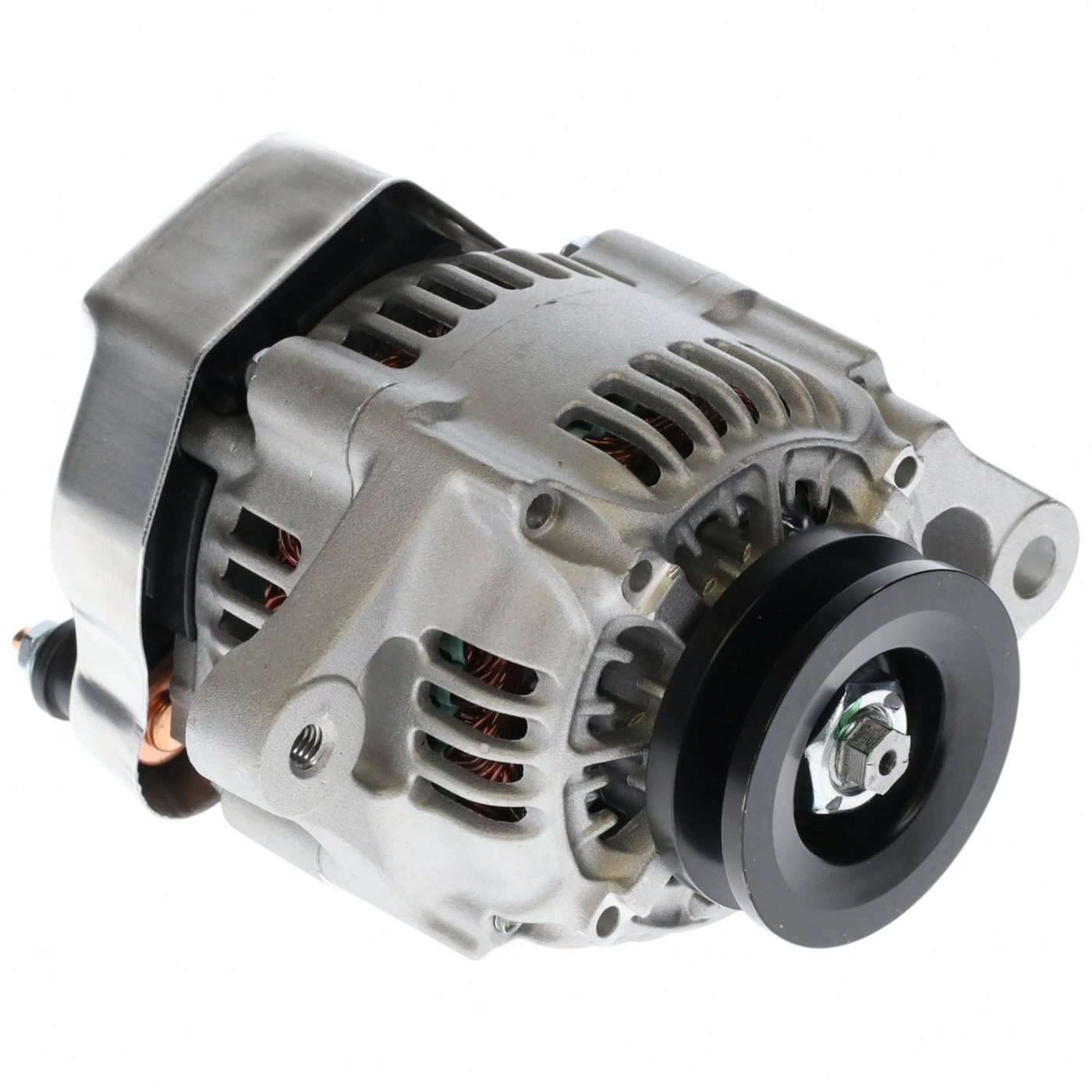

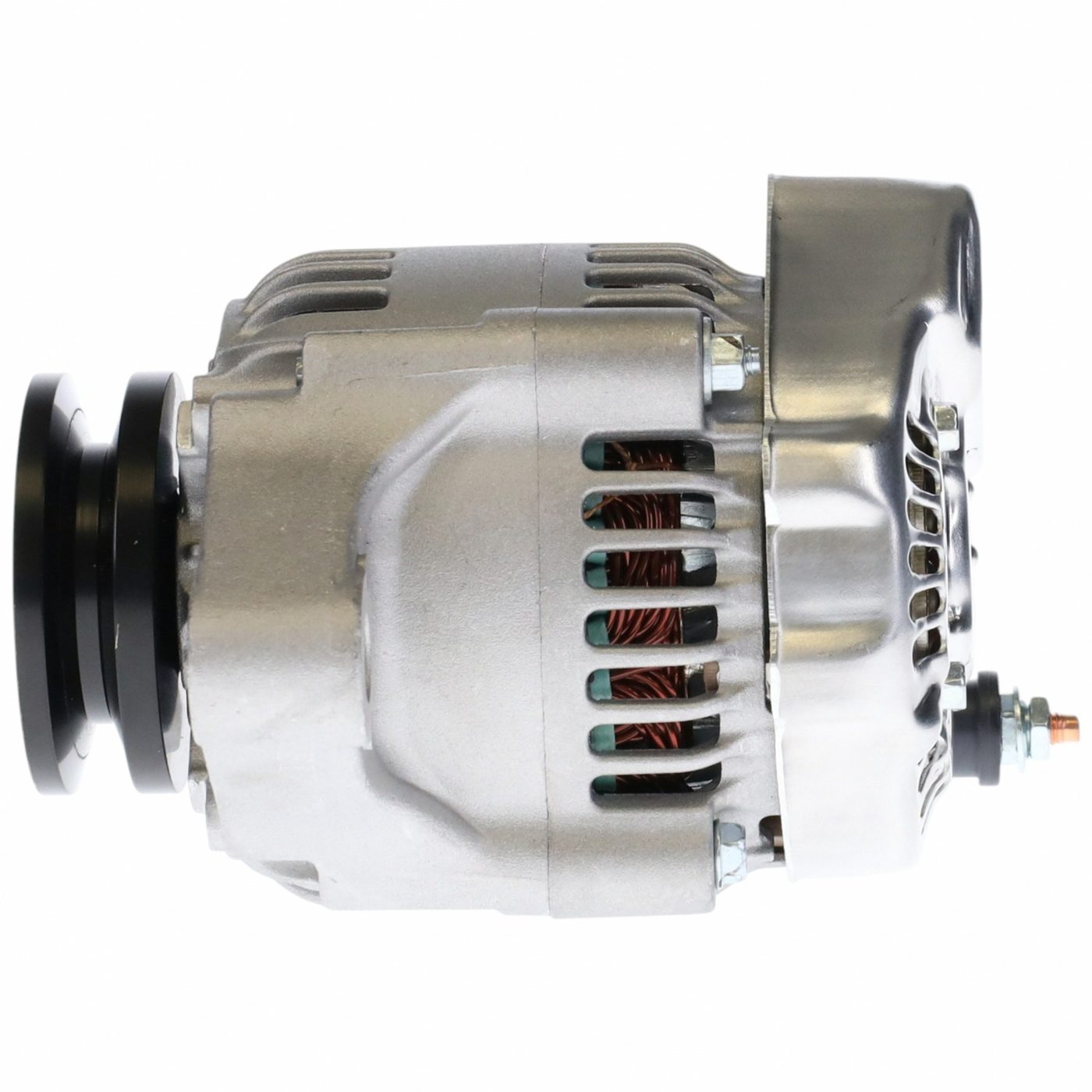

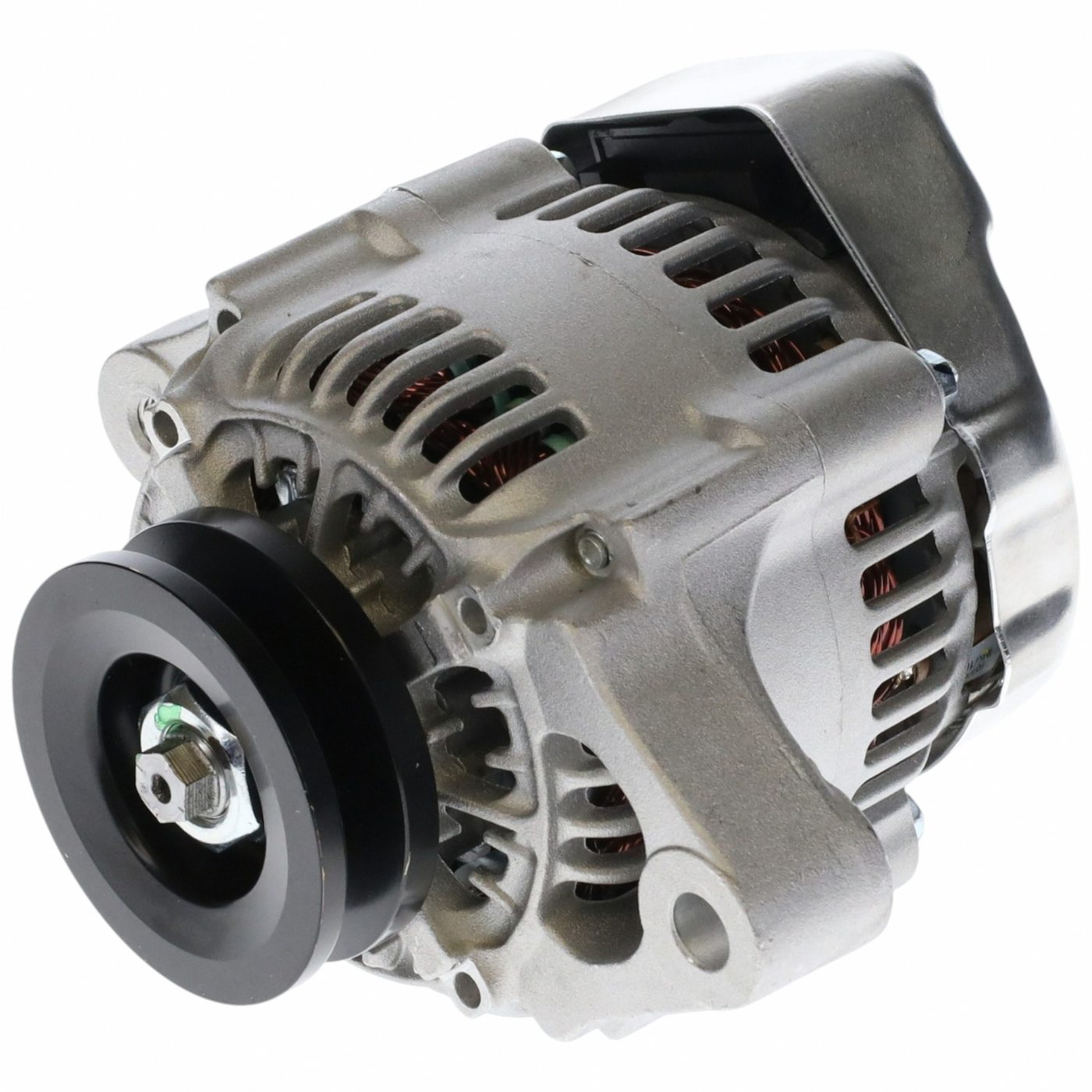

Name: CF-12198N-A Passenger Vehicle Alternator
Brand: Crankvia
SKU: CF-12198N-A

CF-12198N-A alternator for Kubota L2650DT, Kubota L2650F, Kubota L2650GST and related applications (12V / 40A / V1).

Brand

Specification

Voltage	12V
Amperage	40A
Rotation	CW
Pulley Class	V1
Regulator/Fan	IR/IF

Features

Part No	CF-12198N-A
MFR	DENSO
Lester Numbers	12198, 23060
OE Numbers	Bobcat 6988713, Chengdu Huachuan Denso Co., Ltd. (CHCD) CLA17404, CLA19404, JFZ1410E, Denso 100211-4640, 101211-1400, 101211-1401, 101211-1402, 101211-1403, Doosan 22496947, JCB 02/631200, Kubota 16705-64011, 16705-64012, 1G090-64010, 1G090-64011, 1G090-64012, 1G090-64013, 1G090-64014, 1G873-64010, 1G873-64011, Original Reference Number 89213359, Prestolite 20140103, Toro 131-6557
Part Type	Alternator
Design	IR/IF

Product Advantages

Alternator matching focuses on amperage, voltage, pulley configuration, regulator/fan design, plugs, and OE replacement references.

Fitment-first matching

CF-12198N-A is prepared for alternator sourcing with Part No, OE, Lester number, and application records checked together.

Quality and test focus

Core specifications such as voltage, power or amperage, rotation, teeth, and design are reviewed before sample or bulk quotation.

Replacement sourcing support

MFR DENSO and replacement references including 12198, 23060 help buyers compare existing units and reduce wrong-part risk.

Inquiry-ready supply

Share target quantity, destination, sample need, and packaging requirement so Crankvia can confirm the practical supply path.

Application Information

Application records are provided as compatibility references. Confirm OE number, vehicle configuration, engine, and market version before final ordering.

Application reference

CF-12198N-A

Records

Makes

Models

Year range

1990-2003

Make	Model	Year	Engine	Note
Kubota	L2650DT	1990-1996	Kubota D1402DIAE 29HP Dsl	-
Kubota	L2650F	1991-1993	Kubota D1402DIAE 29HP Dsl	-
Kubota	L2650GST	1991-1993	Kubota D1402DIAE 29HP Dsl	-
Kubota	L2950DT	1991-1993	Kubota D1462DIAE 30HP Dsl	-
Kubota	L2950DTGST	1991-1993	Kubota D1462DIAE 30HP Dsl	-
Kubota	L2950F	1991-1993	Kubota D1462DIAE 30HP Dsl	-
Kubota	L2950GST	1991-1993	Kubota D1462DIAE 30HP Dsl	-
Kubota	L3450DTGST	1990-1993	Kubota V1902DIAE 36.7HP Dsl	-
Kubota	L3450F	1991-1993	Kubota V1902DIAE 36.7HP Dsl	-
Kubota	L3450GST	1990-1993	Kubota V1902DIAE 36.7HP Dsl	-
Kubota	L3650DT	1991-1993	Kubota V1902DIXA 40.5HP Dsl	-
Kubota	L3650DTGST	1991-1993	Kubota V1902DIXA 40.5HP Dsl	-
Kubota	L3650DTW	1990-1993	Kubota V1902DIXA 40.5HP Dsl	-
Kubota	L3650F	1991-1993	Kubota V1902DIXA 40.5HP Dsl	-
Kubota	L3650GST	1990-1993	Kubota V1902DIXA 40.5HP Dsl	-
Kubota	L3650T	1990-1993	Kubota V1902DIXA 40.5HP Dsl	-
Red D Arc	D300K	1997-2003		-
