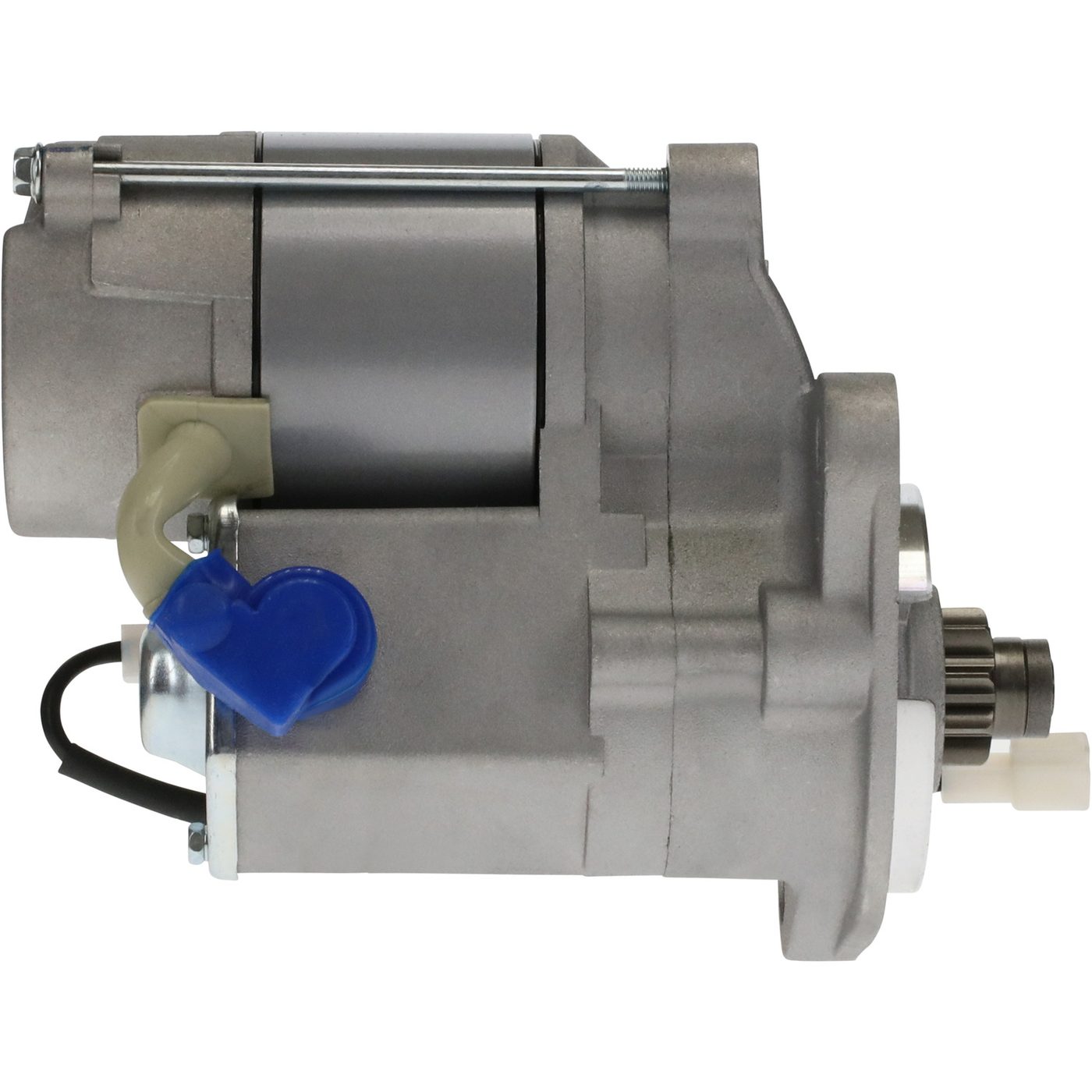

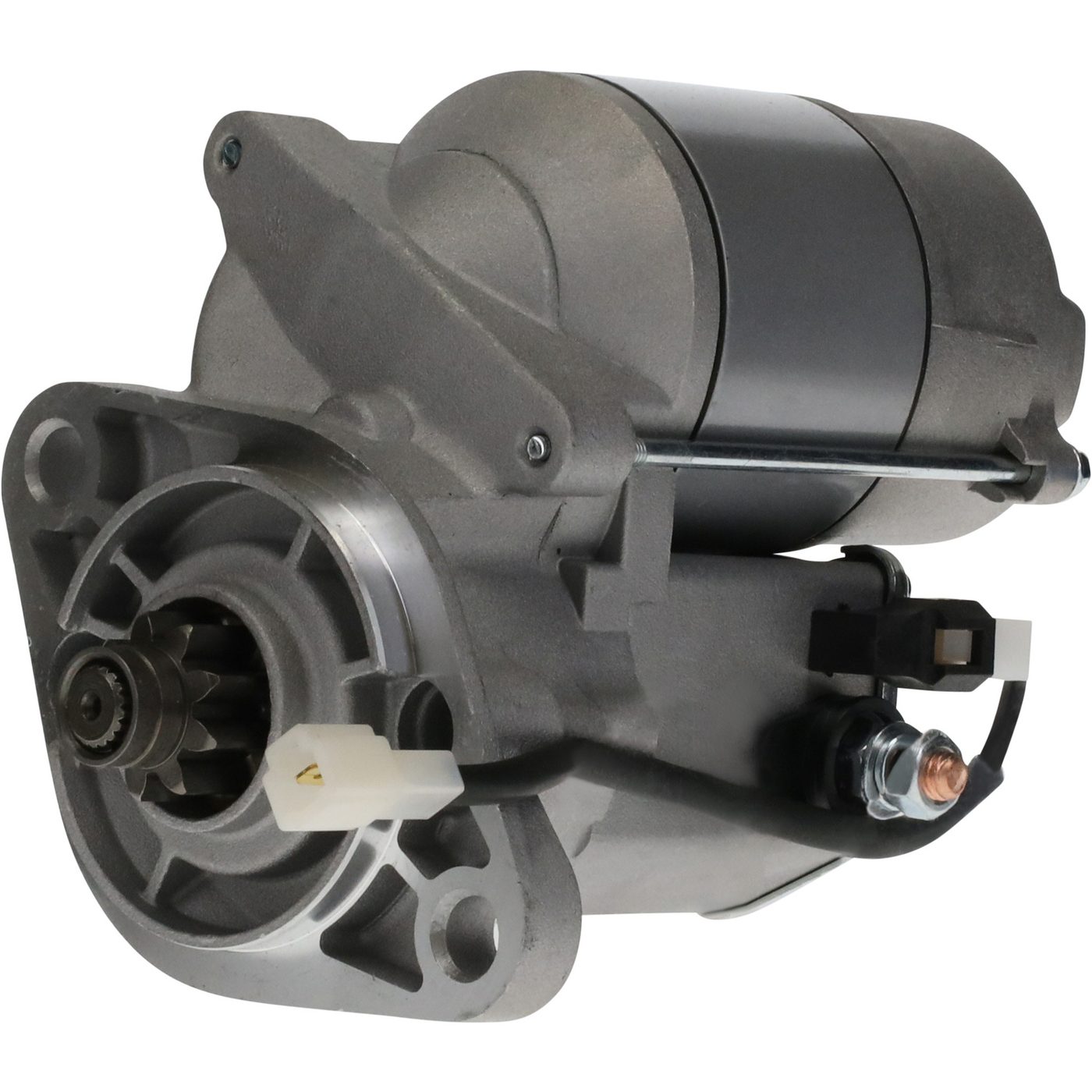

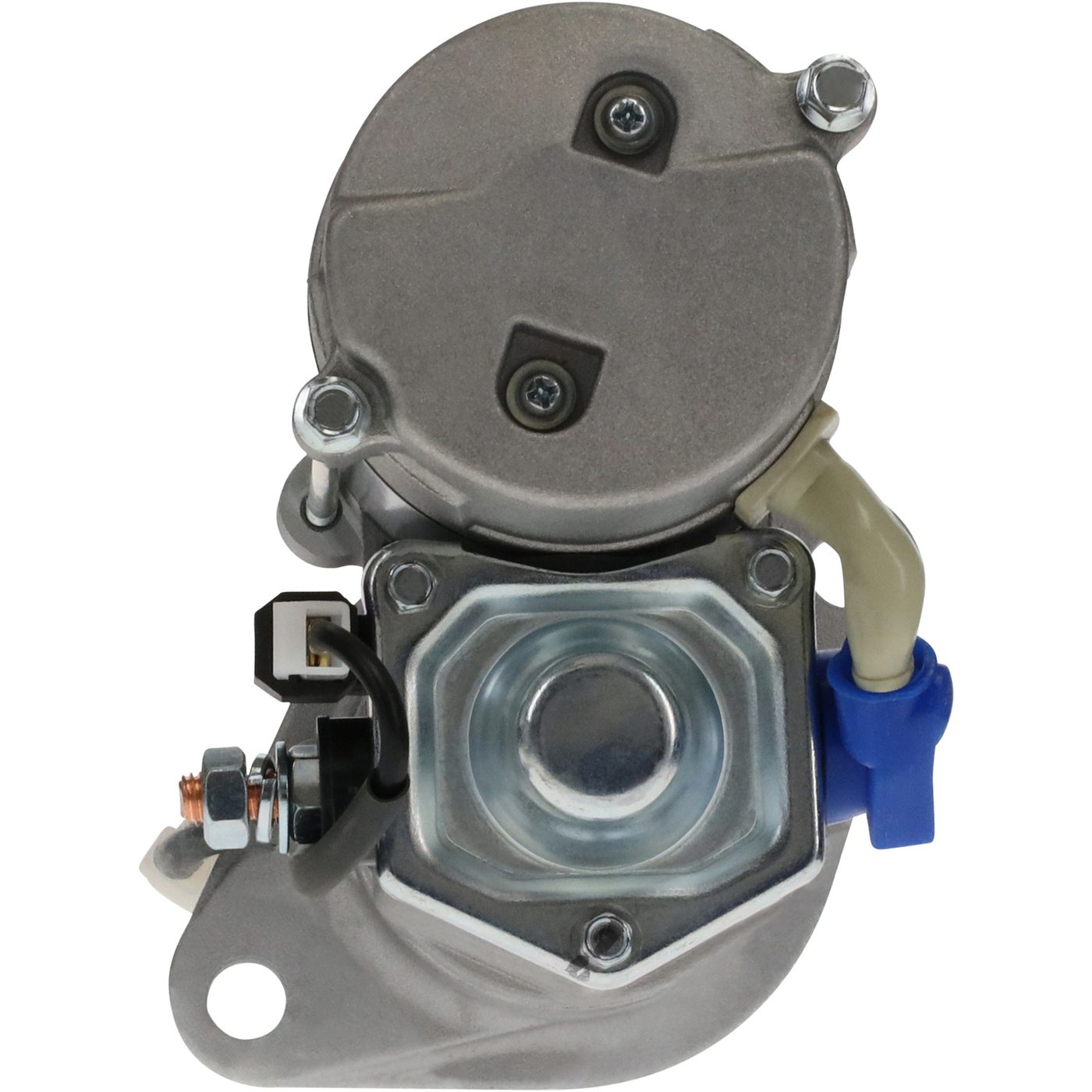

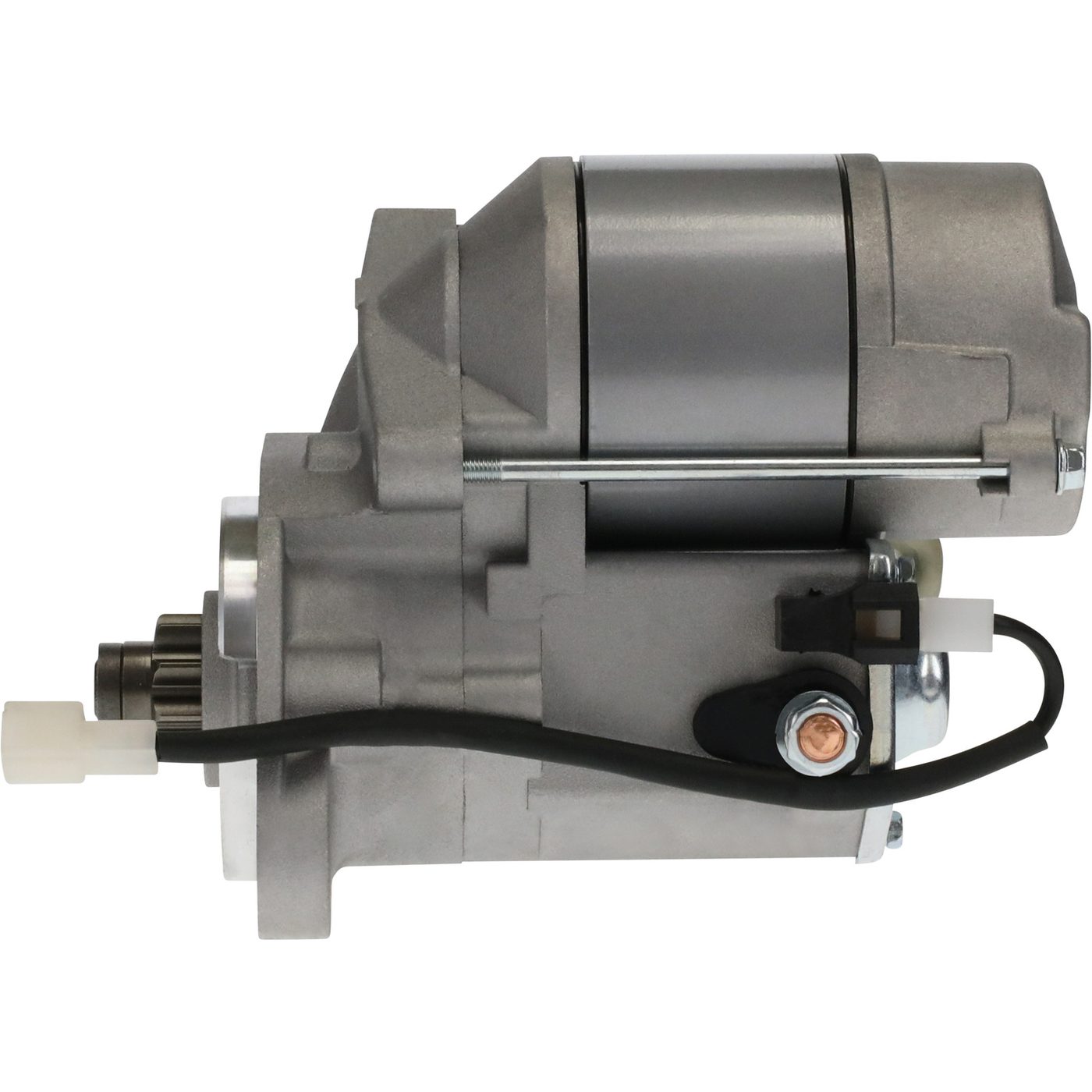

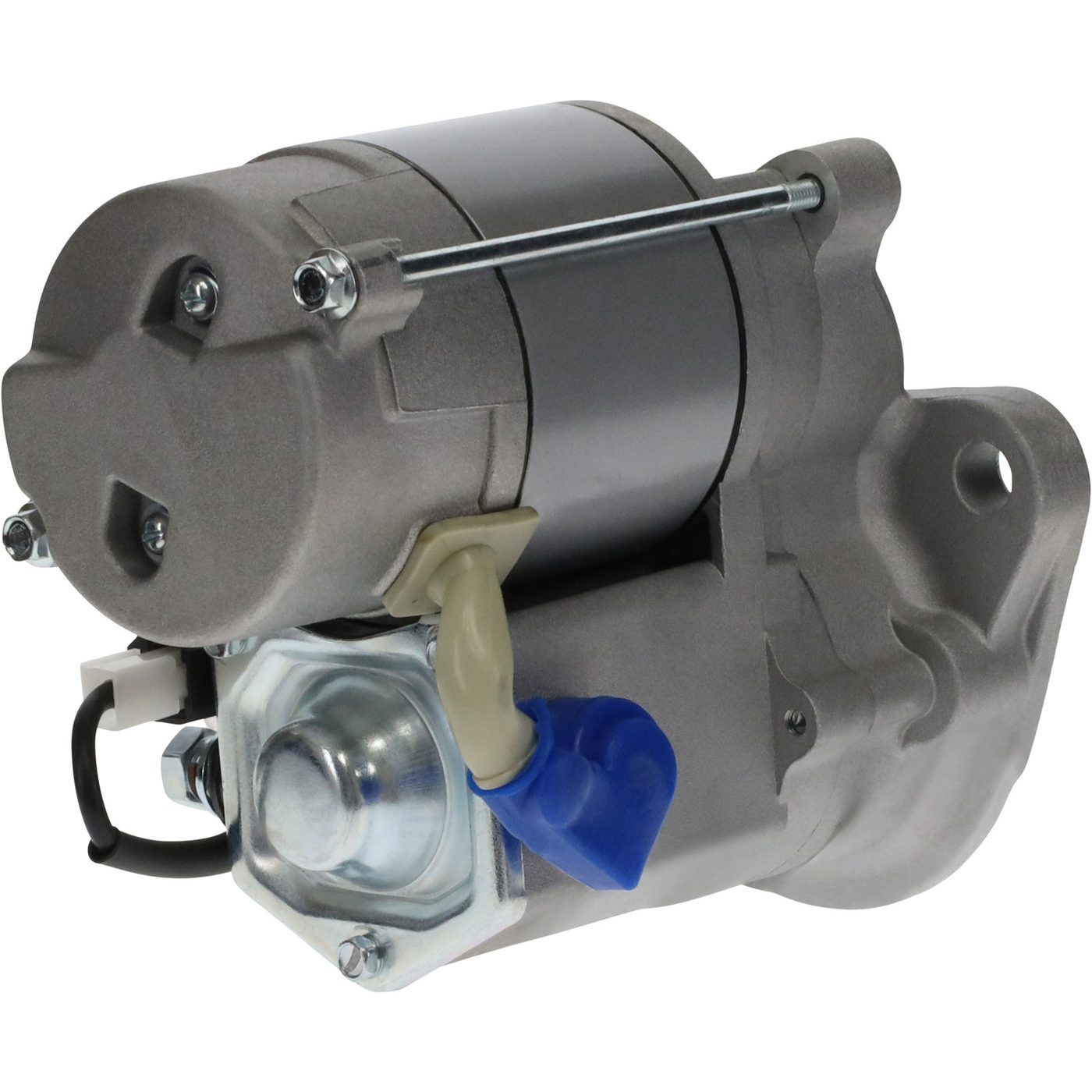

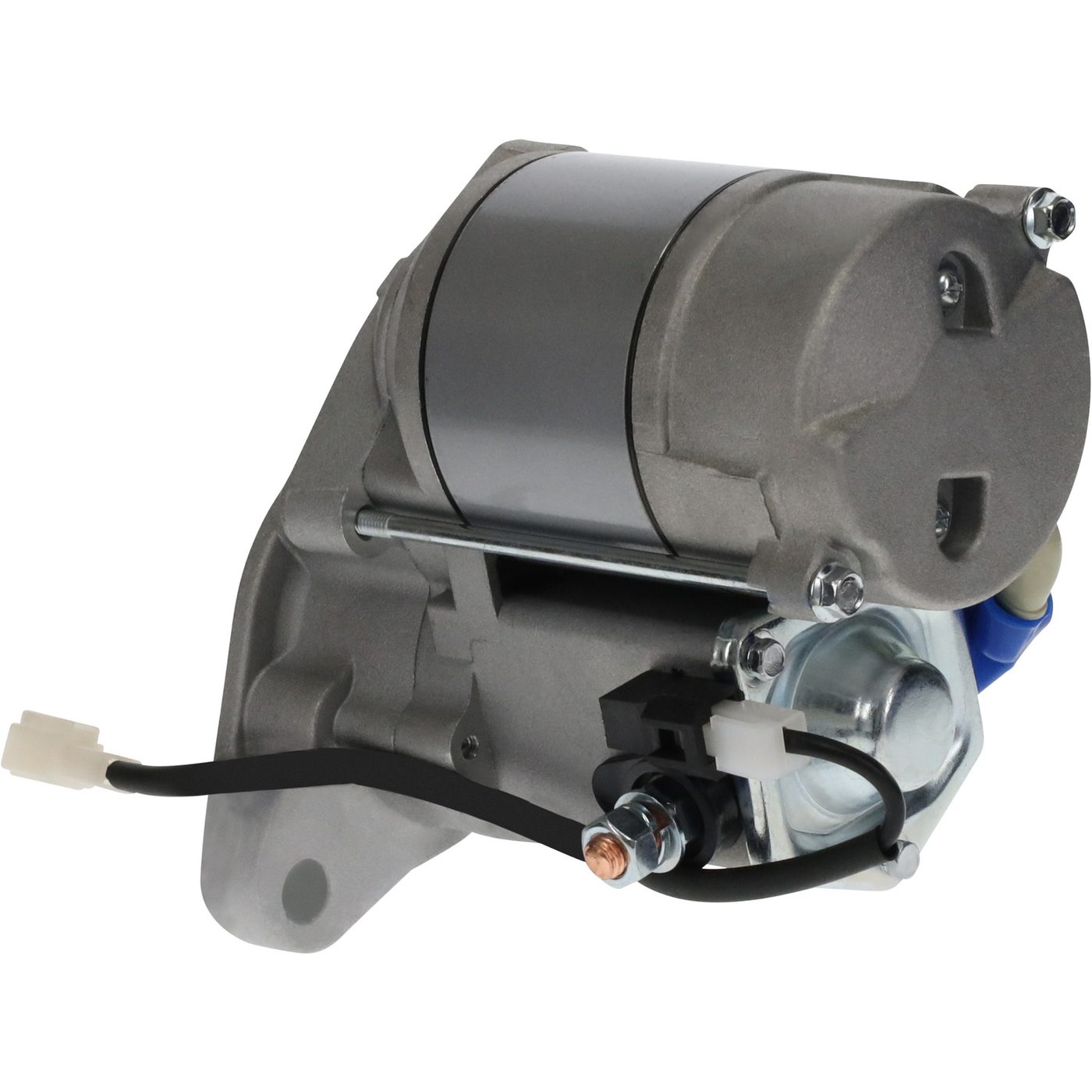

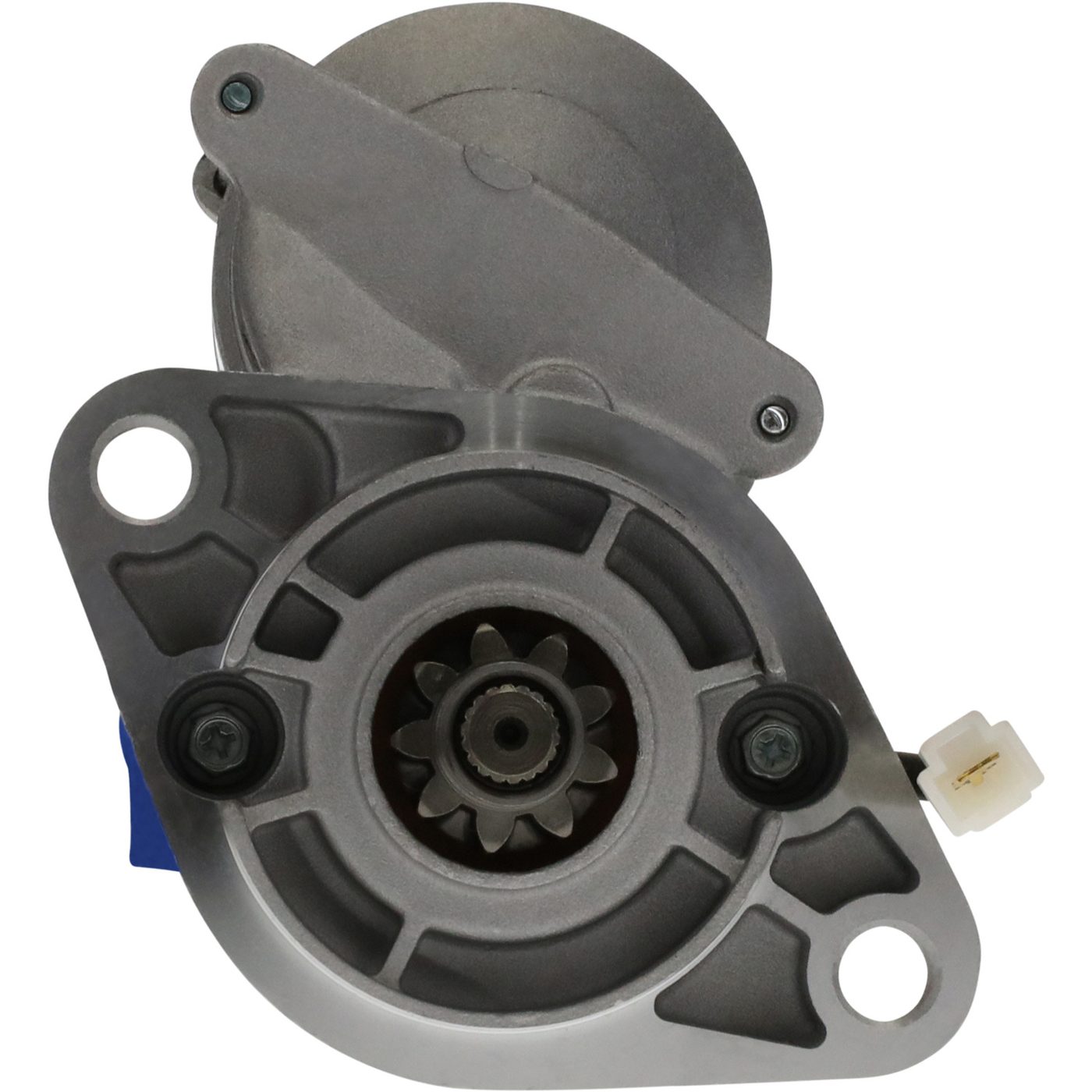

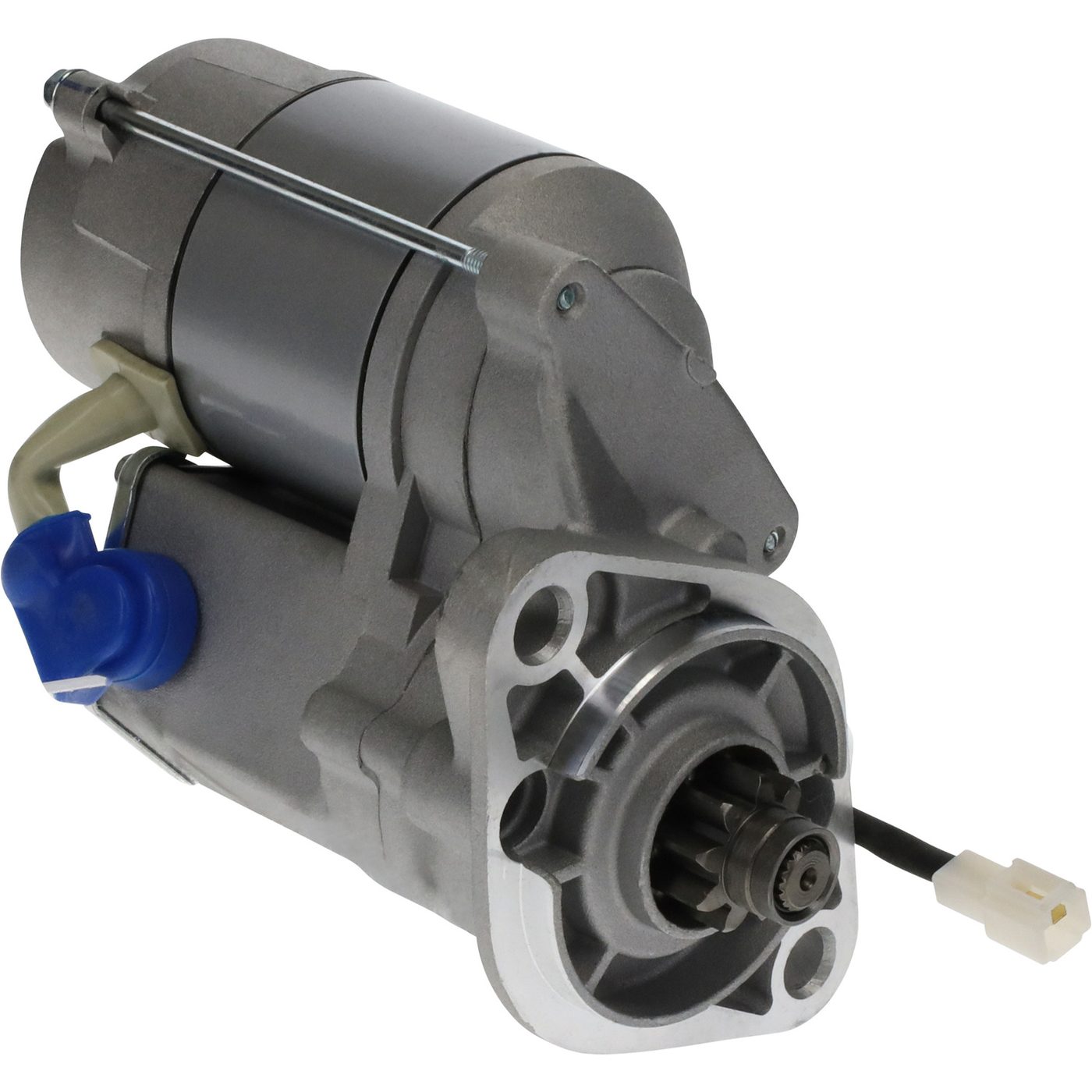

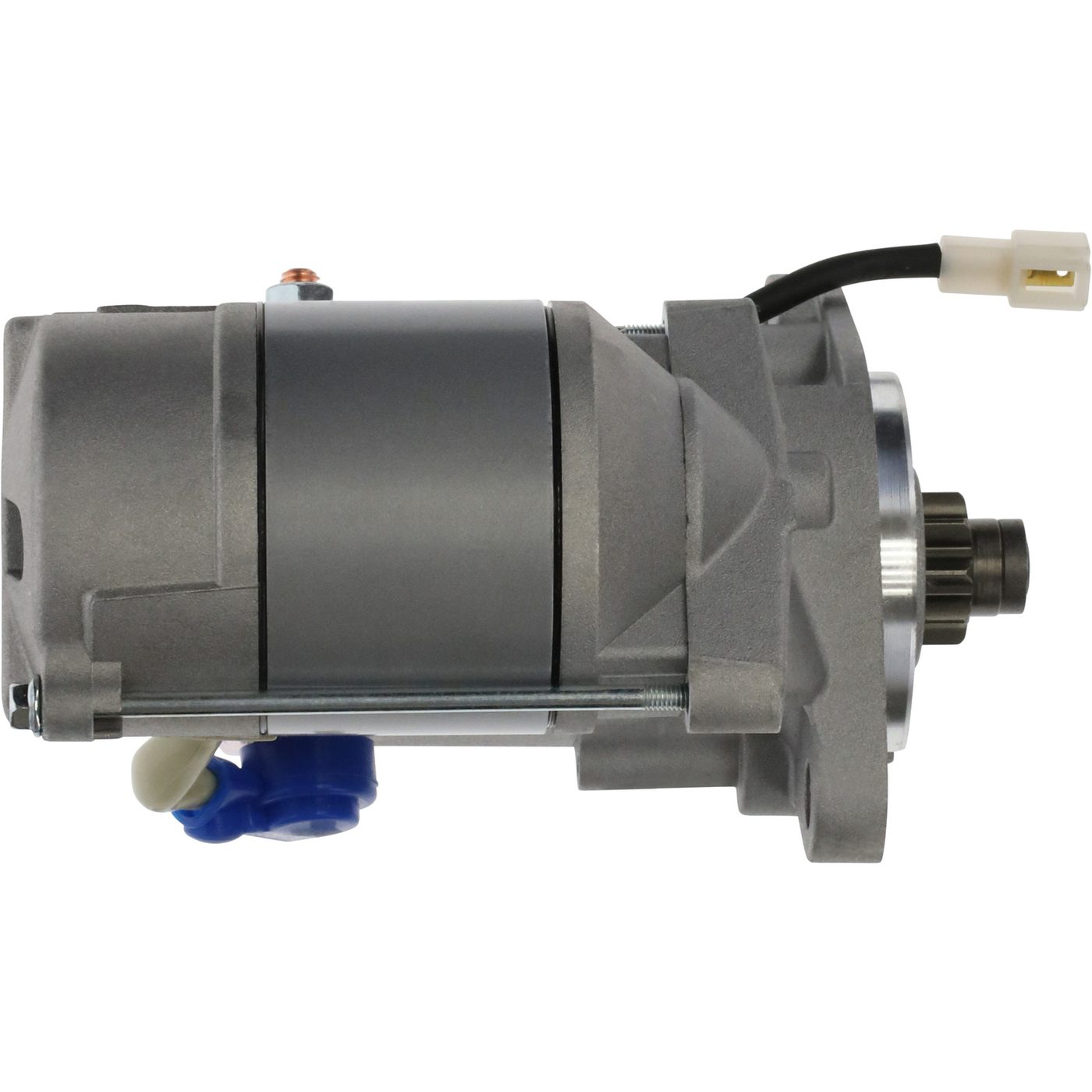

CF-19508N-A Passenger Vehicle Starter Motor

Starter Motors

CF-19508N-A

CF-19508N-A starter motor for Toyota 2FD-7, Toyota 2FD-9, Toyota 2FDL-7 and related applications (1.4kW / 9T / 12V).

Brand

Specification

Voltage12V
Teeth9T
RotationCW
Power1.4kW
Starter TypeOSGR

Features

Part NoCF-19508N-A
MFRDENSO
Lester Numbers17287, 18182, 19508
OE NumbersDenso 128000-0400, 128000-0401, 128000-0402, 128000-0610, 128000-0611, 128000-0612, 228000-4370, 228000-4371, 228000-4372, 228000-4375, Toyota 28100-12262-71, 28300-22001, 28300-22002, 28300-22002-71, 28300-22003, 28300-22003-71
Part TypeStarter
DesignOSGR

Product Advantages

Starter motors are checked around electrical output, rotation, pinion teeth, housing design, and OE replacement references before quotation.

Fitment-first matching

CF-19508N-A is prepared for starter motor sourcing with Part No, OE, Lester number, and application records checked together.

Quality and test focus

Core specifications such as voltage, power or amperage, rotation, teeth, and design are reviewed before sample or bulk quotation.

Replacement sourcing support

MFR DENSO and replacement references including 17287, 18182, 19508 help buyers compare existing units and reduce wrong-part risk.

Inquiry-ready supply

Share target quantity, destination, sample need, and packaging requirement so Crankvia can confirm the practical supply path.

Application Information

Application records are provided as compatibility references. Confirm OE number, vehicle configuration, engine, and market version before final ordering.

Application reference

CF-19508N-A

Records

224

Makes

1

Models

116

Year range

1981-2007

MakeModelYearEngineNote
Toyota2FD-71984-2002VT1502 Kubota Dsl.-
Toyota2FD-71984V1502 Engine-
Toyota2FD-91984-2002VT1502 Kubota Dsl.-
Toyota2FD-91984V1502 Engine-
Toyota2FDL-71984-2002VT1502 Kubota Dsl.-
Toyota2FDL-71984V1502 Engine-
Toyota2FDL-91984-2002VT1502 Kubota Dsl.-
Toyota2FDL-91984V1502 Engine-
Toyota3FD-101984V1502 Engine-
Toyota3FD-101984V1502 Kubota Dsl.-
Toyota3FD-141984V1502 Engine-
Toyota3FD-141984V1502 Kubota Dsl.-
Toyota3FD-151984V1502 Engine-
Toyota3FD-151984V1502 Kubota Dsl.-
Toyota3FD-181984V1502 Engine-
Toyota3FDL-101984-1986V1502 Engine-
Toyota3FDL-101984VT1502 Kubota Dsl.-
Toyota3FDL-141984-1986V1502 Engine-
Toyota3FDL-141984VT1502 Kubota Dsl.-
Toyota3FDL-151984-1986V1502 Engine-
Toyota3FDL-151984VT1502 Kubota Dsl.-
Toyota3FDL-181982-1986V1502 Engine-
Toyota3FDL-21984-2001VT1502 Kubota Dsl.-
Toyota3FDL-201981-1999VT1502 Kubota Dsl.-
Toyota3FDL-201984-1986V1502 Engine-
Toyota3FDL-231983-2001VT1502-T Kubota Dsl.-
Toyota3FDL-251982-1986V1502 Engine-
Toyota3FDL-251983-2002VT1502 Kubota Dsl.-
Toyota3FDL-251983-2002VT1502-T Kubota Dsl.-
Toyota3SG-101990-20034Y Engine-
Toyota3SG-121990-20034Y Engine-
Toyota3SG-71992-20055K Engine-
Toyota3SGL-101990-20035K Engine-
Toyota4FDL-21984-2001VT1502 Kubota Dsl.-
Toyota4FDL-201982-1986V1502 Engine-
Toyota4FDL-201984VT1502 Kubota Dsl.-
Toyota4FDL-231982-1986V1502 Engine-
Toyota4FDL-231984VT1502 Kubota Dsl.-
Toyota4FDL-251982-1986V1502 Engine-
Toyota4FDL-251984-2001VT1502 Kubota Dsl.-
Toyota4SG-101994-20074Y Engine-
Toyota4SG-121994-20074Y Engine-
Toyota4SG-151994-20074Y Engine-
Toyota4SGL-101994-20055K Engine-
Toyota4SGL-71994-20055K Engine-
Toyota5FD-101986-1989V1502 Engine-
Toyota5FD-101986-2002VT1502 Kubota Dsl.-
Toyota5FD-101989-1994V1512 Engine-
Toyota5FD-141986-1989V1502 Engine-
Toyota5FD-141986-2002VT1502 Kubota Dsl.-
Toyota5FD-141989-1994V1512 Engine-
Toyota5FD-151986-1989V1502 Engine-
Toyota5FD-151986-2002VT1502 Kubota Dsl.-
Toyota5FD-151989-1994V1512 Engine-
Toyota5FD-181986-1989V1502 Engine-
Toyota5FD-181986-2002VT1502 Kubota Dsl.-
Toyota5FD-181989-1994V1512 Engine-
Toyota5FD-201986-1989V1502 Engine-
Toyota5FD-201986-2002VT1502 Kubota Dsl.-
Toyota5FD-201989-1994V1512 Engine-
Toyota5FD-231986-1989V1502 Engine-
Toyota5FD-231986-2007VT1502 Kubota Dsl.-
Toyota5FD-231989-1994V1512 Engine-
Toyota5FD-231989-1994VT1512 Kubota Dsl.-
Toyota5FD-251986-1989V1502 Engine-
Toyota5FD-251986-2002VT1502 Kubota Dsl.-
Toyota5FD-251989-1994V1512 Engine-
Toyota5FD-251989-1994VT1502T Kubota Dsl.-
Toyota5FD-251989-1994VT1512 Kubota Dsl.-
Toyota5FDL-101986-1989V1502 Engine-
Toyota5FDL-101986-2002VT1502 Kubota Dsl.-
Toyota5FDL-141986-1989V1502 Engine-
Toyota5FDL-141986-2002VT1502 Kubota Dsl.-
Toyota5FDL-151986-1989V1502 Engine-
Toyota5FDL-151986-2002VT1502 Kubota Dsl.-
Toyota5FDL-181986-1989V1502 Engine-
Toyota5FDL-181986-2002VT1502 Kubota Dsl.-
Toyota5FDL-201986-1989V1502 Engine-
Toyota5FDL-201986-2002VT1502 Kubota Dsl.-
Toyota5FDL-201989-1994V1512 Engine-
Toyota5FDL-201989-1994VT1512T Kubota Dsl.-
Toyota5FDL-231986-1989V1502 Engine-
Toyota5FDL-231986-2002VT1502 Kubota Dsl.-
Toyota5FDL-231989-1994V1512 Engine-
Toyota5FDL-231989-1994VT1512T Kubota Dsl.-
Toyota5FDL-251986-1989V1502 Engine-
Toyota5FDL-251986-2002VT1502 Kubota Dsl.-
Toyota5FDL-251989-1994V1512 Engine-
Toyota5FDL-251989-1994VT1512T Kubota Dsl.-
Toyota5FG-101986-19944P Engine-
Toyota5FG-101986-19944Y Engine-
Toyota5FG-101989-19945K Engine-
Toyota5FG-101995-20074P Engine-
Toyota5FG-141986-19944P Engine-
Toyota5FG-141986-19944Y Engine-
Toyota5FG-141989-19945K Engine-
Toyota5FG-141995-20074P Engine-
Toyota5FG-151986-19944P Engine-
Toyota5FG-151986-19944Y Engine-
Toyota5FG-151989-19945K Engine-
Toyota5FG-151995-20074P Engine-
Toyota5FG-181986-19944P Engine-
Toyota5FG-181986-19944Y Engine-
Toyota5FG-181989-19945K Engine-
Toyota5FG-181995-20074P Engine-
Toyota5FG-201986-19944P Engine-
Toyota5FG-201986-19944Y Engine-
Toyota5FG-201989-19945K Engine-
Toyota5FG-201995-20074P Engine-
Toyota5FG-231986-19944P Engine-
Toyota5FG-231986-20074Y Engine-
Toyota5FG-231989-19945K Engine-
Toyota5FG-231995-20074P Engine-
Toyota5FG-251986-19944Y Engine-
Toyota5FG-251986-20074P Engine-
Toyota5FG-251989-19945K Engine-
Toyota5FG-281986-19944Y Engine-
Toyota5FG-281986-20024P Engine-
Toyota5FG-301986-19944Y Engine-
Toyota5FG-301986-20024P Engine-
Toyota5FGL-101986-19894P Engine-
Toyota5FGL-101986-20024Y Engine-
Toyota5FGL-101989-19945K Engine-
Toyota5FGL-101990-20024P Engine-
Toyota5FGL-141986-19894P Engine-
Toyota5FGL-141986-20024Y Engine-
Toyota5FGL-141989-19945K Engine-
Toyota5FGL-141990-20024P Engine-
Toyota5FGL-151986-19894P Engine-
Toyota5FGL-151986-20024Y Engine-
Toyota5FGL-151989-19945K Engine-
Toyota5FGL-151990-20024P Engine-
Toyota5FGL-181986-19894P Engine-
Toyota5FGL-181986-20024Y Engine-
Toyota5FGL-181989-19945K Engine-
Toyota5FGL-181990-20024P Engine-
Toyota5FGL-201986-19944P Engine-
Toyota5FGL-201986-20024Y Engine-
Toyota5FGL-201989-19945K Engine-
Toyota5FGL-201995-20074P Engine-
Toyota5FGL-231986-19944P Engine-
Toyota5FGL-231986-20024Y Engine-
Toyota5FGL-231989-19945K Engine-
Toyota5FGL-231995-20074P Engine-
Toyota5FGL-251986-19944P Engine-
Toyota5FGL-251986-20024Y Engine-
Toyota5FGL-251989-19945K Engine-
Toyota5FGL-251995-20074P Engine-
Toyota6FDL-101994-2007V1512 Engine-
Toyota6FDL-141994-2007V1512 Engine-
Toyota6FDL-151994-2007V1512 Engine-
Toyota6FDL-181994-2007V1512 Engine-
Toyota6FDL-201994-2007V1512 Engine-
Toyota6FDL-231994-2007V1512 Engine-
Toyota6FDL-251994-2007V1512 Engine-
Toyota6FG-101994-20075K Engine-
Toyota6FG-141994-20075K Engine-
Toyota6FG-151994-20074Y Engine-
Toyota6FG-151994-20075K Engine-
Toyota6FG-181994-20074Y Engine-
Toyota6FG-181994-20075K Engine-
Toyota6FG-201994-20074Y Engine-
Toyota6FG-201994-20075K Engine-
Toyota6FG-231994-20074Y Engine-
Toyota6FG-231994-20075K Engine-
Toyota6FG-251994-20074Y Engine-
Toyota6FG-251994-20075K Engine-
Toyota6FG-281994-20074Y Engine-
Toyota6FG-281994-20075K Engine-
Toyota6FG-301994-20074Y Engine-
Toyota6FG-301994-20075K Engine-
Toyota6FGC-251994-20074Y Engine-
Toyota6FGL-101994-20075K Engine-
Toyota6FGL-141994-20074Y Engine-
Toyota6FGL-141994-20075K Engine-
Toyota6FGL-151994-20074Y Engine-
Toyota6FGL-151994-20075K Engine-
Toyota6FGL-181994-20074Y Engine-
Toyota6FGL-181994-20075K Engine-
Toyota6FGL-201994-20074Y Engine-
Toyota6FGL-201994-20075K Engine-
Toyota6FGL-231994-20074Y Engine-
Toyota6FGL-231994-20075K Engine-
Toyota6FGL-251994-20074Y Engine-
Toyota6FGL-251994-20075K Engine-
Toyota7FG101998-20015K Engine-
Toyota7FG141998-20015K Engine-
Toyota7FG151998-20015K Engine-
Toyota7FG181998-20015K Engine-
Toyota7FG201998-20015K Engine-
Toyota7FG231998-20015K Engine-
Toyota7FG251998-20015K Engine-
Toyota7FGCSU201993-20014Y Engine-
Toyota7FGCU151993-20015K Engine-
Toyota7FGCU181993-20015K Engine-
Toyota7FGCU201993-20015K Engine-
Toyota7FGCU251993-20015K Engine-
Toyota7FGCU301993-20015K Engine-
Toyota7FGCU321993-20015K Engine-
Toyota7FGK201993-20015K Engine-
Toyota7FGK231998-20015K Engine-
Toyota7FGK251993-20015K Engine-
Toyota7FGK301993-20015K Engine-
Toyota7FGU151993-20015K Engine-
Toyota7FGU181993-20015K Engine-
Toyota7FGU201993-20015K Engine-
Toyota7FGU251993-20015K Engine-
Toyota7FGU301993-20015K Engine-
Toyota7FGU321993-20015K Engine-
Toyota7FGU351993-20015K Engine-
ToyotaFD-181984-1986V1502 Engine-
ToyotaFD-181984VT1502 Kubota Dsl.-
ToyotaFDL-181984VT1502 Kubota Dsl.-
ToyotaFDL-231984-2002VT1502 Kubota Dsl.-
ToyotaFG-101986-20024P Toyota Gas-
ToyotaFG-101986-20024Y Toyota Gas-
ToyotaFG-141986-20024P Toyota Gas-
ToyotaFG-141986-20024Y Toyota Gas-
ToyotaFG-151986-20024P Toyota Gas-
ToyotaFG-151986-20024Y Toyota Gas-
ToyotaFG-281986-20024P Toyota Gas-
ToyotaFG-281986-20024Y Toyota Gas-
ToyotaFG-301986-20024P Toyota Gas-
ToyotaFG-301986-20024Y Toyota Gas-
