Fitment-first matching
CF-31224N-A is prepared for starter motor sourcing with Part No, OE, Lester number, and application records checked together.
Starter Motors
CF-31224N-A

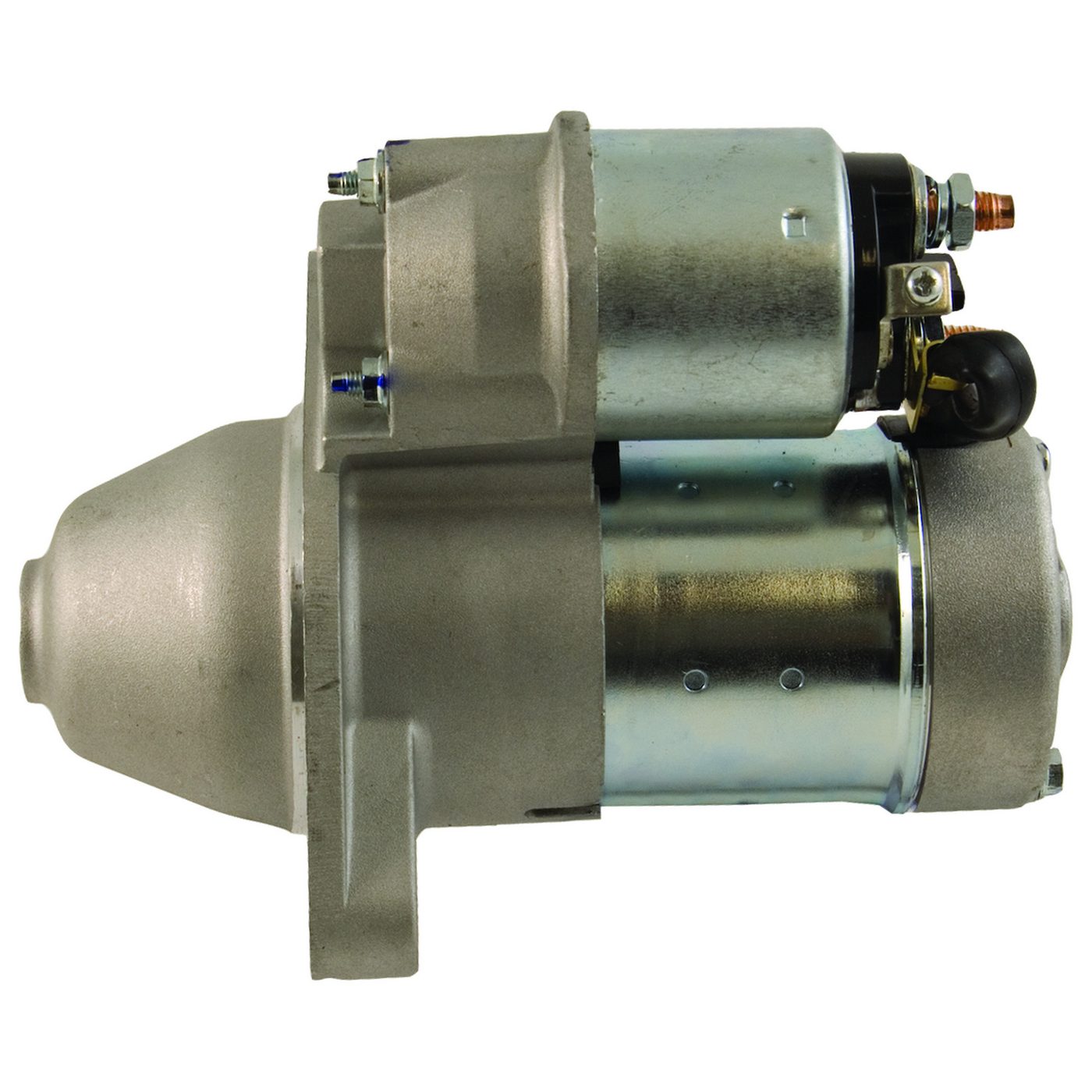

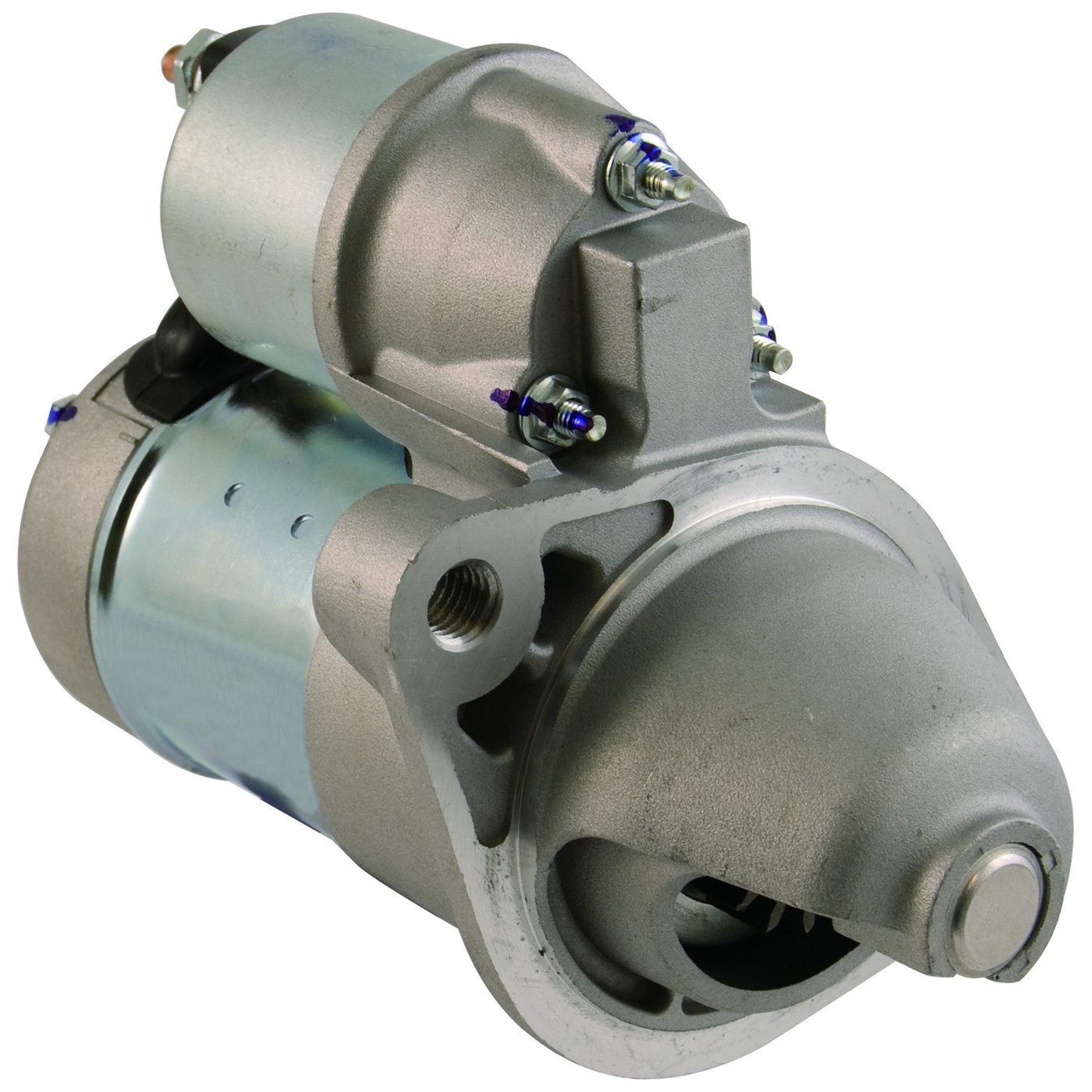

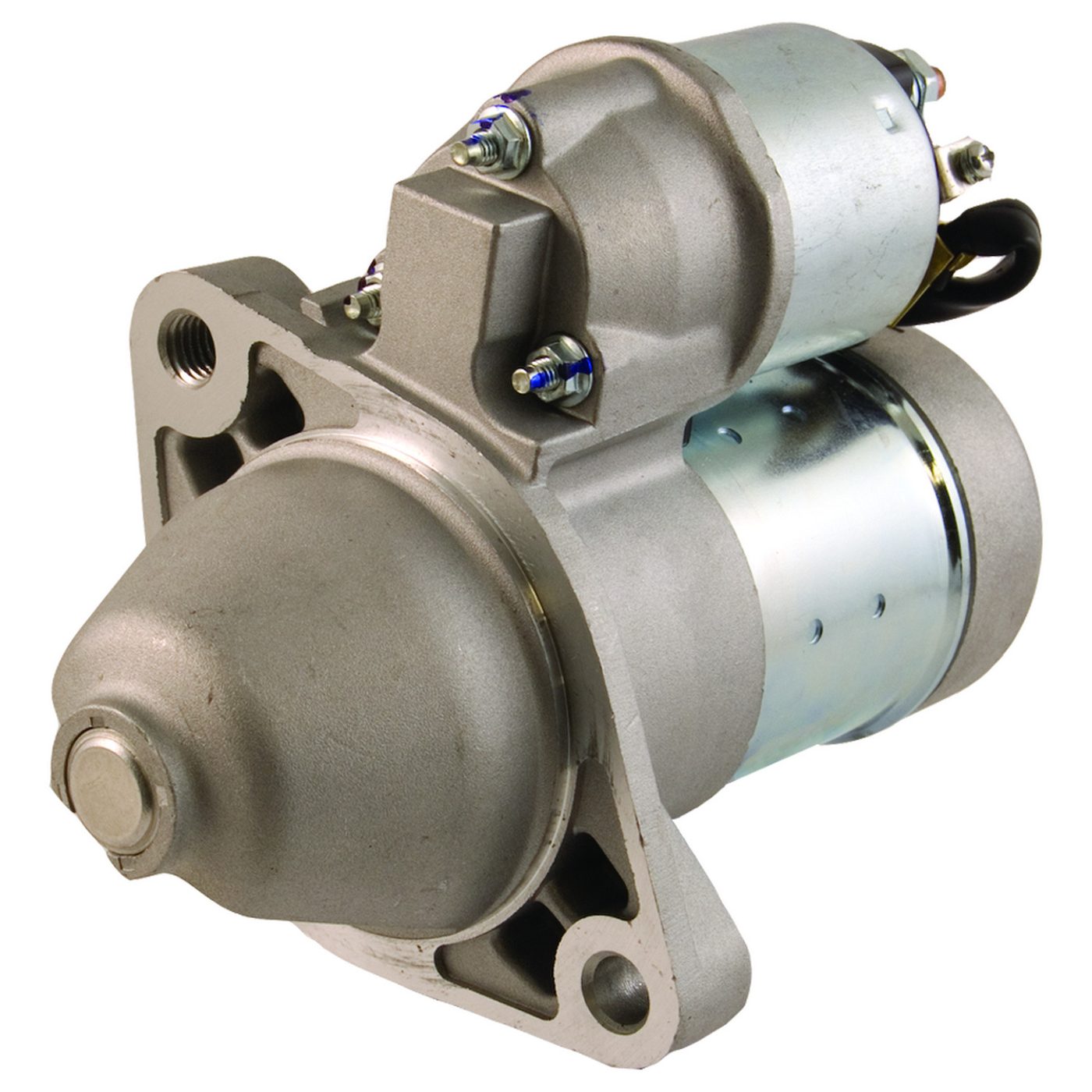

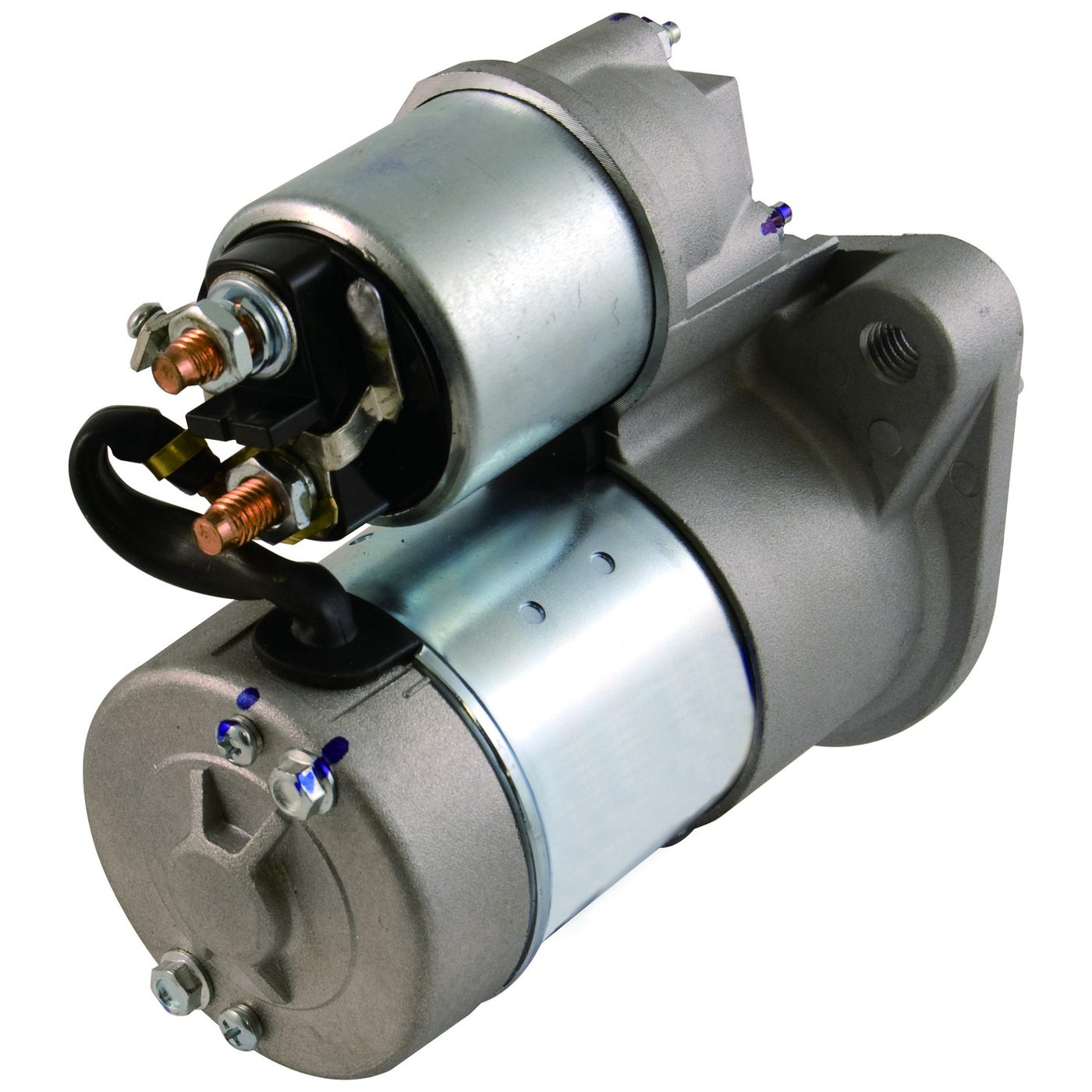

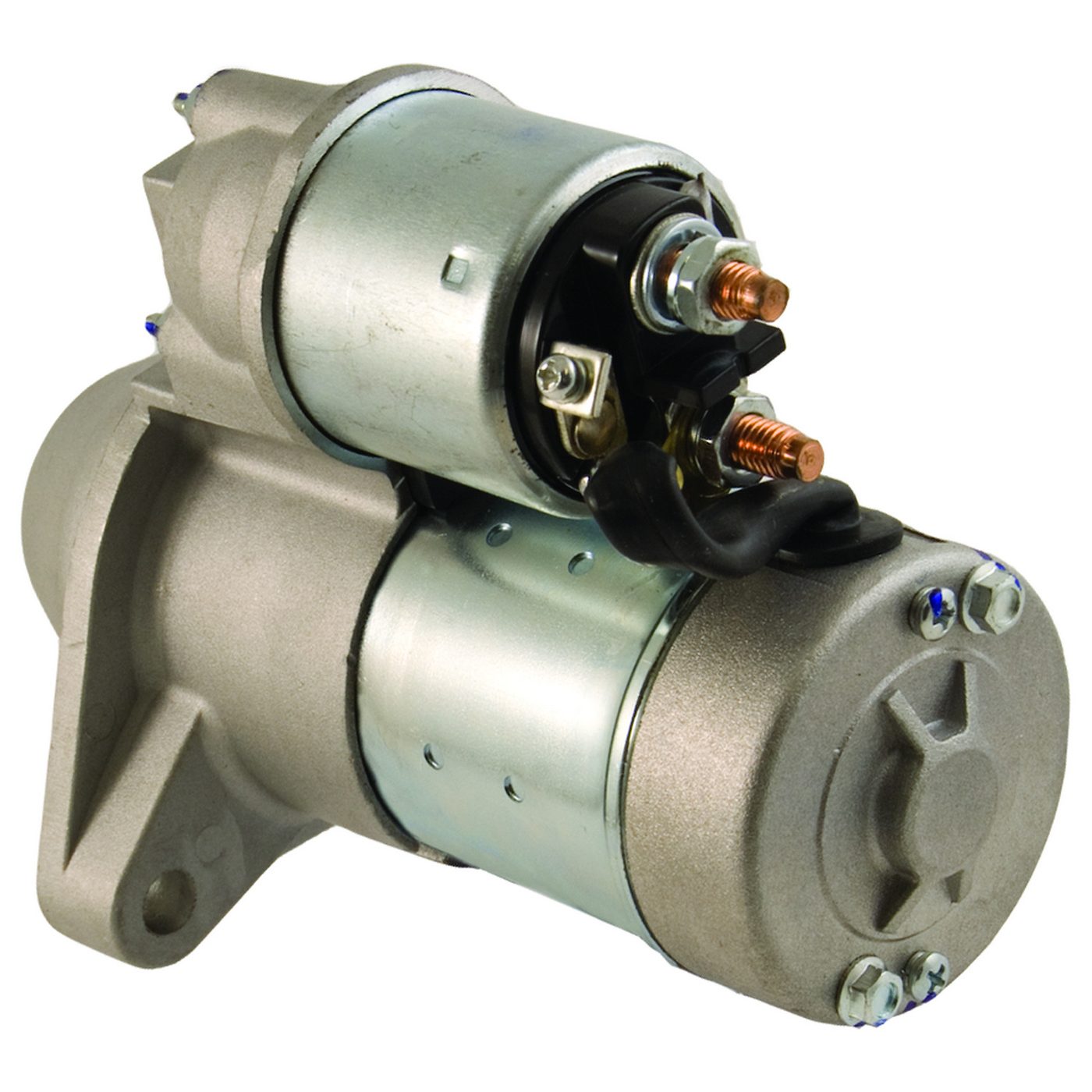

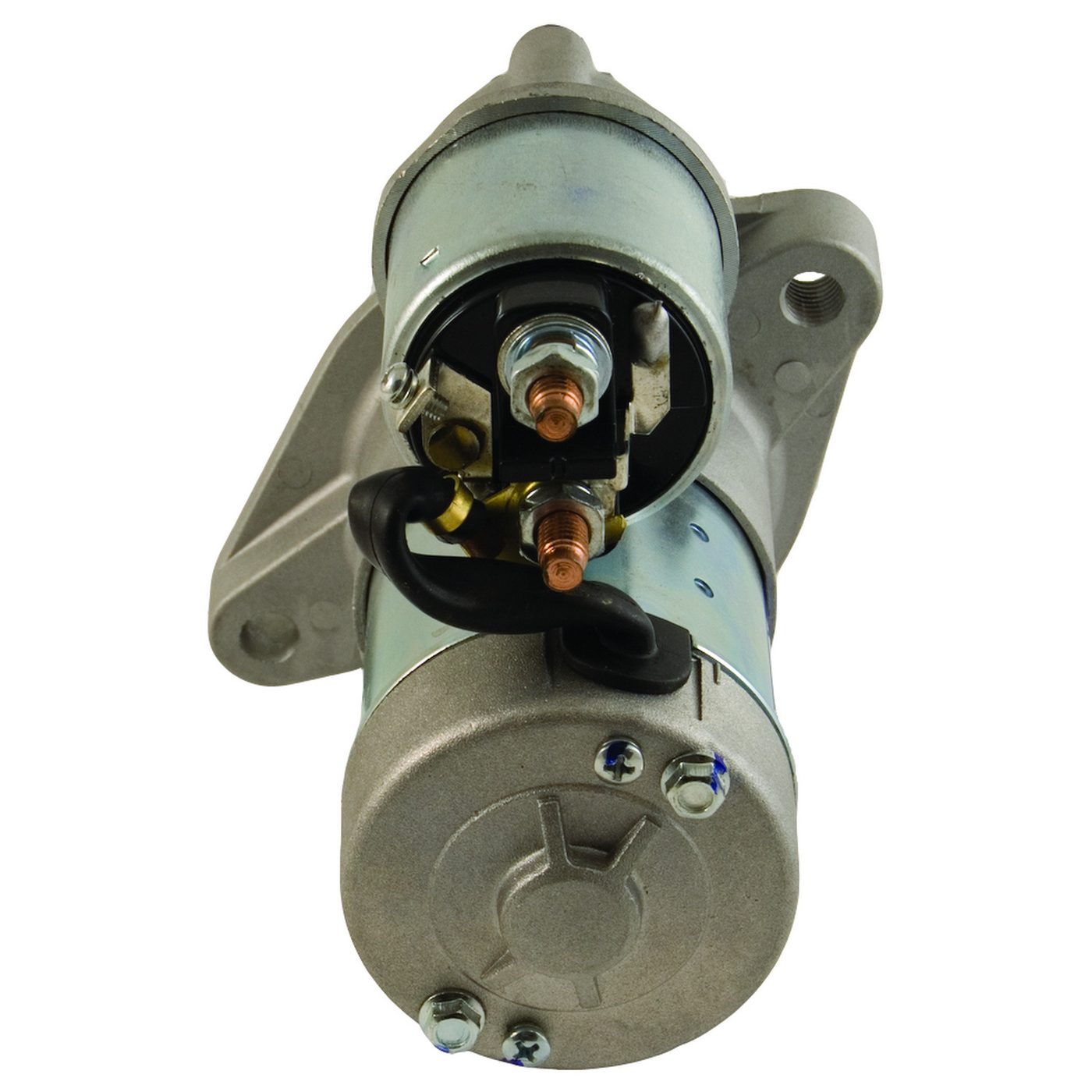

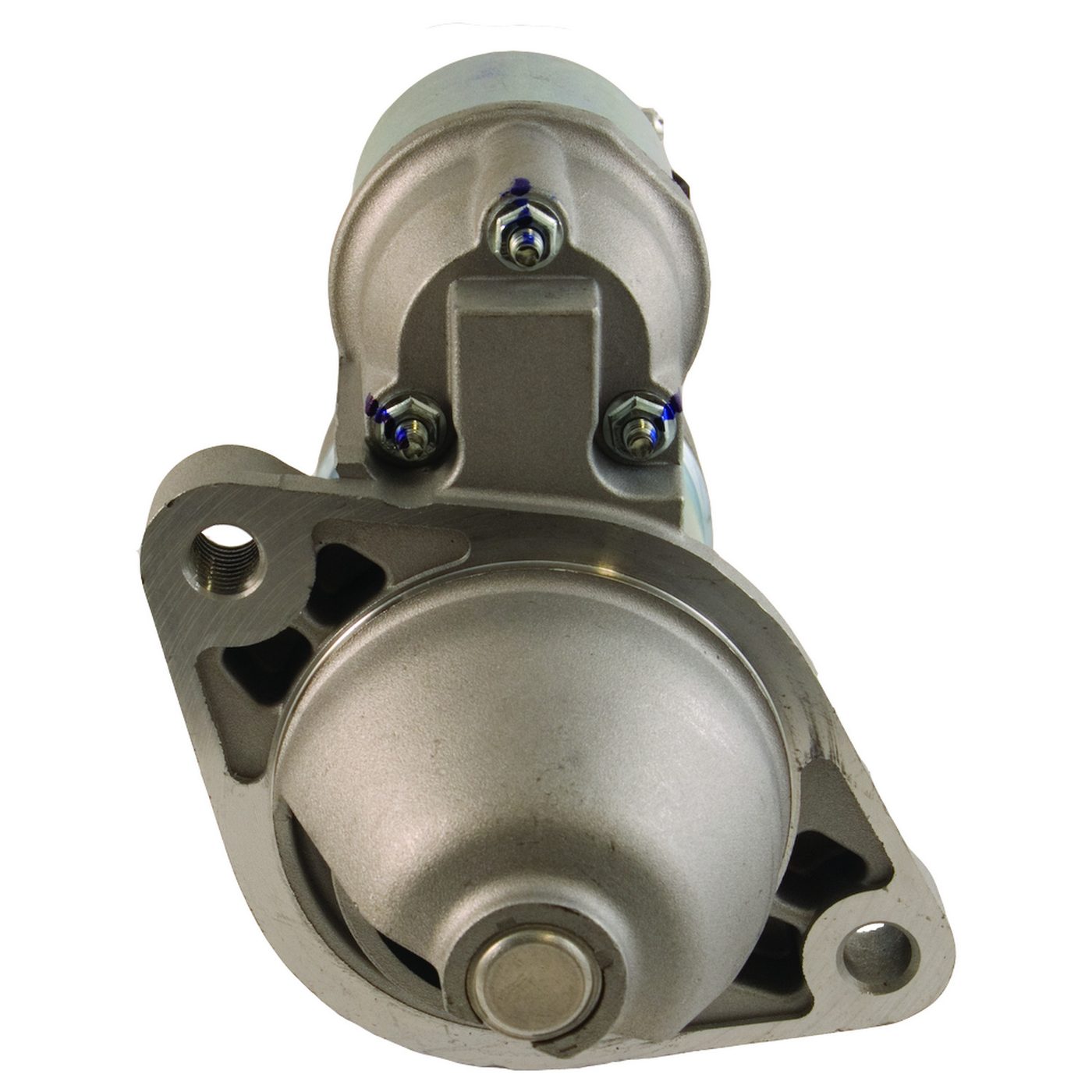

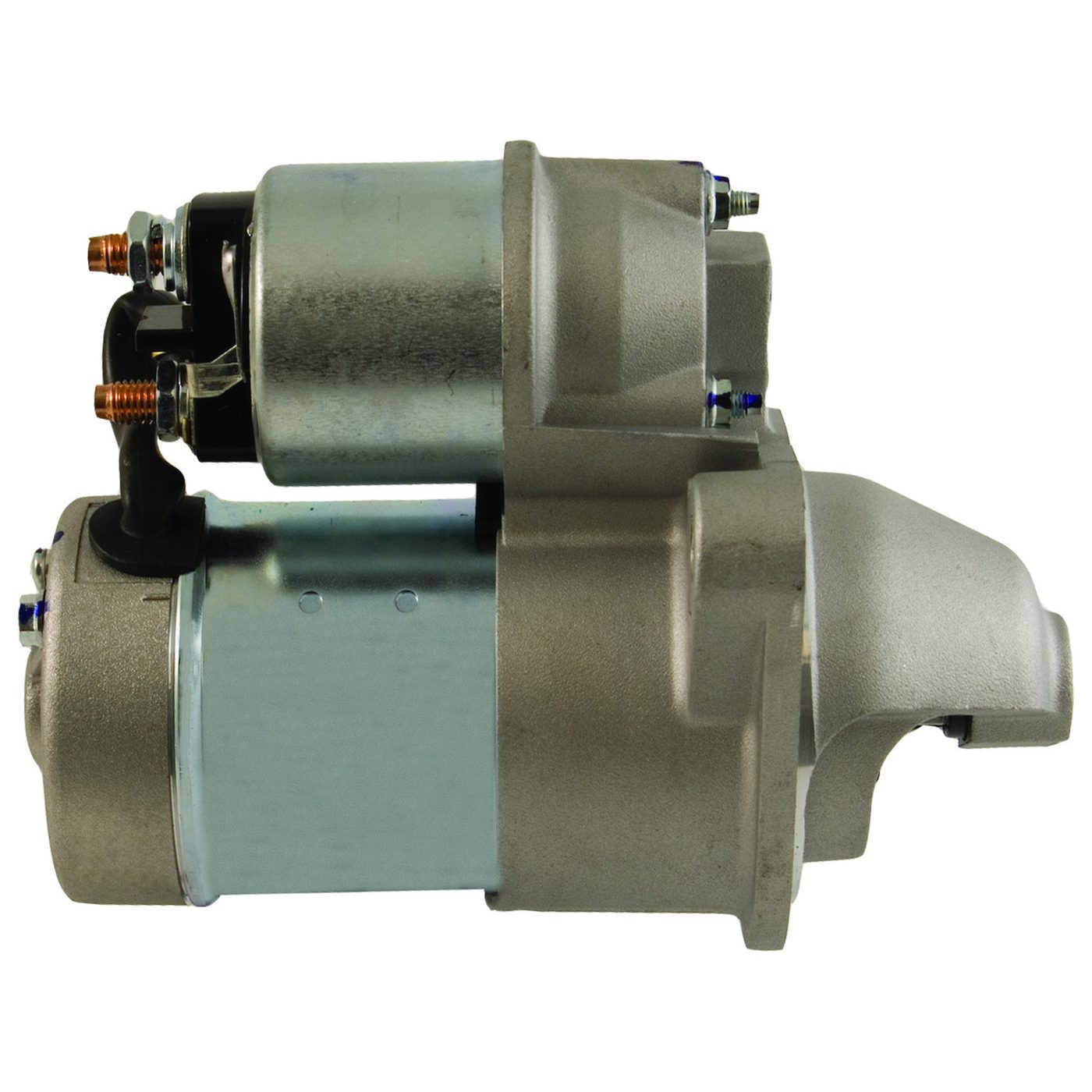

CF-31224N-A starter motor for Honda - Europe Civic MkVII, Honda - Europe Civic, Opel - Europe ASTRA G Box (F70) Eng.Y 17 DT 1.7 DTI 16V 55kw and related applications (1.4kW / 13T / 12V).
Brand
Specification
| Voltage | 12V |
|---|---|
| Teeth | 13T |
| Rotation | CW |
| Power | 1.4kW |
| Starter Type | PMGR |
Features
| Part No | CF-31224N-A |
|---|---|
| MFR | HITACHI |
| Lester Numbers | 31224 |
| OE Numbers | GM 93169014, Hitachi S114-829, S114-829A, S114-829B, S114-869, S114-925, Isuzu 8971891180, 8971891181, 8980147430, Letrika (Iskra) Sales IS 9334, Letrika (Iskra) Tech. AZE2169, Mahle MS 431, Marelli 944280800500, Opel 62-02-000, 62-02-043, 8973860620, 93-174-028, 93-174-034, 95-12-659, 97-189-118 |
| Part Type | Starter |
| Design | PMGR |
Product Advantages
Starter motors are checked around electrical output, rotation, pinion teeth, housing design, and OE replacement references before quotation.
Quality and test focus
Core specifications such as voltage, power or amperage, rotation, teeth, and design are reviewed before sample or bulk quotation.
Replacement sourcing support
MFR HITACHI and replacement references including 31224 help buyers compare existing units and reduce wrong-part risk.
Inquiry-ready supply
Share target quantity, destination, sample need, and packaging requirement so Crankvia can confirm the practical supply path.
Application Information
Application records are provided as compatibility references. Confirm OE number, vehicle configuration, engine, and market version before final ordering.
Application reference
CF-31224N-A
Records
84
Makes
3
Models
47
Year range
1999-2015
| Make | Model | Year | Engine | Note |
|---|---|---|---|---|
| Honda - Europe | Civic MkVII | 2002-2005 | 4EE2 1.7 CTDi | - |
| Honda - Europe | Civic | 2002-2005 | 1700cc | - |
| Opel - Europe | ASTRA G Box (F70) Eng.Y 17 DT 1.7 DTI 16V 55kw | 2003-2005 | Y 17 DT | - |
| Opel - Europe | ASTRA G Estate (F35_) Eng.Y 17 DT 1.7 DTI 16V 55kw | 2000-2004 | Y 17 DT | - |
| Opel - Europe | ASTRA G Hatchback (F48_, F08_) Eng.Y 17 DT 1.7 DTI 16V 55kw | 2000-2005 | Y 17 DT | - |
| Opel - Europe | ASTRA G Saloon (F69_) Eng.Y 17 DT 1.7 DTI 16V 55kw | 2000-2004 | Y 17 DT | - |
| Opel - Europe | Astra G | 2000-2004 | Y17DT, 1.7 DTI | - |
| Opel - Europe | Astra G | 2003-2004 | Z17DTL, 1.7 CDTI | - |
| Opel - Europe | ASTRA GTC J Eng.A 17 DTC, A 17 DTE, A 17 DTJ 1.7 CDTI 81kw | 2011 | A 17 DTC; A 17 DTE; A 17 DTJ | - |
| Opel - Europe | ASTRA GTC J Eng.A 17 DTF, A 17 DTS 1.7 CDTI 96kw | 2011 | A 17 DTF; A 17 DTS | - |
| Opel - Europe | Astra H | 2004-2005 | Z17DTL, 1.7 CDTI | - |
| Opel - Europe | Astra H | 2004-2006 | Z17DTH, 1.7 CDTI | - |
| Opel - Europe | Astra H | 2007-2010 | A17DTR, 1.7 CDTI | - |
| Opel - Europe | Astra H | 2007-2010 | Z17DTR, 1.7 CDTI | - |
| Opel - Europe | ASTRA J Eng.A 17 DTF, A 17 DTS 1.7 CDTI 96kw | 2009 | A 17 DTF, A 17 DTS | - |
| Opel - Europe | ASTRA J Eng.A 17 DTF, A 17 DTS 1.7 CDTI 96kw | 2009 | A 17 DTF; A 17 DTS | - |
| Opel - Europe | ASTRA J Eng.A 17 DTL 1.7 CDTI 74kw | 2010 | A 17 DTL | - |
| Opel - Europe | ASTRA J Sports Tourer Eng.A 17 DTF, A 17 DTS 1.7 CDTI 96kw | 2010 | A 17 DTF, A 17 DTS | - |
| Opel - Europe | ASTRA J Sports Tourer Eng.A 17 DTF, A 17 DTS 1.7 CDTI 96kw | 2010 | A 17 DTF; A 17 DTS | - |
| Opel - Europe | ASTRA J Sports Tourer Eng.A 17 DTR 1.7 CDTI 92kw | 2010 | A 17 DTR | - |
| Opel - Europe | Astra J | 2010-2015 | A17DT, 1.7 CDTI | - |
| Opel - Europe | Astra | 2000-2004 | J17DT, 1.7DTI 16V | - |
| Opel - Europe | Astra | 2000-2004 | Z17DTL, 1.7CDTI | - |
| Opel - Europe | Combo C | 2001-2004 | Y17DT, 1.7 DTI 16V | - |
| Opel - Europe | Combo C | 2004-2015 | Z17DTH, 1.7 CDTI 16V | - |
| Opel - Europe | Combo | 2001 | J17DT, 1.7DTI 16V | - |
| Opel - Europe | CORSA C (F08, F68) Eng.Y 17 DT 1.7 DTI 55kw | 2000-2009 | Y 17 DT | - |
| Opel - Europe | CORSA C (F08, F68) Eng.Y 17 DTL 1.7 DI 48kw | 2000-2009 | Y 17 DTL | - |
| Opel - Europe | Corsa C | 2000-2003 | Y17DT, 1.7 DI 16V | - |
| Opel - Europe | Corsa C | 2000-2003 | Y17DT, 1.7 DTI 16V | - |
| Opel - Europe | Corsa C | 2003-2015 | Z17DTH, 1.7 CDTI | - |
| Opel - Europe | Corsa D | 2006-2015 | A17DTS, 1.7 CDTI | - |
| Opel - Europe | Corsa D | 2006-2015 | Z17DTR, 1.7 CDTI | - |
| Opel - Europe | Corsa | 2000 | Y17DT, 1.7DTI | - |
| Opel - Europe | Corsa | 2000 | Y17DT, 1.7DTI 16V | - |
| Opel - Europe | Corsa | 2000 | Y17DTL, 1.7DI | - |
| Opel - Europe | Corsa | 2000 | Y17DTL, 1.7DI 16V | - |
| Opel - Europe | Corsa | 2003 | Z17DTH, 1.7CDTI | - |
| Opel - Europe | Meriva A | 2003-2009 | Z17DTH, 1.7 CDTI | - |
| Opel - Europe | Meriva A | 2003-2015 | Y17DT, 1.7 DTI | - |
| Opel - Europe | Meriva A | 2006-2015 | A17DTR, 1.7 CDTI | - |
| Opel - Europe | Meriva A | 2006-2015 | Z17DTR, 1.7 CDTI | - |
| Opel - Europe | Meriva B | 2010-2015 | A17DT, 1.7 CDTI | - |
| Opel - Europe | Meriva | 2003 | w/1.7CDTI | - |
| Opel - Europe | Meriva | 2003 | w/1.7DTI | - |
| Opel - Europe | Mokka | 2012-2015 | A17DT, 1.7 CDTI | - |
| Opel - Europe | Zafira B | 2008-2015 | A17DTJ, 1.7 CDTI | - |
| Opel - Europe | Zafira B | 2008-2015 | A17DTR, 1.7 CDTI | - |
| Vauxhall - Europe | Astra G | 2003-2005 | Z17DTL, 1.7 CDTI | - |
| Vauxhall - Europe | Astra H | 2004-2009 | Z17DTH, 1.7 CDTI | - |
| Vauxhall - Europe | Astra H | 2004-2009 | Z17DTL, 1.7 CDTI | - |
| Vauxhall - Europe | Astra J | 2010-2015 | A17DT, 1.7 CDTI | - |
| Vauxhall - Europe | Astra | 2000-2005 | 1700cc Y17DT Isuzu | - |
| Vauxhall - Europe | Astra | 2003-2005 | 1700cc Z17DTL | - |
| Vauxhall - Europe | Astra | 2004-2007 | 1700cc Z17DTH,DTL | - |
| Vauxhall - Europe | Astra | 2007-2010 | 1700cc A,Z17DTH,J | - |
| Vauxhall - Europe | Astra | 2007-2010 | 1700cc Z17DTJ,R | - |
| Vauxhall - Europe | Astravan G | 2000-2015 | Y17DT, 1.7 DTI | - |
| Vauxhall - Europe | Astravan H | 2005-2006 | Z17DTL, 1.7 CDTI | - |
| Vauxhall - Europe | Astravan Mk V | 2007-2010 | 1700cc A,Z17DTH,J | - |
| Vauxhall - Europe | Astravan Mk V | 2007-2010 | 1700cc Z17DTJ,R | - |
| Vauxhall - Europe | Combo C | 2004-2015 | Z17DTH, 1.7 CDTI | - |
| Vauxhall - Europe | Corsa C | 2000-2015 | Z17DTDTL, 1.7 DTI | - |
| Vauxhall - Europe | Corsa C | 2000-2015 | Z17DTH, 1.7 DTI | - |
| Vauxhall - Europe | Corsa D | 2006-2015 | A17DTS, 1.7 CDTI | - |
| Vauxhall - Europe | Corsa D | 2006-2015 | Z17DTR, 1.7 CDTI | - |
| Vauxhall - Europe | Corsa | 2000-2003 | 1700cc Y17DT | - |
| Vauxhall - Europe | Corsa | 2000-2003 | 1700cc Y17DTL | - |
| Vauxhall - Europe | Corsa | 2003-2005 | 1700cc Z17DTH | - |
| Vauxhall - Europe | Corsa | 2006-2013 | 1700cc A17DTR | - |
| Vauxhall - Europe | Meriva A | 2004-2010 | Z17DTH, 1.7 CDTI | - |
| Vauxhall - Europe | Meriva A | 2006-2010 | Z17DTR, 1.7 CDTI | - |
| Vauxhall - Europe | Meriva B | 2010-2015 | A17DT, 1.7 CDTI | - |
| Vauxhall - Europe | Meriva | 2003-2005 | 1700cc Y17DT | - |
| Vauxhall - Europe | Meriva | 2003-2005 | 1700cc Z17DTH | - |
| Vauxhall - Europe | Meriva | 2003 | 1700cc A,Z17DTR | - |
| Vauxhall - Europe | Meriva | 2007-2009 | 1700cc A,Z17DTR | - |
| Vauxhall - Europe | Mokka | 2012-2015 | A17DT, 1.7 CDTI | - |
| Vauxhall - Europe | Vectra B | 1999-2015 | TC4EE1, 1.7 TD | - |
| Vauxhall - Europe | Vectra B | 1999-2015 | X17DT, 1.7 TD | - |
| Vauxhall - Europe | Zafira B | 2008-2015 | A17DTR, 1.7 CDTI | - |
| Vauxhall - Europe | Zafira B | 2008-2015 | Z17DTJ, 1.7 CDTI | - |
| Vauxhall - Europe | ZAFIRA Mk II (B) (M75) Eng.A 17 DTR 1.7 CDTI 92kw | 2008-2014 | A 17 DTR | - |
| Vauxhall - Europe | Zafira Mk II | 2005-2009 | 1700cc A,Z17DTR | - |
